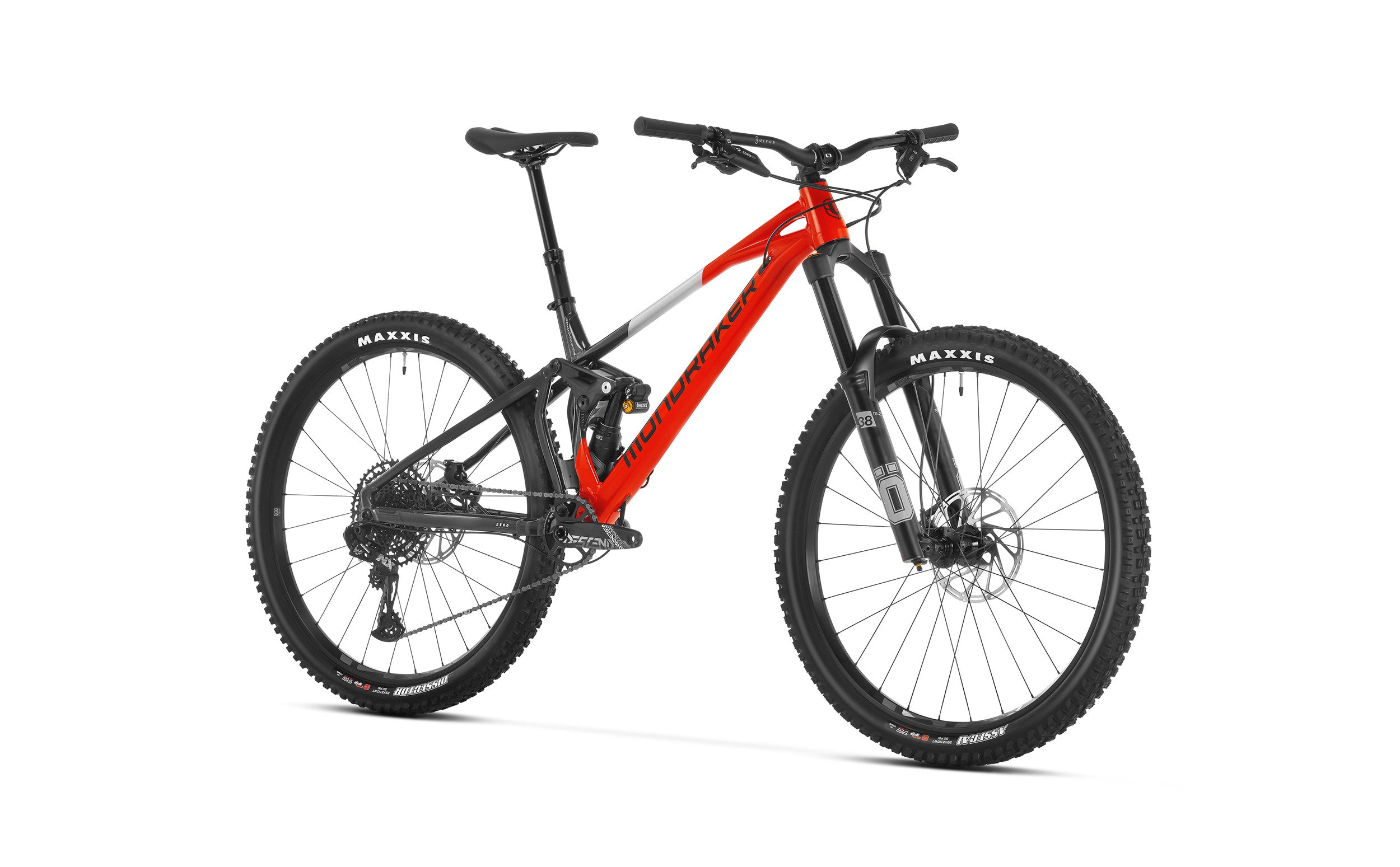

Discover the ultimate trail conqueror - the Mondraker Superfoxy R Mountain Bike in Flame Red. Crafted for thrill-seekers and trailblazers, this beast of a bike combines cutting-edge design with premium components to elevate your riding experience to new heights.
At the heart of the Superfoxy R lies its SuperFoxy 29 6061 Alloy Stealth Evo frame. Designed with hydroformed tubing and Mondraker's signature Forward Geometry, this frame boasts 160mm of travel, ensuring a smooth and controlled ride over any terrain. Plus, with a one-piece Monoblock upper link and SuperBoost 12x157mm rear axle, you'll experience unparalleled stability and responsiveness on the trail.
Equipped with an Öhlins TTX Air rear shock and Öhlins RXF 38 M.2 fork, this bike is built to devour obstacles with ease. With adjustable settings for high-speed compression, low-speed compression, and rebound, you can fine-tune your ride for maximum performance.
Navigate technical descents and power through uphill climbs with confidence, thanks to the SRAM DB8 hydraulic disc brakes paired with oversized 4-piston calipers. With Centerline rotors and steel-backed metal sintered pads, you'll enjoy unparalleled stopping power and control.
The Mondraker Superfoxy R rolls on e*thirteen LG1 Enduro rims paired with Maxxis Assegai and Dissector tires, ensuring superior traction and durability on any terrain. And with a Sram Truvativ Descendant 7K Eagle crankset and SRAM SX Eagle drivetrain, you'll experience smooth and precise shifting every time.
Lightweight yet robust, the Superfoxy R weighs in at just 17.2 kg, making it agile enough to tackle technical trails while still offering the durability to withstand the rigors of aggressive riding.
Conquer the trails in style with the Mondraker Superfoxy R Mountain Bike in Flame Red. Whether you're shredding single-track or exploring new trails, this bike is your ticket to adrenaline-fueled adventures. Get ready to unleash your inner mountain biking champion. Available now at our Liverpool bicycle store.
Specifications
Frame:
SuperFoxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 160mm travel, Forward Geometry, one piece Monoblock upper link, SuperBoost 12x157mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, Max. capacity sealed bearings, ISCG 05
Sizes:
S: 380mm / M: 420mm / L: 470mm / XL: 510mm
Rear shock:
Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings
Shock settings:
C20 compression, R35 rebound. Volume reducers 16.000 (2xF+1E)
Fork:
Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
Headset:
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem:
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar:
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips:
Onoff Twin, 1lock-on, 135mm
Seatpost:
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
Saddle:
SDG BEL-AIR 3.0, LPU foam, steel rails
Front brake:
Sram DB8, oversized 4-piston calliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake:
Sram DB8, oversized 4-piston calliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever:
Sram DB8, tool reach adjust, lever pivot bushings
Rims:
e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminium, 30mm internal width, tubeless ready, 28 spokes
Spokes:
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front hub:
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminium, IS 6 bolts
Rear hub:
e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminium w/6-degree engagement, IS 6 bolts, HG freehub
Front tire:
Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Rear tire:
Maxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Crankset:
Sram Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, Direct mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm CL 56´5
Rings:
32T, CNC-machined alloy, X-SYNC 2
Bottom bracket:
Sram DUB BSA, sealed bearings, 73mm, superboost
Chain:
Sram SX Eagle, 12s, Powerlock
Rear derailleur:
Sram NX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Shift levers:
Sram Trigger SX Eagle, 12s, X-Actuation 1:1
Cassette:
Sram PG-1230, 11-50T, 12s
Derailleur hanger:
Mondraker M068
Weight:
17.2 kg
