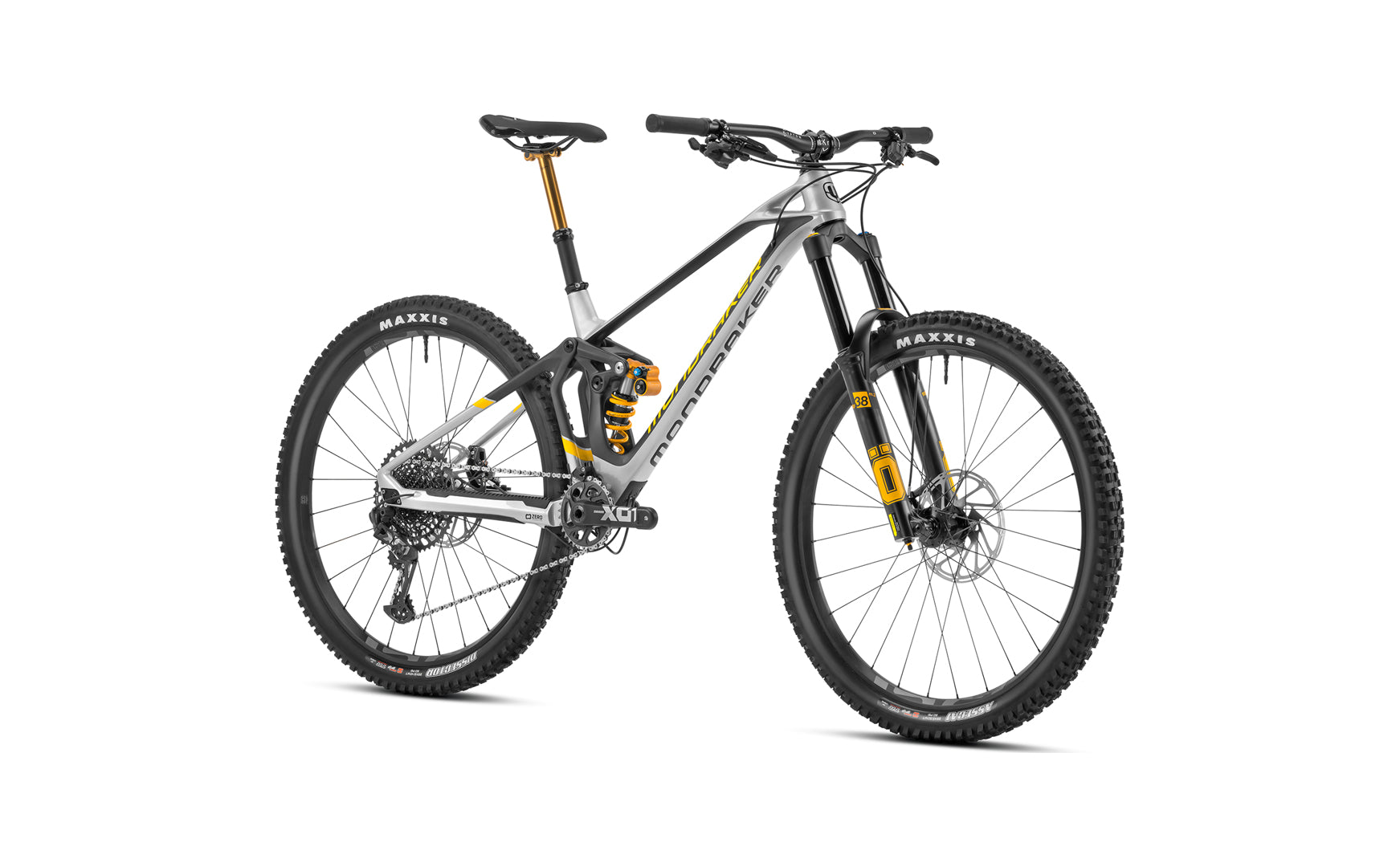

Introducing the Mondraker Superfoxy Carbon RR Mountain Bike, a powerhouse of performance and precision engineered for the most demanding trails. In striking Racing Silver, this bike is not just about looks – it’s about dominating every ascent and descent with confidence.
Crafted around the SuperFoxy 29 Stealth Air full Carbon frame, this masterpiece features the Zero Suspension System with 160mm travel, ensuring every ride is smooth and controlled. Forward Geometry enhances handling while the Carbon Monoblock upper link maximizes durability. Plus, with SuperBoost 12x157mm rear axle and Enduro MAX sealed bearings, this bike is built for stability and longevity.
The Öhlins TTX 22M Coil rear shock and Öhlins RXF 38 M.2 fork deliver unparalleled performance, with customizable settings for your riding style. Paired with ONOFF components including the Krypton Carbon handlebar and Krypton FG stem, you’ll experience precision control on every turn.
Bringing you to a halt with authority are the Sram Code RSC brakes, while the e*thirteen LG1 Plus Enduro rims and Maxxis Assegai/Dissector tires ensure traction and durability on any terrain.
Powered by a Sram X01 Carbon Eagle crankset and GX Eagle drivetrain, shifting is smooth and efficient, whether climbing or descending. And with the included Geometry Kit, you have the flexibility to fine-tune your ride.
Lightweight at just 15.3kg, the Mondraker Superfoxy Carbon RR is ready to conquer the trails of Liverpool and beyond. Elevate your riding experience with this top-tier mountain bike.
Specifications
Frame:
SuperFoxy 29 Stealth Air full Carbon, Zero Suspension System, 160mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. *Geometry kit included
Sizes:
S: 380mm / M: 420mm / L: 470mm / XL: 510mm
Rear shock:
Öhlins TTX 22M Coil 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings
Shock settings:
C10 compression, R35 rebound. Spring rate: S size 343 lbs, M size 411 lbs, L size 457 lbs, XL size 502 lbs
Fork:
Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
Headset:
ONOFF Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem:
ONOFF Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar:
ONOFF Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips:
ONOFF Desert, 1lock-on, 135mm
Seatpost:
Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M/L size: 418.3x150mm, XL size: 475.1x175mm
Saddle:
SDG BEL-AIR 3.0, LPU foam, steel rails
Front brake:
Sram Code RSC, oversized 4-piston calliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake:
Sram Code RSC, oversized 4-piston calliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever:
Sram Code RSC, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
Rims:
e*thirteen LG1 Plus Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
Spokes:
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front hub:
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminium, IS 6 bolts
Rear hub:
e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminium w/6-degree engagement, IS 6 bolts, XD freehub
Front tire:
Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Rear tire:
Maxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Crankset:
Sram X01 Carbon Eagle, SuperBoost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm
Rings:
32T, CNC-machined alloy, X-SYNC 2
Bottom bracket:
Sram DUB BSA, sealed bearings, 73mm
Chain:
Sram GX Eagle, 12s, Powerlock
Rear derailleur:
Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers:
Sram Trigger X01 Eagle, 12s, X-Actuation 1:1
Cassette:
Sram XG-1275, 10-52T, 12s
Derailleur hanger:
Mondraker M071
Others:
*Geometry kit included: 0º headset cups and chainstay adaptor for 450mm CS length
Weight:
15,3 kg
