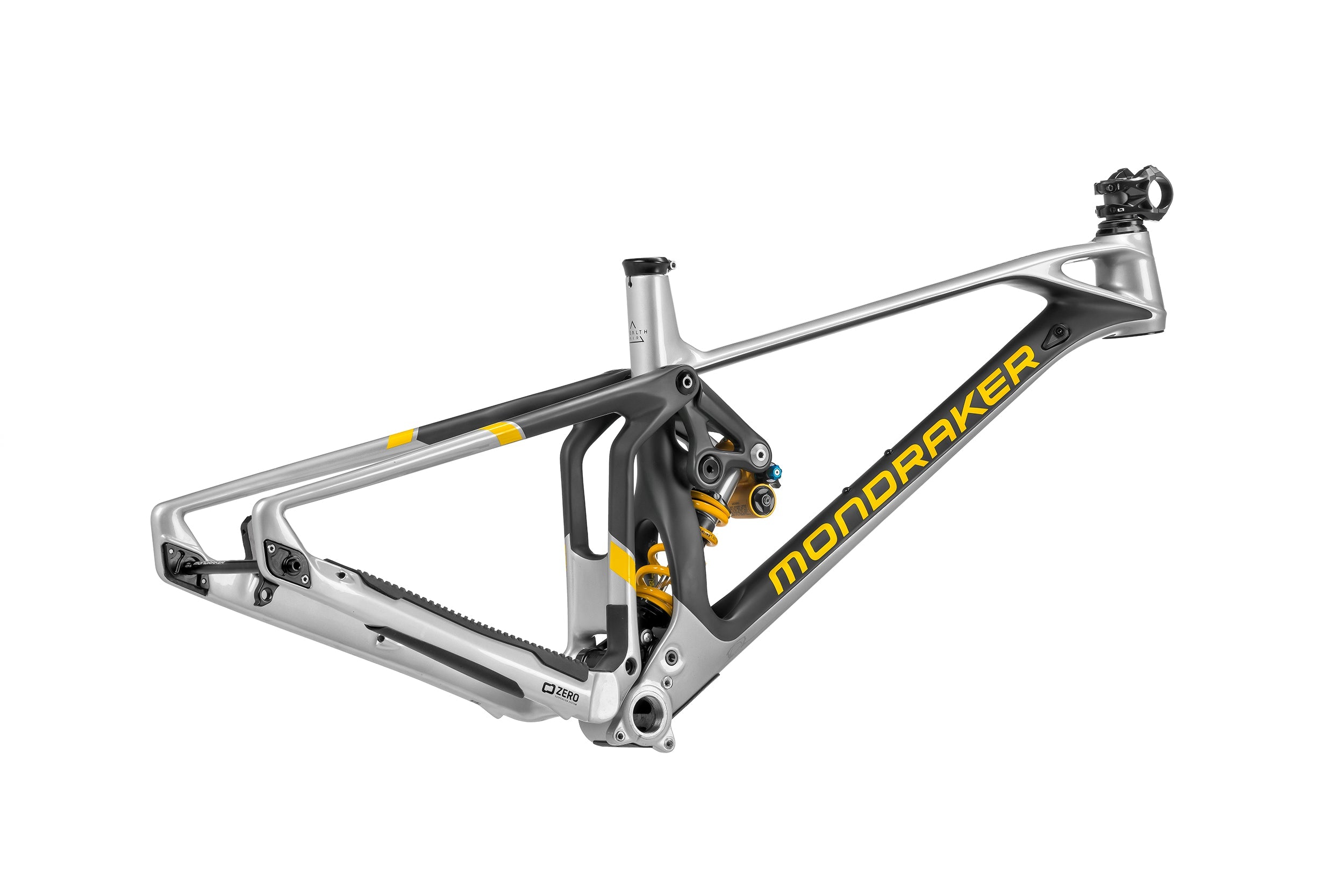

Mondraker Superfoxy Carbon RR Mountain Bike Frameset - Bunker Grey
        Mondraker Superfoxy Carbon RR Mountain Bike Frameset - Bunker Grey

Mondraker Superfoxy Carbon RR Mountain Bike Frameset - Bunker Grey

Save 1%
£4,119.99 £4,199
/

Select an option to add this to your cart.

Introducing the Mondraker Superfoxy Carbon RR Mountain Bike Frameset in Bunker Grey, designed to elevate your off-road adventures to new heights. Crafted for the discerning rider who demands peak performance and cutting-edge technology, this frameset embodies the pinnacle of mountain biking excellence.

Constructed from SuperFoxy 29 Stealth Air full Carbon, the frame boasts a Zero Suspension System with 160mm of travel, delivering unparalleled control and responsiveness on even the most challenging terrain. Its Forward Geometry ensures precise handling and stability, while the Carbon Monoblock upper link and SuperBoost 12x157mm rear axle enhance overall rigidity and power transfer.

Equipped with an Öhlins TTX 22M Coil rear shock, this frameset offers customizable settings, including high-speed compression lever with climb mode, low-speed compression, rebound, and air preload. With shock settings tailored to each frame size, ranging from S to XL, riders can enjoy a personalized riding experience suited to their preferences and physique.

The Onoff Titan tapered headset and Onoff Krypton FG stem further enhance performance, providing reliable steering control and optimal handling characteristics. Plus, with the inclusion of a Mondraker M071 derailleur hanger and a geometry kit featuring 0º headset cups and a chainstay adaptor, customization options abound for fine-tuning your ride to perfection.

Whether you're tackling rugged trails or soaring down mountainsides, the Mondraker Superfoxy Carbon RR Frameset empowers you to conquer any terrain with confidence and style. Elevate your riding experience today with this exceptional frameset, available exclusively at our bicycle store in Liverpool.

    Specification

    Frame:
    SuperFoxy 29 Stealth Air full Carbon, Zero Suspension System, 160mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. *Geometry kit included

    Sizes:
    S: 380mm / M: 420mm / L: 470mm / XL: 510mm

    Rear shock:
    Öhlins TTX 22M Coil 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings

    Shock settings:
    C10 compression, R35 rebound. Spring rate: S size 343 lbs, M size 411 lbs, L size 457 lbs, XL size 502 lbs

    Headset:
    Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º

    Stem:
    Onoff Krypton FG 30mm, CNC, 31.8mm barbore

    Derailleur hanger:
    Mondraker M071

    Others:
    *Geometry kit included: 0º headset cups and chainstay adaptor for 450mm CS length
