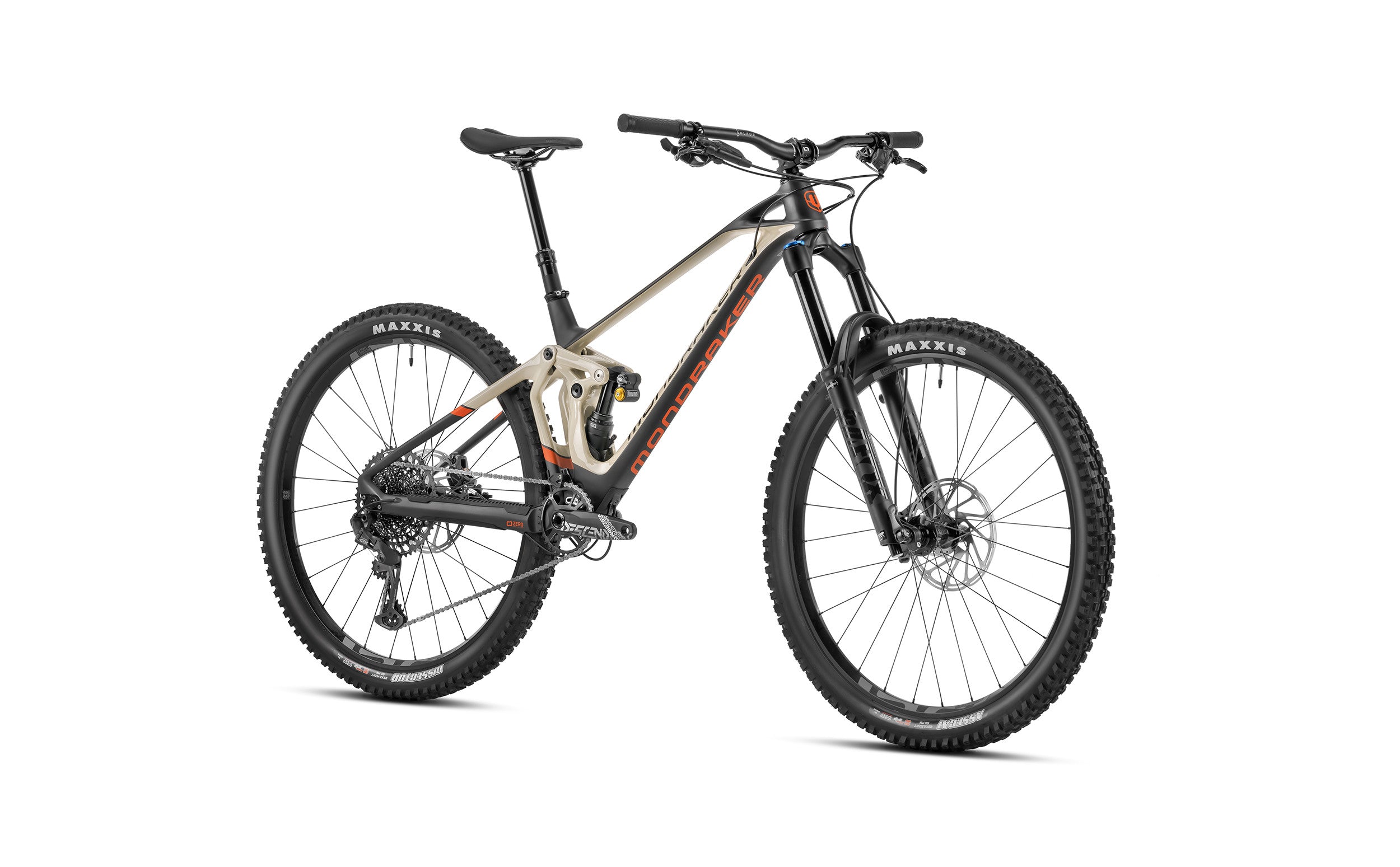

Introducing the Mondraker Superfoxy Carbon R Mountain Bike in Desert Grey, an absolute powerhouse engineered for conquering any trail with unmatched precision and agility. Crafted with the highest-grade materials and cutting-edge technology, this bike is your ultimate companion for pushing the limits of mountain biking.
Featuring the SuperFoxy 29 Stealth Air full Carbon frame, this beauty is not just lightweight but also boasts a robust construction. Its Zero Suspension System with 160mm travel ensures a smooth and controlled ride over rough terrain, while the Forward Geometry enhances handling and stability, giving you the confidence to tackle steep descents and technical sections with ease.
Equipped with top-of-the-line components, the Superfoxy Carbon R leaves no room for compromise. The Öhlins TTX Air rear shock and Fox 38 29 Float fork work in perfect harmony to absorb impacts and maintain traction, providing you with unparalleled control and comfort on the trail.
Designed for maximum performance, this bike comes with a Sram GX Eagle 1x12 drivetrain, ensuring smooth and precise shifting even in the most demanding conditions. The Sram Code R brakes deliver reliable stopping power, while the Maxxis Assegai and Dissector tires offer exceptional grip and durability, allowing you to charge through corners and tackle technical climbs with confidence.
With its sleek Desert Grey colorway and attention-grabbing design, the Mondraker Superfoxy Carbon R is sure to turn heads on the trails. Whether you're a seasoned pro or a weekend warrior, this bike is ready to elevate your riding experience to new heights.
Visit our bicycle store in Liverpool today and experience the thrill of riding the Mondraker Superfoxy Carbon R Mountain Bike for yourself. Unleash your full potential and conquer any trail with style and confidence.
Specifications
Frame:
SuperFoxy 29 Stealth Air full Carbon, Zero Suspension System, 160mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. *Optional Geometry kit
Sizes:
S: 380mm / M: 420mm / L: 470mm / XL: 510mm
Rear shock:
Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings
Shock settings:
C20 compression, R35 rebound. Volume reducers 16.000 (2xF+1E)
Fork:
Fox 38 29 Float FIT GRIP EVOL Performance, 170mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
Headset:
ONOFF Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem:
ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar:
ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips:
ONOFF Desert, 1lock-on, 135mm
Seatpost:
ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Saddle:
SDG BEL-AIR 3.0, LPU foam, steel rails
Front brake:
Sram Code R, oversized 4-piston calliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake:
Sram Code R, oversized 4-piston calliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever:
Sram Code R, tool-free reach adjust
Rims:
e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminium, 30mm internal width, tubeless ready, 28 spokes
Spokes:
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front hub:
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminium, IS 6 bolts
Rear hub:
e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminium w/6-degree engagement, IS 6 bolts, XD freehub
Front tire:
Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Rear tire:
Maxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Crankset:
Truvativ Descendant 7K Eagle, SuperBoost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm
Rings:
32T, CNC-machined alloy, X-SYNC 2
Bottom bracket:
Sram DUB BSA, sealed bearings, 73mm
Chain:
Sram NX Eagle, 12s, Powerlock
Rear derailleur:
Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers:
Sram Trigger GX Eagle, 12s, X-Actuation 1:1
Casette:
Sram XG-1275, 10-52T, 12s
Derailleur hanger:
Mondraker M071
Others:
*Optional geometry kit: 0º headset cups and chainstay adaptor for 450mm CS length
Weight:
15.6 kg
