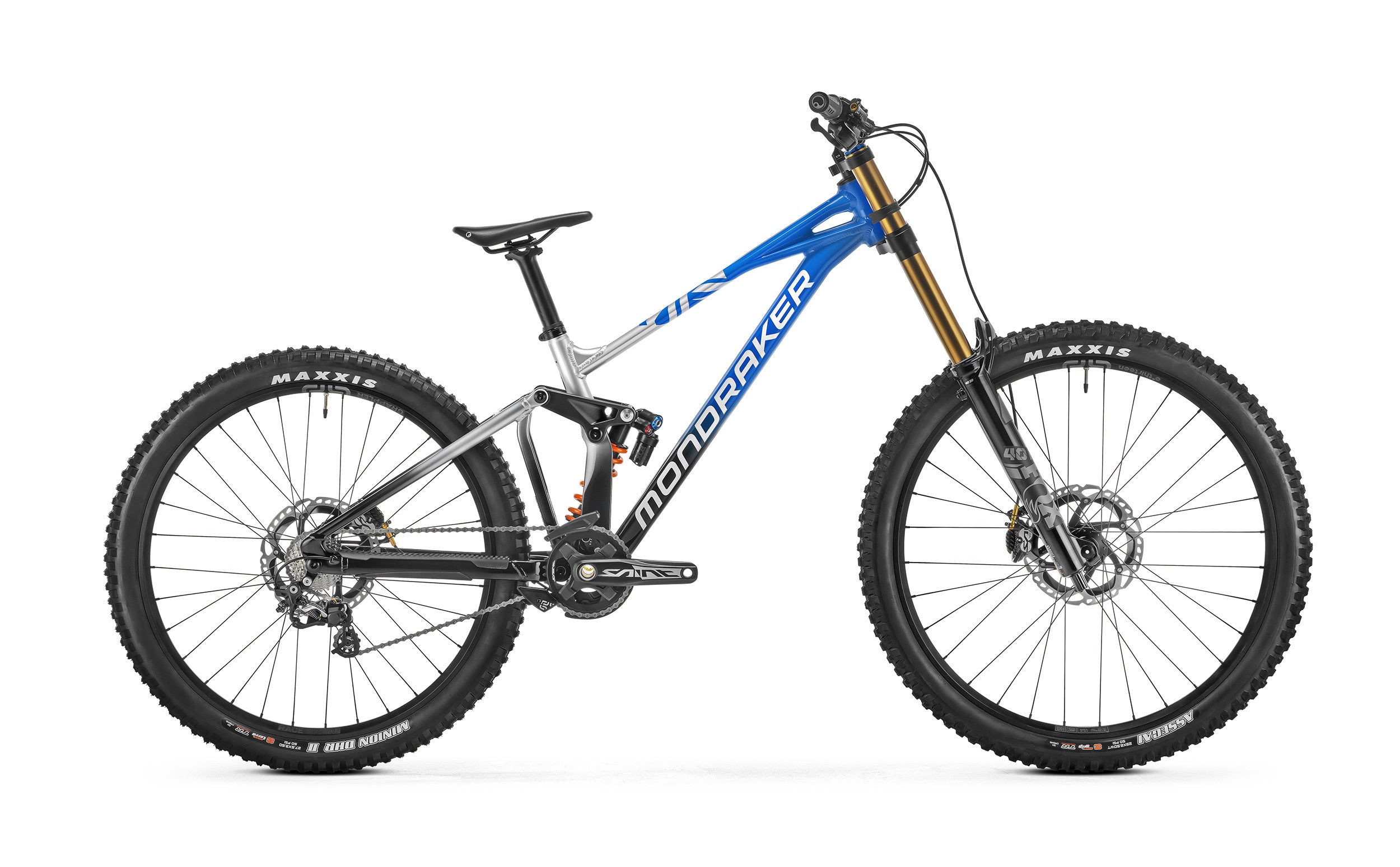

Mondraker Summum Carbon RR Mullet Downhill Bike - Carrera Blue Mondraker Summum Carbon RR Mullet Downhill Bike - Carrera Blue
Mondraker Summum Carbon RR Mullet Downhill Bike - Carrera Blue Mondraker Summum Carbon RR Mullet Downhill Bike - Carrera Blue
Mondraker Summum Carbon RR Mullet Downhill Bike - Carrera Blue Mondraker Summum Carbon RR Mullet Downhill Bike - Carrera Blue

Mondraker Summum Carbon RR Mullet Downhill Bike - Carrera Blue

Save 2%
£6,304.99 £6,499
/

Select an option to add this to your cart.

Unleash peak downhill performance with the Mondraker Summum Carbon RR Mullet Downhill Bike in Carrera Blue, built for ultimate speed and control on demanding trails. Engineered with Mondraker’s Summum MX 6061 Alloy Stealth Evo frame, this downhill bike showcases an advanced Zero suspension system with a massive 200mm of travel, ensuring stability and smooth descents over rugged terrain. Designed with a Mullet configuration (29" front and 27.5" rear wheels), the Summum RR allows you to tackle corners with agility and precision.

At its core, the bike is outfitted with a Fox DHX2 Factory Kashima rear shock and Fox 40 29 Float FIT GRIP X2 EVOL Factory Kashima fork, both offering high and low-speed compression and rebound adjustments for a completely tailored ride. The Shimano Saint 4-piston brakes with ICE technology ensure powerful stopping power, while the e*thirteen Grappler Race DH rims and Maxxis Assegai and Dissector tires provide impeccable grip on any surface. With Shimano Saint drivetrain and precise 10-speed shifting, you'll enjoy responsive, dependable performance with every ride.

Crafted with Forward Geometry and SuperBoost spacing for optimal control, this downhill powerhouse also features Mondraker’s HHG internal cable routing for a clean look and reduced maintenance. The Onoff DH components, including the S9 CNC integrated stem and S6 handlebar, add to its pro-level build. Perfect for serious riders aiming to dominate descents, the Mondraker Summum Carbon RR Mullet in Carrera Blue is ready to elevate your downhill experience. Available now at our Liverpool store!

    Specifications

    Frame: Summum MX 6061 Alloy Stealth Evo, Mullet, hydroformed tubing, Zero suspension system, 200mm travel, Forward Geometry, alloy upper link with shock eyelet bearings, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, MAX. capacity dual row Enduro bearings, HHG internal cable routing, ISCG 05. *Optional Geometry kit

    Sizes: S / M / L / XL MX

    Rear shock: Fox DHX2 Factory Kashima, 225x70mm. Settings: high and low-speed compression, high and low-speed rebound, spring preload. Super light steel (SLS) spring. Trunnion top mount, 30x8mm bottom bushings

    Shock settings: CX004 compression, ECR012 rebound Rezi BX001. Spring rate: S size 400 lbs, M size 450 lbs, L size 500 lbs, XL size 500 lbs

    Fork: Fox 40 29 Float FIT GRIP X2 EVOL Factory Kashima, 203mm, air spring, 1-1/8” steerer tube, 20x110mm axle, offset 52mm. Settings: high and low-speed compression, high and low-speed rebound, air preload

    Headset: Onoff ZS56/ZS56, 1-1/8", 1-1/8" steerer tube, 42x30x7x45ºx45º ACB sealed bearings, geometry kit cups, external diameter 62mm

    Stem: Onoff S9 DH CNC Integrated, 45-50mm adjustable length, 10mm rise, 31.8mm barbore, 7075 alloy, 2x6mm spacer

    Handlebar: Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.

    Grips: Ergon GDH Team black

    Seatpost: Onoff S3 DH Alloy, diameter 31.6mm, length 300mm

    Saddle: Ergon SM10 DH Black

    Front brake: Shimano Saint M820, 4-piston calliper, RT86 203mm 2-piece IS 6 bolts rotor with ICE technology, resin pads with cooler

    Rear brake: Shimano Saint M820, 4-piston calliper, RT86 203mm 2-piece IS 6 bolts rotor with ICE technology, resin pads with cooler

    Brake lever: Shimano Saint, ergonomic antiskid lever with servo wave, free stroke and tool less reach adjust

    Rims: e*thirteen Grappler Race DH, IW29 29" Hookless, 6069 Welded Aluminium, 30mm internal width, tubeless ready, 32 spokes

    Spokes: e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers

    Front hub: e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminium, IS 6 bolts

    Rear hub: e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminium w/6-degree engagement, IS 6 bolts, HG freehub

    Front tire: Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

    Rear tire: Maxxis Dissector 27''5x2.4 WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

    Crankset: Shimano Saint M825 Hollowtech II, reinforced steel axle, 165mm

    Rings: 36T, aluminium, BCD 104

    Bottom bracket: Shimano 83mm

    Chain: Shimano HG95, 10s

    Front derailleur: e*Thirteen Vario Compact Upper Slider ,Alloy backplate ,DMB (Direct mount Bashguard) Lower Slider 34-36t, ISCG 05 adjustable upper slider

    Rear derailleur: Shimano Saint RD-M820-SS, 10s, Shadow+, short cage

    Shift levers: Shimano Saint SL-M820 10s, low friction multi bearing, instant release, multi release, 2-way release

    Cassette: Shimano CS-HG500-10, 11-25T, 10s

    Derailleur hanger: Mondraker M068

    Others: *Geometry kit included: +-1º / +-2º headset cups

    Weight: 17,8 kg
