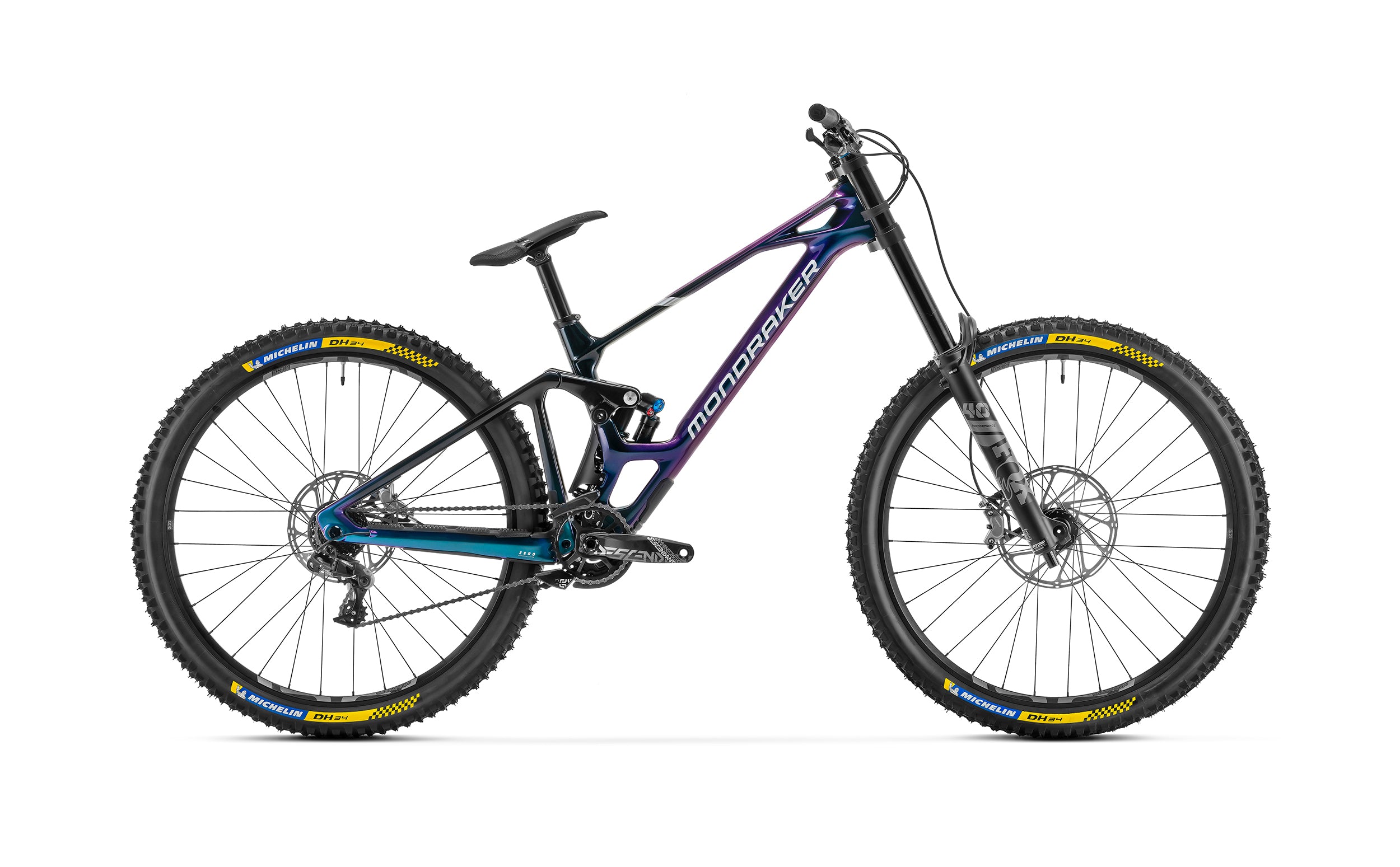

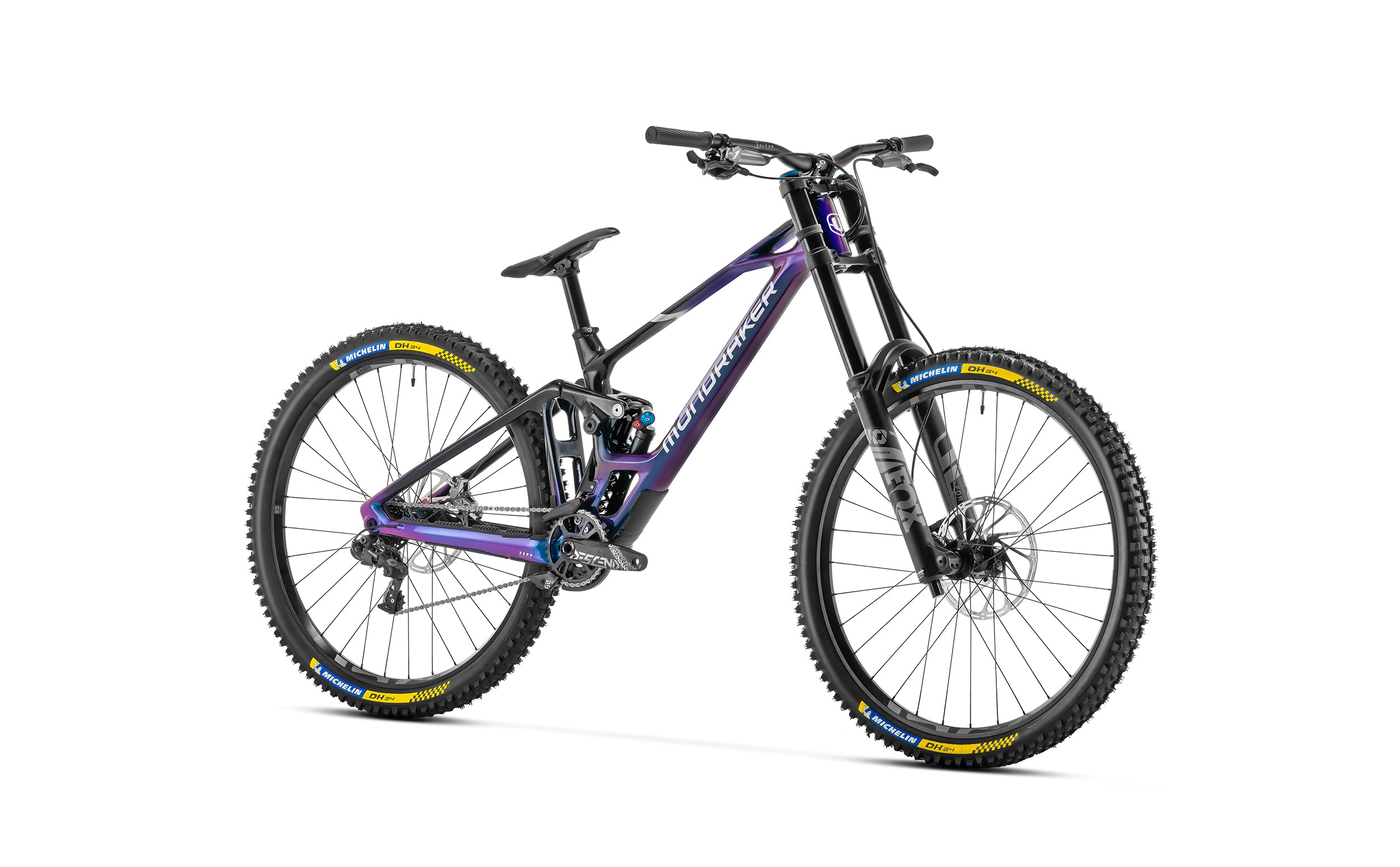

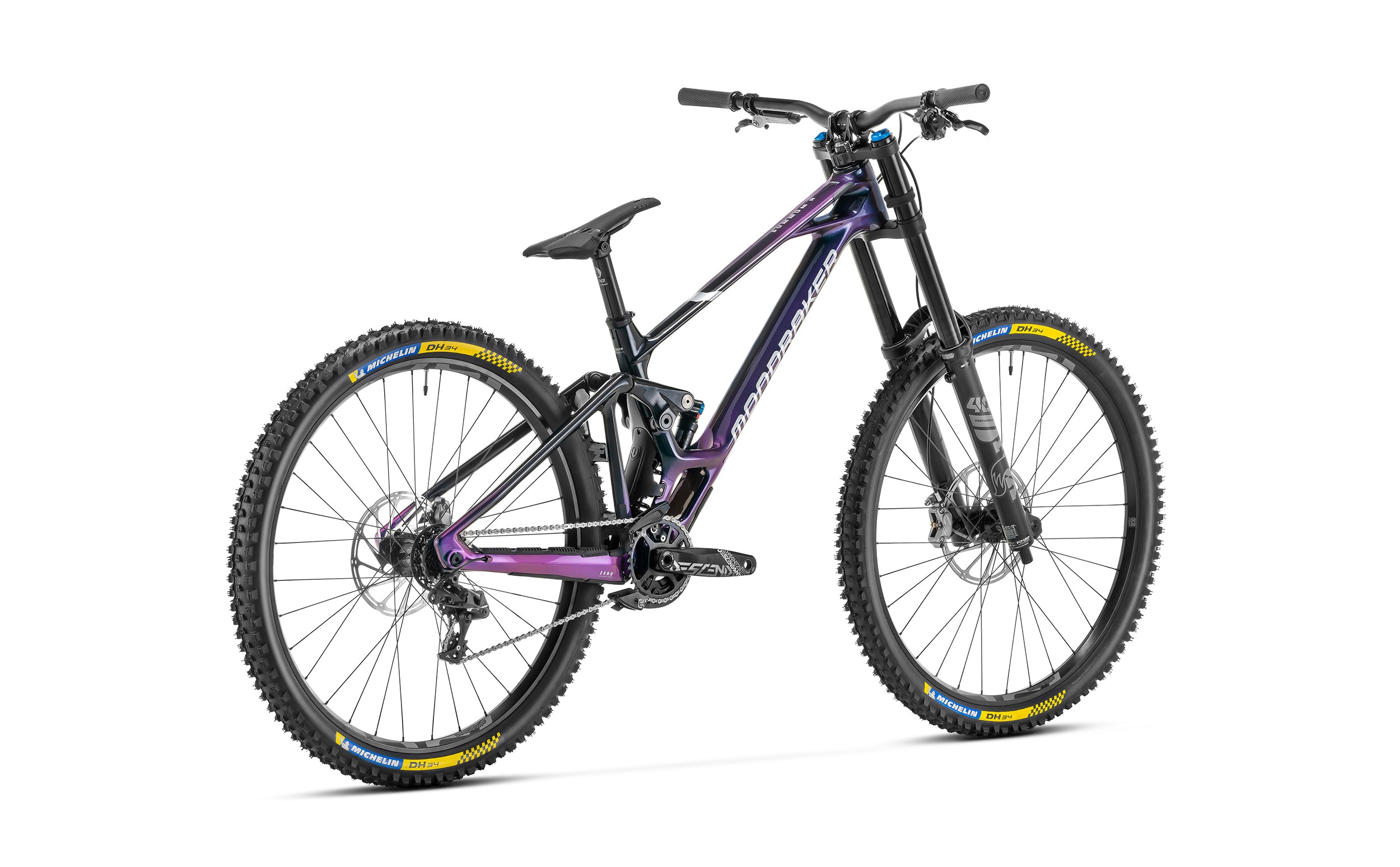

Introducing the Mondraker Summum Carbon R Mullet Downhill Bike in Polaris, now available at our Liverpool store! Engineered for extreme downhill performance, this cutting-edge bike is designed to dominate the toughest trails with precision and style.
Crafted from Summum Carbon Stealth Air full Carbon, this bike boasts the innovative Zero Suspension System, delivering a staggering 200mm of travel. With Forward Geometry for enhanced stability and control, every ride is an exhilarating experience.
Choose from a range of sizes including S, M, L, and XL Mullet, ensuring a perfect fit for every rider. Plus, with the optional geometry kit, you can customize your ride with ease.
Equipped with top-of-the-line components, the Mondraker Summum Carbon R Mullet features a Fox DHX2 Performance Elite rear shock and a Fox 40 29 Float FIT GRIP EVOL Performance fork, providing unmatched responsiveness and damping on even the roughest terrain.
The Sram Code Bronze Stealth brakes deliver unparalleled stopping power, while the e*thirteen LG1 Plus DH rims and Michelin DH34 tires ensure maximum traction and durability.
Powered by a Sram Truvativ Descendant DH crankset and Sram GX DH drivetrain, this bike delivers seamless shifting and efficient power transfer, even on the steepest descents.
Lightweight yet incredibly durable, the Mondraker Summum Carbon R Mullet weighs in at just 16.9 kg, making it agile and nimble on the trails.
Don't settle for anything less than the best. Experience the thrill of downhill riding like never before with the Mondraker Summum Carbon R Mullet Downhill Bike. Visit our Liverpool store today and take your riding to new heights!
Specifications
Frame:
Summum Carbon Stealth Air full Carbon, Zero Suspension System, 200mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, HHG internal cable routing, MAX. capacity dual row Enduro bearings, shock mudguard, ISCG 05, custom frame protectors. *Optional Geometry kit.
Sizes:
S / M / L / XL Mullet
Rear shock:
Fox DHX2 Performance Elite, 225x70mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings:
ECC010 compression, ECR012 rebound. Spring rate: S size 400 lbs, M size 450 lbs, L size 500 lbs, XL size 500 lbs
Fork:
Fox 40 29 Float FIT GRIP EVOL Performance, 203mm, air spring, 1-1/8” steerer tube, 20x110mm axle, offset 56mm. Settings: low-speed compression, low-speed rebound, air preload
Headset:
Onoff Mercurium 1.5 ZS for 1-1/8” steerer tube, 41x30.15x7x45ºx45º ACB sealed bearings, geometry kit cups, external diameter 56mm
Stem:
Onoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer
Handlebar:
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips:
Onoff Desert, 1lock-on, 135mm
Seatpost:
SDG Micro I-Beam SP-751 Alloy, diameter 31.6mm, length 300mm, micro-adjustment
Saddle:
SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sides
Front brake:
Sram Code Bronze Stealth, oversized 4-piston calliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake:
Sram Code Bronze Stealth, oversized 4-piston calliper, Centerline 203mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever:
Sram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust
Rims:
e*thirteen LG1 Plus DH, IW29 29" Hookless, 6069 Welded Aluminium, 30mm internal width, tubeless ready, 32 spokes
Spokes:
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front hub:
e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminium, IS 6 bolts
Rear hub:
e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminium w/6-degree engagement, IS 6 bolts, HG freehub
Front tire:
Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead
Rear tire:
Michelin DH34 27.5x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead
Crankset:
Sram Truvativ Descendant DH, DUB axle, Direct mount chain ring, 165mm CL 56´5
Rings:
34T, steel, X-SYNC
Bottom bracket:
Sram DUB BSA, sealed bearings, 83mm
Chain:
Sram PC1110 11s, Powerlock
Front derailleur:
E.13 Vario Compact Upper Slider ,Alloy backplate ,DMB (Direct mount Bashguard) Lower Slider 34-36t, ISCG 05 adjustable upper slider
Rear derailleur:
Sram GX DH, 7s, medium cage, X-actuation 1:1
Shift levers:
Sram trigger GX DH 7s, X-actuation 1:1
Cassette:
Sram PG 720 11-25T, 7s
Derailleur hanger:
Mondraker M075
Others:
*Optional geometry kit: +-1º / +-2º headset cups
Weight:
16,9 kg
