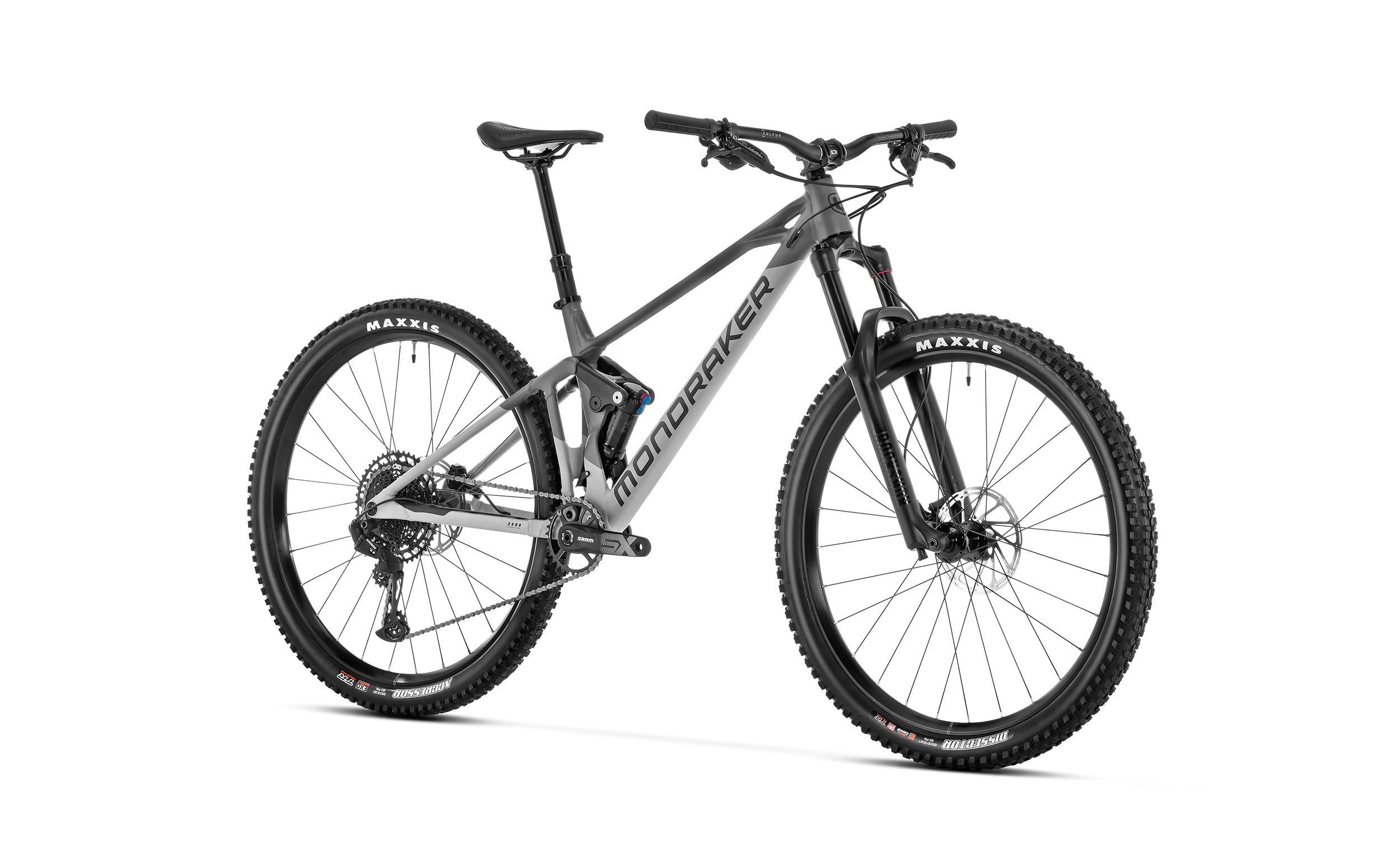

Introducing the Mondraker Raze Trail Bike in captivating Fog Grey, now available at our Liverpool store! Designed for thrill-seekers and trail conquerors, this bike boasts top-tier specifications engineered to elevate your riding experience to new heights.
Crafted with precision and performance in mind, the Raze 29 6061 Alloy Stealth Evo frame features hydroformed tubing and Mondraker's Zero Suspension System, delivering 130mm of plush travel. Its Forward Geometry ensures agile handling, while the Boost 12x148mm rear axle provides enhanced stability on challenging terrain.
Equipped with a Fox Float EVOL Performance rear shock and RockShox 35 Gold 29 RL fork, this bike glides over obstacles with ease. Fine-tune your ride with adjustable settings including compression, rebound, and air preload, ensuring optimal comfort and control on every ride.
The Onoff components, from the stem to the handlebar and grips, offer exceptional durability and ergonomic design for maximum performance. Plus, the Onoff Pija dropper seatpost allows seamless transitions between climbs and descents, with internal routing for a clean aesthetic.
Braking power is delivered confidently by Sram Level T hydraulic disc brakes, while the Mavic CrossRide rims and Maxxis tires provide traction and durability in all conditions. With a Sram SX Eagle drivetrain offering smooth and precise shifting through its wide gear range, you'll conquer any ascent with ease.
Whether you're tackling technical singletracks or soaring down flowy descents, the Mondraker Raze Trail Bike is your ultimate companion. With its sleek Fog Grey finish and impeccable performance, it's time to elevate your riding experience. Visit our Liverpool store today and embark on your next adventure with confidence!
Specification:
Frame:
Raze 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 130mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05
Sizes:
S: 380mm / M: 420mm / L: 470mm / XL: 510mm
Rear shock:
Fox Float EVOL Performance, 205x57.5mm. Settings: 2-position compression adjustment (Open/Firm), rebound, air preload. Trunnion top mount, 25x8mm bottom bushings
Shock settings:
Light compression, light rebound, air volume spacer 0.6
Fork:
RockShox 35 Gold 29 RL, 150mm, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload
Headset:
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem:
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar:
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips:
Onoff Twin, 1lock-on, 135mm
Seatpost:
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
Saddle:
Mondraker MDK Series, SRX, steel rail
Front brake:
Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear brake:
Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever:
Sram Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings
Rims:
Mavic CrossRide 29 Boost, 30mm internal width, tubeless ready, 28 spokes
Spokes:
Mavic 28 round j-bend stainless steel
Front hub:
Mavic Boost 15x110mm, sealed bearings, IS 6 bolts
Rear hub:
Mavic ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, HG freehub
Front tire:
Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Rear tire:
Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
Crankset:
Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm, CL 52
Rings:
32T, steel, X-Sync 2
Bottom bracket:
Sram DUB BSA, sealed bearings, 73mm
Chain:
Sram SX Eagle, 12s, Powerlock
Rear derrailleur:
Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Shift levers:
Sram Trigger SX Eagle, 12s, X-Actuation 1:1
Cassette:
Sram PG-1210, 11-50T, 12s
Derailleur hanger:
Sram UDH
Weight:
15.9 kg
