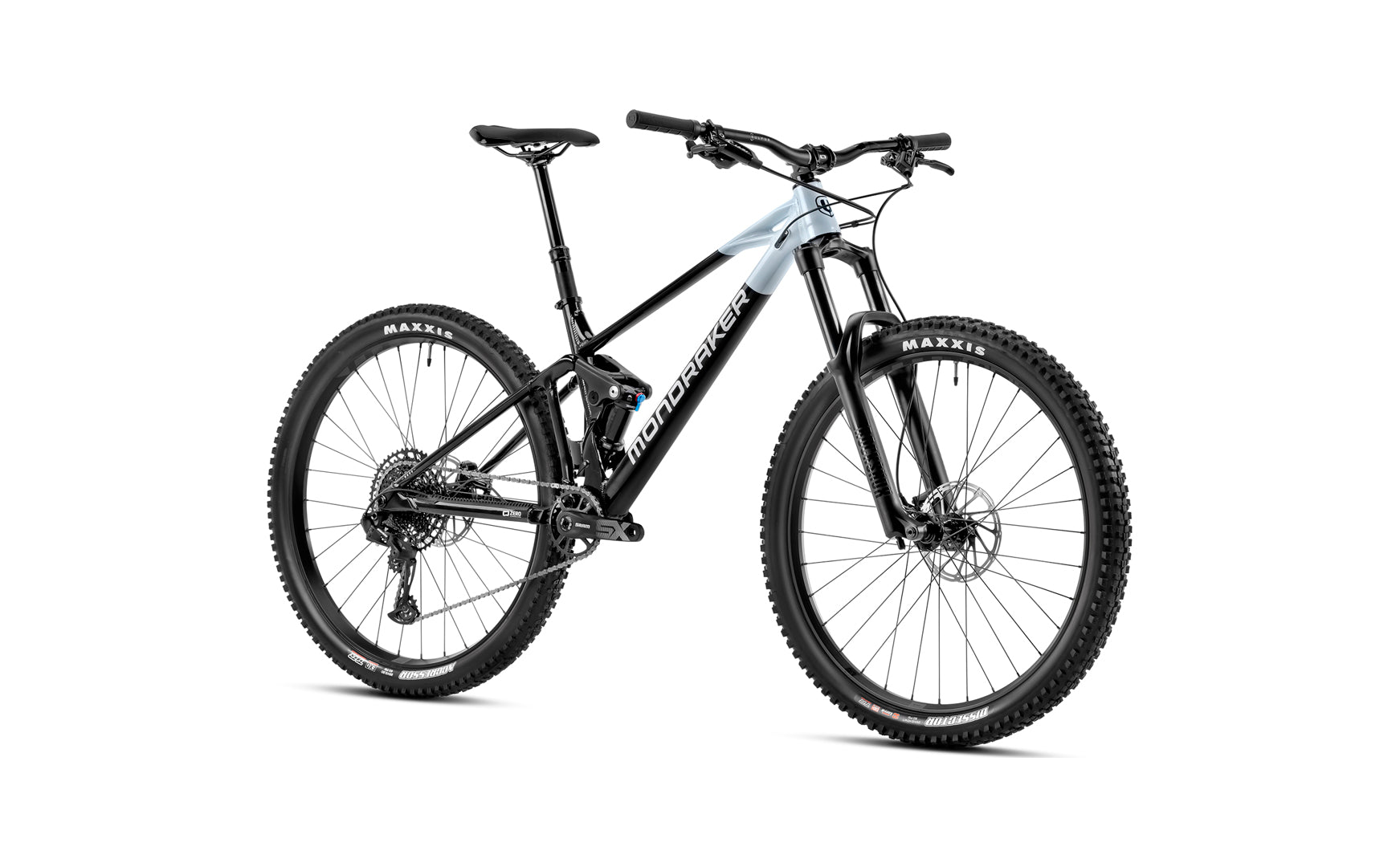

Looking for a trail bike that's as sleek as it is powerful? Look no further than the Mondraker Raze Trail Bike in Black, available at our Liverpool store. Engineered for performance and designed to stand out, this bike is ready to conquer any terrain you throw its way.
Crafted with precision, the Raze 29 6061 Alloy Stealth Evo frame boasts hydroformed tubing and the innovative Zero Suspension System, delivering 130mm of plush travel. With Forward Geometry and a one-piece Monoblock upper link, this bike offers stability and control like no other. Plus, its Boost 12x148mm rear axle ensures maximum power transfer on every pedal stroke.
Available in sizes ranging from S to XL, there's a perfect fit for every rider. Paired with a Fox Float DPS LV EVOL Performance rear shock and RockShox 35 Gold 29 RL fork, you'll experience smooth and responsive handling on the trails.
The ONOFF components, including the Saturn tapered headset, Sulfur FG stem, and Sulfur 1.0 handlebar, provide reliability and confidence-inspiring control. And with the ONOFF Pija dropper seatpost, you can easily adjust your riding position on the fly.
Equipped with Sram Level T brakes and Maxxis tires, this bike delivers unmatched stopping power and traction in any conditions. The Sram SX Eagle drivetrain offers smooth and precise shifting, while the 32T steel chainring ensures efficient power transfer on climbs.
Lightweight yet durable, the Mondraker Raze Trail Bike weighs in at just 15.9 kg, making it agile on the ascents and stable on the descents. Whether you're tackling technical singletrack or exploring new trails, this bike is your ticket to adventure.
Visit our Liverpool store today to test ride the Mondraker Raze Trail Bike and experience the ultimate in trail-riding performance. Unlock your full potential on the trails with Mondraker.
Specification:
Frame:
Raze 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 130mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05
Sizes:
S: 380mm / M: 420mm / L: 470mm / XL: 510mm
Rear shock:
Fox Float DPS LV EVOL Performance, 205x57.5mm. Settings: rebound, 3-position compression adjustment (Open/Mid/Lock), air preload. Trunnion top mount, 25x8mm bottom bushings
Shock settings:
Light compression, light rebound, air volume spacer 0.6
Fork:
RockShox 35 Gold 29 RL, 150mm, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload
Headset:
ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem:
ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar:
ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips:
ONOFF Twin, 1lock-on, 135mm
Seatpost:
ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Saddle:
MDK series PU 2023
Front brake:
Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear brake:
Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever:
Sram Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings
Rims:
MDK-EP1 29, 30mm internal width, tubeless ready, 32 spokes
Spokes:
CN round stainless steel
Front hub
:Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts
Rear hub:
Formula DHT148 Boost 12x148mm, sealed bearings, IS 6 bolts
Front tire:
Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Rear tire:
Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
Crankset;
Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S/M size: 170mm, L/XL size: 175mm
Rings:
32T, steel, X-Sync 2
Bottom bracket:
Sram DUB BSA, sealed bearings, 73mm
Chain:
Sram SX Eagle, 12s, Powerlock
Rear derrailleur:
Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Shift levers:
Sram Trigger SX Eagle, 12s, X-Actuation 1:1
Casette:
Sram PG-1210, 11-50T, 12s
Derailleur hanger:
Sram UDH
Weight:
15.9 kg
