Save 2%
£4,209.99 £4,299
/

Select an option to add this to your cart.

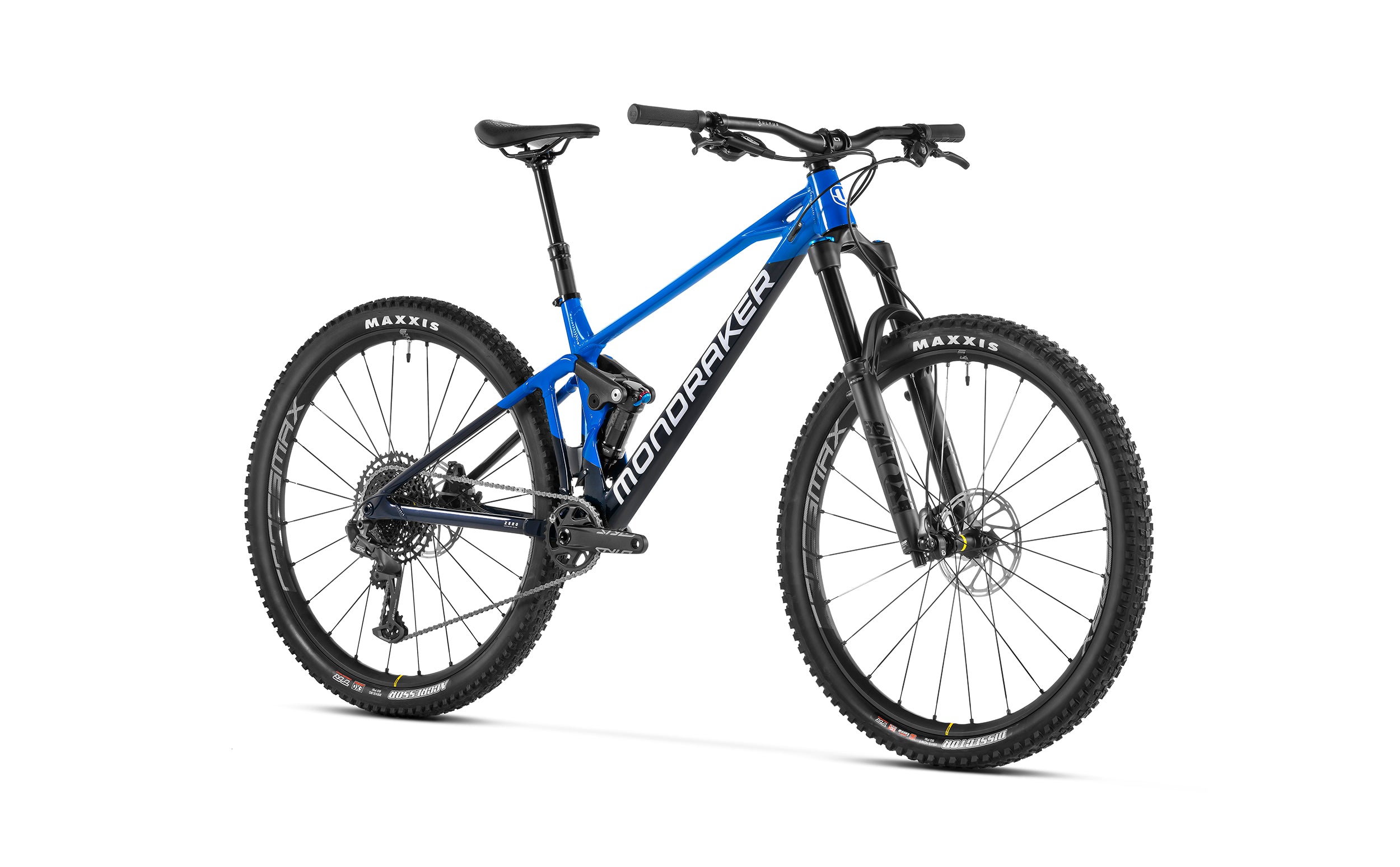

Introducing the Mondraker Raze R Trail Bike in Midnight Blue – your ticket to conquering Liverpool's trails with confidence and style. Crafted with precision and performance in mind, this bike is your ultimate partner for exploring the great outdoors.

With its Raze 29 6061 Alloy Stealth Evo frame, hydroformed tubing, and Zero Suspension System boasting 130mm of travel, every ride is smooth, responsive, and exhilarating. Thanks to the Forward Geometry design, you'll experience enhanced stability and control, even on the most challenging terrain.

Available in four sizes – S, M, L, and XL – the Mondraker Raze R ensures a comfortable fit for riders of all heights. Paired with a Fox Float EVOL Performance rear shock and Fox 36 29 Float GRIP EVOL Rhythm fork, you'll enjoy a plush ride with customizable settings for your preferences.

Designed for maximum performance, the bike features a Sram GX Eagle 12-speed drivetrain, ensuring smooth and precise gear changes on every ascent and descent. Plus, with Sram G2 R hydraulic disc brakes, you can trust in reliable stopping power, even on steep descents.

Rolling on Mavic CrossMax XL S rims and Maxxis tires, this bike delivers exceptional traction and durability, whether you're navigating rocky trails or carving through berms. And with a Truvativ Stylo 7k Eagle crankset and Sram NX Eagle chain, you'll experience efficient power transfer with every pedal stroke.

Lightweight at just 15.4 kg, the Mondraker Raze R Trail Bike is agile and responsive, allowing you to tackle technical trails with ease. So why wait? Elevate your riding experience with the Mondraker Raze R – available now in Midnight Blue at our Liverpool bicycle store. Experience the thrill of the trails like never before.

    Specification:

    Frame:
    Raze 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 130mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05

    Sizes:
    S: 380mm / M: 420mm / L: 470mm / XL: 510mm

    Rear shock:
    Fox Float EVOL Performance, 205x57.5mm. Settings: 2-position compression adjustment (Open/Firm), rebound, air preload. Trunnion top mount, 25x8mm bottom bushings

    Shock settings:
    Light compression, light rebound, air volume spacer 0.6

    Fork:
    Fox 36 29 Float GRIP EVOL Rhythm, 150mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload

    Headset:
    Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

    Stem:
    Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

    Handlebar:
    Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

    Grips:
    Onoff Twin, 1lock-on, 135mm

    Seatpost:
    Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm

    Saddle:
    Mondraker MDK Series, SRX, steel rail

    Front brake:
    Sram G2 R, 4-piston calliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

    Rear brake:
    Sram G2 R, 4-piston calliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

    Brake lever:
    Sram G2 R, tool-free reach adjust, lever pivot bushings

    Rims:
    Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes

    Spokes:
    Mavic 24 straight-pull double butted spokes

    Front hub:
    Mavic Infinity hub, Boost 15x110mm, IS 6 bolts

    Rear hub:
    Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, HG freehub

    Front tire:
    Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

    Rear tire:
    Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead

    Crankset:
    Truvativ Stylo 7k Eagle, Boost, DUB axle, Direct mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm, CL 52

    Rings:
    32T, CNC-machined alloy, X-SYNC 2

    Bottom bracket:
    Sram DUB BSA, sealed bearings, 73mm

    Chain:
    Sram NX Eagle, 12s, Powerlock

    Rear derailleur:
    Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

    Shift levers:
    Sram Trigger NX Eagle, 12s, X-Actuation 1:1

    Cassette:
    Sram PG-1230, 11-50T, 12s

    Derailleur hanger:
    Sram UDH

    Weight:
    15.4 kg
