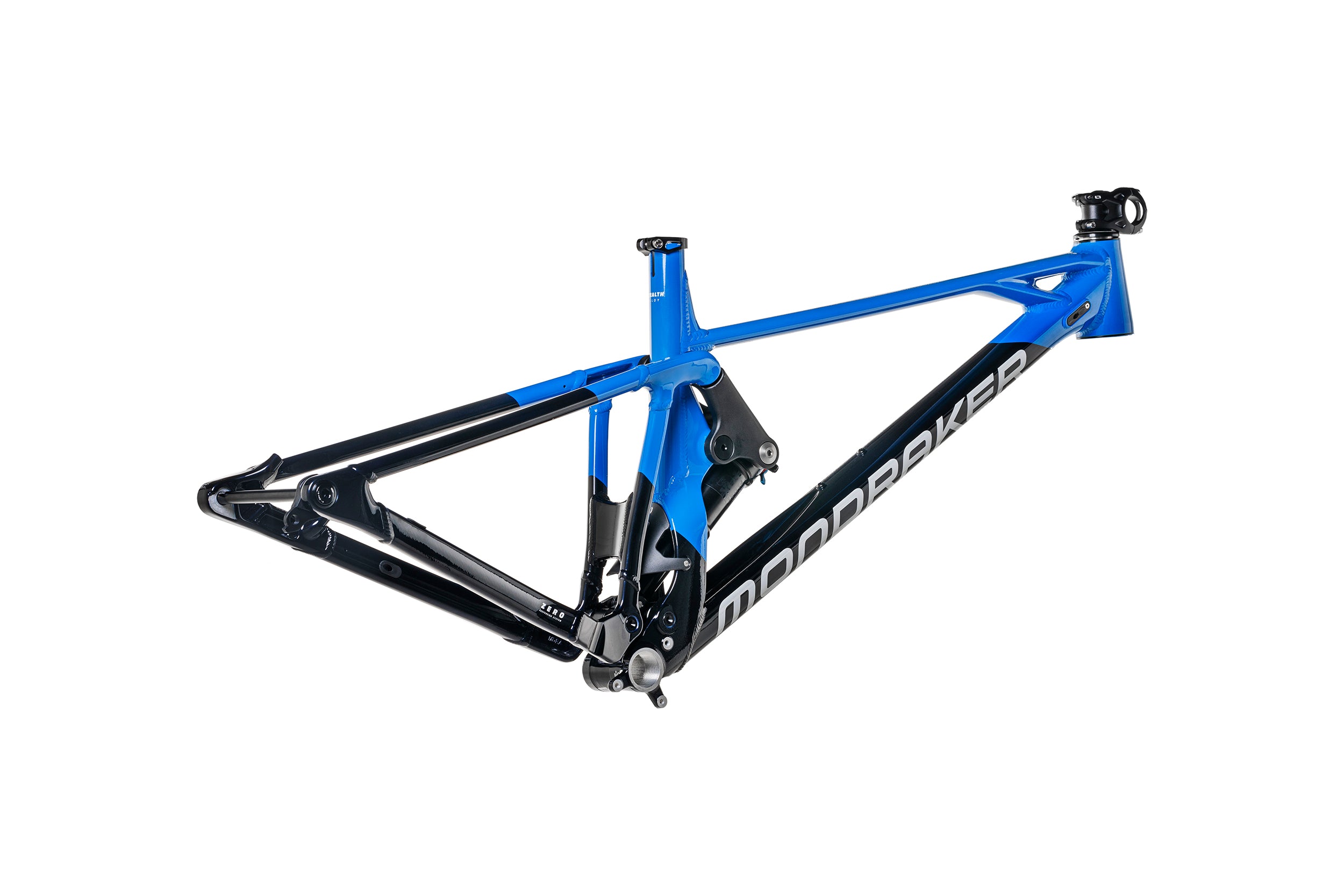

Mondraker Raze R Mountain Bike Frameset - Midnight Blue
        Mondraker Raze R Mountain Bike Frameset - Midnight Blue

Mondraker Raze R Mountain Bike Frameset - Midnight Blue

Save 1%
£2,109.99 £2,149

Select an option to add this to your cart.

Introducing the Mondraker Raze R Mountain Bike Frameset in stunning Midnight Blue, designed to elevate your off-road adventures to new heights. Crafted with precision and innovation, this frameset boasts top-tier specifications to deliver optimal performance on the trails. Here's why it's a game-changer:

The frame of the Raze 29 6061 Alloy Stealth Evo is engineered with hydroformed tubing, incorporating the Zero Suspension System for 130mm of plush travel. Its Forward Geometry ensures stability and control, while the one-piece Monoblock upper link enhances durability. With Boost 12x148mm rear axle and tapered head tube, this frameset is built to conquer any terrain with confidence.

Available in a range of sizes from S to XL, there's a perfect fit for every rider. Whether you're tackling technical descents or powering through uphill climbs, the Mondraker Raze R offers a responsive and comfortable ride experience.

Equipped with a Fox Float EVOL Performance rear shock, featuring 2-position compression adjustment and rebound control, you can fine-tune your ride for optimal comfort and efficiency. The shock settings, including light compression and rebound, along with the air volume spacer, ensure customizable performance to match your riding style.

With the Onoff Saturn tapered headset and Onoff Sulfur FG stem, you can expect precise handling and steering responsiveness. The inclusion of SRAM UDH derailleur hanger ensures compatibility with high-end drivetrain components, making this frameset a versatile platform for your dream bike build.

For those seeking the ultimate ride quality and durability, the Mondraker Raze R Mountain Bike Frameset in Midnight Blue is the perfect choice. Elevate your cycling experience and conquer the trails with confidence. Order yours today from our Liverpool-based bicycle store and experience the thrill of premium performance on every ride.


    Raze 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 130mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05

    S: 380mm / M: 420mm / L: 470mm / XL: 510mm

    Rear shock:
    Fox Float EVOL Performance, 205x57.5mm. Settings: 2-position compression adjustment (Open/Firm), rebound, air preload. Trunnion top mount, 25x8mm bottom bushings

    Shock settings:
    Light compression, light rebound, air volume spacer 0.6

    Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

    Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

    Derailleur hanger:
    Sram UDH
