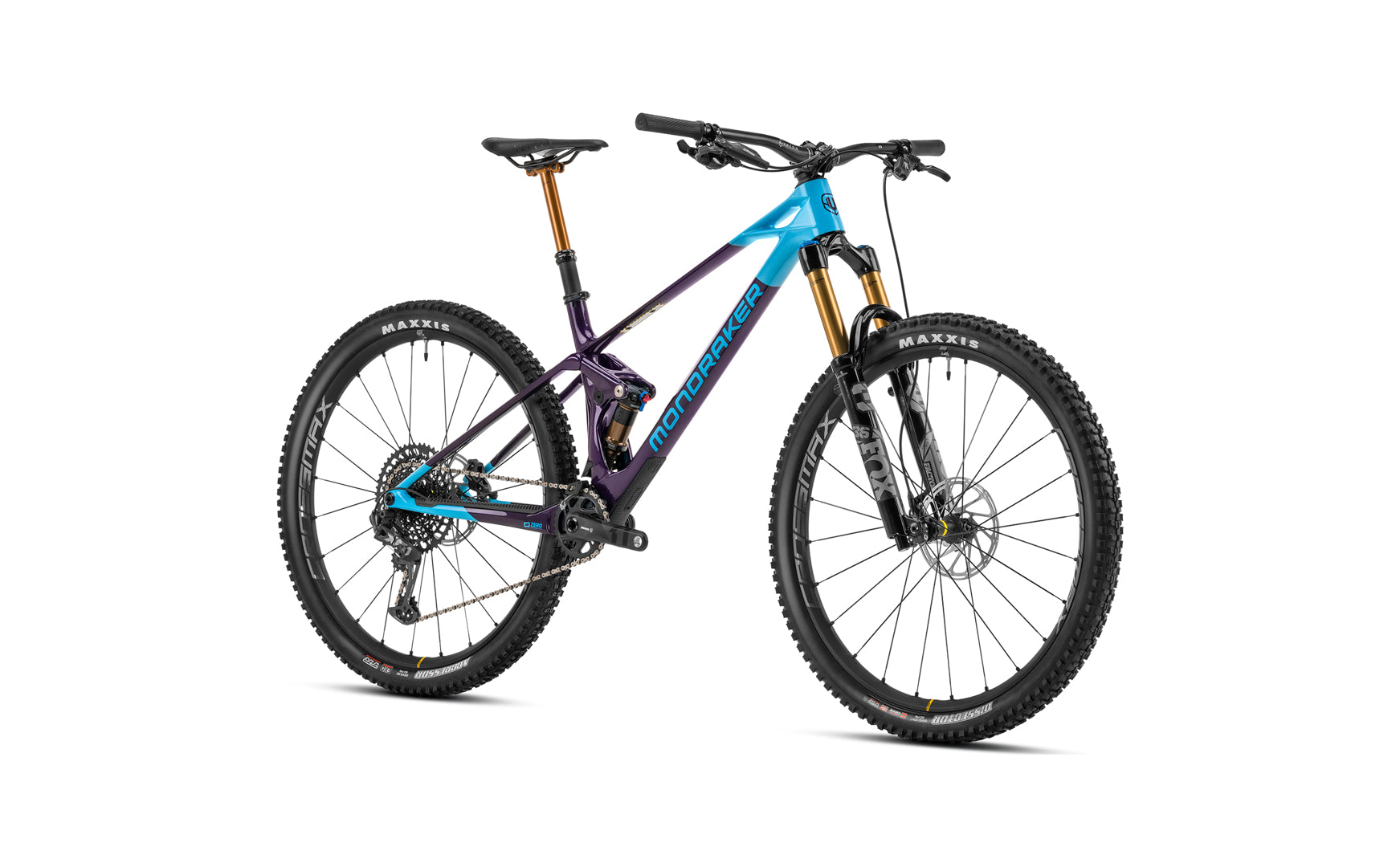

Introducing the Mondraker Raze Carbon RR Trail Bike, a high-performance marvel engineered to conquer the trails with finesse and speed. Crafted in a stunning Deep Purple hue, this bike is bound to turn heads as you tear through Liverpool's rugged terrain.
At its core lies the Raze 29 Stealth Air full Carbon frame, incorporating Mondraker's Zero Suspension System with 130mm of plush travel. Designed with Forward Geometry for precise handling, it boasts a Carbon Monoblock upper link and Boost 12x148mm rear axle for enhanced stability. With sizes ranging from S to XL, there's a perfect fit for every rider.
Equipped with a Fox Float DPS Factory Kashima EVOL LV rear shock and a Fox 36 29 Float GRIP2 Factory Kashima fork, this bike glides over obstacles with ease. The shock settings ensure optimal performance, while the fork's high and low-speed compression and rebound adjustments allow for personalized tuning.
The components of the Mondraker Raze Carbon RR are meticulously chosen for maximum performance. From the ONOFF Krypton Carbon handlebar to the Sram G2 RS brakes and Mavic CrossMax XL S rims, every part is engineered to excel on the trails. The Maxxis Dissector and Aggressor tires provide exceptional grip and durability, while the Sram X1 Carbon Eagle crankset and Sram X01 Eagle drivetrain deliver smooth and precise shifting.
Weighing in at just 13.1 kg, this bike is remarkably agile and responsive, making it ideal for tackling Liverpool's diverse trails. Whether you're a seasoned rider seeking the ultimate thrill or a novice looking to elevate your skills, the Mondraker Raze Carbon RR Trail Bike is ready to elevate your riding experience to new heights. Dominate the trails in style and performance with this exceptional ride.
Specification:
Frame:
Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.
Sizes:
S: 380mm / M: 420mm / L: 450mm / XL: 500mm
Rear shock:
Fox Float DPS Factory Kashima EVOL LV, 205x57.5mm. Settings: Compression 3 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings:
Light compression, light rebound, air volume spacer 0.6
Fork:
Fox 36 29 Float GRIP2 Factory Kashima, 150mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset:
Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Stem:
ONOFF Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar:
ONOFF Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips;
ONOFF Desert, 1lock-on, 135mm
Seatpost:
Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M size: 418.3x150mm, L/XL size: 475.1x175mm
Saddle:
Fizik Antares R7
Front brake:
Sram G2 RS, 4-piston calliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake:
Sram G2 RS, 4-piston calliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever:
Sram G2 RS, SwingLink, tool-free reach adjust
Rims:
Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes
Spokes:
24 straight-pull double butted spokes
Front hub:
Infinity hub, Boost 15x110mm, IS 6 bolts
Rear hub:
Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts
Front tire:
Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Rear tire:
Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
Crankset:
Sram X1 Carbon Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm
Rings:
32T, CNC-machined alloy, X-SYNC 2
Bottom bracket:
Sram DUB BSA, sealed bearings, 73mm
Chain:
Sram GX Eagle, 12s, Powerlock
Rear derailleur:
Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers:
Sram Trigger GX Eagle, 12s, X-Actuation 1:1
Cassette:
Sram XG-1275, 10-52T, 12s
Derailleur hanger:
Sram UDH
Weight:
13.1 kg
