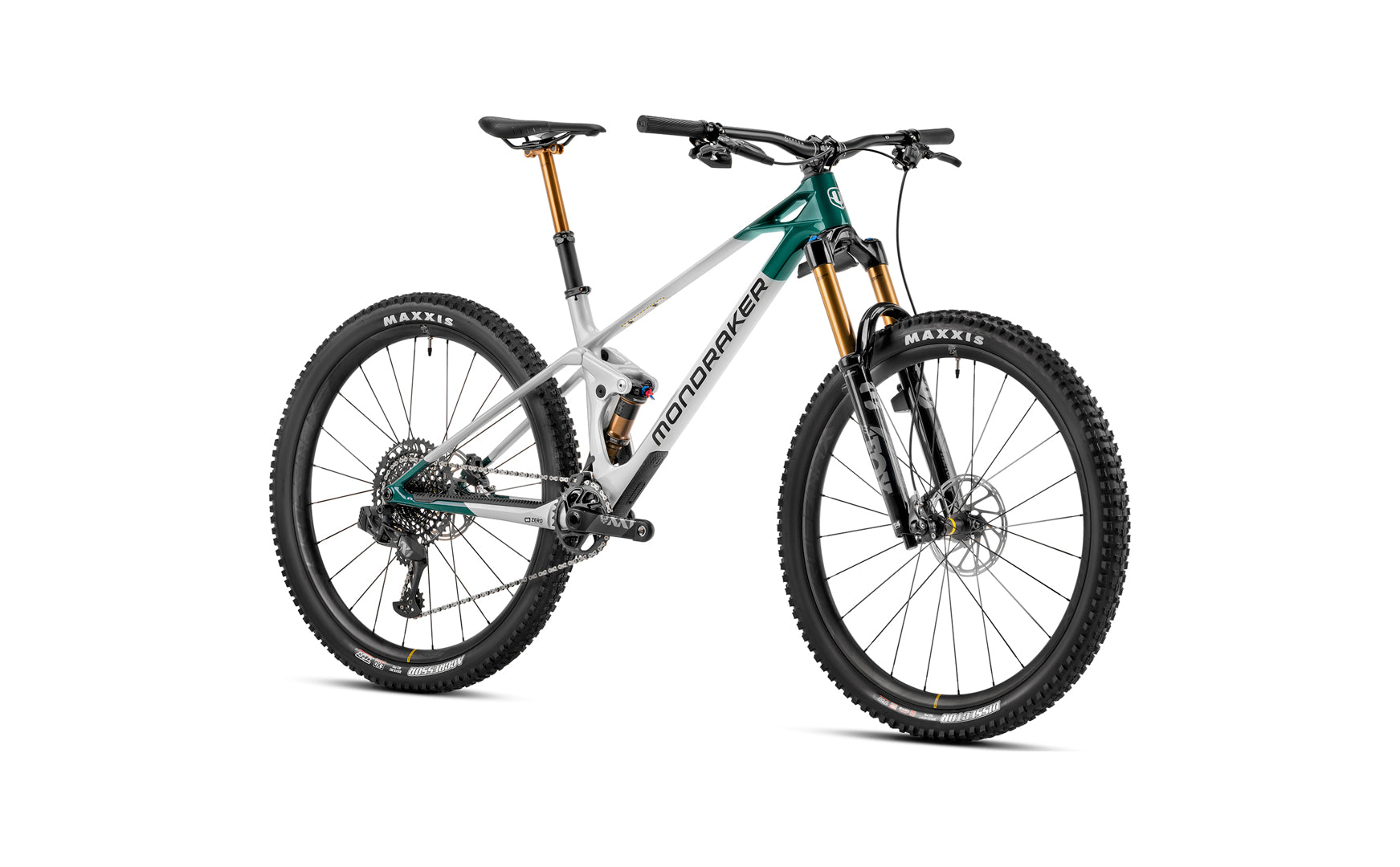

Mondraker Raze Carbon RR SL Trail Bike - Racing Silver
        Mondraker Raze Carbon RR SL Trail Bike - Racing Silver
Mondraker Raze Carbon RR SL Trail Bike - Racing Silver
        Mondraker Raze Carbon RR SL Trail Bike - Racing Silver
Mondraker Raze Carbon RR SL Trail Bike - Racing Silver
        Mondraker Raze Carbon RR SL Trail Bike - Racing Silver

Mondraker Raze Carbon RR SL Trail Bike - Racing Silver

Save 1%
£9,999.99 £10,199
/

Select an option to add this to your cart.

Introducing the Mondraker Raze Carbon RR SL Trail Bike in Racing Silver, a marvel of engineering designed for unparalleled performance on the trails. Crafted with precision and innovation, this trail-blazing bike is now available at our Liverpool store, ready to take your riding experience to new heights.

At the heart of the Raze Carbon RR SL is its Raze 29 Stealth Air full Carbon frame, incorporating the advanced Zero Suspension System with 130mm travel. Engineered with Mondraker's signature Forward Geometry, this frame ensures optimal handling and control, while the Carbon Monoblock upper link enhances durability without compromising on weight. Boost 12x148mm rear axle, tapered head tube, and HHG internal cable routing further elevate the bike's performance and aesthetics.

Choose from a range of sizes, including S, M, L, and XL, to find the perfect fit for your riding style and physique. The Fox Float DPS Factory Kashima rear shock, coupled with the Fox 36 29 Float GRIP2 Factory Kashima fork, delivers superior suspension performance, allowing you to conquer even the most challenging terrains with ease.

Equipped with top-of-the-line components, the Raze Carbon RR SL ensures a smooth and responsive ride every time. The Sram G2 RSC brakes provide reliable stopping power, while the Mavic CrossMax Carbon XL R rims and Maxxis tires offer unmatched traction and durability.

Powered by the Sram XX1 Eagle drivetrain, this bike delivers lightning-fast shifting and efficient power transfer, enabling you to tackle climbs and descents with confidence. With its lightweight design weighing in at just 13.0 kg, the Mondraker Raze Carbon RR SL is built for speed and agility, making it the ultimate companion for your off-road adventures.

Experience the thrill of trail riding like never before with the Mondraker Raze Carbon RR SL Trail Bike, available now at our Liverpool store. Elevate your ride and discover new horizons with this premium mountain biking machine.

    Specification:

    Frame:
    Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. MIND System

    Sizes:
    S: 380mm / M: 420mm / L: 450mm / XL: 500mm

    Rear shock:
    Fox Float DPS Factory Kashima EVOL LV, 205x57.5mm. Settings: Compression 3 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

    Shock settings:
    Light compression,light rebound, air volume spacer 0.6

    Fork:
    Fox 36 29 Float GRIP2 Factory Kashima, 150mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload

    Headset:
    Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing

    Stem:
    ONOFF Krypton FG 30mm, CNC, 31.8mm barbore

    Handlebar:
    ONOFF Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

    Grips:
    ONOFF Desert, 1lock-on, 135mm

    Seatpost:
    Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M size: 418.3x150mm, L/XL size: 475.1x175mm

    Saddle:
    Fizik Antares R7

    Front brake:
    Sram G2 RSC, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

    Rear brake:
    Sram G2 RSC, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

    Brake lever:
    Sram G2 RSC, SwingLink, tool-free reach adjust

    Rims:
    Mavic CrossMax Carbon XL R, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes

    Spokes:
    24 straight-pull double butted spokes

    Front hub:
    Infinity hub, Boost 15x110mm, IS 6 bolts

    Rear hub:
    Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts

    Front tire:
    Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

    Rear tire:
    Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead

    Crankset:
    Sram XX1 Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm

    Rings:
    32T, CNC-machined alloy, X-SYNC 2

    Bottom bracket:
    Sram DUB BSA, sealed bearings, 73mm

    Chain:
    Sram GX Eagle, 12s, Powerlock

    Rear derailleur:
    Sram XX1 Eagle AXS, Type 2.1 roller bearing clutch, cage lock, long carbon cage, 1x12s, X-actuation 1:1

    Shift levers:
    Sram Eagle AXS Rocker paddle, 12s

    Cassette:
    Sram XG-1295, 10-52T, 12s

    Derailleur hanger:
    Sram UDH

    Weight:
    13.0 kg
