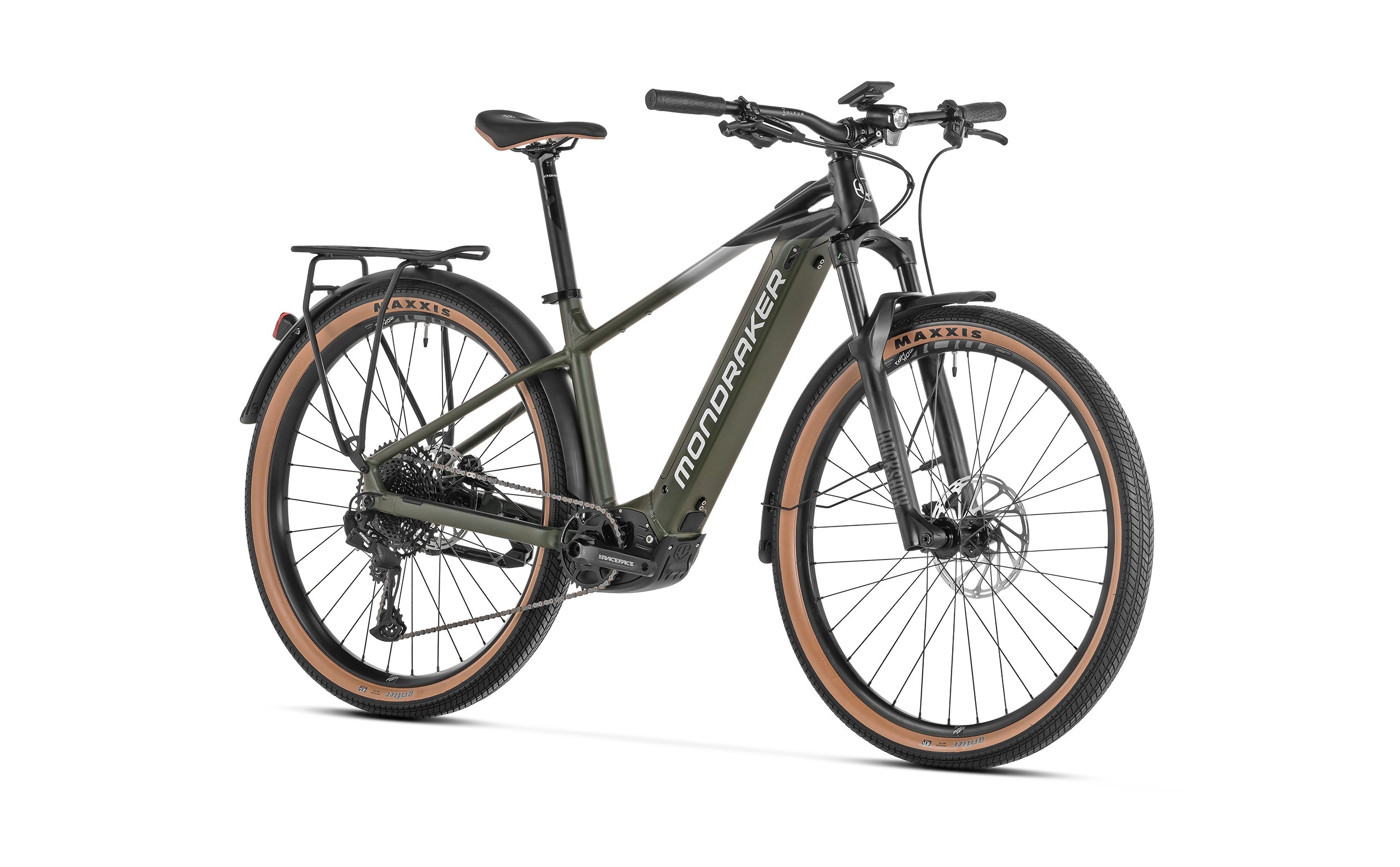

Mondraker Prime X Electric Mountain Bike - Vortex Grey
        Mondraker Prime X Electric Mountain Bike - Vortex Grey
Mondraker Prime X Electric Mountain Bike - Vortex Grey
        Mondraker Prime X Electric Mountain Bike - Vortex Grey
Mondraker Prime X Electric Mountain Bike - Vortex Grey
        Mondraker Prime X Electric Mountain Bike - Vortex Grey

Mondraker Prime X Electric Mountain Bike - Vortex Grey

Save 1%
£3,629.99 £3,699
/

Select an option to add this to your cart.

Introducing the Mondraker Prime X Electric Mountain Bike, now available in the sleek Vortex Grey colour, exclusively at our Liverpool store! Crafted to redefine your off-road adventures, this cutting-edge e-bike combines advanced technology with premium components for the ultimate riding experience.

Featuring a Prime 6061 Xtralite Full Butted Alloy frame with Forward Geometry, this bike ensures optimal handling and durability on any terrain. The internal removable battery seamlessly integrates into the frame, providing both power and convenience. Plus, with a tapered head tube and Boost 12x148mm rear axle, you'll experience enhanced stability and control on every ride.

Choose your perfect fit from a range of sizes, from XS to XL, ensuring a comfortable and personalized riding experience for every cyclist. Paired with a RockShox Recon Silver RL 29 fork with 120mm travel, Motion control, and Solo Air, this bike delivers smooth suspension performance, allowing you to tackle challenging trails with confidence.

Equipped with top-of-the-line components, including an Onoff Saturn tapered headset, MDK Urban stem, and MDK Urban 1.0 handlebar, this bike offers precise handling and control in any situation. The Sram Level T hydraulic disc brakes provide reliable stopping power, while the Maxxis Grifter tires offer excellent traction and durability on the trails.

Powered by a Bosch Performance Line CX Cruise motor and Bosch Powertube 625Wh battery, this e-bike delivers smooth, responsive assistance on even the steepest climbs. And with the Bosch Intuvia display, you can easily monitor your ride metrics and battery status, ensuring you're always in control.

Whether you're exploring rugged mountain trails or cruising through urban landscapes, the Mondraker Prime X Electric Mountain Bike in Vortex Grey is your ultimate companion for adventure. Visit our Liverpool store today to experience the thrill of electric mountain biking like never before!

Specification

Frame:
Prime 6061 Xtralite Full Butted Alloy, Forward Geometry, internal removable battery, tapered head tube, Boost 12x148mm rear axle, integrated dropout speed sensor

    Sizes:
    XS: 380mm / S: 390mm / M: 430mm / L: 470mm / XL: 510mm

    Fork:
    RockShox Recon Silver RL 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 32mm steel stanchions, 42mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload

    Headset:
    Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

    Stem:
    MDK Urban 35mm, 6061 forged alloy, 31.8mm barbore

    Handlebar:
    MDK Urban 1.0 double butted 6061 alloy, rise: 20mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore

    Grips:
    Onoff Shaper

    Seatpost:
    Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm

    Saddle:
    MDK urban

    Front brake:
    Sram Level T, 2 piece calliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pad

    Rear brake:
    Sram Level T, 2 piece calliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad

    Brake lever:
    Sram Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings

    Rims:
    MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes

    Spokes:
    CN round stainless steel

    Front hub:
    Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts

    Rear hub:
    Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolts, HG freehub

    Front tire:
    Maxxis Grifter 29x2.5, single compound, 60TPI, wire bead, tanned wall.

    Rear tire:
    Maxxis Grifter 29x2.5, single compound, 60TPI, wire bead, tanned wall.

    Crankset:
    Race Face Aeffect ebike, 165mm

    Rings:
    Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD

    Pedals:
    Urban pedal resin black

    Chain:
    Sram SX Eagle, 12s, Powerlock

    Rear derailleur:
    Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1

    Shift levers:
    Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click

    Cassette:
    Sram PG-1210, 11-50T, 12s

    Derailleur hanger:
    Mondraker M068

    Others:
    Front light: 50LUX output DC 6-12V, waterproof Alloy cage. Rear Light: Fender Mount, w/ Reflective, e-bike version, 6-12V. Fenders: Alloy black MDK custom fenders. Rack: Alloy MDK rear Rack, Max loading 25kg. Kickstand: Massload KSA18-40

    Weight:
    24.5 kg

    Display:
    Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller

    Motor:
    Bosch Performance Line CX Cruise (25Km/h) GEN4 SMART SYSTEM

    Battery:
    Bosch Powertube 625Wh
