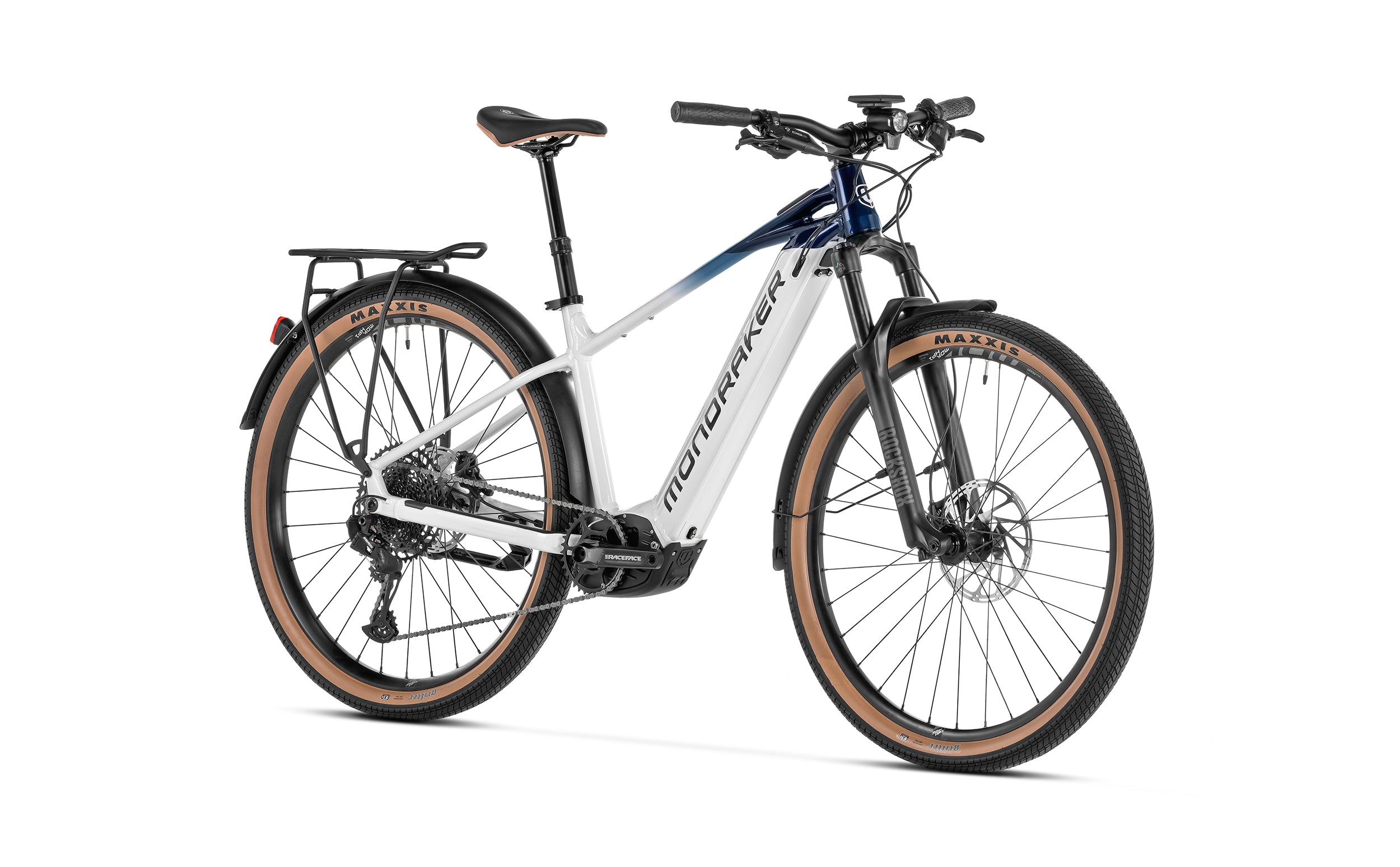

Discover the ultimate adventure companion with the Mondraker Prime RX Electric Mountain Bike in Bunker Grey. Engineered for thrill-seekers and trailblazers, this cutting-edge bike offers unparalleled performance and style.
Crafted with a Prime 6061 Xtralite Full Butted Alloy frame, the Mondraker Prime RX boasts Forward Geometry for enhanced stability and control on any terrain. Its internal non-removable battery seamlessly integrates into the frame, providing reliable power while maintaining a sleek aesthetic. Plus, with sizes ranging from XS to XL, riders of all sizes can experience the thrill of the ride.
Equipped with a RockShox 35 Silver TK 29 fork with 120mm travel, this bike effortlessly glides over obstacles, ensuring a smooth and comfortable ride. The MDK Urban 35mm stem and MDK Urban 1.0 handlebar offer precise handling and control, while the Onoff Shaper grips provide superior grip and comfort.
Powered by a Bosch Performance Line CX Cruise GEN4 SMART SYSTEM motor and a Bosch Powertube 750Wh battery, the Mondraker Prime RX delivers unrivaled performance and endurance. Whether conquering steep climbs or cruising through rugged trails, this bike ensures an exhilarating ride every time.
With SRAM DB8 brakes, MDK-HP1 rims, and Maxxis Grifter tires, this bike delivers exceptional stopping power and traction in any condition. Plus, with features like front and rear lights, alloy fenders, and a rear rack, the Mondraker Prime RX is ready for any adventure, day or night.
Weighing just 24.9 kg, this bike is both lightweight and durable, making it perfect for tackling even the most demanding trails. And with a Bosch Intuvia display and Bosch Mini Remote, you can easily monitor and control your ride with just the touch of a button.
Experience the thrill of the ride like never before with the Mondraker Prime RX Electric Mountain Bike. Visit our Liverpool store today and take your cycling adventures to new heights.
Specifications
Frame:
Prime 6061 Xtralite Full Butted Alloy, Forward Geometry, internal non-removable battery, tapered head tube, Boost 12x148mm rear axle, integrated dropout speed sensor
Sizes:
XS: 380mm / S: 390mm / M: 430mm / L: 470mm / XL: 510mm
Fork:
RockShox 35 Silver TK 29, 120mm, TurnKey, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload
Headset:
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem:
MDK Urban 35mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar:
MDK Urban 1.0 double butted 6061 alloy, rise: 20mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips:
Onoff Shaper
Seatpost:
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
Saddle:
MDK urban
Front brake:
Sram DB8, 4-piston calliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake:
Sram DB8, 4-piston calliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever:
Sram DB8, tool reach adjust, lever pivot bushings
Rims:
MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes
Spokes:
CN round stainless steel
Front hub:
Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts
Rear hub:
Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolts, HG freehub
Front tire:
Maxxis Grifter 29x2.5, single compound, 60TPI, wire bead, tanned wall.
Rear tire:
Maxxis Grifter 29x2.5, single compound, 60TPI, wire bead, tanned wall.
Crankset:
Race Face Aeffect ebike, 165mm
Rings:
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Pedals:
Urban pedal resin black
Chain:
Sram SX Eagle, 12s, Powerlock
Rear derailleur:
Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Shift levers:
Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click
Cassette:
Sram PG-1210, 11-50T, 12s
Derailleur hanger:
Mondraker M068
Others:
Front light: 50LUX output DC 6-12V, waterproof Alloy cage. Rear Light: Fender Mount, w/ Reflective, e-bike version, 6-12V. Fenders: Alloy black MDK custom fenders. Rack: Alloy MDK rear Rack, Max loading 25kg. Kickstand: Massload KSA18-40
Weight:
24.9 kg
Display:
Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller
Motor:
Bosch Performance Line CX Cruise (25Km/h) GEN4 SMART SYSTEM
Battery:
Bosch Powertube 750Wh
