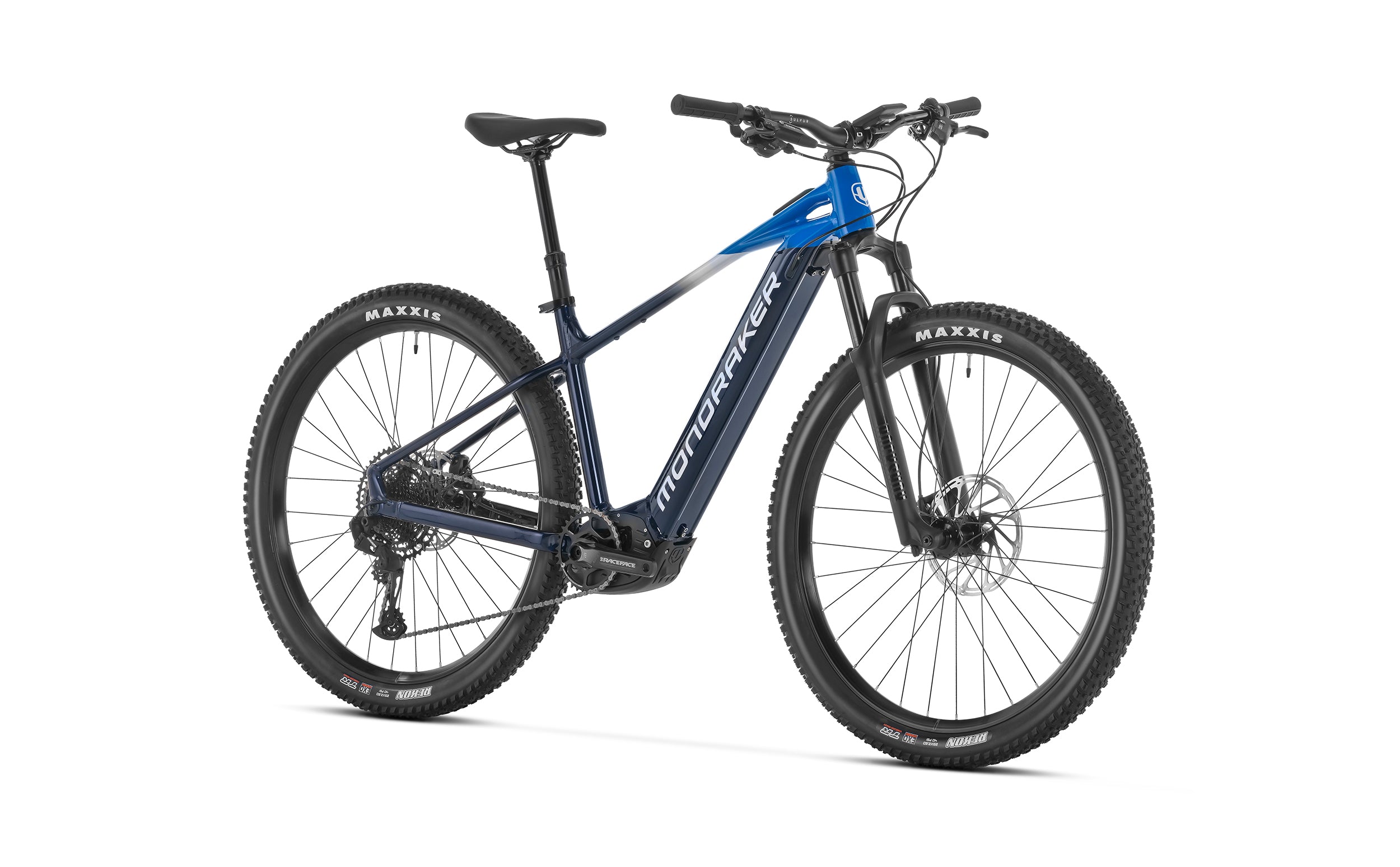

Looking for an electrifying adventure on the trails of Liverpool? Look no further than the Mondraker Prime R Electric Mountain Bike in captivating Midnight Blue. Engineered for performance and designed for comfort, this bike is your ticket to exhilarating rides through rugged terrains and winding paths.
Crafted with a Prime Xtralite 6061 Full Butted Alloy frame, the Mondraker Prime R boasts Forward Geometry for enhanced stability and control. The internal non-removable battery ensures a sleek and seamless appearance while the integrated dropout speed sensor delivers precise monitoring of your ride.
Choose from a range of sizes to find your perfect fit: XS, S, M, L, or XL, ensuring optimal comfort and maneuverability for riders of all sizes. Paired with a RockShox 35 Silver TK 29 fork with 120mm travel, you'll experience smooth and responsive handling on every descent and climb.
Equipped with top-notch components, including Sram DB8 hydraulic disc brakes for reliable stopping power and Mavic E-CrossRide rims for durability and stability, the Mondraker Prime R is built to tackle any terrain with confidence.
Conquer hills with ease thanks to the Bosch Performance Line CX Cruise motor, offering seamless assistance up to 25Km/h, powered by a long-lasting Bosch Powertube 750Wh battery. Navigate effortlessly through trails with the Bosch Intuvia 100 display providing essential ride data at your fingertips.
With a sleek design and premium features, the Mondraker Prime R Electric Mountain Bike in Midnight Blue is ready to elevate your off-road adventures in Liverpool and beyond. Don't just ride the trails, dominate them with Mondraker's innovation and performance excellence.
Specifications
Frame:
Prime Xtralite 6061 Full Butted Alloy, Forward Geometry, intenal non-removable battery, tapered head tube, Boost 12x148mm rear axle, integrated dropout speed sensor
Sizes:
XS: 380mm / S: 390mm / M: 430mm / L: 470mm / XL: 510mm
Fork:
RockShox 35 Silver TK 29, 120mm, TurnKey, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload
Headset:
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem:
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar:
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips:
Onoff Twin, 1lock-on, 135mm
Seatpost:
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
Saddle:
MDK ebike black
Front brake:
Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake:
Sram DB8, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever:
Sram DB8, tool reach adjust, lever pivot bushings
Rims:
Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Spokes:
Mavic J-bend double butted, contactless lacing
Front hub:
Mavic, Boost 15x110mm, IS 6 bolts
Rear hub:
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub
Front tire:
Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
Rear tire:
Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
Crankset:
Race Face Aeffect ebike, 165mm
Rings:
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain:
Sram SX Eagle, 12s, Powerlock
Rear derailleur:
Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Shift levers:
Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click
Cassette:
Sram PG-1210, 11-50T, 12s
Derailleur hanger:
Mondraker M068
Weight:
23.4 kg
Display:
Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller
Motor:
Bosch Performance Line CX Cruise (25Km/h) GEN4 SMART SYSTEM
Battery:
Bosch Powertube 750Wh
