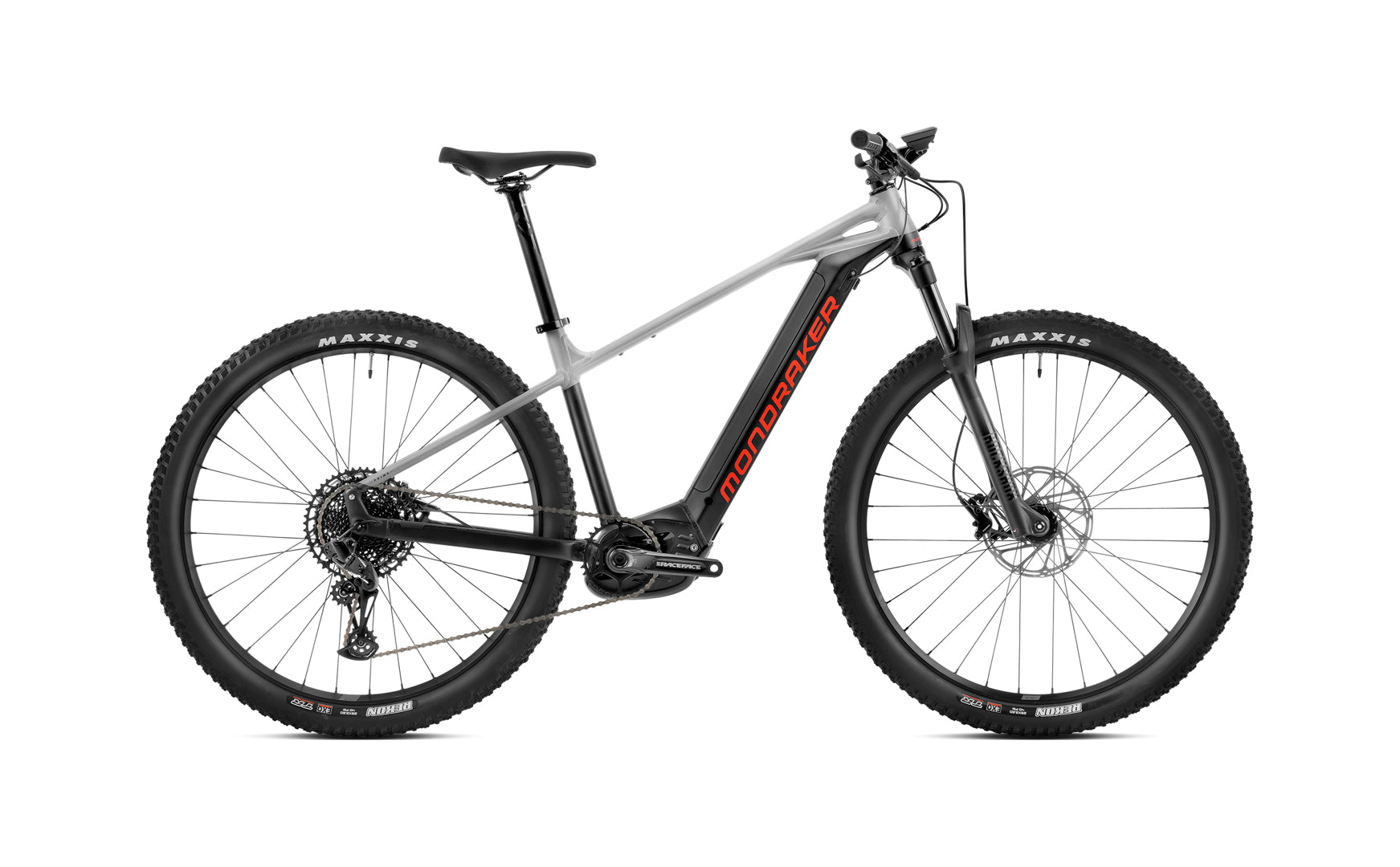

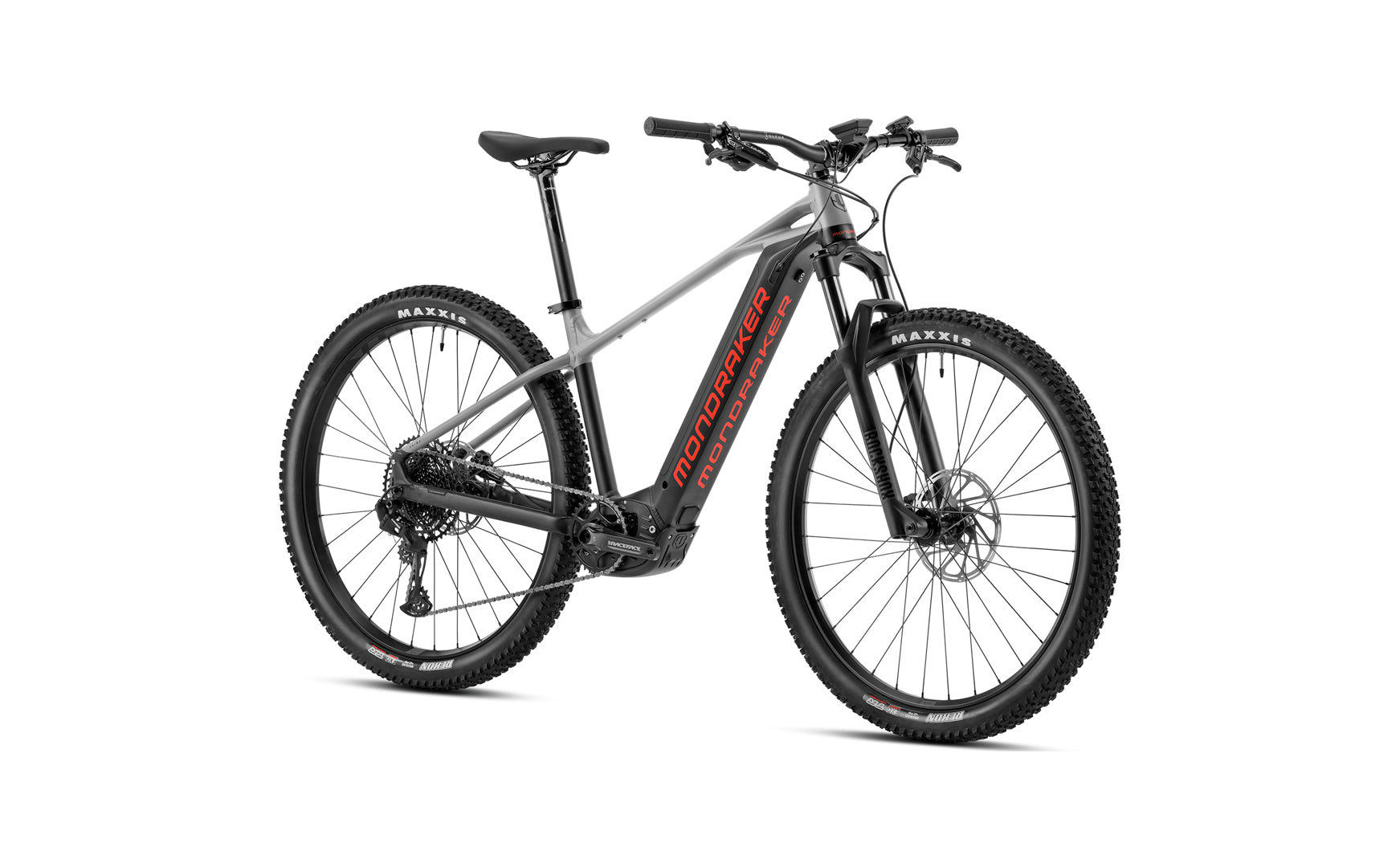

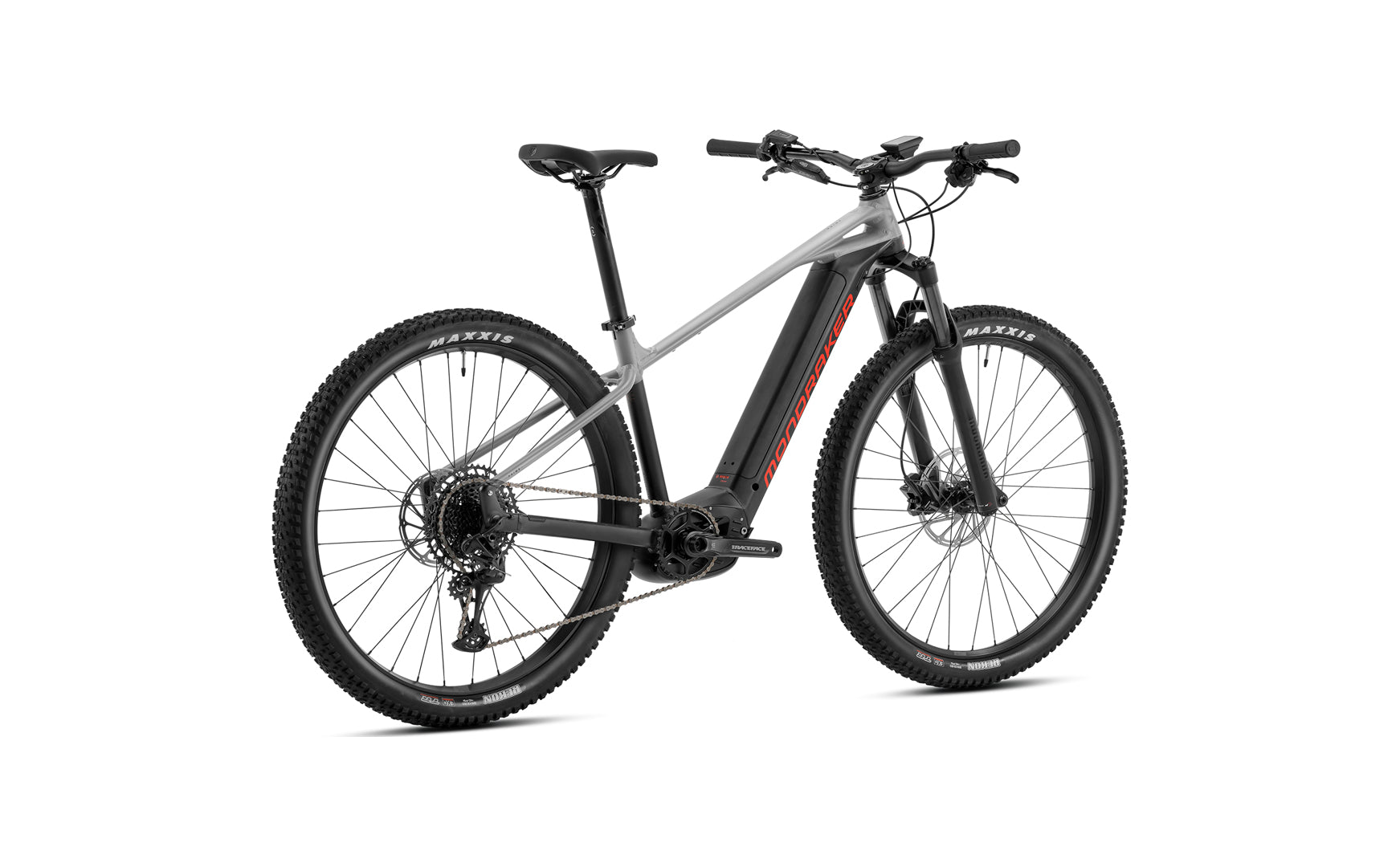

Introducing the Mondraker Prime Electric Mountain Bike in Nimbus Grey, a cutting-edge marvel designed to conquer any trail with style and power. Crafted with precision and innovation, this bike is ready to redefine your mountain biking experience. Here’s why the Mondraker Prime should be your ultimate choice:
Frame & Geometry:
The Prime features a Prime Xtralite 6061 Fully Butted Alloy frame with Forward Geometry, ensuring optimal balance, stability, and agility on the trails. With an internal removable battery and integrated dropout speed sensor, it seamlessly blends advanced technology with high-performance design.
Fork & Suspension:
Equipped with a RockShox Recon Silver RL 29 fork boasting 120mm of travel, Motion Control, and Solo Air technology, you'll glide over obstacles with confidence and control. The tapered steerer tube and Boost 15x110mm axle enhance stability and responsiveness on any terrain.
Components:
With Onoff components throughout, including the stem, handlebar, grips, seatpost, and saddle, you can trust in their quality and durability. The Sram Level T brakes deliver reliable stopping power, while the MDK-HP1 rims and Maxxis Rekon tires ensure traction and stability when navigating tricky trails.
Power & Performance:
Powered by the Bosch Performance Line CX Smart System motor and a Bosch Powertube 625Wh battery, the Prime offers seamless assistance on climbs and long rides. The Bosch Kiox 300 display and LED remote provide intuitive control and real-time performance feedback, empowering you to ride with confidence.
Versatile Sizing & Lightweight Design:
Available in a range of sizes from XS to XL, accommodating riders of various heights. Plus, weighing in at just 22.5 kg, the Prime is surprisingly lightweight for an electric mountain bike, ensuring nimble handling and ease of transportation.
Whether you’re tackling steep climbs or shredding downhill descents, the Mondraker Prime Electric Mountain Bike in Nimbus Grey is your ultimate trail companion. Elevate your riding experience and conquer new adventures with unmatched style and performance. Get yours today from our bicycle store in Liverpool and experience the thrill of electric mountain biking like never before!
Specification
Frame:
Prime Xtralite 6061 Fully Butted Alloy, Forward Geometry, internal removable battery, tapered head tube, Boost 12x148mm rear axle, integrated dropout speed sensor
Sizes:
XS: 380mm / S: 390mm / M: 430mm / L: 470mm / XL: 510mm
Fork:
RockShox Recon Silver RL 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 32mm steel stanchions, 42mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload
Headset:
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem:
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar:
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips:
Onoff Twin, 1lock-on, 135mm
Seatpost:
Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm
Saddle:
MDK ebike black
Front brake:
Sram Level T, 2 piece calliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear brake:
Sram Level T, 2 piece calliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever:
Sram Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings
Rims:
MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes
Spokes:
CN round stainless steel
Front hub:
Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts
Rear hub:
Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolts
Front tire:
Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
Rear tire:
Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
Crankset:
Race Face Aeffect ebike, 165mm
Rings:
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain:
Sram SX Eagle, 12s, Powerlock
Rear derailleur:
Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Shift levers:
Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click
Cassette:
Sram PG-1210, 11-50T, 12s
Derailleur hanger:
Mondraker M068
Weight:
22.5 kg
Display:
Bosch Kiox 300 / Bosch Led Remote
Motor:
Bosch Performance Line CX (25km/h) Smart System
Battery:
Bosch Powertube 625Wh
