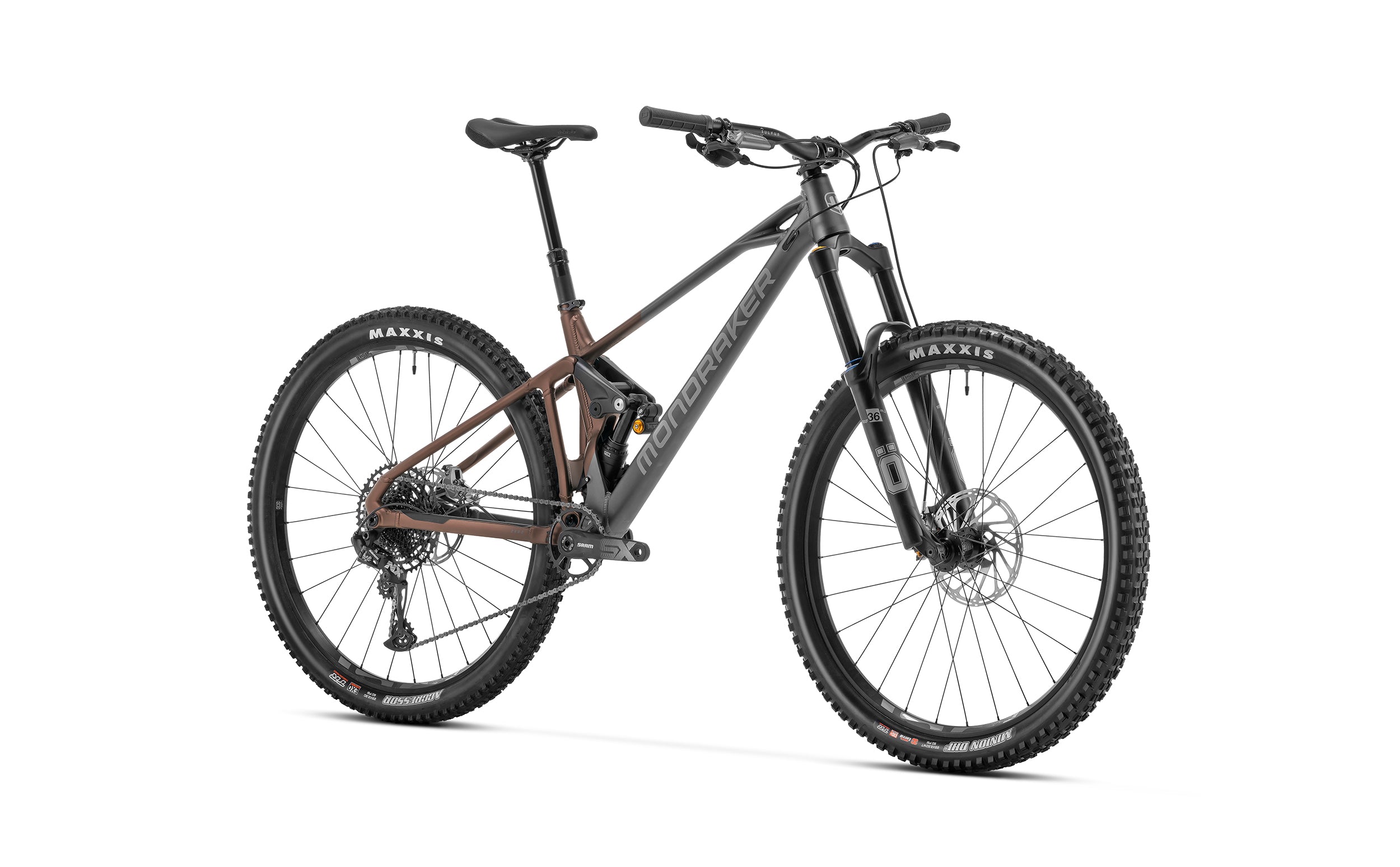

Mondraker Foxy R Mountain Bike - Bronze
        Mondraker Foxy R Mountain Bike - Bronze

Mondraker Foxy R Mountain Bike - Bronze

Save 27%
£3,419.99 £4,699
/

Select an option to add this to your cart.

Looking for a top-notch mountain biking experience? Introducing the Mondraker Foxy R Mountain Bike in Bronze, now available at our Liverpool store. Crafted to conquer the toughest trails with finesse and style, this bike is a testament to Mondraker's dedication to performance and innovation.

The Foxy 29 6061 Alloy Stealth Evo frame sets the foundation for excellence, boasting hydroformed tubing, Zero Suspension System, and Forward Geometry for superior handling and control. With 150mm of travel, this bike eats up obstacles with ease, while the Boost 12x148mm rear axle ensures stability and responsiveness on any terrain.

Equipped with an Öhlins TTX Air rear shock and Öhlins RXF 36 M.3 fork, this bike delivers plush, controlled suspension performance. Customize your ride with adjustable settings for compression, rebound, and air preload, ensuring optimal comfort and efficiency on every ride.

Designed for the modern rider, the Foxy R features a dedicated 1x drivetrain design, maximizing efficiency and simplicity. The Sram SX Eagle crankset and derailleur provide smooth, precise shifting, while the Sram Code Bronze Stealth brakes offer reliable stopping power in any conditions.

Roll over obstacles with confidence thanks to the e*thirteen LG1 Enduro rims and Maxxis Minion DHF/Aggressor tires, offering traction and durability where it matters most. And with a comfortable SDG BEL-AIR 3.0 saddle and Onoff Pija dropper seatpost, you'll stay comfortable on long rides while tackling challenging terrain.

Lightweight yet durable, the Mondraker Foxy R weighs in at just 16.2 kg, making it easy to maneuver and transport. Whether you're hitting the trails for a weekend adventure or competing in a race, this bike is ready to elevate your riding experience to new heights.

Experience the thrill of off-road exploration with the Mondraker Foxy R Mountain Bike. Visit our Liverpool store today and take your riding to the next level.

Specification

Frame:
Foxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 150mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05

Sizes:
S: 380mm / M: 420mm / L: 470mm / XL: 510mm

Rear shock:
Öhlins TTX Air 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x8mm bottom bushings

Shock settings:
C20 compression, R35 rebound

Fork:
Öhlins RXF 36 M.3 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber. Fork settings: C20 R40

Headset:
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

Stem:
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

Handlebar:
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

Grips:
Onoff Twin, 1lock-on, 135mm

Seatpost:
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm

Saddle:
SDG BEL-AIR 3.0, LPU foam, steel rails

Front brake:
Sram Code Bronze Stealth, 4-piston calliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

Rear brake:
Sram Code Bronze Stealth, 4-piston calliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

Brake lever:
Sram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust

Rims:
e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminium, 30mm internal width, tubeless ready, 28 spokes

Spokes:
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers

Front hub:
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminium, IS 6 bolts

Rear hub:
e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminium w/6-degree engagement, IS 6 bolts, HG freehub

Front tire:
Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

Rear tire:
Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead

Crankset:
Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL55

Rings:
32T, CNC-machined alloy, X-SYNC 2

Bottom bracket:
Sram DUB BSA, sealed bearings, 73mm

Chain:
Sram SX Eagle, 12s, Powerlock

Rear derailleur:
Sram NX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

Shift levers:
Sram Trigger SX Eagle, 12s, X-Actuation 1:1

Cassette:
Sram PG-1230, 11-50T, 12s

Derailleur hanger:
Sram UDH

Weight:
16.2 kg
