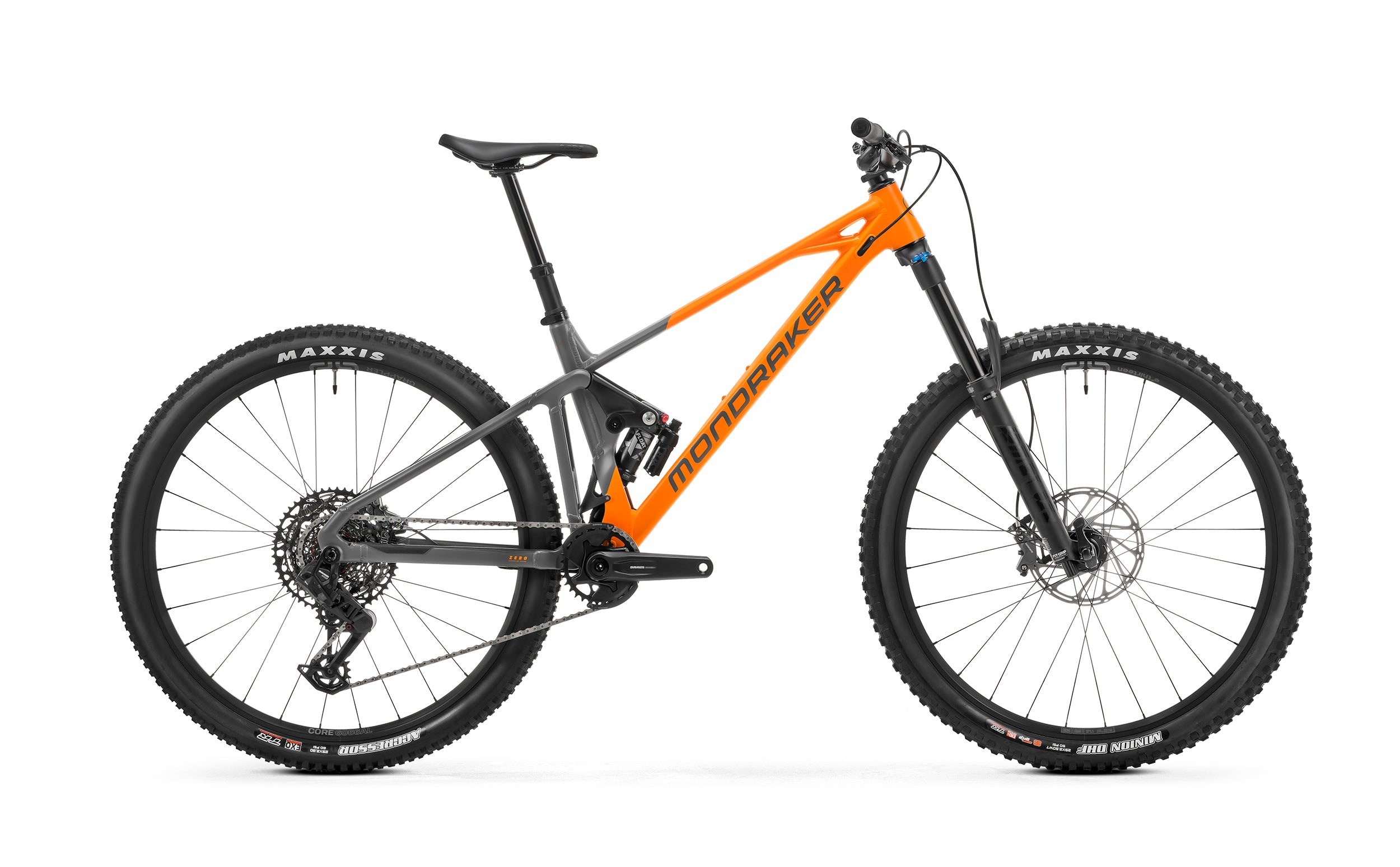

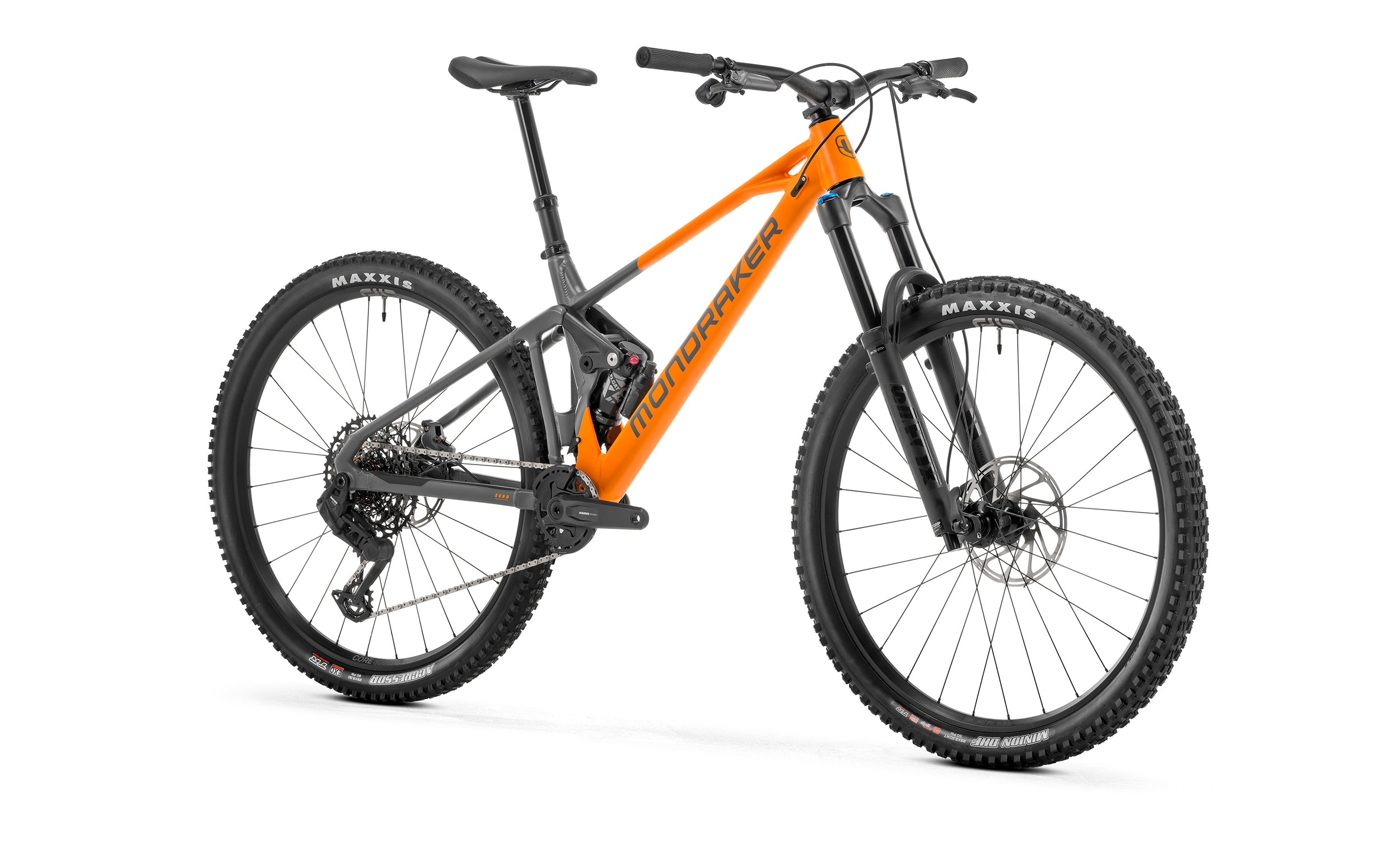

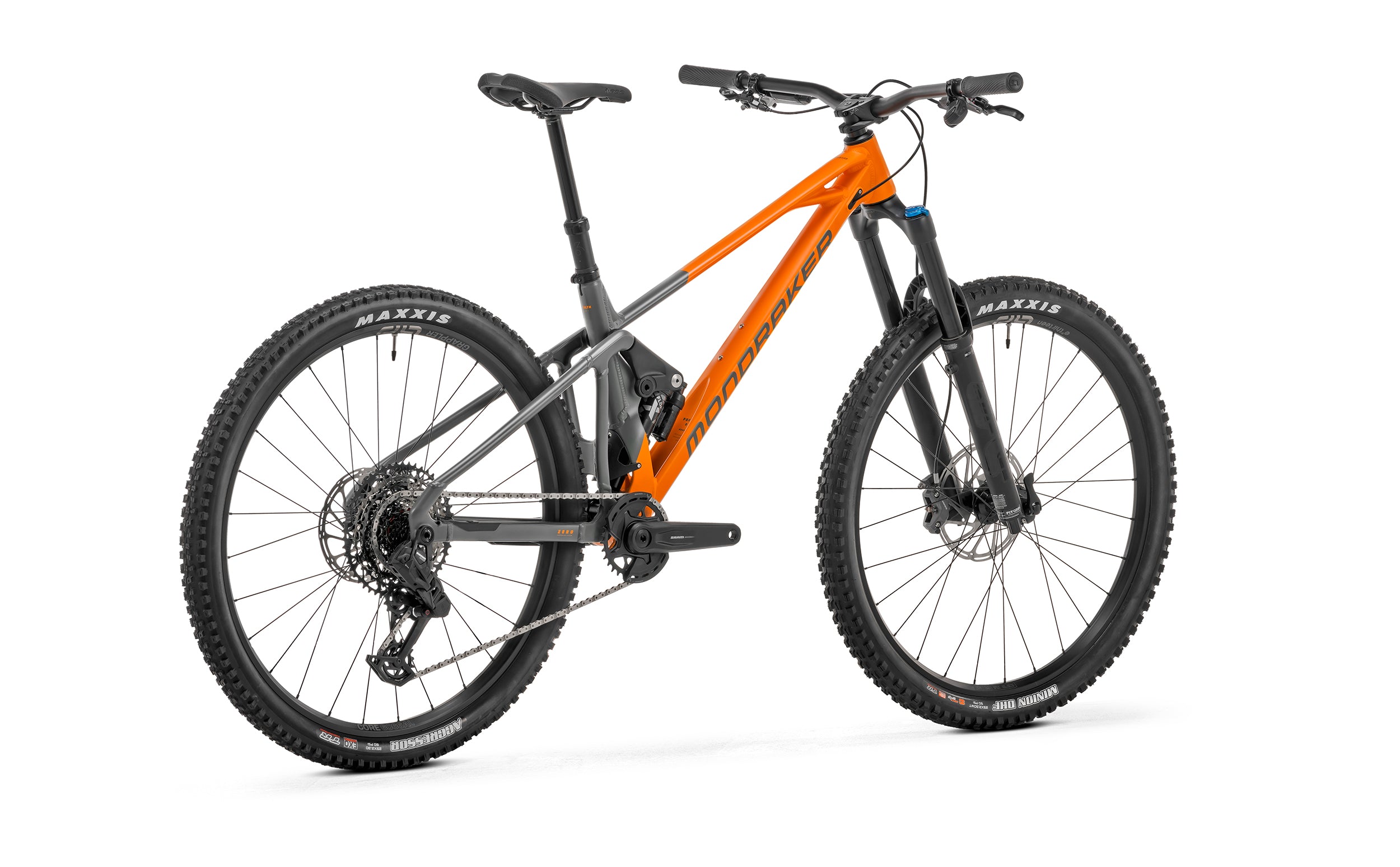

Conquer any trail with the Mondraker Foxy R Mountain Bike in a striking Atomic Orange colour, engineered for those who demand exceptional performance on rough terrain. Perfectly suited for aggressive mountain bikers and trail enthusiasts in Liverpool, the Foxy R combines cutting-edge technology, advanced suspension systems, and a rugged yet lightweight frame to deliver an unparalleled ride.
Key Features:
-
Frame: Crafted from 6061 Alloy Stealth Evo with hydroformed tubing, the Foxy 29 frame boasts Zero Suspension System and 150mm travel, ensuring a smooth ride over challenging trails. The Forward Geometry and Monoblock upper link design enhance stability and control.
-
Rear Shock: Equipped with a Fox Float-X LV Performance rear shock (205x65mm) for efficient impact absorption. The 2-position compression lever and low-speed rebound allow fine-tuning of performance on varied terrains.
-
Fork: Featuring the Fox 36 29 Float Performance GRIP fork with 160mm travel, it handles rough terrain with ease. The 3-position compression and low-speed rebound settings allow for optimal customization.
-
Braking Power: With Sram Code Bronze Stealth 4-piston brakes and Centerline rotors (200mm front, 180mm rear), the Foxy R offers superior stopping power, even on the steepest descents.
-
Wheels & Tires: The e*thirteen Grappler Core rims with a 30mm internal width are paired with Maxxis Minion DHF and Maxxis Aggressor tires, designed for ultimate traction and durability on both wet and dry trails.
-
Drivetrain: Powered by a Sram S1000 Eagle T-Type crankset and a Sram GX Eagle T-Type 12-speed drivetrain, offering precise shifting and efficient power transfer. The 10-52T cassette provides a wide range for tackling steep climbs and fast descents.
-
Comfort & Control: The Onoff Pija dropper seatpost (with internal routing) ensures quick adjustments to your riding position, while the Onoff S3 alloy handlebars provide excellent control and comfort on every ride.
-
Weight: The Mondraker Foxy R weighs just 16.5kg, offering a perfect balance between strength and lightweight performance.
Whether you're navigating rocky descents or powering through technical climbs, the Mondraker Foxy R Mountain Bike in Atomic Orange delivers an exciting, high-performance ride. Shop now at our Liverpool store and elevate your mountain biking experience to new heights.
Specification
Frame: Foxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 150mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05
Sizes: S: 375mm / M: 415mm / L: 445mm / XL: 500mm
Rear shock: Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x8mm bottom bushings
Shock settings: Light compression, light rebound, air volume spacer 0.6
Fork: Fox 36 29 Float Performance GRIP, 160mm, 3 Position, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload
Headset: Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º
Stem: Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar: Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Grips: Onoff Beehive, 1lock-on, 135mm
Seatpost: Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm)
Saddle: SDG BEL-AIR 3.0, LPU foam, steel rails
Front brake: Sram Code Bronze Stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake: Sram Code Bronze Stealth, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever: Sram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust
Rims: e*thirteen Grappler Core, IW30 Hookless, 6066 Welded Aluminium, 30mm internal width, tubeless ready, 28 spokes
Spokes: e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front hub: e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminium, IS 6 bolts
Rear hub: e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminium w/6-degree engagement, IS 6 bolts, HG freehub
Front tire: Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX GRIP compound, EXO+ protection, 120TPI, folding bead
Rear tire: Maxxis Aggressor 29x2.3 WT, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
Crankset: Sram S1000 Eagle T-Type, Boost, DUB axle, Direct mount chain ring, All sizes: 170mm,CL 55
Rings: 32T, CNC-machined alloy, T-Type
Bottom bracket: Sram DUB BSA, sealed bearings, 73mm, wide
Chain: Sram GX Eagle T-Type, 12s, Powerlock
Rear derailleur: Sram S1000 Eagle AXS T-Type, 12s
Shift levers: Sram Eagle AXS Pod, 12s
Cassette: Sram XS-1270, 10-52T, T-Type 12s
Weight: 16,5 kg
