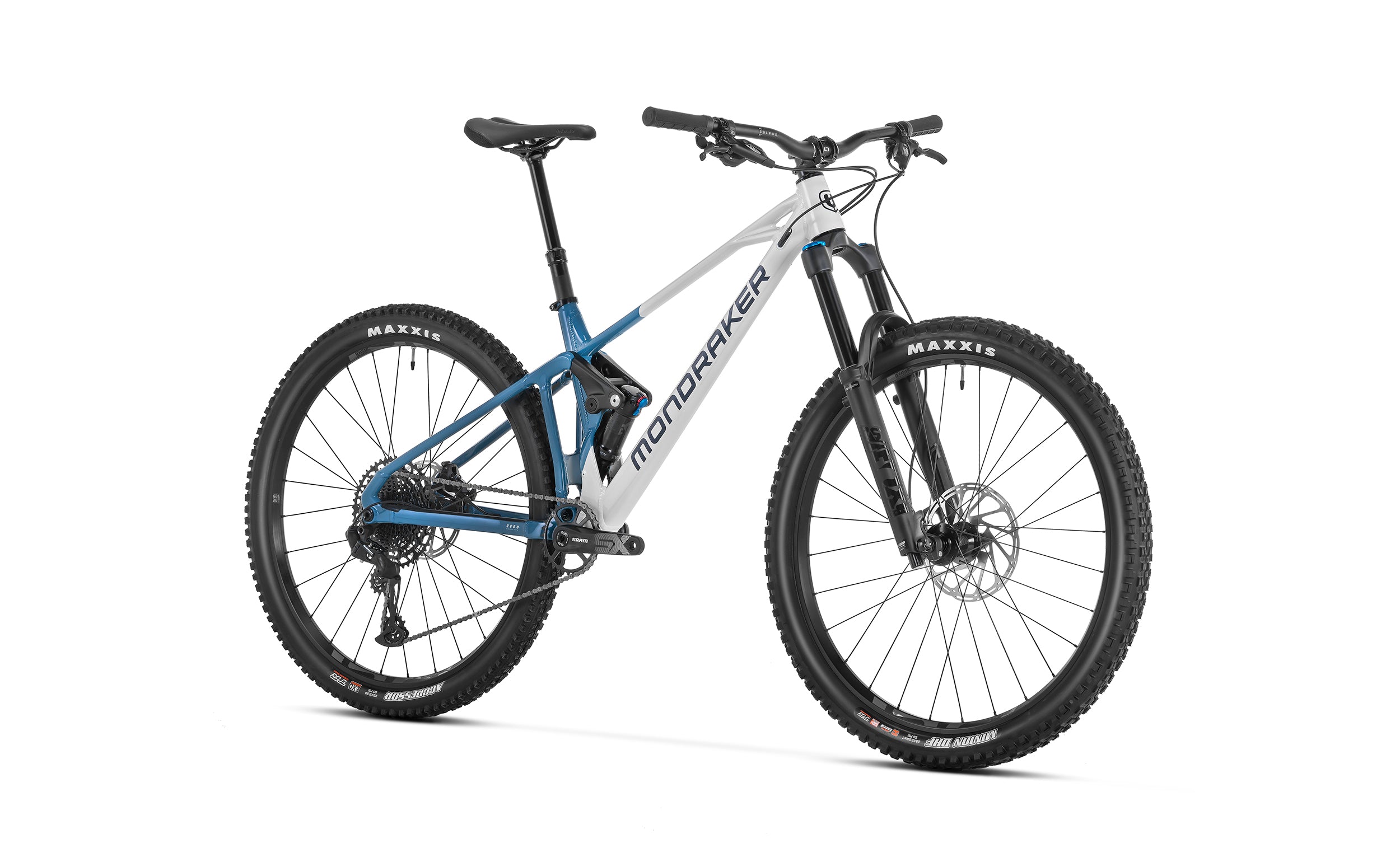

Introducing the Mondraker Foxy Mountain Bike in Bunker Grey, a trail-blazing marvel designed to conquer any terrain with finesse and style. Crafted with precision engineering and cutting-edge technology, this bike from the legendary Foxy series is ready to elevate your riding experience to new heights.
The heart of this beast lies in its Foxy 29 6061 Alloy Stealth Evo frame, meticulously crafted with hydroformed tubing and featuring Mondraker's signature Zero Suspension System. With 150mm of travel and Forward Geometry, every ride becomes a seamless fusion of agility and stability. The one piece Monoblock upper link ensures unrivaled durability, while the Boost 12x148mm rear axle enhances traction and control.
Equipped with a Fox Float EVOL Performance rear shock and Fox 36 29 Float Rhythm fork, this bike effortlessly absorbs bumps and rough terrain, offering customizable settings for your riding preferences. With the Onoff Saturn tapered headset and Onoff Sulfur components, including stem and handlebar, you're guaranteed precision handling and control on every descent and ascent.
Bringing you to a halt with confidence are the Sram G2 R hydraulic disc brakes, delivering powerful stopping performance in all conditions. Rolling on e*thirteen LG1 Enduro rims and Maxxis tires, this bike offers superior traction and durability, whether you're navigating rocky trails or carving through berms.
Powered by a Sram SX Eagle drivetrain, shifting gears seamlessly through rugged landscapes is effortless. The 12-speed cassette provides a wide range of gearing options, while the Sram SX Eagle rear derailleur ensures crisp and precise gear changes every time.
Designed for riders of all levels, the Mondraker Foxy Mountain Bike in Bunker Grey is available in four sizes to accommodate your individual fit and riding style. With its sleek aesthetics and top-notch performance, this bike is poised to become your ultimate trail companion.
Discover the thrill of off-road adventures like never before with the Mondraker Foxy Mountain Bike. Visit our Liverpool store today and experience the ride of a lifetime.
Specification
Frame:
Foxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 150mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05
Sizes:
S: 380mm / M: 420mm / L: 470mm / XL: 510mm
Rear shock:
Fox Float EVOL Performance, 205x65mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 25x8mm bottom bushings
Shock settings:
Light compression, light rebound, air volume spacer 0.6
Fork:
Fox 36 29 Float Rhythm, 160mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload
Headset:
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem:
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar:
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips:
Onoff Twin, 1lock-on, 135mm
Seatpost:
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
Saddle:
SDG BEL-AIR 3.0, LPU foam, steel rails
Front brake:
Sram G2 R, 4-piston calliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake:
Sram G2 R, 4-piston calliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever:
Sram G2 R, tool-free reach adjust, lever pivot bushings
Rims:
e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminium, 30mm internal width, tubeless ready, 28 spokes
Spokes:
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front hub:
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminium, IS 6 bolts
Rear hub:
e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminium w/6-degree engagement, IS 6 bolts, HG freehub
Front tire:
Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Rear tire:
Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
Crankset:
Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL55
Rings:
32T, steel, X-Sync 2
Bottom bracket:
Sram DUB BSA, sealed bearings, 73mm
Chain:
Sram SX Eagle, 12s, Powerlock
Rear derailleur:
Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Shift levers:
Sram Trigger SX Eagle, 12s, X-Actuation 1:1
Cassette:
Sram PG-1210, 11-50T, 12s
Derailleur hanger:
Sram UDH
Weight:
16.5 kg
