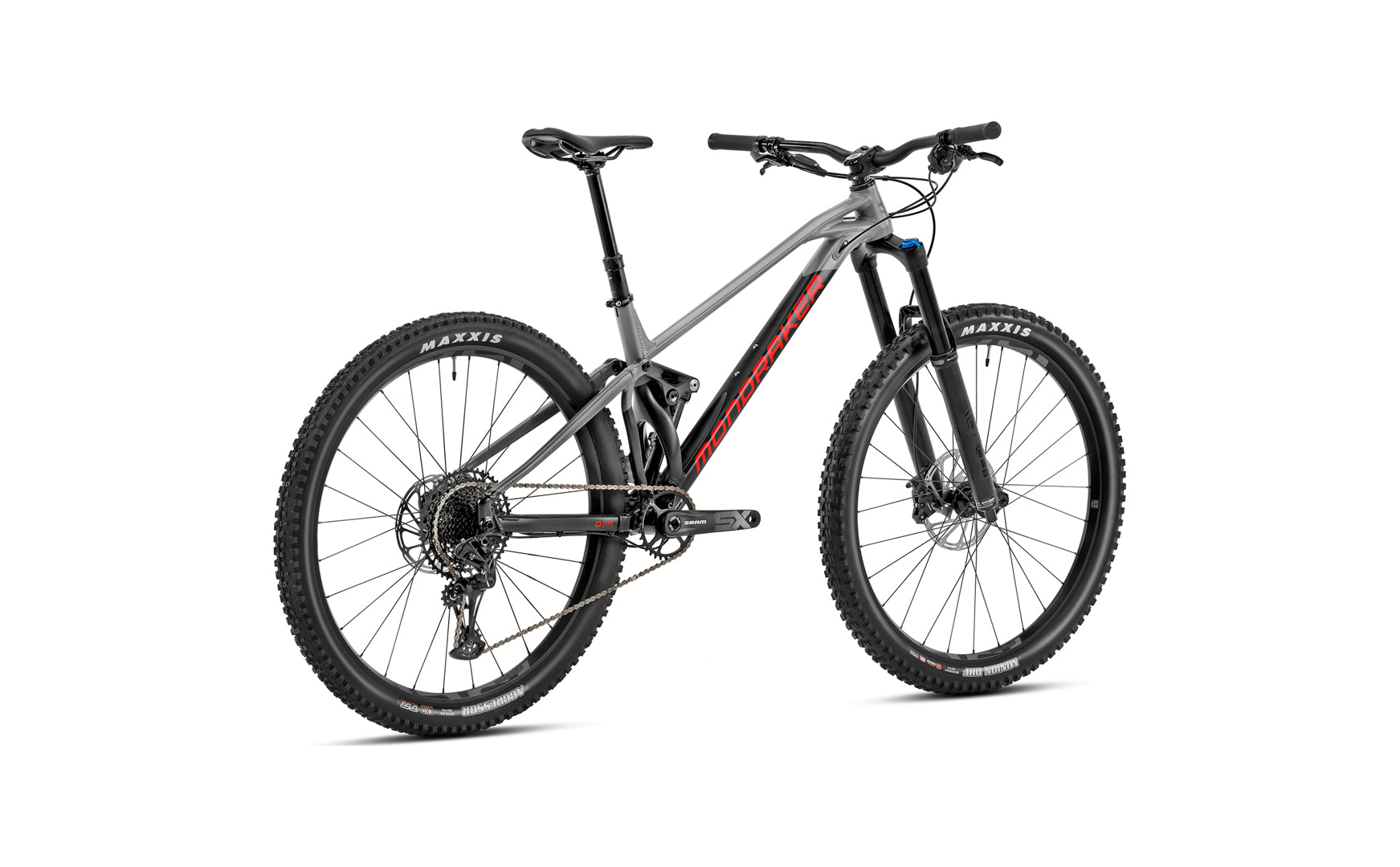

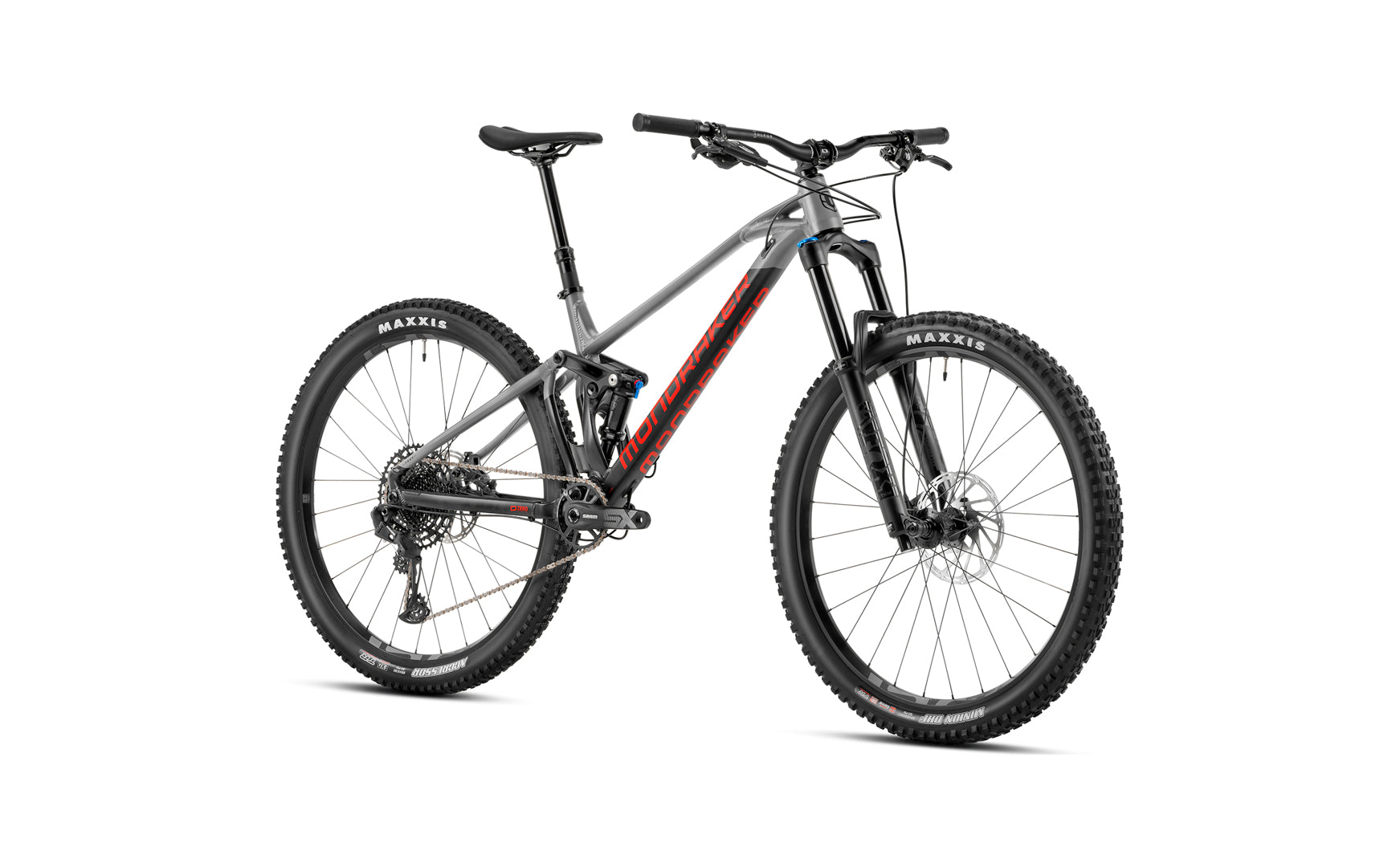

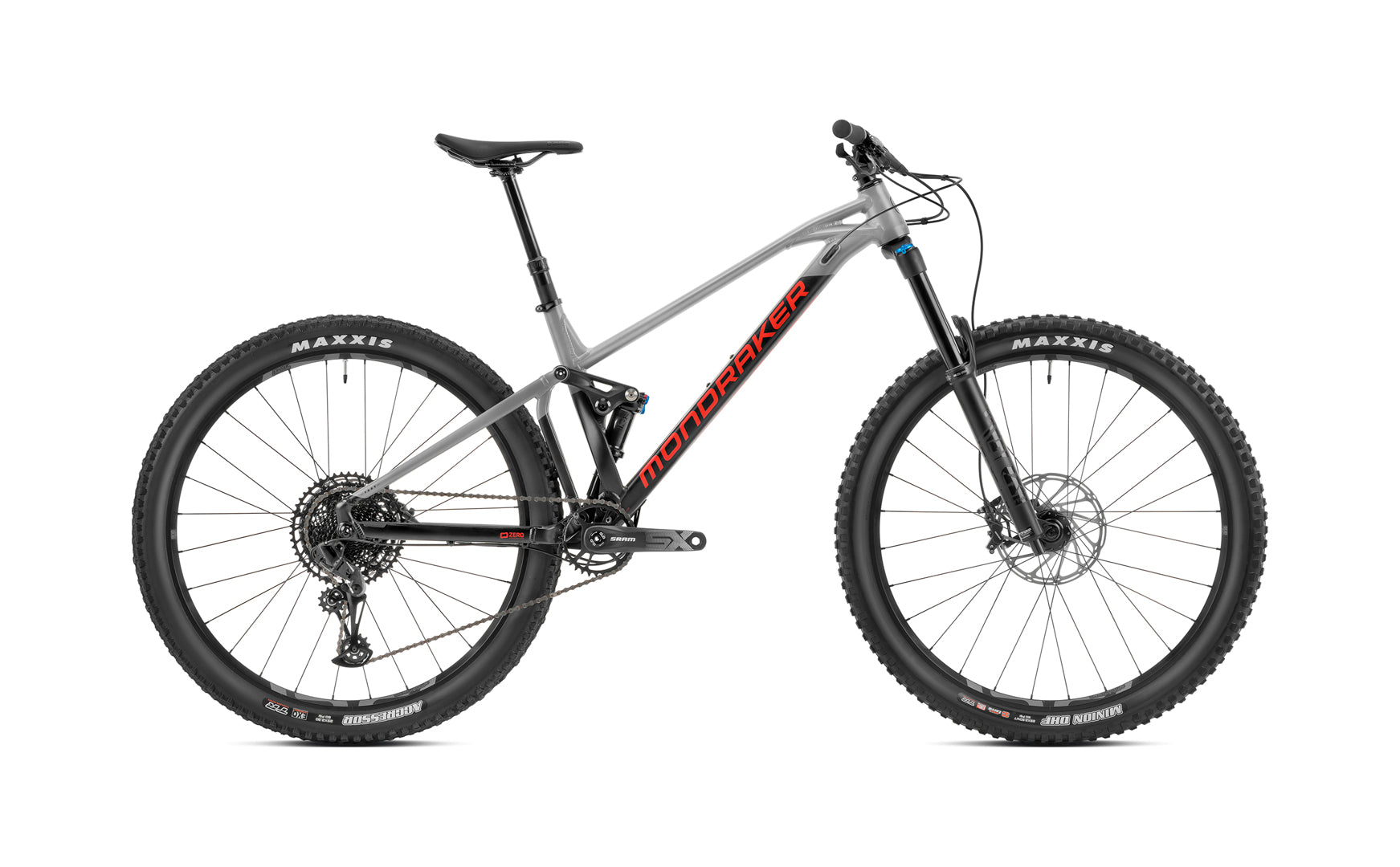

The Mondraker Foxy Mountain Bike in sleek Black/Grey/Red is designed for riders who demand the best performance, durability, and style on the trails. Engineered with cutting-edge technology, this bike is perfect for tackling challenging terrain, from rocky descents to technical climbs.
Frame & Suspension
At the core of the Foxy is its Foxy 29 6061 Alloy Stealth Evo frame, featuring hydroformed tubing and Mondraker’s signature Zero Suspension System. With 150mm of rear travel and Forward Geometry, this bike offers precise handling and superior control. The Fox Float DPS LV EVOL Performance shock with three-position compression adjustment and the Fox 36 Float GRIP EVOL Rhythm fork (160mm travel) ensures a smooth and responsive ride, no matter the conditions.
Braking & Wheels
The Sram G2 R brakes with a 4-piston caliper and Centerline rotors (200mm front, 180mm rear) provide powerful and reliable stopping power. The e*thirteen LG1 Enduro wheels, combined with Maxxis Minion DHF and Aggressor tires, deliver exceptional grip and stability on all types of terrain. Tubeless-ready and built with durable components, these wheels offer a smooth, controlled ride with reduced risk of flats.
Drivetrain & Performance
Equipped with a Sram SX Eagle 12-speed drivetrain, including a Sram PG-1210 cassette (11-50T) and Sram SX Eagle derailleur, the Mondraker Foxy ensures smooth, responsive shifting and excellent range for tackling both steep climbs and fast descents. The Sram SX Eagle crankset with a 32T chainring and Boost DUB axle guarantees optimal power transfer and efficiency.
Geometry & Sizing
The Forward Geometry and Boost 12x148mm rear axle provide enhanced stability and performance. The Foxy is available in a range of sizes (S, M, L, XL) to ensure a perfect fit for riders of all heights.
Additional Features
-
ONOFF Pija dropper seatpost for quick saddle height adjustments
-
SDG BEL-AIR 3.0 saddle for comfort on long rides
-
ONOFF Sulfur handlebars and stem for a solid and responsive handling experience
-
Sealed bearings in the headset and wheels for smooth operation and durability
With a weight of just 15.6kg, the Mondraker Foxy Mountain Bike offers a lightweight, high-performance platform that excels in both technical and aggressive riding styles.
Key Specifications:
-
Frame: Foxy 29 6061 Alloy Stealth Evo, 150mm travel
-
Fork: Fox 36 29 Float GRIP EVOL Rhythm, 160mm
-
Rear Shock: Fox Float DPS LV EVOL Performance
-
Brakes: Sram G2 R, 4-piston caliper, 200mm/180mm rotors
-
Wheels: e*thirteen LG1 Enduro, tubeless-ready
-
Drivetrain: Sram SX Eagle 12-speed, 32T chainring, 11-50T cassette
-
Tires: Maxxis Minion DHF 29x2.5 WT (front), Maxxis Aggressor 29x2.3 (rear)
Whether you’re an experienced rider looking to upgrade or a passionate enthusiast seeking the ultimate mountain bike, the Mondraker Foxy offers the ideal balance of performance, innovation, and style for all your off-road adventures. Available now at our Liverpool store – ready to take on any trail!
Specification
Frame: Foxy 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 150mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05
Sizes: S: 380mm / M: 420mm / L: 470mm / XL: 510mm
Rear shock: Fox Float DPS LV EVOL Performance, 205x62.5mm. Settings: rebound, 3-position compression adjustment (Open/Mid/Lock), air preload. Trunnion top mount, 22.2x10mm bottom bushings
Shock settings: Light compression, light rebound, air volume spacer 0.6
Fork: Fox 36 29 Float GRIP EVOL Rhythm, 160mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload
Headset: ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem: ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar: ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips: ONOFF Twin, 1lock-on, 135mm
Seatpost: ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Saddle: SDG BEL-AIR 3.0, LPU foam, steel rails
Front brake: Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake: Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever: Sram G2 R, tool-free reach adjust
Rims: e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminium, 30mm internal width, tubeless ready, 28 spokes
Spokes: e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front hub: e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminium, IS 6 bolts
Rear hub: e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminium w/6-degree engagement, IS 6 bolts, Shimano freehub
Front tire: Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Rear tire: Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
Crankset: Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S/M size: 170mm, L/XL size: 175mm
Rings: 32T, steel, X-Sync 2
Bottom bracket: Sram DUB BSA, sealed bearings, 73mm
Chain: Sram SX Eagle, 12s, Powerlock
Rear derrailleur: Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Shift levers: Sram Trigger SX Eagle, 12s, X-Actuation 1:1
Cassette: Sram PG-1210, 11-50T, 12s
Derailleur hanger: Mondraker M068
Weight: 15,6 kg
