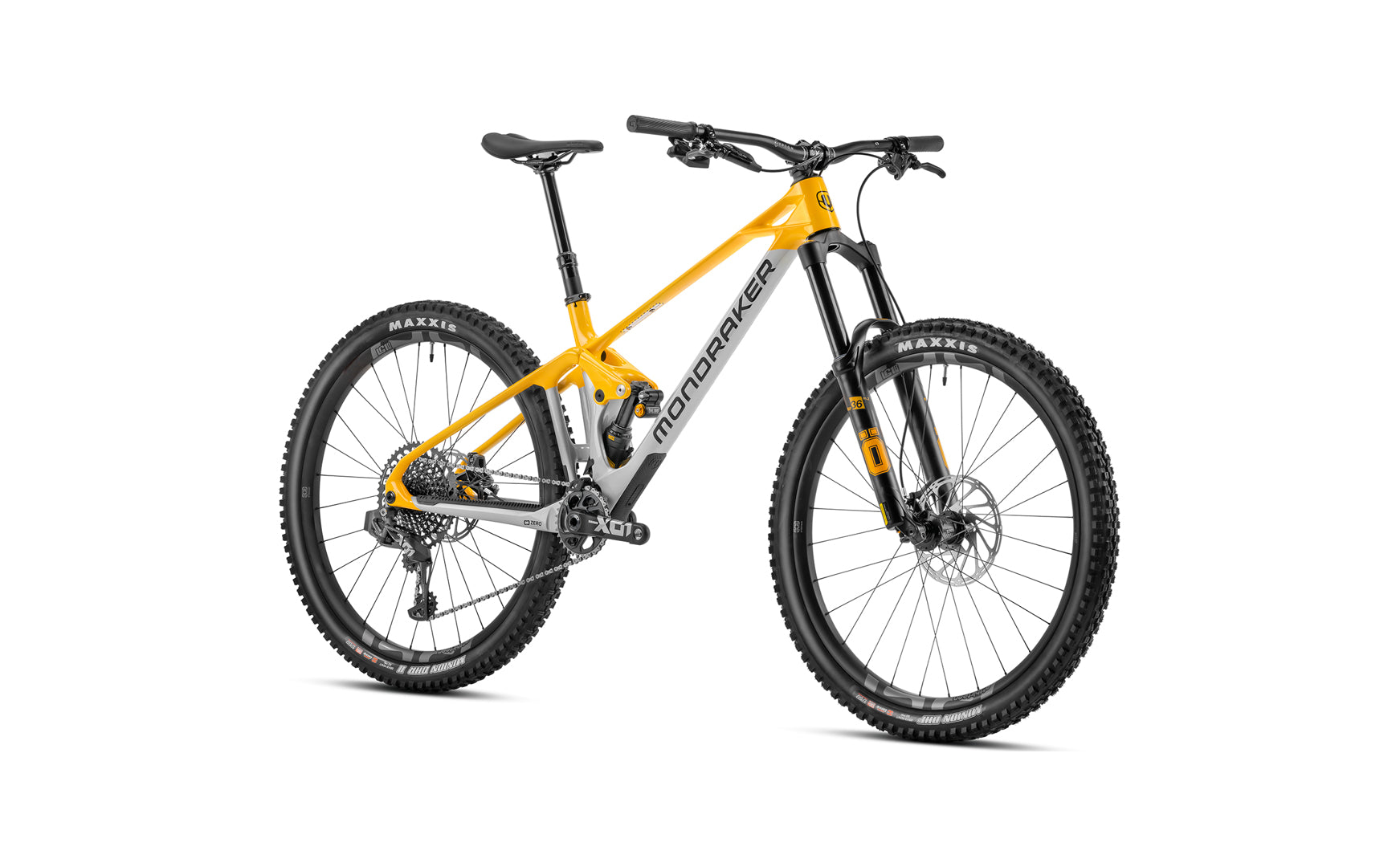

Introducing the Mondraker Foxy Carbon XR Mountain Bike in Yellow - a pinnacle of performance and style designed to conquer Liverpool's rugged terrains with unparalleled agility and speed. Crafted to perfection, this bike is a masterpiece of modern engineering, boasting a plethora of top-tier components meticulously assembled for ultimate riding pleasure.
At the heart of this beast lies the Foxy 29 Stealth Air full Carbon frame, utilizing Mondraker's innovative Zero Suspension System to deliver 150mm of plush travel. Engineered with Forward Geometry, this frame ensures precise handling and stability, while the Boost 12x148mm rear axle enhances power transfer and responsiveness.
Equipped with an Öhlins TTX Air rear shock and an Öhlins RXF 36 M.2 fork, this bike glides over obstacles with grace, offering adjustable settings for a personalized riding experience. The Acros custom headset and ONOFF Krypton components provide reliability and control, while the ONOFF Pija dropper seatpost guarantees seamless transitions between climbs and descents.
Brace yourself for unmatched stopping power, courtesy of the Sram Code RSC brakes, paired with oversized 4-piston callipers and Centerline rotors. The e*thirteen Race Carbon Enduro rims, wrapped in Maxxis Minion tires, ensure superior traction and durability, while the Sram X01 Eagle drivetrain delivers swift and precise gear shifts on every ascent and descent.
Lightweight yet robust, this masterpiece weighs in at just 13.9 kg, making it the perfect companion for Liverpool's trails. Whether you're tackling steep climbs or bombing downhills, the Mondraker Foxy Carbon XR Mountain Bike in Yellow is your ticket to adventure and adrenaline-fueled fun. Dominate the trails, stand out from the crowd, and experience mountain biking like never before. Get yours today and unleash your inner champion.
Specification
Frame:
Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.
Sizes:
S: 380mm / M: 420mm / L: 450mm / XL: 500mm
Rear shock:
Öhlins TTX Air 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings:
C10 compression, R35 rebound. Volume reducers 16.000 (2xF+1E)
Fork:
Öhlins RXF 36 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber. Fork settings: C20 R40
Headset:
Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Stem:
ONOFF Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar:
ONOFF Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips:
ONOFF Desert, 1lock-on, 135mm
Seatpost:
ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Saddle:
SDG BEL-AIR 3.0, LPU foam, steel rails
Front brake:
Sram Code RSC, oversized 4-piston calliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake:
Sram Code RSC, oversized 4-piston calliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever:
Sram Code RSC, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
Rims:
e*thirteen Race Carbon Enduro IW30, Hookless carbon rim, 30mm internal width, tubeless ready, 28 spokes
Spokes:
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front hub:
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminium, IS 6 bolts
Rear hub:
e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminium w/6-degree engagement, IS 6 bolts, XD freehub
Front tire:
Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Rear tire:
Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Crankset:
Sram X01 Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm
Rings:
32T, CNC-machined alloy, X-SYNC 2
Bottom bracket:
Sram DUB BSA, sealed bearings, 73mm
Chain:
Sram GX Eagle, 12s, Powerlock
Rear derailleur:
Sram X01 Eagle AXS, roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers:
Sram Eagle AXS Rocker paddle, 12s
Cassette:
Sram XG-1295, 10-52T, 12s
Derailleur hanger:
Sram UDH
Weight:
13.9 kg
