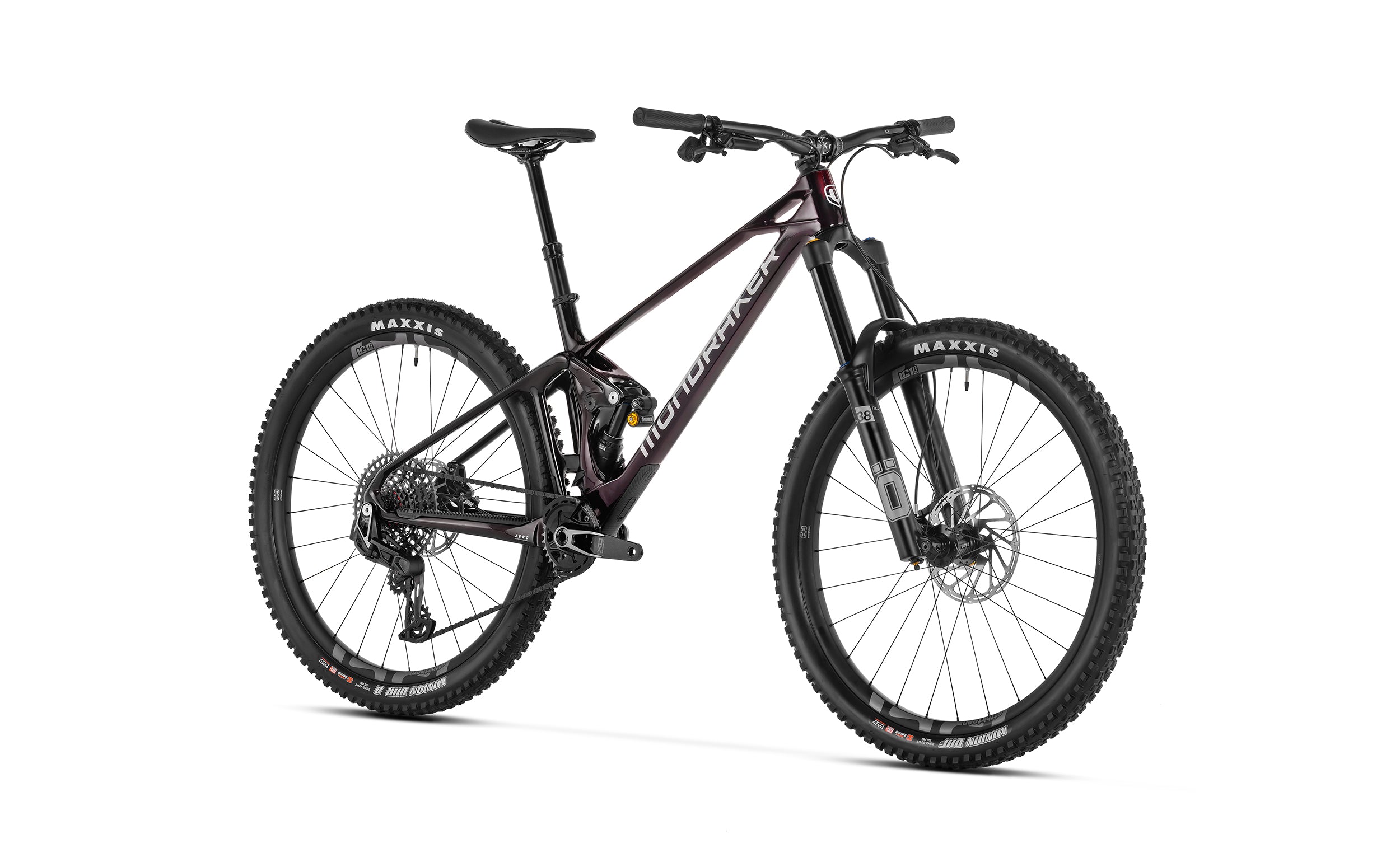

Introducing the Mondraker Foxy Carbon XR Mountain Bike in Translucent Red Carbon, designed for thrill-seekers and trail conquerors. Crafted with precision and innovation, this bike is a blend of cutting-edge technology and high-performance components, ensuring an exhilarating ride every time.
Frame:
Constructed with Foxy 29 Stealth Air full Carbon, this bike boasts the Zero Suspension System with 150mm travel, offering unparalleled control and agility on challenging terrains. The Carbon Monoblock upper link and Boost 12x148mm rear axle provide durability and stability, while the Forward Geometry enhances handling and maneuverability.
Rear Shock:
Equipped with the Öhlins TTX Air 205x65mm rear shock, featuring customizable settings including high-speed compression, low-speed compression, and rebound, ensuring optimal performance tailored to your riding style.
Fork:
The Öhlins RXF 38 M.2 29 fork with 170mm travel and TTX18 Twin Tube cartridge delivers unmatched responsiveness and damping control. With settings for high-speed compression, low-speed compression, and rebound, you can fine-tune your ride for maximum comfort and efficiency.
Brakes:
Featuring Sram Code Silver Stealth hydraulic disc brakes with 4-piston callipers, you can confidently navigate steep descents and technical trails with precision braking power. Paired with Centerline rotors, these brakes offer consistent performance in all conditions.
Drivetrain:
Powered by a Sram X0 Eagle drivetrain, this bike delivers smooth and reliable shifting across its 12-speed cassette. The Sram X0 Eagle AXS T-Type rear derailleur ensures crisp gear changes, while the Sram DUB BSA bottom bracket and Direct mount chainring optimize power transfer.
Wheels:
Rolling on e*thirteen Race Carbon Enduro rims and Maxxis Minion tires, this bike delivers exceptional traction and durability. The tubeless-ready design reduces the risk of flats and allows you to run lower tire pressures for enhanced grip.
Weight:
Weighing in at just 14.3 kg, the Mondraker Foxy Carbon XR strikes the perfect balance between lightweight agility and rugged durability, making it ideal for tackling everything from technical singletracks to high-speed descents.
Saddle Up and Ride:
Designed for adrenaline junkies and trail enthusiasts alike, the Mondraker Foxy Carbon XR Mountain Bike in Translucent Red Carbon is your ticket to adventure. Dominate the trails with confidence and style, and experience the thrill of off-road exploration like never before. Discover your next mountain biking obsession today at our Liverpool bicycle store!
Specification
Frame:
Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.
Sizes:
S: 380mm / M: 420mm / L: 450mm / XL: 500mm
Rear shock:
Öhlins TTX Air 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings:
C10 compression, R35 rebound. Volume reducers 16.000 (2xF+1E)
Fork:
Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
Headset:
Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Stem:
Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar:
Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips:
Onoff Desert, 1lock-on, 135mm
Seatpost:
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
Saddle:
SDG BEL-AIR 3.0, LPU foam, steel rails
Front brake:
Sram Code Silver Stealth, 4-piston calliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake:
Sram Code Silver Stealth, 4-piston calliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever:
Sram Code Silver Stealth, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
Rims:
e*thirteen Race Carbon Enduro IW30, Hookless carbon rim, 30mm internal width, tubeless ready, 28 spokes
Spokes:
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front hub:
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminium, IS 6 bolts
Rear hub:
e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminium w/6-degree engagement, IS 6 bolts, XD freehub
Front tire:
Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Rear tire:
Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Crankset:
Sram X0 Eagle T-Type, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm CL 55
Rings:
32T, CNC-machined alloy, T-Type
Bottom bracket:
Sram DUB BSA, sealed bearings, 73mm, wide
Chain:
Sram X0 Eagle T-Type, 12s, Powerlock
Rear derailleur:
Sram X0 Eagle AXS T-Type, roller bearing clutch, cage lock, 1x12s
Shift levers:
Sram Eagle AXS Pod MMX, 12s
Cassette:
Sram XS-1295, 10-52T, T-Type 12s
Weight:
14.3 kg
