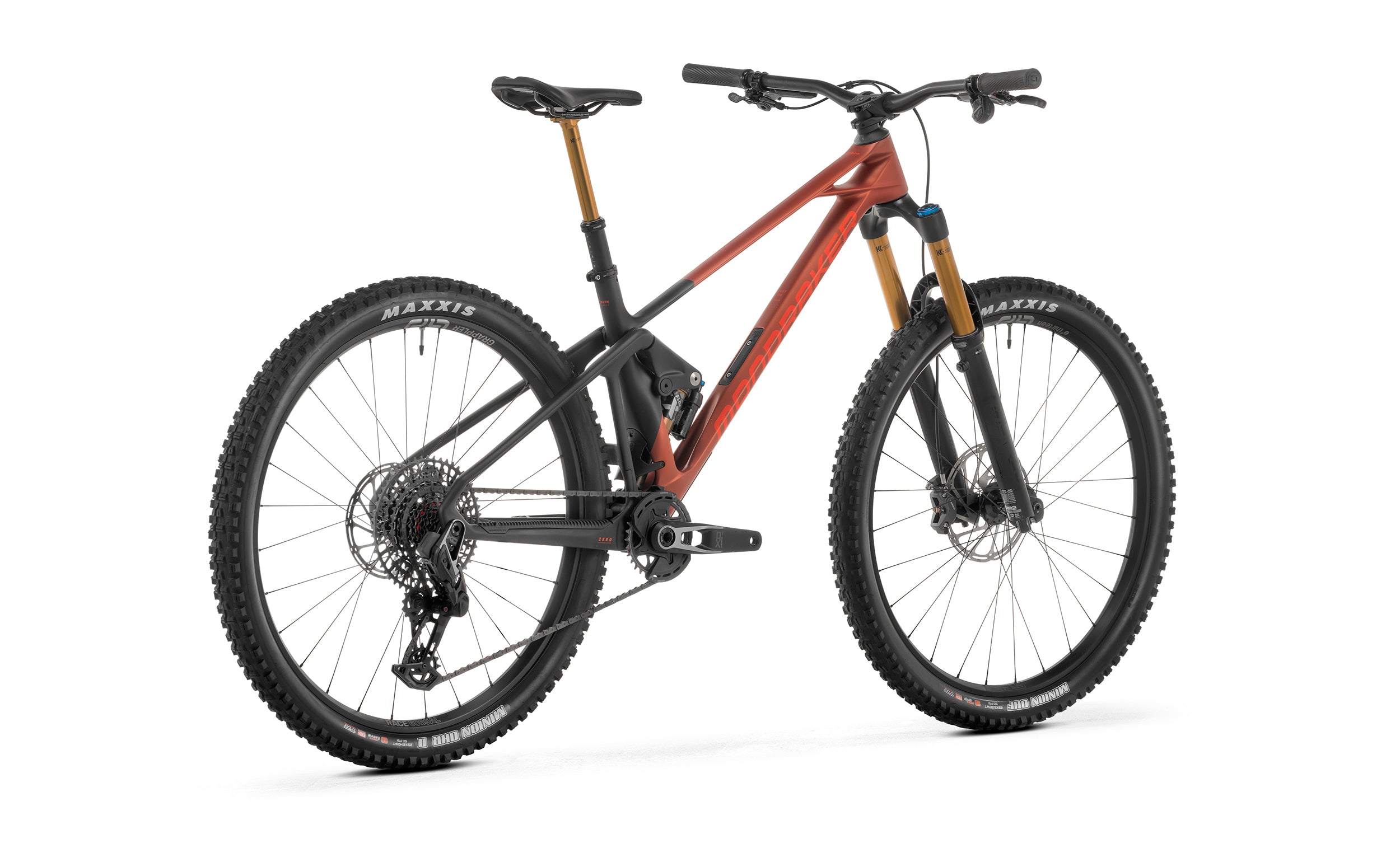

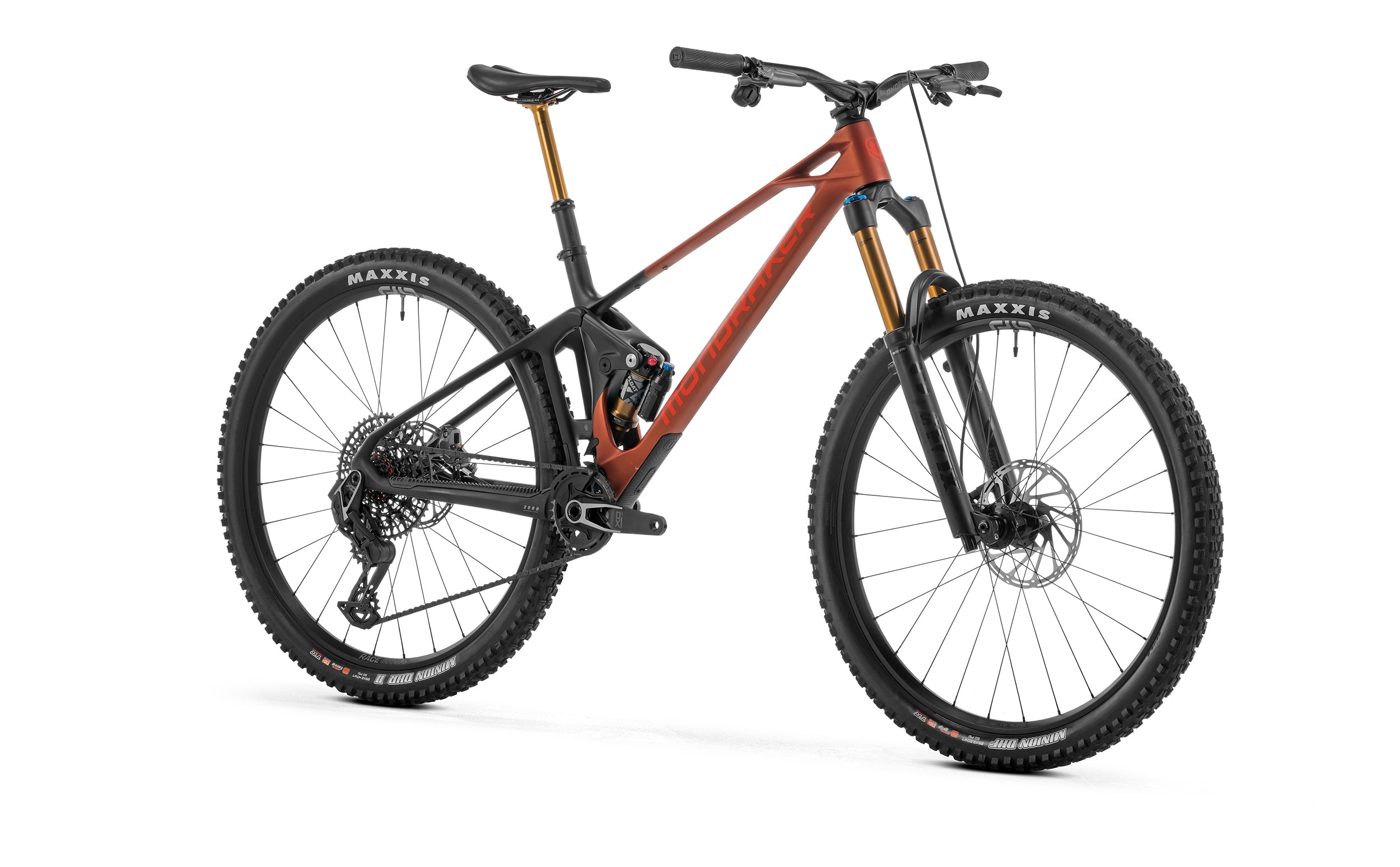

Unleash your trail-riding potential with the Mondraker Foxy Carbon RR Mountain Bike in stunning Earth Red, a premium all-mountain machine built for serious riders. Whether you're tackling Liverpool's rugged trails or exploring far beyond, this bike delivers unmatched performance and cutting-edge design.
Precision Engineering Meets Ultimate Control
At the heart of the Foxy Carbon RR is the Foxy 29 Stealth Air full carbon frame, featuring Mondraker's Zero Suspension System with 150mm travel. Paired with Forward Geometry for enhanced stability and responsiveness, this frame is designed to conquer technical terrain. The internal HHG cable routing ensures a clean look and long-term reliability, while the MIND System V2 tracks suspension performance, helping you fine-tune your ride.
Premium Suspension for Smooth Descents
Ride with confidence thanks to the Fox 36 Float Factory GRIP X2 fork with Kashima coating and 160mm of plush travel, offering precise control over high and low-speed compression. The Fox Float X Factory rear shock complements this setup, delivering exceptional responsiveness and versatility across varying terrains.
Unstoppable Drivetrain & Braking Performance
Equipped with the groundbreaking Sram X0 Eagle AXS T-Type 12-speed drivetrain, shifting is seamless, ensuring you stay in control on steep climbs and fast descents. The Sram Code Bronze Stealth brakes with 4-piston calipers and oversized 200mm front/180mm rear rotors deliver exceptional stopping power, perfect for tackling Liverpool’s challenging trails.
Unrivaled Traction and Durability
The e*thirteen Grappler Race wheels and Maxxis Minion DHF/DHR II tubeless-ready tires with EXO+ protection ensure superior grip and durability on any surface. With 30mm internal width rims and 3C Maxx Grip/Terra compounds, this bike guarantees a confident ride on loose dirt, rocky paths, or muddy trails.
Designed for Ultimate Comfort and Precision
The Foxy Carbon RR prioritizes rider comfort and control with its Fox Transfer Factory dropper post, allowing instant saddle height adjustments. The Onoff S9 carbon handlebars and CNC-machined stem provide precision steering, ensuring every ride feels natural and responsive.
Key Features:
-
Frame: Full carbon with 150mm travel and Forward Geometry
-
Fork: Fox 36 Factory GRIP X2, 160mm travel, Kashima-coated
-
Drivetrain: Sram X0 Eagle AXS 12-speed
-
Brakes: Sram Code Bronze Stealth with oversized rotors
-
Wheels: e*thirteen Grappler Race, tubeless-ready
-
Tires: Maxxis Minion DHF/DHR II with EXO+ protection
With a weight of just 14.4 kg, the Mondraker Foxy Carbon RR strikes the perfect balance between lightweight performance and rugged durability. Elevate your trail game today—available at our Liverpool store. Test ride it now and feel the difference!
Specification
Frame: Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. MIND System V2
Sizes: S: 375mm / M: 415mm / L: 445mm / XL: 500mm
Rear shock: Fox Float X Factory Kashima EVOL, 205x65mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings: Light compression, light rebound, air volume spacer 0.6
Fork: Fox 36 29 Float GRIP X2 Factory Kashima, Gloss Black, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset: Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem: Onoff S9 30mm 0º, Full CNC, 31.8mm barbore
Handlebar: Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Grips: Onoff Forest, CNC lock-on, 135mm
Seatpost: Fox Transfer Factory Kashima internal, adjustable travel, diameter 31.6mm,S size: 95mm -120mm, M size: 125mm -150mm, L size: 155mm -180mm, XL size: 185mm -210mm
Saddle: SDG BEL-AIR 3.0, LPU foam, steel rails
Front brake: Sram Code Bronze Stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake: Sram Code Bronze Stealth, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever: Sram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust
Rims: e*thirteen Grappler Race, IW30 Hookless, 6069 Welded Aluminium, 30mm internal width, tubeless ready, 28 spokes
Spokes: e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front hub: e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminium, IS 6 bolts
Rear hub: e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminium w/6-degree engagement, IS 6 bolts, XD freehub
Front tire: Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX GRIP compound, EXO+ protection, 120TPI, folding bead
Rear tire: Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Crankset: Sram X0 Eagle T-Type, Boost, DUB axle, Direct mount chain ring, All sizes: 170mm,CL 55
Rings: 32T, CNC-machined alloy, T-Type
Bottom bracket: Sram DUB BSA, sealed bearings, 73mm, wide
Chain: Sram X0 Eagle T-Type, 12s, Powerlock
Rear derailleur: Sram X0 Eagle AXS T-Type,12s
Shift levers: Sram Eagle AXS Pod, 12s
Cassette: Sram XS-1295, 10-52T, T-Type 12s
Weight: 14,4 kg
