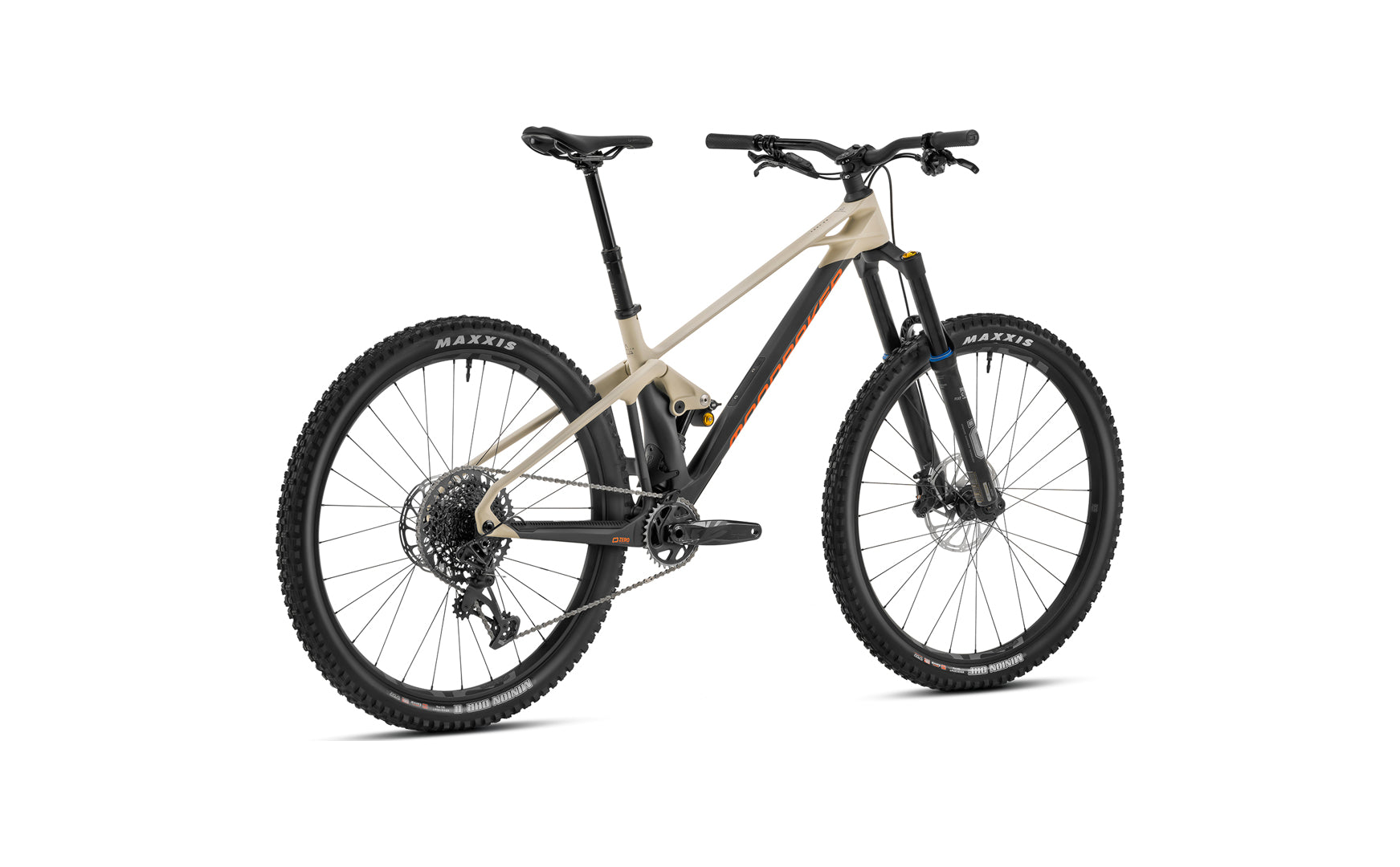

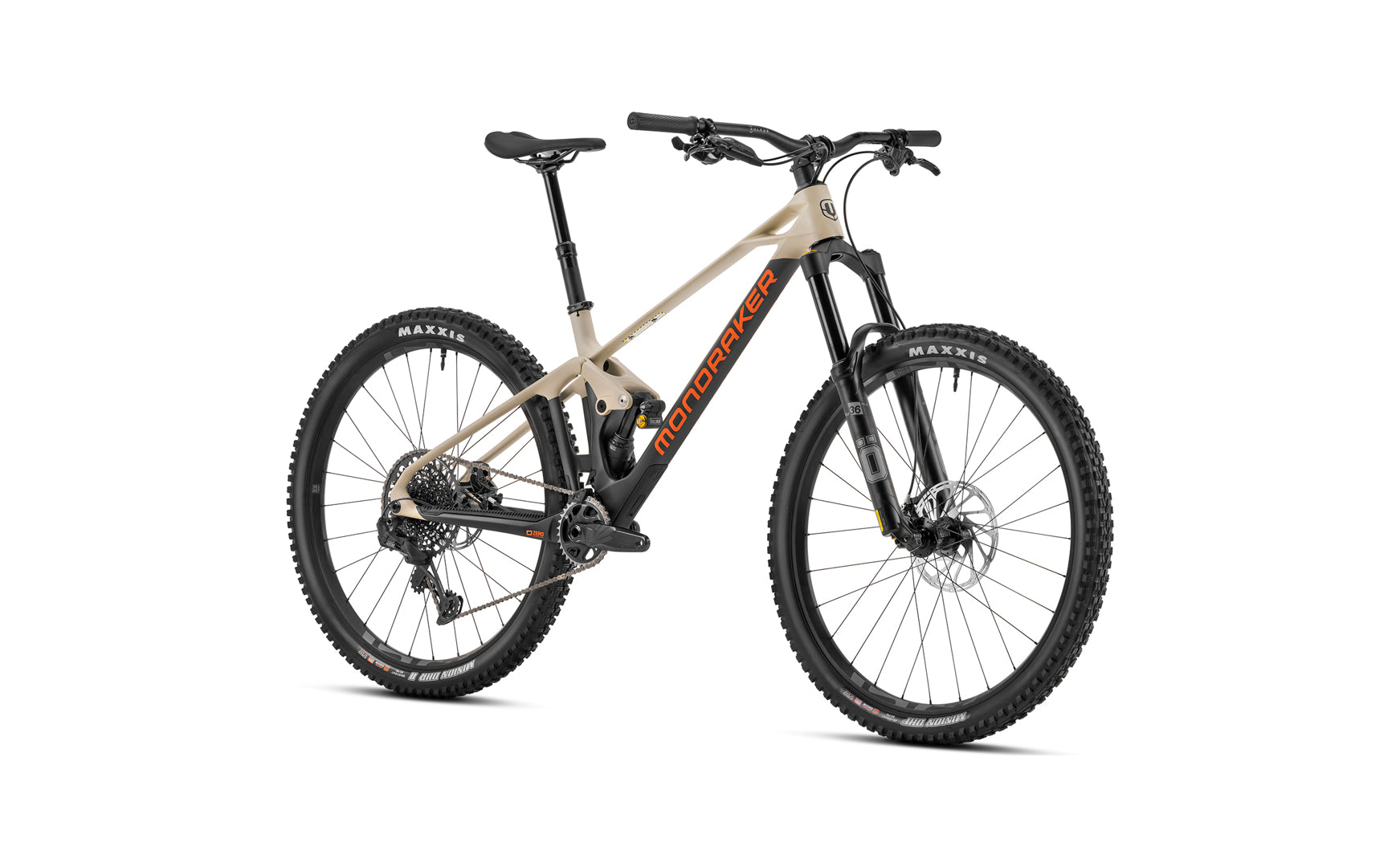

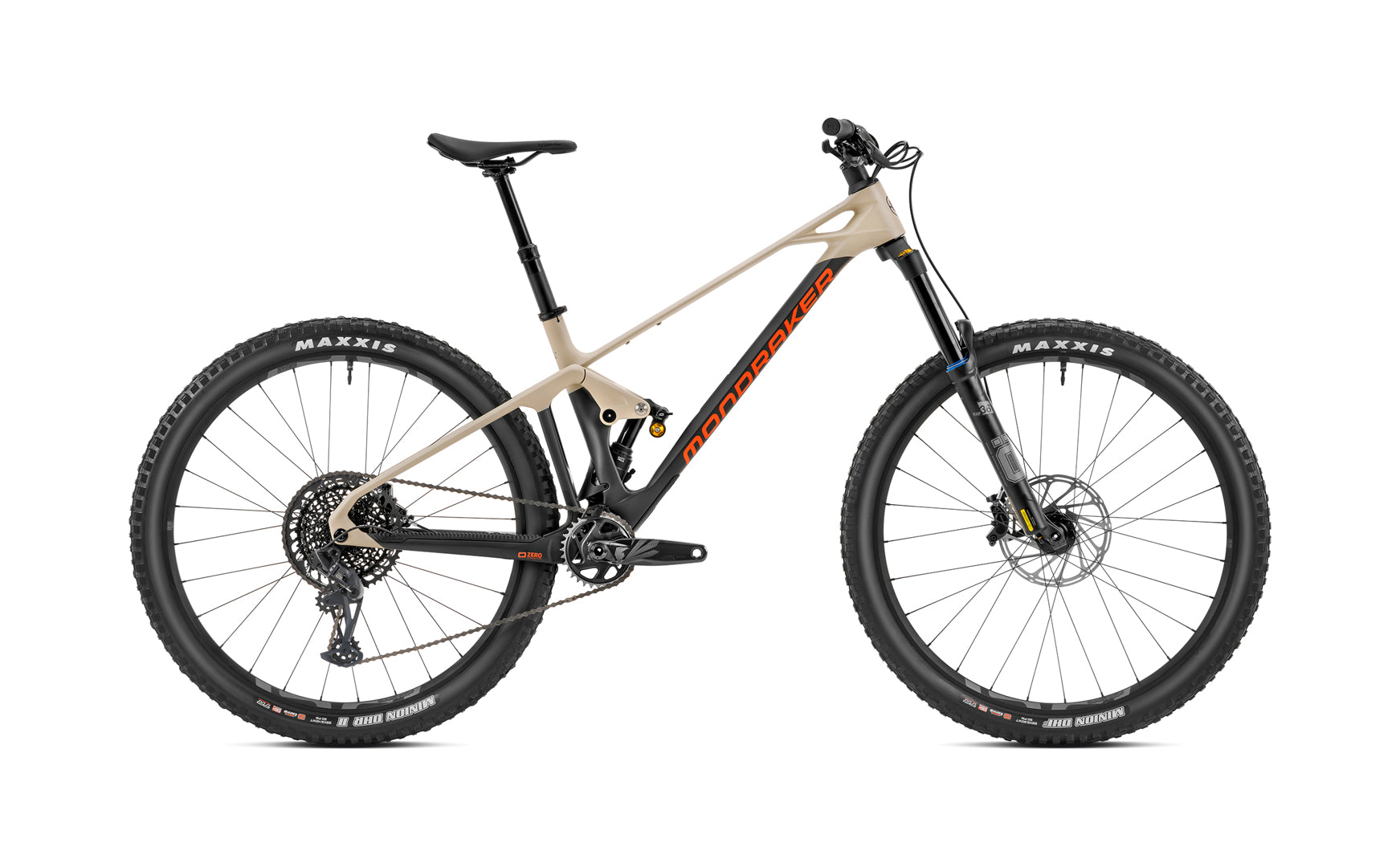

Conquer the trails with the Mondraker Foxy Carbon RR, a cutting-edge full-suspension mountain bike that delivers exceptional performance for both seasoned riders and adrenaline seekers. Crafted with a lightweight Foxy 29 Stealth Air full Carbon frame, the Foxy Carbon RR features Mondraker’s renowned Zero Suspension System with 150mm of travel for maximum control, comfort, and smooth handling on rough terrain. Its Forward Geometry design ensures enhanced stability, making it the perfect companion for tackling challenging trails and technical descents.
The bike is built with high-end components to elevate your riding experience. The Öhlins TTX Air rear shock and Öhlins RXF 36 M.2 fork (160mm) work seamlessly together to provide excellent responsiveness and shock absorption, no matter the trail conditions. With a Boost 12x148mm rear axle and Boost 15x110mm front axle, along with Enduro MAX sealed bearings, this bike is engineered for durability and speed, giving you ultimate confidence on every ride.
Designed for efficiency, the Sram GX Eagle 12-speed drivetrain ensures smooth, precise shifting, while the Sram Code R 4-piston brakes deliver strong, reliable stopping power on descents. The tubeless-ready Mavic Deemax 29 Boost rims paired with Maxxis Minion DHF and DHR II tires provide excellent traction and durability in all conditions.
Additional features like the Onoff Pija dropper seatpost, SDG BEL-AIR 3.0 saddle, and Onoff Sulfur handlebar offer optimal comfort and control. Whether you’re navigating steep climbs or bombing down descents, the Mondraker Foxy Carbon RR ensures a superior ride.
Key Features:
-
Frame: Foxy 29 Stealth Air full Carbon with Zero Suspension System, 150mm travel
-
Rear Shock: Öhlins TTX Air with high and low-speed compression settings
-
Fork: Öhlins RXF 36 M.2 29, 160mm travel with TTX18 Twin Tube cartridge
-
Drivetrain: Sram GX Eagle 12-speed, with Sram XG-1275 cassette (10-52T)
-
Brakes: Sram Code R 4-piston calipers with 200mm/180mm rotors
-
Wheels: Mavic Deemax 29 Boost, 28mm internal width, tubeless-ready
-
Tires: Maxxis Minion DHF/DHR II 29x2.5/2.4 with EXO+ protection
-
Weight: 14.5kg (approx.)
Available in Desert Grey, the Mondraker Foxy Carbon RR is available in multiple sizes to ensure the perfect fit. Whether you're tackling Liverpool’s local trails or pushing limits in the mountains, the Foxy Carbon RR is engineered for those who demand high performance and unmatched reliability.
Sizes Available: S, M, L, XL
Explore the limits of your adventure with the Mondraker Foxy Carbon RR Mountain Bike – the ultimate ride for serious mountain bikers. Available now at our Liverpool store.
Specification
Frame: Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.
Sizes: S: 380mm / M: 420mm / L: 450mm / XL: 500mm
Rear shock: Öhlins TTX Air 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings: C10 compression, R35 rebound. Volume reducers 16.000 (2xF+1E)
Fork: Öhlins RXF 36 M.2 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber. Fork settings: C20 R40
Headset: Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Stem: Onoff Sulfur FG 30mm, 6061 forged alloy, 31.8mm barbore
Handlebar: Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips: Onoff Desert, 1lock-on, 135mm
Seatpost: Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Saddle: SDG BEL-AIR 3.0, LPU foam, steel rails
Front brake: Sram Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake: Sram Code R, oversized 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever: Sram Code R, tool-free reach adjust
Rims: Mavic Deemax 29 Boost, 28mm internal width, tubeless ready, 28 spokes
Spokes: J-bend double butted spokes
Front hub: Mavic Boost 15x110mm, IS 6 bolts
Rear hub: Mavic ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, XD freehub
Front tire: Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Rear tire: Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Crankset: Sram GX Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm
Rings: 32T, CNC-machined alloy, X-SYNC 2
Bottom bracket: Sram DUB BSA, sealed bearings, 73mm
Chain: Sram NX Eagle, 12s, Powerlock
Rear derailleur: Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers: Sram Trigger GX Eagle, 12s, X-Actuation 1:1
Cassette: Sram XG-1275, 10-52T, 12s
Derailleur hanger: Sram UDH
Weight: 14,5 kg
