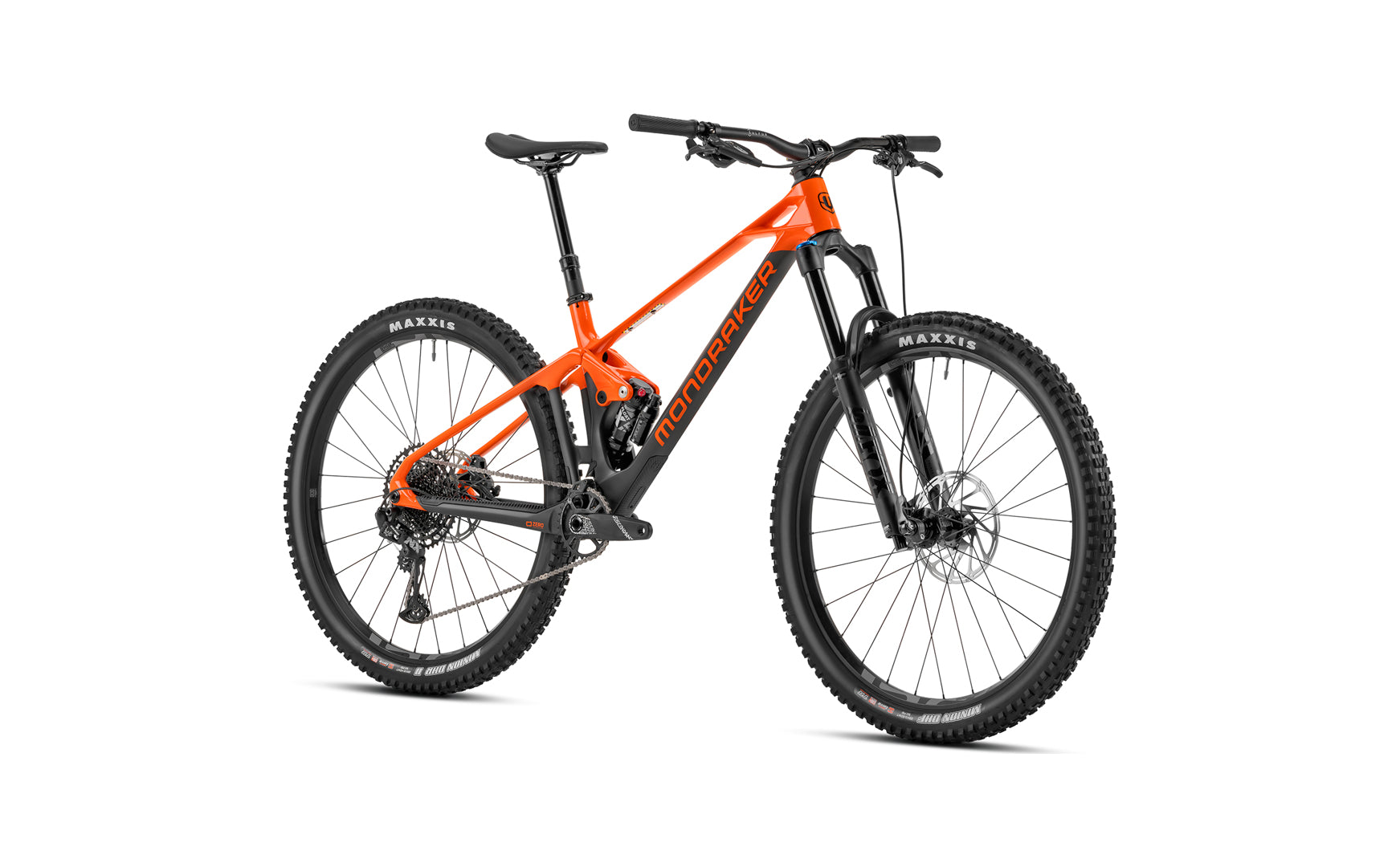

Introducing the Mondraker Foxy Carbon R Mountain Bike in vibrant Orange, a high-performance marvel engineered to conquer the toughest trails with finesse. Crafted to perfection, this bike boasts a plethora of features that elevate your riding experience to new heights.
At its core lies the Foxy 29 Stealth Air full Carbon frame, integrating the Zero Suspension System with 150mm of travel, ensuring unparalleled agility and control over varied terrain. The innovative Forward Geometry enhances stability while navigating challenging descents, while the Carbon Monoblock upper link ensures robustness without compromising on weight.
Available in a range of sizes, from S to XL, this bike caters to riders of all builds, offering a tailored fit for maximum comfort and efficiency.
Equipped with a Fox Float-X LV Performance rear shock and Fox 36 29 Float Performance GRIP fork, you can expect plush suspension performance that absorbs bumps and rough terrain with ease. With customizable shock settings, including compression and rebound adjustments, you can fine-tune your ride to suit your preferences and trail conditions.
The meticulously selected components, such as the Sram G2 R brakes with 4-piston callipers and the Maxxis Minion DHF/DHR II tires, ensure optimal traction and stopping power, instilling confidence on technical descents.
Powered by a Truvativ Descendant 6K Eagle crankset and Sram NX Eagle drivetrain, this bike delivers smooth and precise shifting across its 12-speed cassette, allowing you to conquer steep climbs and power through demanding trails effortlessly.
Built for durability and performance, the Mondraker Foxy Carbon R Mountain Bike is your ticket to unlocking new adventures on Liverpool's trails. With its striking Orange colourway, this bike not only performs but also turns heads wherever you ride.
Upgrade your riding experience and take on the trails like never before with the Mondraker Foxy Carbon R. Order yours today and embrace the thrill of off-road exploration like never before.
Specification
Frame:
Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.
Sizes:
S: 380mm / M: 420mm / L: 450mm / XL: 500mm
Rear shock:
Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings:
Light compression, light rebound, air volume spacer 0.6
Fork:
Fox 36 29 Float Performance GRIP, 160mm, 3 Position, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload
Headset:
Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Stem:
ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar:
ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips:
ONOFF Desert, 1lock-on, 135mm
Seatpost:
ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Saddle:
SDG BEL-AIR 3.0, LPU foam, steel rails
Front brake:
Sram G2 R, 4-piston calliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake:
Sram G2 R, 4-piston calliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever:
Sram G2 R, tool-free reach adjust
Rims:
e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminium, 30mm internal width, tubeless ready, 28 spokes
Spokes:
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front hub:
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminium, IS 6 bolts
Rear hub:
e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminium w/6-degree engagement, IS 6 bolts, Shimano freehub
Front tire:
Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Rear tire:
Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Crankset:
Truvativ Descendant 6K Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm
Rings:
32T, steel, X-Sync 2
Bottom bracket:
Sram DUB BSA, sealed bearings, 73mm
Chain:
Sram NX Eagle, 12s, Powerlock
Rear derailleur:
Sram NX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers:
Sram Trigger NX Eagle, 12s, X-Actuation 1:1
Cassette:
Sram XG-1230, 11-50T, 12s
Derailleur hanger:
Sram UDH
Weight:
14.9 kg
