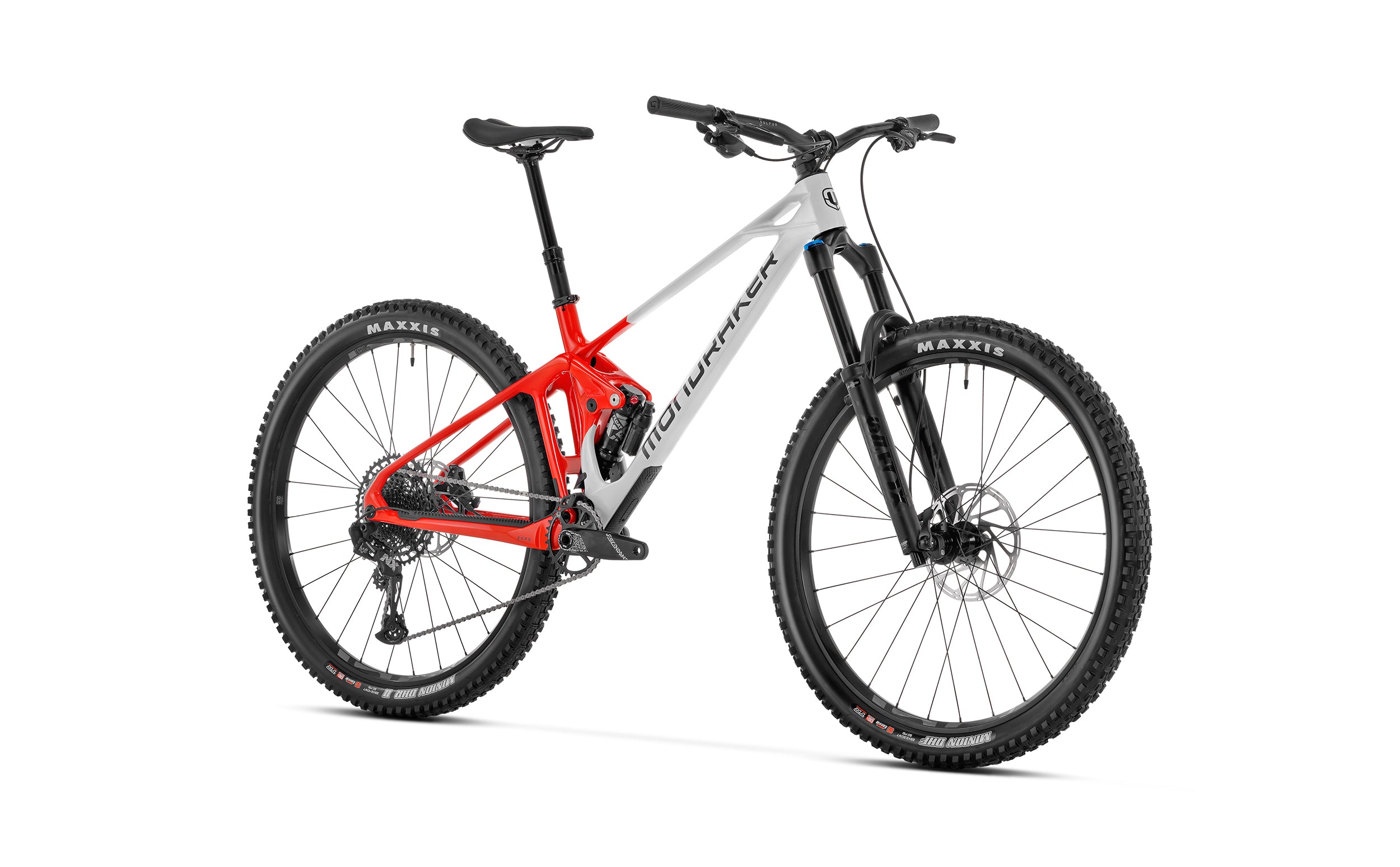

Introducing the Mondraker Foxy Carbon R Mountain Bike in vibrant Flame Red, designed to conquer any trail with its cutting-edge features and superior performance. Crafted for thrill-seekers and trail enthusiasts, this bike combines advanced technology with precision engineering to elevate your riding experience to new heights.
The Foxy 29 Stealth Air full Carbon frame boasts the innovative Zero Suspension System, delivering 150mm of plush travel for smooth, controlled rides over rough terrain. Engineered with Mondraker's signature Forward Geometry, this bike offers unparalleled stability and agility, while the Carbon Monoblock upper link ensures optimal power transfer and responsiveness.
Available in a range of sizes (S, M, L, XL), this bike accommodates riders of all heights, ensuring a comfortable and personalized fit for every adventure. Paired with a Fox Float-X LV Performance rear shock and Fox 36 29 Float Performance GRIP fork, the Foxy Carbon R provides unmatched traction, control, and confidence on the most challenging trails.
Equipped with high-performance components, including Sram G2 R hydraulic disc brakes for reliable stopping power, and Maxxis Minion DHF/DHR II tires for exceptional grip and durability, this bike is ready to tackle steep descents and technical climbs with ease. Plus, with the Sram NX Eagle 12-speed drivetrain, you'll experience seamless shifting and efficient power transfer on any terrain.
Designed for maximum comfort and control, the Mondraker Foxy Carbon R features an ergonomic Onoff Sulfur handlebar and saddle, along with a dropper seatpost for quick and easy adjustments on the fly. Whether you're shredding singletrack or exploring new trails, this bike delivers unmatched performance and style.
Lightweight yet durable, the Foxy Carbon R weighs in at just 15.1 kg, making it agile and responsive for nimble handling on the trail. Finished in striking Flame Red, this bike is sure to turn heads wherever your adventures take you.
Experience the thrill of off-road riding like never before with the Mondraker Foxy Carbon R Mountain Bike. Visit our bicycle store in Liverpool today and take your riding to the next level.
Specification
Frame:
Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.
Sizes:
S: 380mm / M: 420mm / L: 450mm / XL: 500mm
Rear shock:
Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings:
Light compression, light rebound, air volume spacer 0.6
Fork:
Fox 36 29 Float Performance GRIP, 160mm, 3 Position, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload
Headset:
Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Stem:
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar:
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips:
Onoff Desert, 1lock-on, 135mm
Seatpost:
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
Saddle:
SDG BEL-AIR 3.0, LPU foam, steel rails
Front brake:
Sram G2 R, 4-piston calliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake:
Sram G2 R, 4-piston calliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever:
Sram G2 R, tool-free reach adjust, lever pivot bushings
Rims:
e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminium, 30mm internal width, tubeless ready, 28 spokes
Spokes:
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front hub:
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminium, IS 6 bolts
Rear hub:
e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminium w/6-degree engagement, IS 6 bolts, HG freehub
Front tire:
Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Rear tire:
Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Crankset:
Sram Truvativ Descendant 6K Eagle, Boost, DUB axle, Direct mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm CL 52
Rings:
32T, steel, X-Sync 2
Bottom bracket:
Sram DUB BSA, sealed bearings, 73mm
Chain:
Sram NX Eagle, 12s, Powerlock
Rear derailleur:
Sram NX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers:
Sram Trigger NX Eagle, 12s, X-Actuation 1:1
Cassette:
Sram PG-1230, 11-50T, 12s
Derailleur hanger:
Sram UDH
Weight:
15.1 kg
