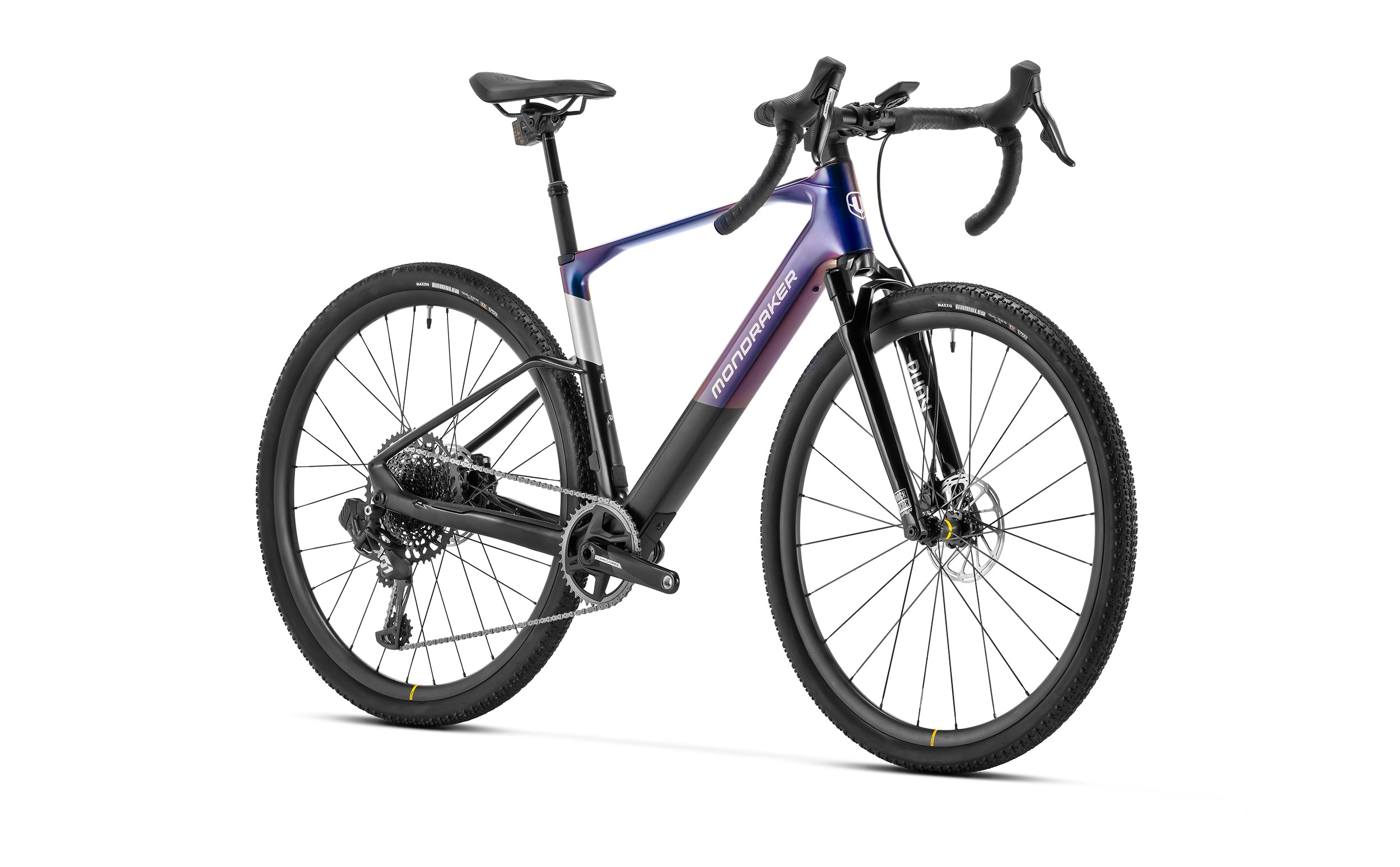

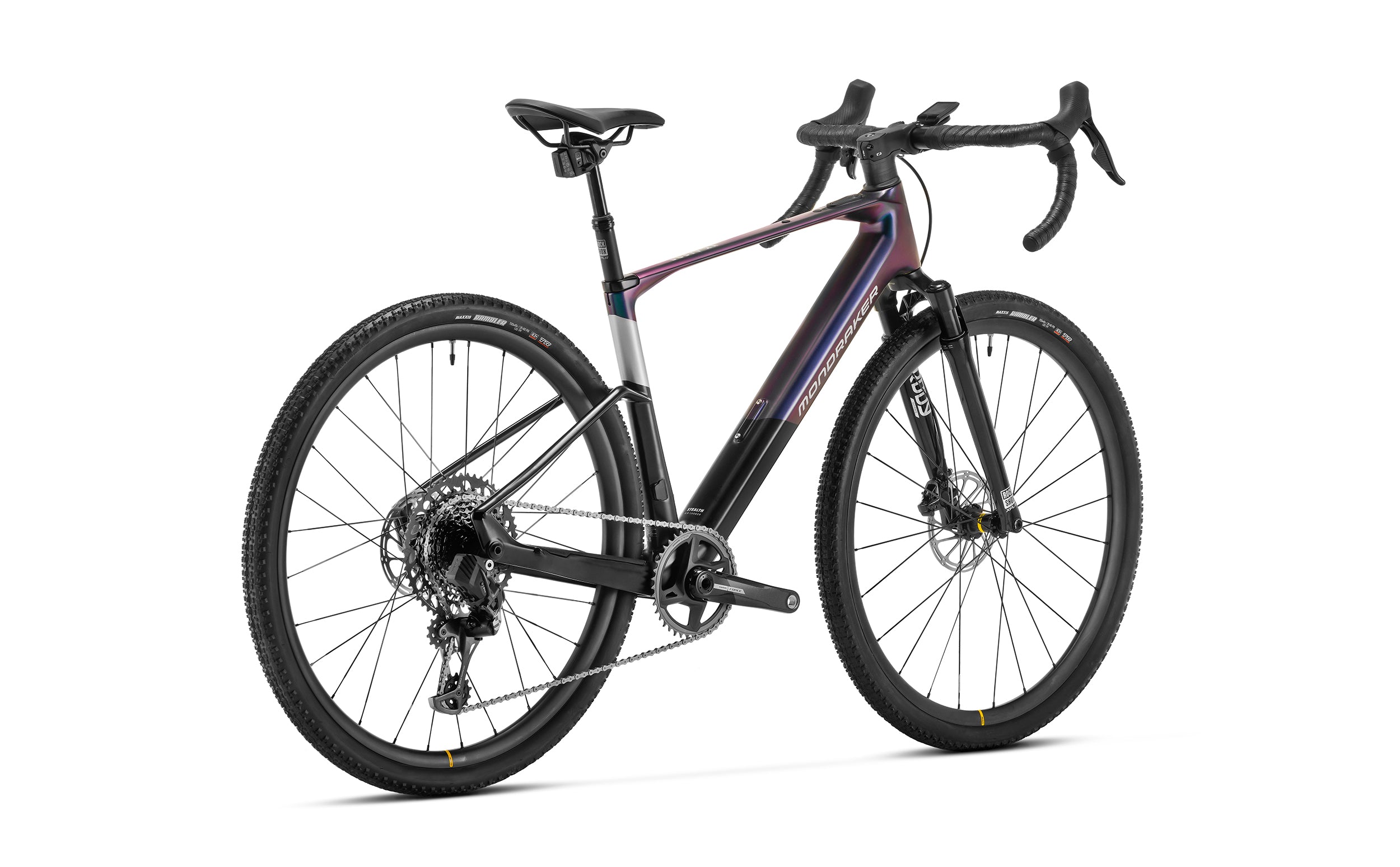

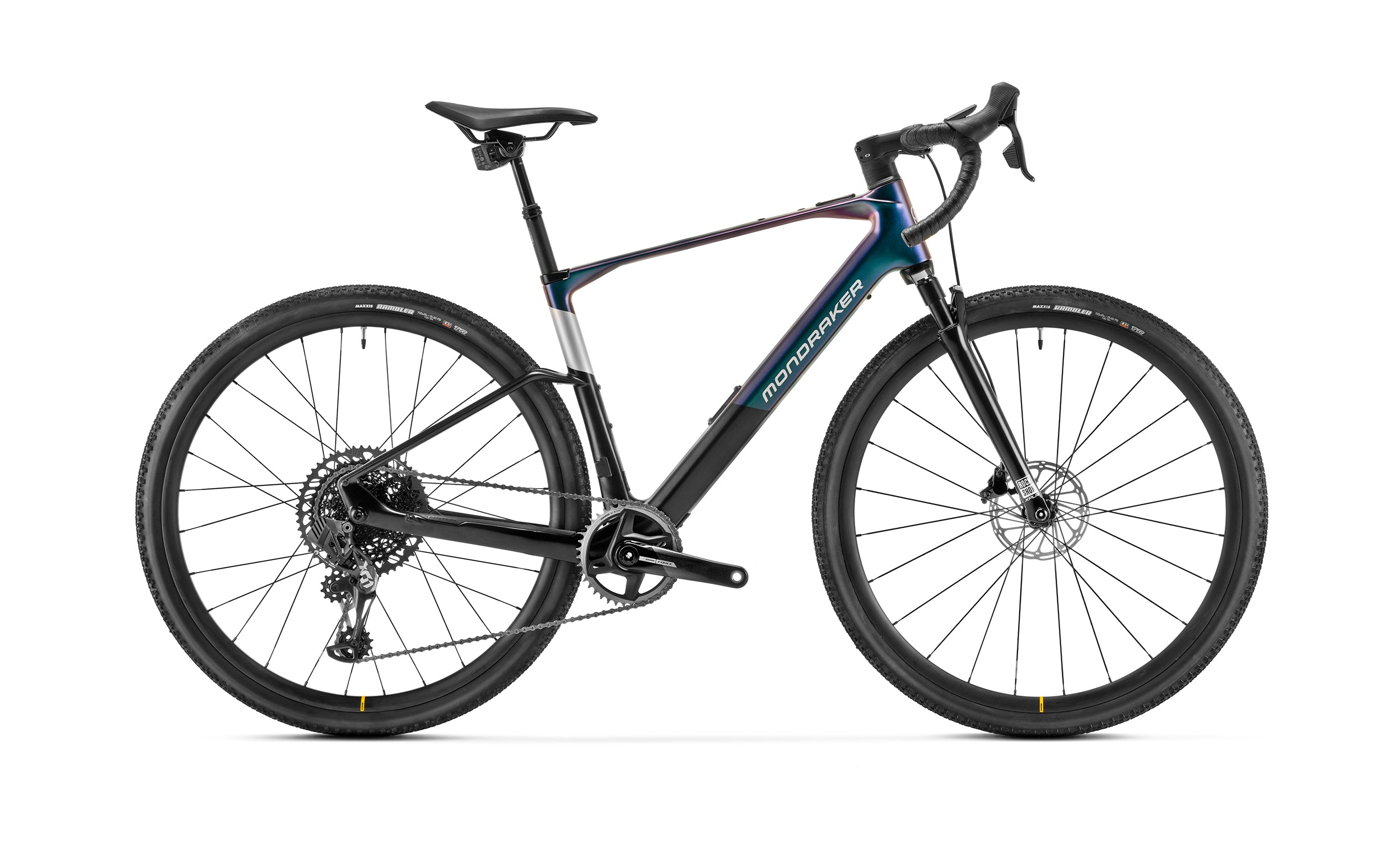

Introducing the Mondraker Dusty XR Electric Gravel Bike in the captivating Polaris colour, now available at our Liverpool bicycle store! Crafted to deliver unparalleled performance on diverse terrains, this e-Gravel bike boasts cutting-edge specifications that elevate your riding experience.
Constructed with a lightweight yet durable e-Gravel Stealth Air Carbon frame, this bike ensures agility and responsiveness while maintaining robustness. The integrated internal non-removable battery enhances the sleek design, while the HHG internal cable routing keeps the aesthetics clean and streamlined.
Choose from four different sizes to find your perfect fit: S (440mm), M (460mm), L (500mm), and XL (530mm), ensuring optimal comfort and control for riders of all sizes.
Equipped with a RockShox Rudy Ultimate fork with 40mm travel and a 12x100mm maxle stealth, this bike absorbs bumps and vibrations for a smooth ride, while the OnOff e-gravel tapered headset provides precise handling.
The SRAM Force Etap AXS brakes offer reliable stopping power, complemented by the Mavic Allroad Pro Carbon SL Disc rims and Maxxis Rambler tires for exceptional traction and control.
Powering this beast is the Mahle X20 Drive Unit motor paired with a Mahle X20 IX350Wh battery, delivering efficient pedal-assist performance to conquer even the most challenging terrain. Plus, with the optional external battery upgrade (Mahle e185Wh), you can extend your adventures even further.
Navigate effortlessly with the Pulsar One Wireless display, while the Mahle DUB pressfit bottom bracket with torque sensor ensures smooth power delivery with every pedal stroke.
Whether you're tackling gravel trails or exploring urban landscapes, the Mondraker Dusty XR Electric Gravel Bike is your ultimate companion. Embrace the thrill of adventure and redefine your riding experience with this exceptional bike, available now at our Liverpool store. Experience the freedom of e-Gravel riding like never before!
Specification:
Frame:
e-Gravel Stealth Air Carbon, pressfit 386 EVO bottom bracket, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12x142mm rear axle, 1X or 2X drivetrain design, Flatmount brake compatible, integrated dropout speed sensor.
Sizes:
S: 440mm / M: 460mm / L: 500mm / XL: 530mm
Fork:
RockShox Rudy Ultimate, 40mm travel, 12x100mm maxle stealth, 45mm offset
Headset:
OnOff e-gravel tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem:
OnOff e-gravel 6061 T6 Alloy, 31.8mm barbore, rise: -7º, length: S size: 60mm, M size: 70mm L size: 80mm, XL size: 90mm
Handlebar:
OnOff gravel 16º bar flare. Width sizes S size: 440mm M size: 440mm L size: 460mm XL size: 460mm
Grips:
Barium gravel dark grey
Seatpost:
RockShox Reverb XPLR AXS 75mm wireless 27.2X400mm dropper post
Saddle:
FIZIK Terra Argo X7 150mm
Front brake:
SRAM Force Etap AXS 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear brake:
Sram Force Etap AXS, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever:
Sram Force, contact point adjustment, tooled reach adjust, plastic shift lever, LFRT brake lever
Rims:
Mavic Allroad Pro Carbon SL Disc, UST, 23mm internal width, hookless, infinity hubs, 24 spokes front, 28 spokers rear
Spokes:
Mavic Steel double butted flat spokes
Front hub:
Mavic, 12x100mm, IS 6 bolts
Rear hub:
Mahle X20 Drive Unit, XDR freehub
Front tire:
Maxxis Rambler 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
Rear tire:
Maxxis Rambler 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
Crankset:
SRAM Force 1 Carbon GLS Wide, S: 170mm, M: 172,5mm, L: 172,5mm, XL: 175mm.
Rings:
Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide,
Bottom bracket:
Mahle DUB pressfit, sealed bearings, w/ torque sensor
Chain:
Sram NX Eagle, 12s, Powerlock
Rear derailleur:
Sram X01 Eagle AXS, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers:
Sram Force Etap AXS 12s, X-Actuation 1:1, single click
Cassette:
Sram XG-1275, 10-52T, 12s
Derailleur hanger:
Mondraker M076
Others:
Optional external battery: Mahle e185Wh
Weight:
13.9 kg
Display:
Pulsar One Wireless
Motor:
Mahle X20 Drive Unit
Battery:
Mahle X20 IX350Wh
