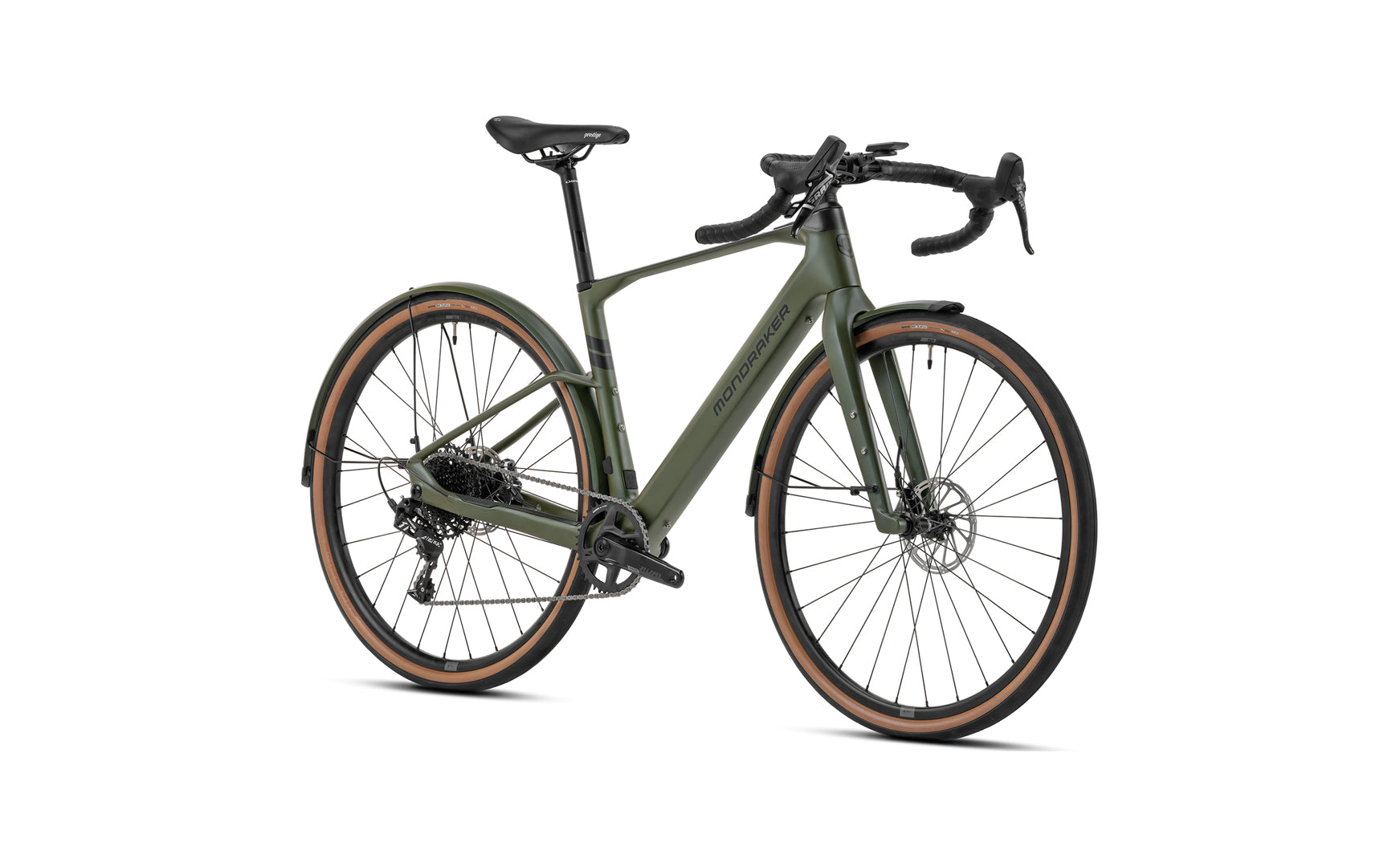

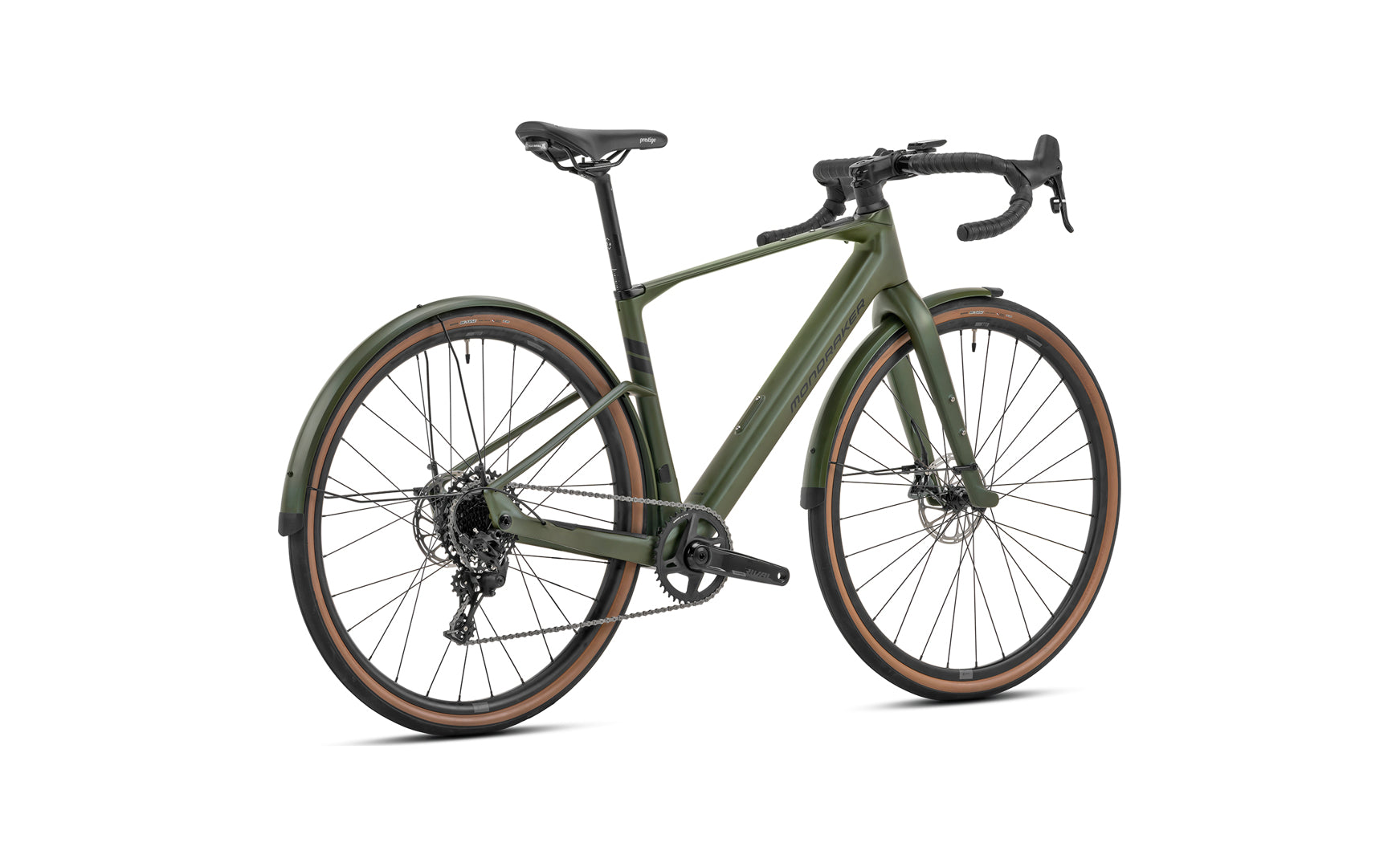

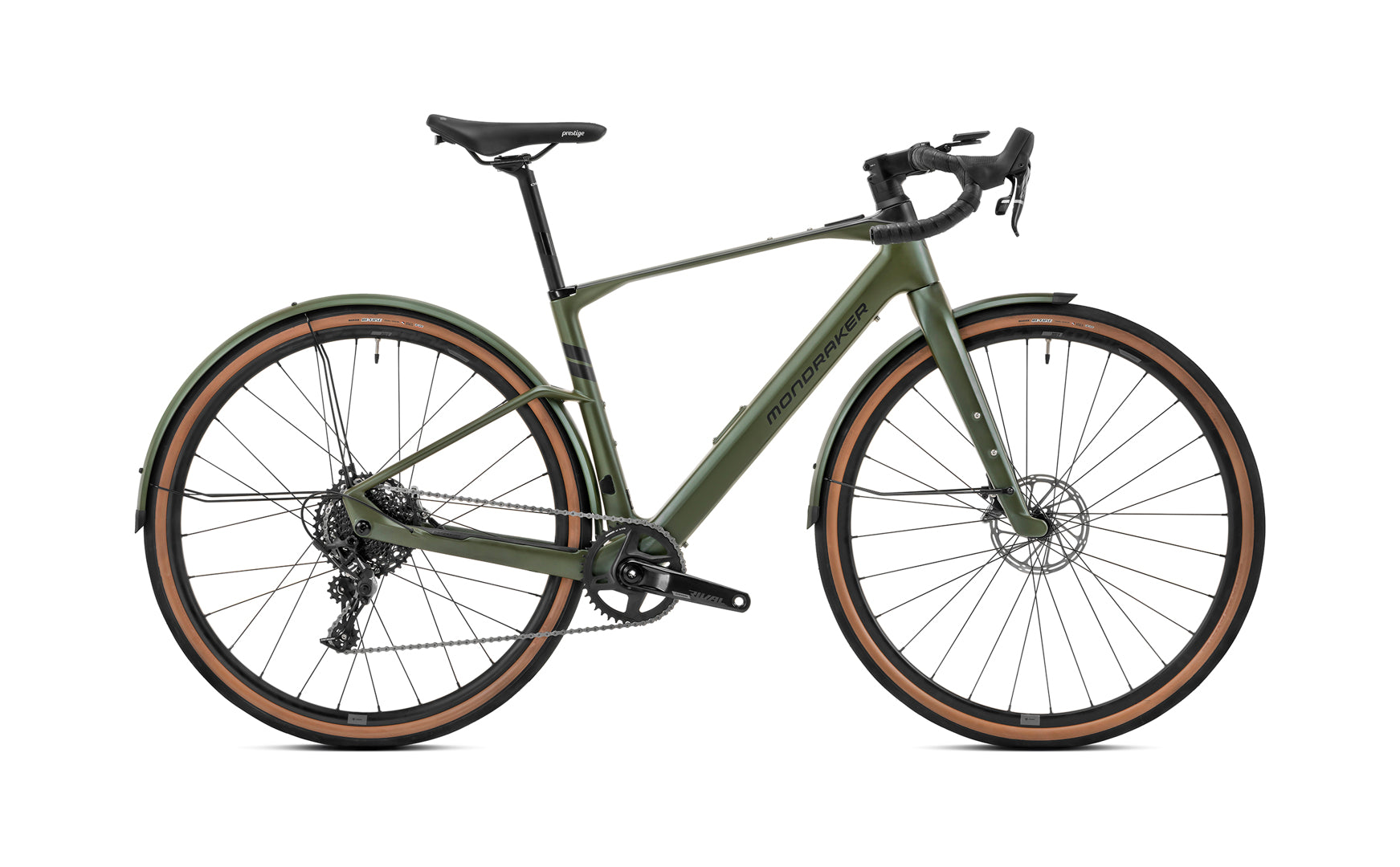

Mondraker Dusty SX R Electric Hybrid Bike – Army Green | The Rolling Fix Liverpool
Take your adventures further with the Mondraker Dusty SX R Electric Hybrid Bike in Army Green, available now at The Rolling Fix, Liverpool’s premier e-bike and cycle specialist. Designed for riders who want the perfect blend of performance, endurance, and style, the Dusty SX R combines cutting-edge e-gravel technology with Mondraker’s legendary carbon engineering to create a ride that feels fast, responsive, and limitless.
⚙️ Engineered for Every Adventure
At the heart of the Dusty SX R is Mondraker’s Stealth Air Carbon frame, crafted for superior stiffness, strength, and vibration damping. Featuring HHG internal cable routing, a pressfit 386 EVO bottom bracket, and integrated dropout speed sensor, this frame is built to handle everything from smooth tarmac to rough gravel tracks with ease. The matching Stealth Air Carbon fork delivers precise handling and a clean, integrated look.
⚡ Powered by Mahle X20 Smart Assist
The Dusty SX R is equipped with the Mahle X20 drive unit, one of the lightest and most advanced e-bike systems available. Its 350Wh integrated battery delivers natural, intuitive power assistance while keeping the bike’s weight impressively low. With the Pulsar One Wireless display, you can easily monitor power, speed, and battery life on the go. Need extra range? Add the optional Mahle e185 range extender (172Wh) and ride even further.
🚴♂️ Built for Precision and Control
The SRAM Apex 1x11 drivetrain ensures crisp and reliable shifting on any gradient, while SRAM Apex hydraulic disc brakes provide dependable stopping power in all conditions. The Maxxis Re-Fuse 700x40 tubeless-ready tyres offer excellent grip and puncture protection, making them ideal for mixed-surface riding.
💎 Premium Finishing Touches
From the OnOff Barium Gravel handlebar and carbon seatpost to the Selle Royal Prestige saddle, every component is chosen for comfort and performance. The Army Green finish gives this e-gravel bike a rugged yet refined look that stands out both on city streets and country lanes.
🛠️ Key Features at a Glance
-
Frame: Stealth Air Carbon w/ integrated 350Wh battery
-
Motor: Mahle X20 Drive Unit
-
Display: Pulsar One Wireless
-
Fork: Stealth Air Carbon, flat mount integrated
-
Groupset: SRAM Apex 1x11-speed
-
Brakes: SRAM Apex hydraulic disc, 160mm rotors
-
Wheels: MDK-XG1 tubeless-ready rims
-
Tyres: Maxxis Re-Fuse 700x40, tan wall
-
Sizes: S (440mm), M (460mm), L (500mm), XL (530mm)
🚲 Available Now at The Rolling Fix, Liverpool
Experience the freedom of electric performance and the versatility of gravel riding with the Mondraker Dusty SX R. Visit The Rolling Fix in Liverpool to test ride this exceptional e-hybrid and feel the difference that precision engineering and smart power make.
👉 Shop online or in-store today and take your ride to the next level with The Rolling Fix.
Specification
Frame: Dusty Stealth Air Carbon, pressfit 386 EVO bottom bracket, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12x142mm rear axle, 1X or 2X drivetrain design, Flatmount brake compatible, integrated dropout speed sensor.
Sizes: S: 440mm / M: 460mm / L: 500mm / XL: 530mm
Fork: Stealth Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
Headset: OnOff e-gravel, ACB sealed bearings, top 51,9x8x40x45ºx45º, bottom 52x7x40x45ºx45º
Stem: OnOff e-gravel 6061 T6 Alloy, 31.8mm barbore, rise: +/-7º, length: sizes S/M: 80mm, size L/XL: 90mm
Handlebar: OnOff Barium Gravel 18º bar flare. Width sizes S/M: 440mm, size L/XL: 460mm
Grips: Barium Gravel dark grey
Seatpost: OnOff Barium gravel carbon microadjust diameter 27.2mm, length 400mm
Saddle: Selle Royal Prestige 139mm
Front brake: SRAM Apex 1, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear brake: SRAM Apex 1, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever: Sram Apex, contact point adjustment, tooled reach adjust, aluminum levers
Rims: MDK-XG1, 23mm internal width, tubeless ready, 32 spokes
Spokes: CN round stainless steel
Front hub: Novatec D041, Boost 12x100mm, sealed bearings, IS 6 bolts
Rear hub: Mahle X20 12x142mm, sealed bearings, IS 6 bolts
Front tire: Maxxis Re-fuse 700x40, tubeless ready, dual compound, MaxxShield EXO protection, 60 TPI, folding bead, light tan wall
Rear tire: Maxxis Re-fuse 700x40, tubeless ready, dual compound, MaxxShield EXO protection, 60 TPI, folding bead, light tan wall
Crankset: SRAM Rival 1 GLS Wide, S: 170mm, M/L: 172,5mm, XL: 175mm.
Rings: Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide,
Bottom bracket: Mahle pressfit, sealed bearings, w/ torque sensor
Chain: Sram PC-1110, 11s, Powerlock
Rear derrailleur: Sram Apex 1, 11s
Shift levers: Sram Apex 11s, X-Actuation 1:1, single click
Cassette: Sram PG-1130 11-42, 11s
Others: Front and rear custom e-gravel dedicated fenders. Optional range extender: Mahle e185 , 172Wh
Display: Pulsar One Wireless
Motor: Mahle X20 Drive Unit
Battery: Mahle X20 IX350Wh
