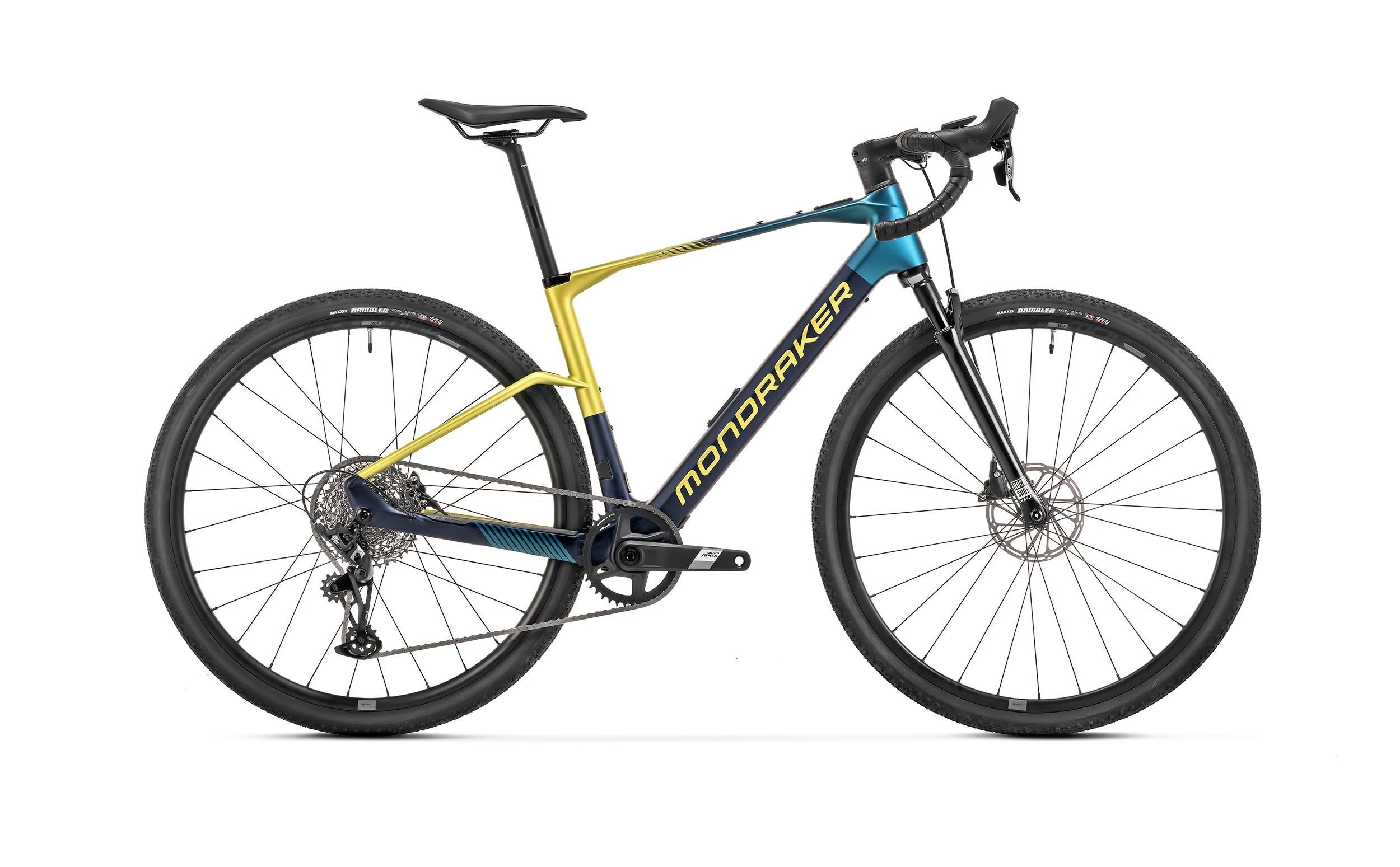

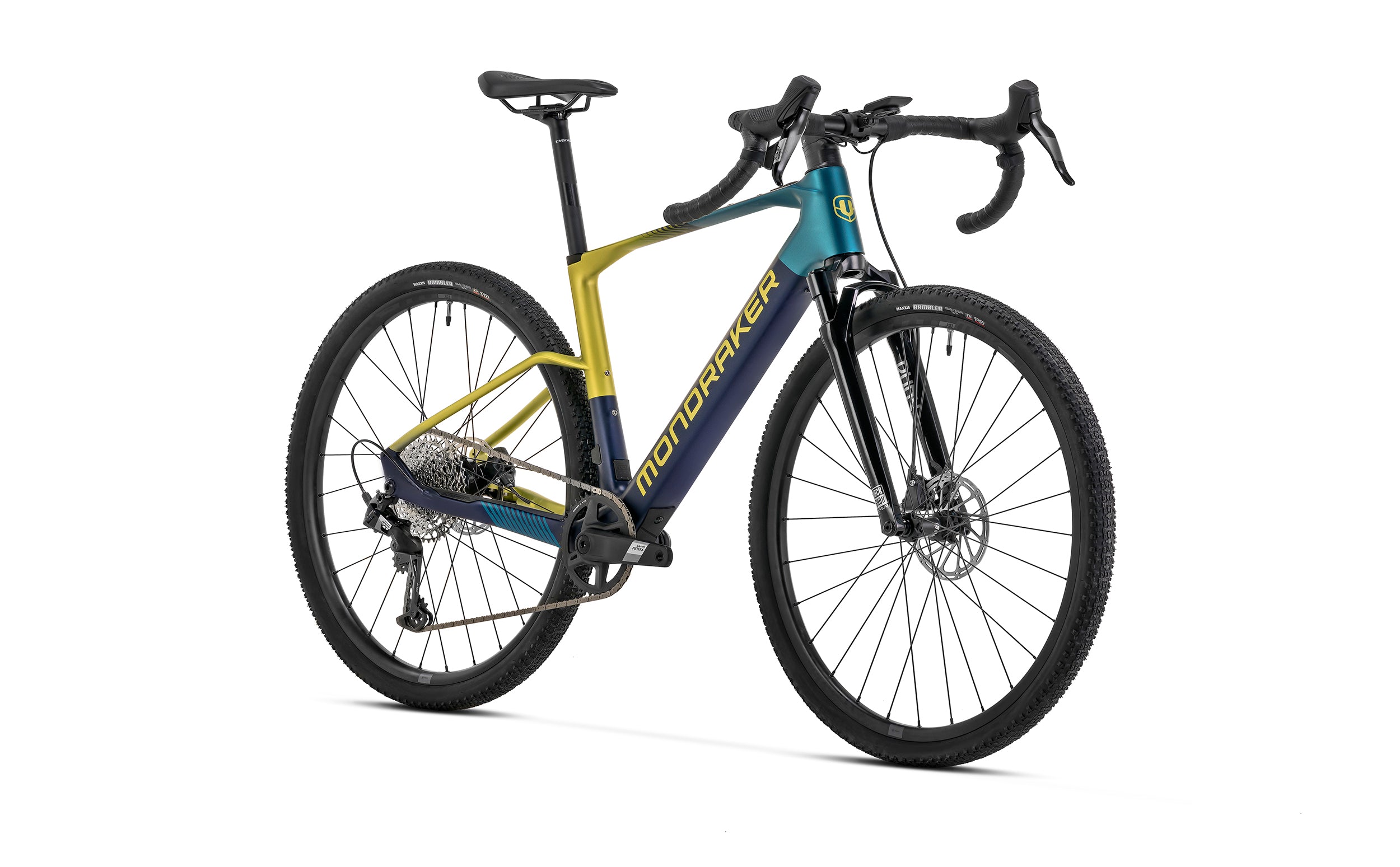

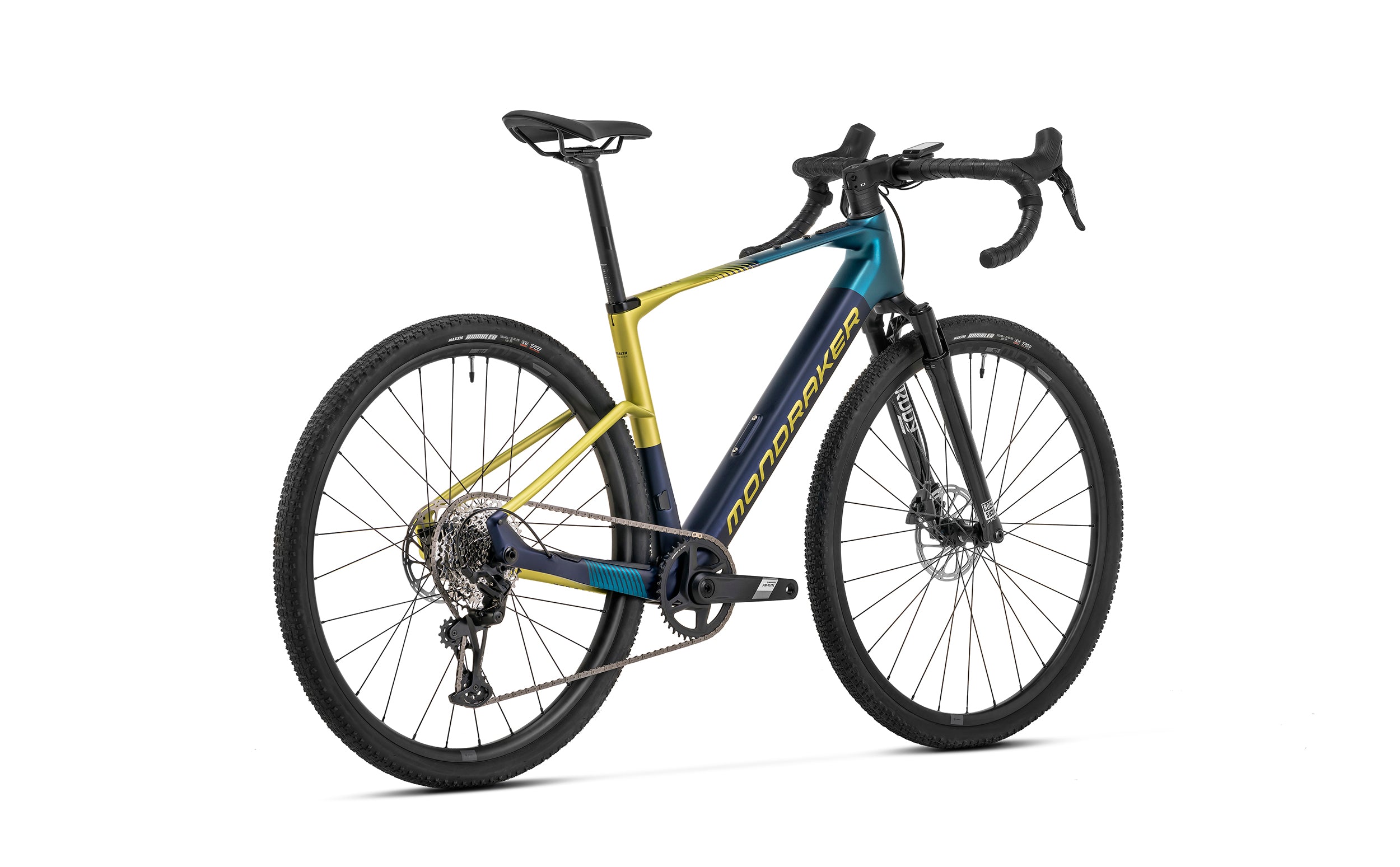

Introducing the Mondraker Dusty R Electric Gravel Bike in Midnight Blue, an epitome of performance and style, now available at our Liverpool store. Designed to conquer any terrain with finesse, this e-Gravel Stealth Air Carbon frame marvellously integrates cutting-edge technology with unparalleled craftsmanship.
With a variety of sizes ranging from S to XL, there's a perfect fit for every rider. The RockShox Rudy Base fork ensures smooth rides with its 40mm travel and 12x100mm maxle stealth, while the OnOff e-gravel tapered headset guarantees precise handling and control.
Crafted for comfort and control, the OnOff gravel handlebar with a 16º bar flare provides optimal grip, complemented by the Barium gravel dark grey grips for enhanced stability. Paired with the FIZIK Terra Argo X7 saddle, every journey promises unmatched comfort.
Bringing superior stopping power, the SRAM Apex 1 brakes deliver reliability and precision, while the MDK-XG1 rims and Maxxis Rambler tires ensure a smooth and efficient ride, even on the most challenging terrains.
Powering your adventures is the Mahle X20 Drive Unit motor and the integrated non-removable battery, delivering seamless performance and endurance. Additionally, the optional external battery provides extended riding capabilities, ensuring you never run out of power on your exploration.
Equipped with a comprehensive SRAM Apex 1 drivetrain, including a wide crankset, precise derailleur, and smooth shifters, every pedal stroke is optimized for efficiency and speed.
With a weight of just 14.50 kg, this bike offers agility and maneuverability without compromising on durability or performance. Plus, the Pulsar One Wireless display and e-shifters provide intuitive control and customization options, making your riding experience truly personalized.
Discover the ultimate blend of innovation and performance with the Mondraker Dusty R Electric Gravel Bike in Midnight Blue, now available at our Liverpool store. Unleash your adventurous spirit and conquer new horizons with style and confidence.
Specification:
Frame:
e-Gravel Stealth Air Carbon, pressfit 386 EVO bottom bracket, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12x142mm rear axle, 1X or 2X drivetrain design, Flatmount brake compatible, integrated dropout speed sensor.
Sizes:
S: 440mm / M: 460mm / L: 500mm / XL: 530mm
Fork:
RockShox Rudy Base, 40mm travel, 12x100mm maxle stealth, 45mm offset
Headset:
OnOff e-gravel tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem:
OnOff e-gravel 6061 T6 Alloy, 31.8mm barbore, rise: -7º, length: S size: 60mm, M size: 70mm L size: 80mm, XL size: 90mm
Handlebar:
OnOff gravel 16º bar flare. Width sizes S size: 440mm M size: 440mm L size: 460mm XL size: 460mm
Grips:
Barium gravel dark grey
Seatpost:
OnOff Barium gravel microadjust diameter 27.2mm, length 400mm
Saddle:
FIZIK Terra Argo X7 150mm
Front brake:
SRAM Apex 1, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear brake:
Sram Apex, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever:
Sram Apex, contact point adjustment, tooled reach adjust, aluminum levers
Rims:
MDK-XG1, 23mm internal width, tubeless ready, 28 spokes
Spokes:
CN round stainless steel
Front hub:
Novatec D041, Boost 12x100mm, sealed bearings, IS 6 bolts
Rear hub:
Mahle X20 Drive Unit, HG freehub
Front tire:
Maxxis Rambler 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
Rear tire:
Maxxis Rambler 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
Crankset:
SRAM Apex 1 Wide, S: 170mm, M: 172,5mm, L: 172,5mm, XL: 175mm.
Rings:
Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide,
Bottom bracket:
Mahle DUB pressfit, sealed bearings, w/ torque sensor
Chain:
Sram Apex, 12s, Powerlock
Rear derailleur:
Sram Apex XPLR 12s
Shift levers:
Sram Apex D1 12s, X-Actuation 1:1, single click
Cassette:
Sram PG-1231 11-44, 12s
Derailleur hanger:
Mondraker M076
Others:
Optional external battery: Mahle e185Wh
Weight:
14.50 kg
Display:
Pulsar One Wireless/ e-shifters
Motor:
Mahle X20 Drive Unit
Battery:
Mahle X20 IX350Wh
