Unleash the power of the Mondraker Dune XR Electric Mountain Bike Frameset in Mars, engineered for riders who demand high-performance and cutting-edge innovation. Whether you're conquering technical trails or tackling long climbs, this mullet-style, full-carbon eMTB frameset delivers next-level capability, efficiency, and control.
Precision Engineering & Trail-Ready Power
At the heart of the Dune XR is Mondraker’s Stealth Air full carbon frame, integrating an updated Zero Suspension System with 165mm of plush rear travel for an ultra-smooth ride. The Forward Geometry enhances handling, stability, and confidence, while the one-piece Monoblock upper link ensures superior strength and stiffness.
Equipped with the powerful Bosch Performance Line SX GEN4 Smart System, this frame is designed for responsive and intuitive eMTB performance, delivering smooth assistance up to 25km/h. Paired with the Bosch Compact Powertube 400Wh battery, you'll experience extended range and efficiency on the trails.
Premium Features for Ultimate Ride Quality
-
Öhlins TTX22M.2 Rear Shock – High-speed compression lever with climb mode, low-speed compression, and rebound adjustments for fine-tuned suspension performance.
-
Boost 12x148mm Rear Axle – Ensures enhanced stiffness and improved power transfer.
-
Internal & Removable Battery Design – Sleek integration with easy access for charging and maintenance.
-
Acros Custom Headset & HHG Internal Cable Routing – Clean, seamless aesthetics with excellent protection.
-
Sram UDH Derailleur Hanger – Universal compatibility for easy drivetrain upgrades.
-
Bosch Purion 400 / Mini Remote / System Controller – Simplified control with a compact, user-friendly display.
Designed for Every Rider
Available in S, M, L, and XL, the Mondraker Dune XR ensures a perfect fit for riders of all sizes. Whether you're chasing enduro dreams or simply looking for a trail-ready eMTB with exceptional handling and power, this frameset sets a new benchmark for performance.
Take on any trail with confidence – the Mondraker Dune XR Frameset in Mars is available now at The Rolling Fix, Liverpool. 🚀
Specifications

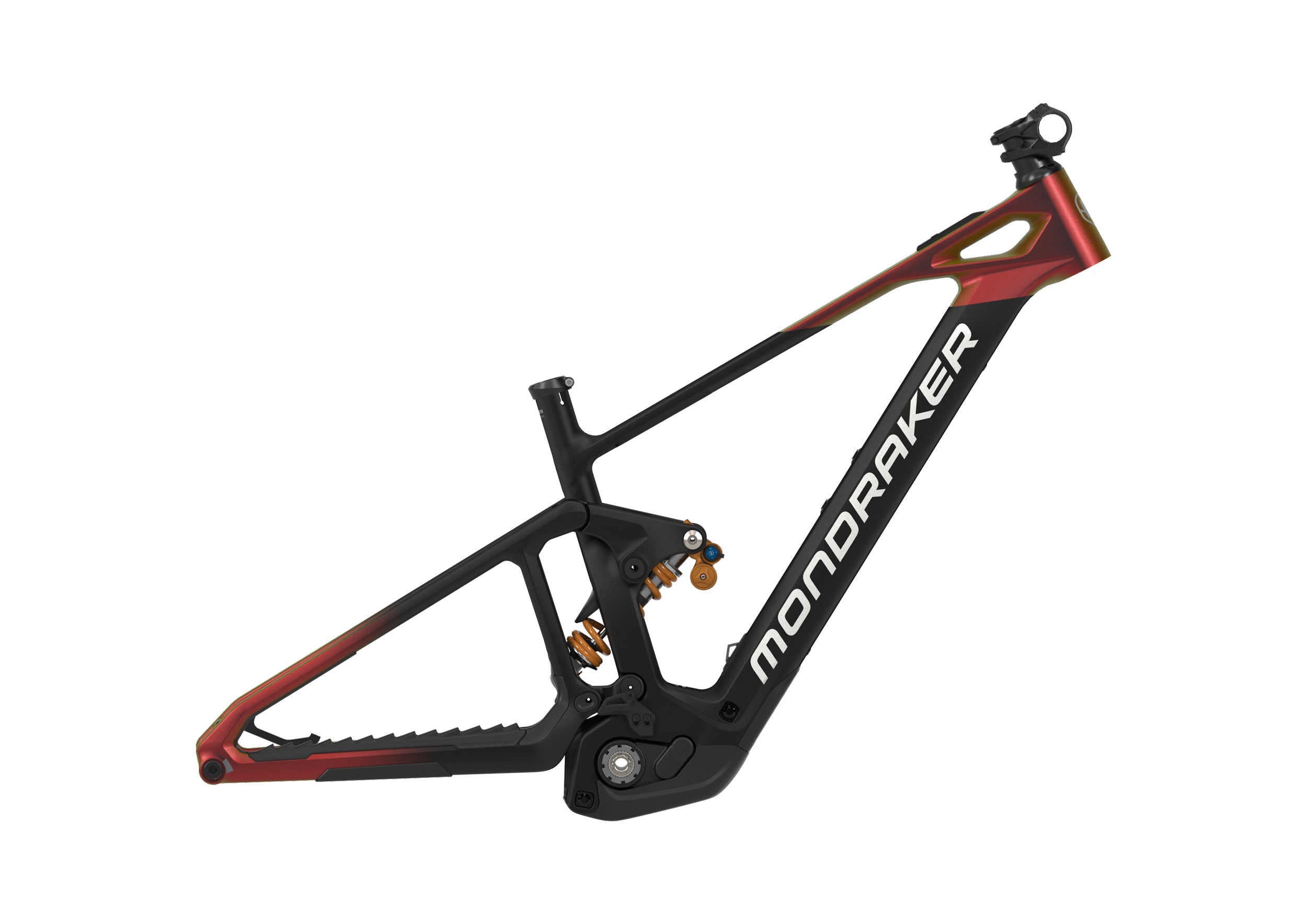

Frame: Stealth Air full Carbon, Updated Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Sizes: S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Rear shock: Öhlins TTX22M.2 205x65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings: C10 compression, R20 rebound. Spring rate: S size 343 lbs, M size 411 lbs, L size 457 lbs, XL size 502 lbs
Headset: Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem: Onoff S9 30mm 0º, Full CNC, 31.8mm barbore
Derailleur hanger: Sram UDH
Display: Purion 400 / Bosch Mini Remote / Bosch System Controller
Motor: Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide
Battery: Bosch Compact Powertube 400Wh
