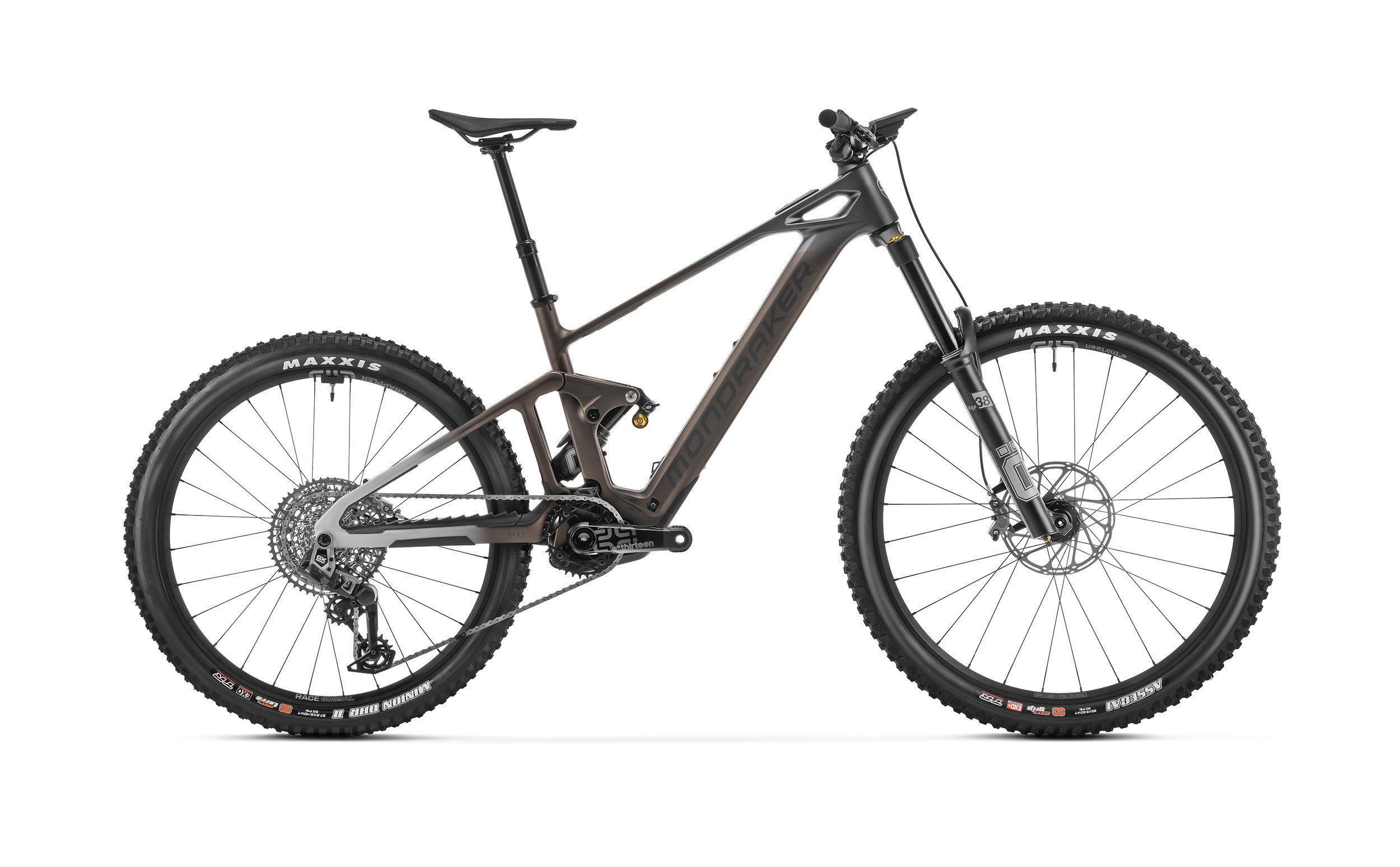

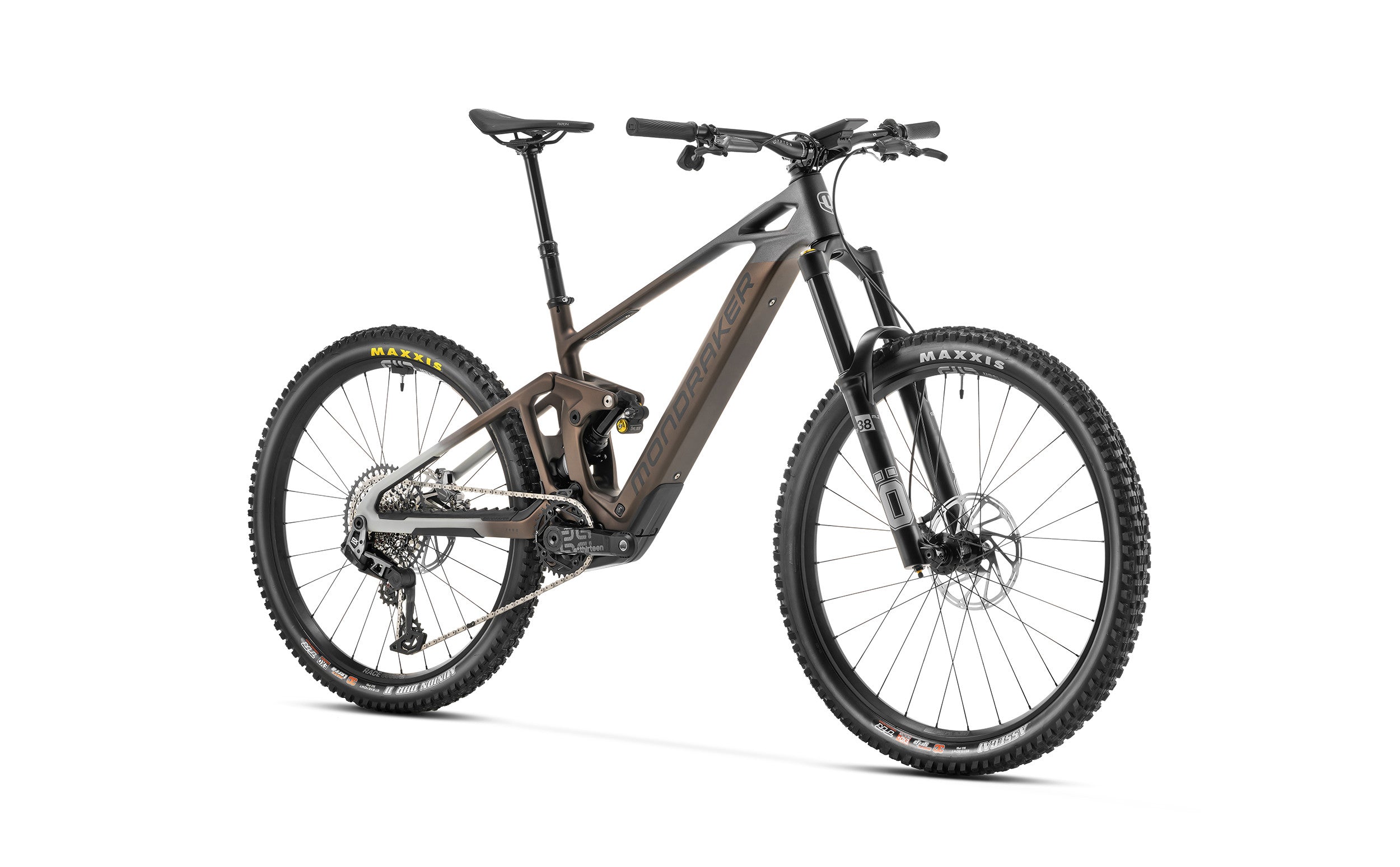

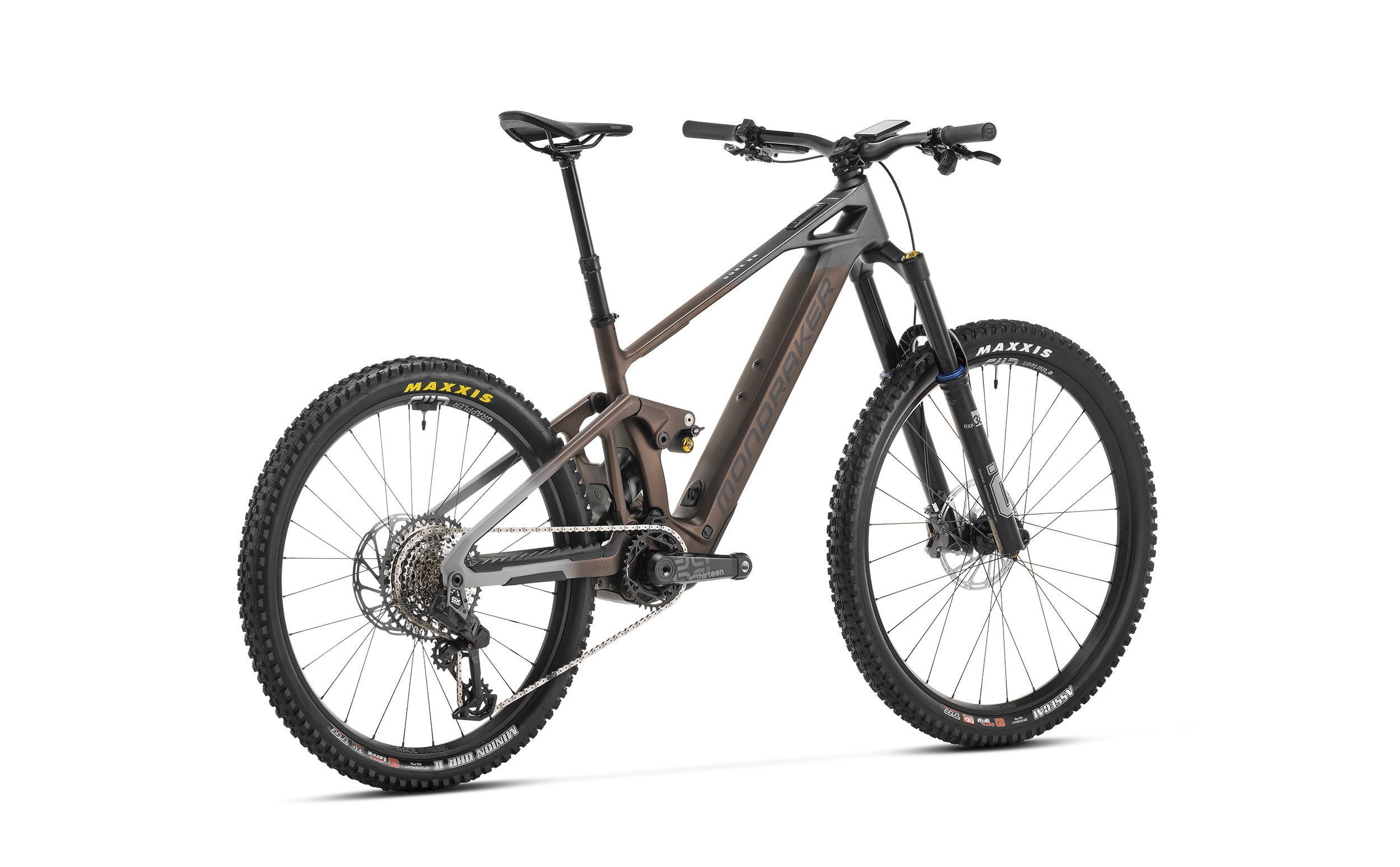

Introducing the Mondraker Dune RR Electric Mountain Bike in Bronze, a powerhouse engineered for conquering Liverpool's rugged terrains with style and precision. Crafted with meticulous attention to detail and loaded with cutting-edge features, this bike redefines the thrill of off-road adventures.
Frame: Designed to perfection, the Stealth Air full Carbon frame boasts an e-Bike Optimized Zero Suspension System, providing 165mm of travel. Its Forward Geometry ensures stability, while the internal and removable battery enhances convenience. Plus, with features like Boost 12x148mm rear axle and oversize 15mm axles, it's engineered for maximum performance.
Sizes: Available in S (380mm), M (420mm), L (450mm), and XL (490mm), ensuring a perfect fit for every rider.
Rear Shock: The Öhlins TTX Air shock delivers superior performance with its high-speed compression lever, climb mode, and precise settings for rebound and air preload, ensuring a smooth ride on any terrain.
Fork: Equipped with an Öhlins RXF 38 M.2 fork with TTX18 Twin Tube cartridge, this bike offers 170mm of travel, along with adjustable settings for compression, rebound, and air preload.
Brakes: Featuring Sram Code Bronze Stealth brakes with oversized 4-piston callipers and Centerline rotors, you can trust this bike to stop on a dime, even in the most challenging conditions.
Drivetrain: The Sram GX Eagle AXS rear derailleur and shift levers offer crisp, precise shifting, while the E.13 E*Spec Plus crankset ensures optimal power transfer.
Wheels and Tires: Built for durability and performance, the e*thirteen Grappler Race rims paired with Maxxis Assegai and Minion DHR II tires provide unparalleled traction and control.
Motor and Battery: Powered by the Bosch Performance Line SX motor and Compact Powertube 400Wh battery, this bike delivers reliable, long-lasting performance, with a smart system for optimal efficiency.
Display: Stay informed and in control with the Bosch Kiox 500 display, Bosch Mini Remote, and Bosch System Controller, offering intuitive navigation and real-time data.
Design: Finished in a striking Bronze colour, this bike not only performs like a dream but also turns heads wherever it goes.
Weight: At just 19.6 kg, it strikes the perfect balance between agility and durability.
Whether you're shredding through muddy trails or tackling steep inclines, the Mondraker Dune RR Electric Mountain Bike is your ultimate companion for adrenaline-fueled adventures in Liverpool's great outdoors. Experience the thrill of off-road riding like never before.
Specifications
Frame:
Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Sizes:
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Rear shock:
Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings:
C20 compression, R35 rebound. Volume reducers 12.000 (2xF+1D)
Fork:
Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
Headset:
Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Stem:
Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar:
Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips:
Onoff Desert, 1lock-on, 135mm
Seatpost:
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
Saddle:
Fizik Terra Aidon Slim X5
Front brake:
Sram Code Bronze Stealth, oversized 4-piston calliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake:
Sram Code Bronze Stealth, oversized 4-piston calliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever:
Sram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust
Rims:
e*thirteen Grappler Race, Hookless 6069 Welded Aluminium 30mm internal width, tubeless ready, 28F spokes 29 front, 27''5 rear
Spokes:
e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers
Front hub:
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminium, IS 6 bolts
Rear hub:
e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminium w/6-degree engagement, IS 6 bolts, XD freehub
Front tire:
Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Rear tire:
Maxxis Minion DHR II 27’5x2.4 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
Crankset:
E.13 E*Spec Plus,, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm
Rings:
Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
Chain:
Sram GX Eagle T-Type, 12s, Powerlock
Rear derailleur:
Sram GX Eagle AXS, T-Type roller bearing clutch, cage lock, 1x12s
Shift levers:
Sram Eagle AXS Pod MMX, 12s
Cassette:
Sram XS-1275, 10-52T, T-Type, 12s
Weight:
19.6 kg
Display:
Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller
Motor:
Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide
Battery:
Bosch Compact Powertube 400Wh
