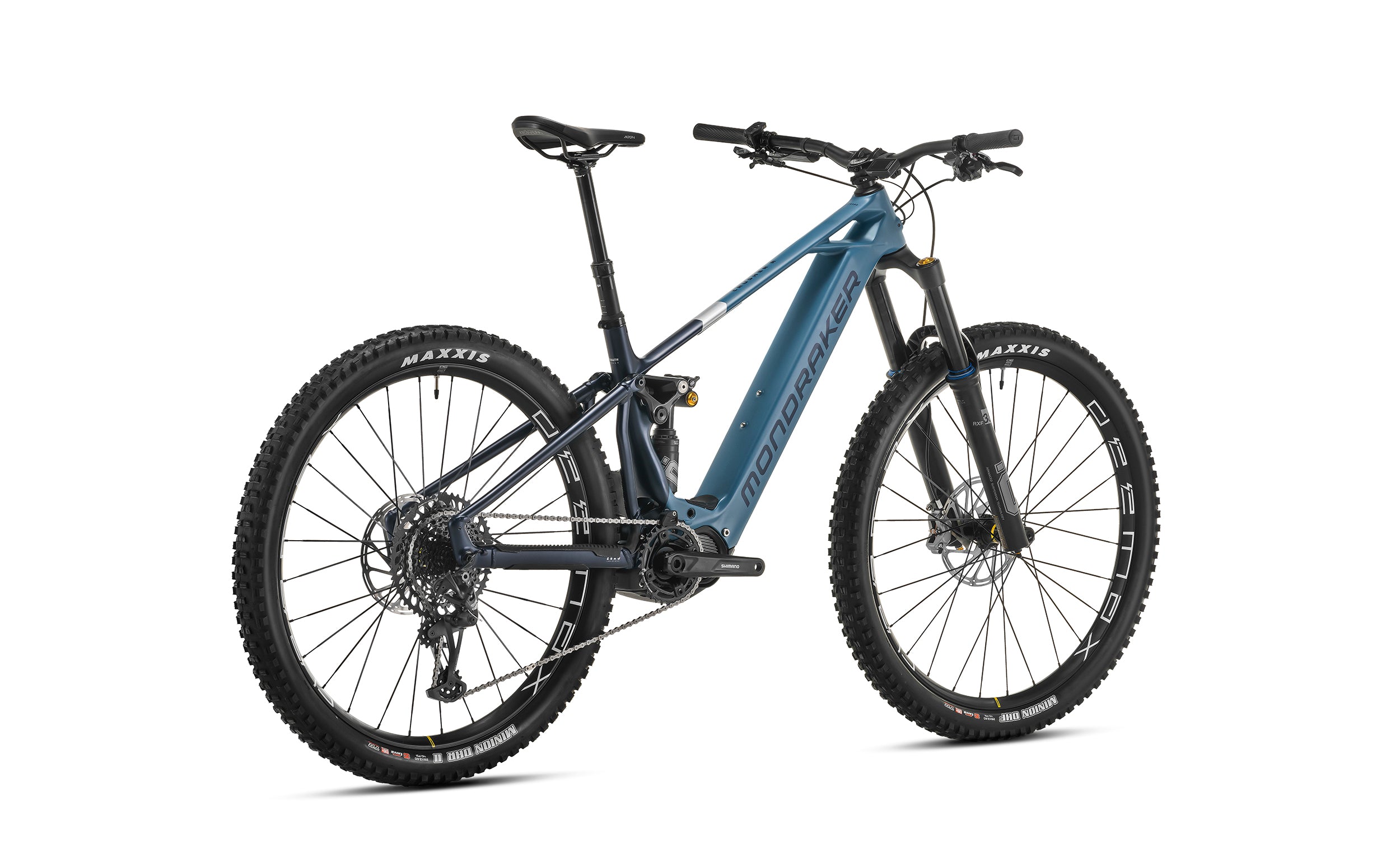

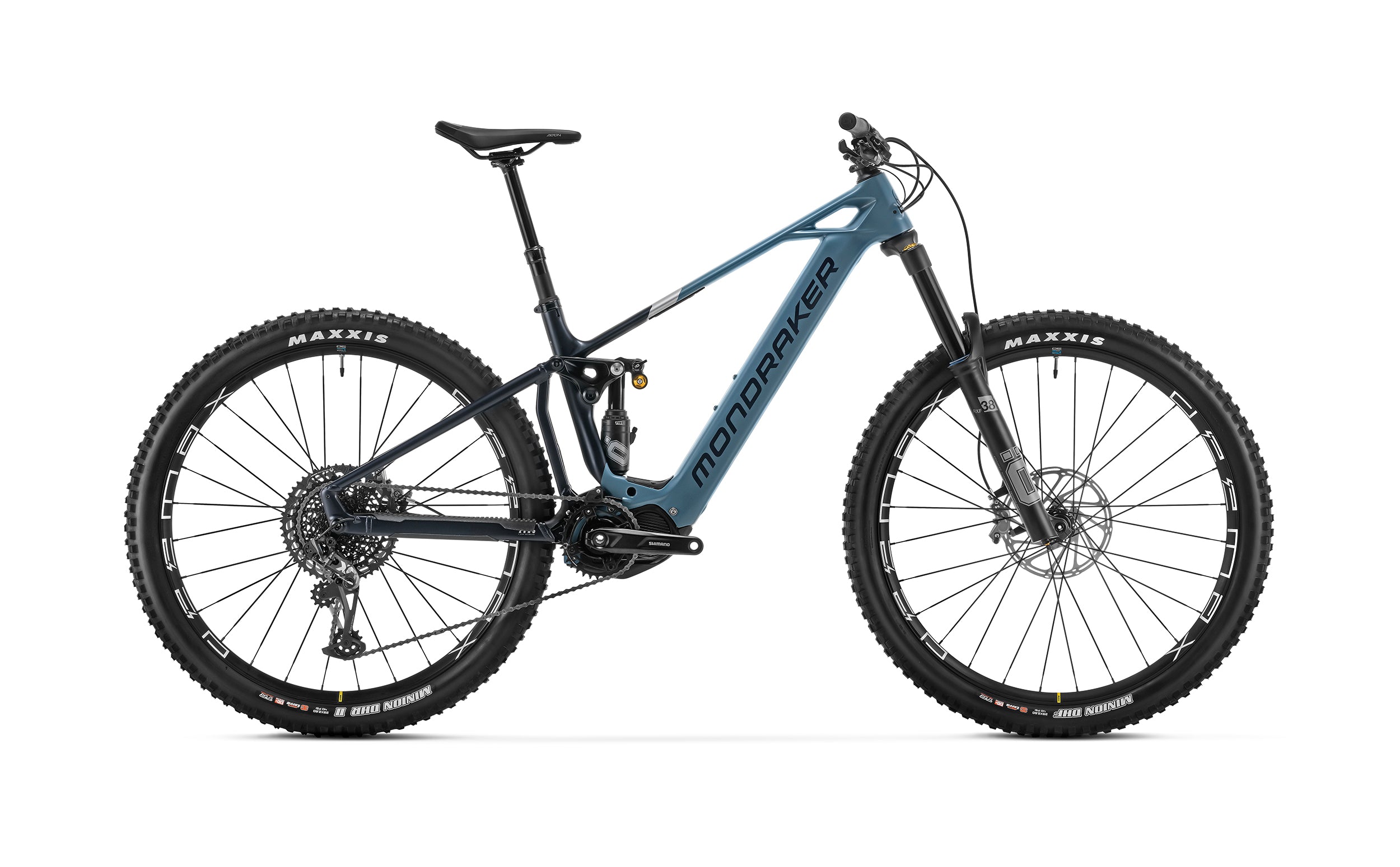

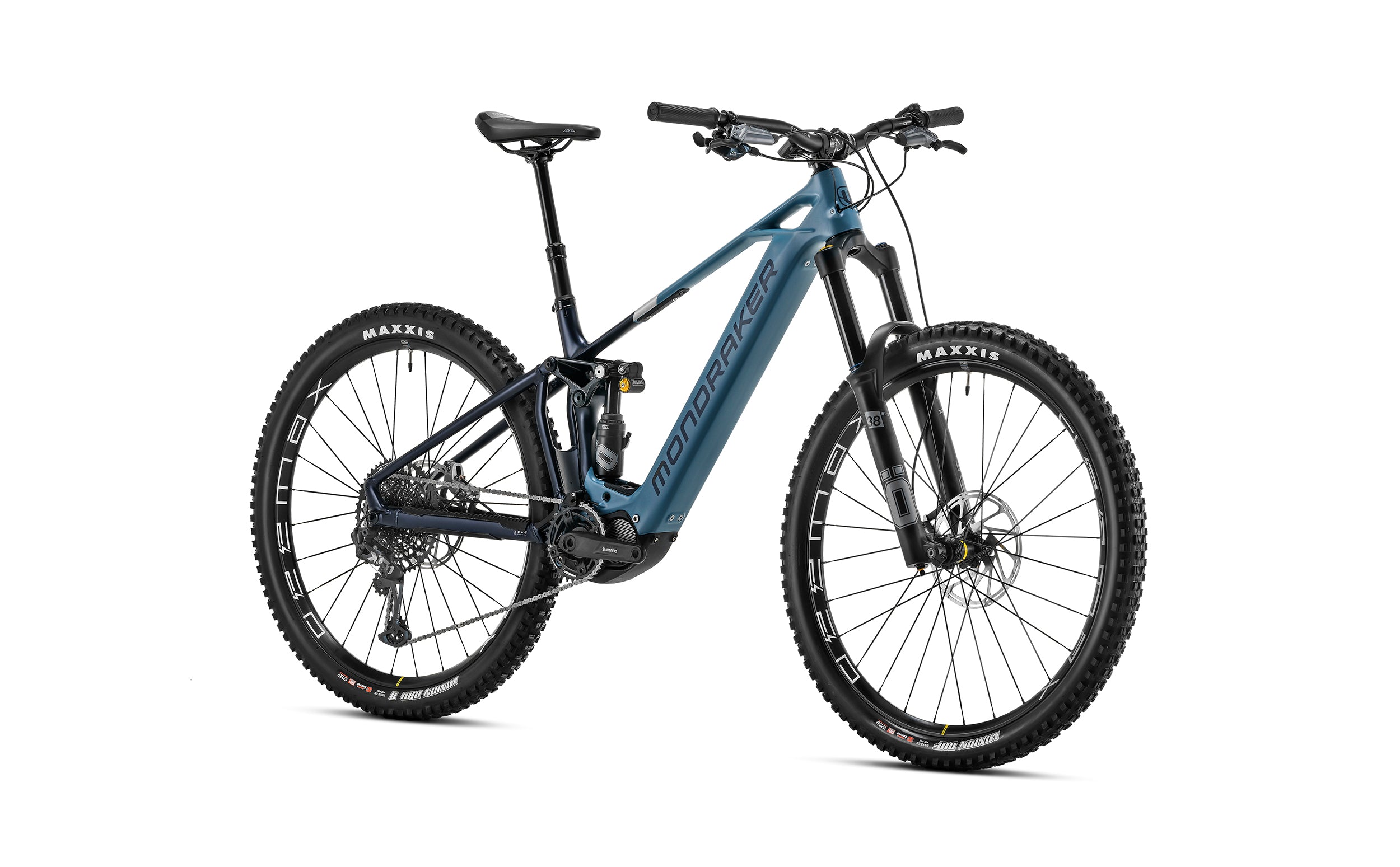

Mondraker Crusher R Electric Mountain Bike - Denim Blue
        Mondraker Crusher R Electric Mountain Bike - Denim Blue
Mondraker Crusher R Electric Mountain Bike - Denim Blue
        Mondraker Crusher R Electric Mountain Bike - Denim Blue
Mondraker Crusher R Electric Mountain Bike - Denim Blue
        Mondraker Crusher R Electric Mountain Bike - Denim Blue

Mondraker Crusher R Electric Mountain Bike - Denim Blue

Save 1%
£7,349.99 £7,499
/

Select an option to add this to your cart.

Introducing the Mondraker Crusher R Electric Mountain Bike in Denim Blue, now available at our Liverpool bicycle store. Engineered to conquer the trails with precision and power, this bike is your ultimate adventure companion. Let's delve into its remarkable features:

Frame: Crafty Stealth Air full Carbon frame ensures lightweight agility while maximizing durability. With a 150mm travel and e-Bike Optimized Zero Suspension System, every ride feels smooth and controlled.

Sizes: Choose from S, M, L, or XL sizes for a personalized fit, ensuring optimal comfort and performance for riders of all statures.

Rear Shock: Equipped with a Fox Float-X LV Performance rear shock, offering customizable compression and rebound settings for tailored performance on any terrain.

Fork: The Fox 38 29 Float GRIP Performance fork with 160mm travel is e-bike optimized, providing responsive handling and stability. Adjustable compression and rebound settings allow you to fine-tune your ride.

Brakes: Sram DB8 hydraulic disc brakes deliver reliable stopping power in any conditions, with 4-piston callipers and Centerline rotors ensuring precise control on descents.

Wheels: Mavic E-Deemax 29 rims paired with Maxxis Minion tires offer traction and durability, allowing you to confidently tackle rough trails and technical descents.

Drivetrain: Powered by a Sram GX Eagle 12-speed drivetrain, you'll experience smooth and precise shifting across a wide range of gears. The Race Face Aeffect ebike crankset provides efficient power transfer, while the Sram X-Sync 2 Eagle rings ensure chain retention.

Motor and Battery: Featuring the Bosch Performance Line CX Cruise GEN4 SMART SYSTEM motor paired with a Bosch Powertube 750Wh battery, this bike delivers reliable pedal assistance for long rides, with intelligent power management for optimal efficiency.

Display: Stay informed on your ride stats with the Bosch Kiox 500 display, conveniently mounted for easy visibility and control.

With its cutting-edge components and innovative design, the Mondraker Crusher R Electric Mountain Bike sets the standard for performance and versatility on the trails. Experience the thrill of exploration like never before. Visit our Liverpool store today and take your riding to new heights.

    Specifications

    Frame:
    Crusher Stealth Air Carbon front triangle, Stealth Alloy rear triangle, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, integrated internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.

    Sizes:
    S: 380mm / M: 420mm / L: 450mm / XL: 490mm

    Rear shock:
    Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x10mm bottom bushings

    Shock settings:
    C20 compression, R35 rebound. Volume reducers 12.000 (2xF+1D)

    Fork:
    Öhlins RXF 38 M.2 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber

    Headset:
    Acros AZF-601 R1 Block Lock 120°, ZS44/28.6 top, ZS56/40 bottom

    Stem:
    Onoff Krypton FG 30mm, CNC, 31.8mm barbore

    Handlebar:
    Onoff Krypton 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

    Grips:
    Onoff Desert, 1lock-on, 135mm

    Seatpost:
    Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm

    Saddle:
    FIZIK Terra Aidon X5 145mm

    Front brake:
    Sram Code Bronze Stealth, oversized 4-piston calliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

    Rear brake:
    Sram Code Bronze Stealth, oversized 4-piston calliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

    Brake lever:
    Sram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust

    Rims:
    Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes

    Spokes:
    Mavic J-bend double butted, contactless lacing

    Front hub:
    Mavic, Boost 15x110mm, IS 6 bolts

    Rear hub:
    Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, XD freehub

    Front tire:
    Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

    Rear tire:
    Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

    Crankset:
    Shimano Steps FC-EM600 ebike, 165mm

    Rings:
    Sram X-Sync 2 Eagle 34T, alloy, narrow-wide, 104 BCD

    Chain:
    Sram NX Eagle, 12s, Powerlock

    Rear derailleur:
    Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

    Shift levers:
    Sram Trigger GX Eagle, 12s, X-Actuation 1:1, single click

    Cassette:
    Sram XG-1275, 10-52T, 12s

    Derailleur hanger:
    Mondraker M068

    Weight:
    24.1 kg

    Display:
    Shimano EN600

    Motor:
    Shimano STEPS EP801

    Battery:
    Simplo internal 720Wh G3
