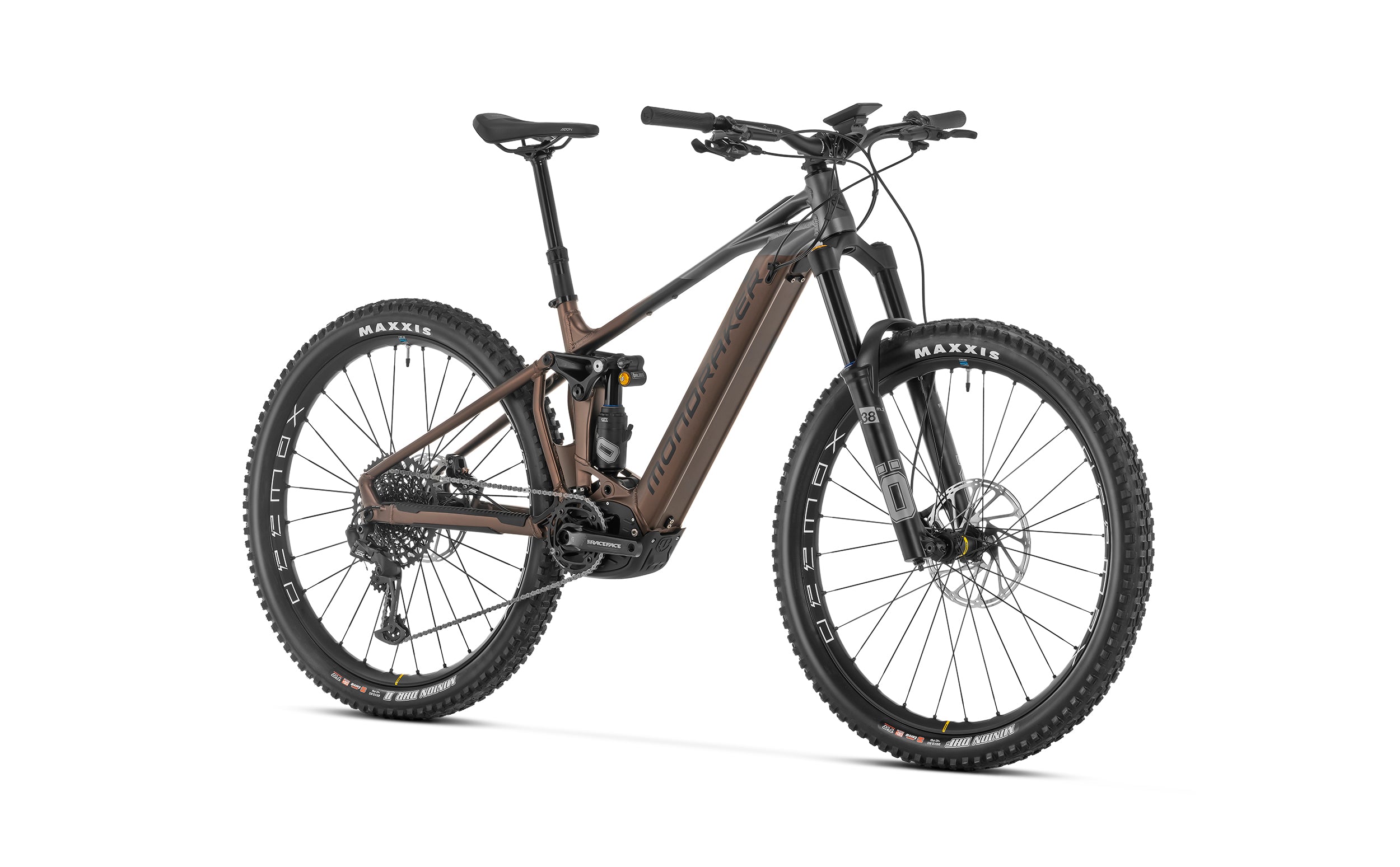

Introducing the Mondraker Crafty XR Electric Mountain Bike in Bronze, the ultimate companion for Liverpool's rugged terrains and urban adventures alike. Crafted with precision engineering and innovative technology, this bike is designed to elevate your riding experience to new heights.
Featuring a Crafty 6061 Alloy Stealth Evo frame, this e-bike is optimized for performance with a Zero Suspension System, offering 150mm of travel. The forward geometry ensures stability and control, while the integrated Bosch Performance Line CX Cruise motor delivers seamless power, making uphill climbs a breeze.
Available in four sizes (S, M, L, XL), the Crafty XR ensures a perfect fit for every rider. The Öhlins TTX Air rear shock and Öhlins RXF 38 M.2 fork provide unparalleled suspension performance, allowing you to conquer any trail with confidence.
Equipped with top-of-the-line components, including Sram Code Silver Stealth brakes for reliable stopping power and Mavic E-Deemax S rims for durability, this bike is built to withstand the toughest of challenges.
Navigating through Liverpool's streets is made effortless with the Bosch Kiox 500 display and Mini Remote, allowing you to effortlessly control your ride experience. Plus, with the Bosch Powertube 750Wh battery, you can explore the city or venture off-road with extended range.
Whether you're tackling rocky trails or commuting through the city, the Mondraker Crafty XR Electric Mountain Bike in Bronze is the perfect blend of style, performance, and versatility. Ride like never before and discover the true freedom of cycling with this exceptional e-bike.
Specifications
Frame:
Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Sizes:
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Rear shock:
Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Shock settings:
C20 compression, R35 rebound. Volume reducers 12.000 (2xF+1D)
Fork:
Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
Headset:
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem:
Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar:
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips:
Onoff Desert, 1lock-on, 135mm
Seatpost:
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
Saddle:
FIZIK Terra Aidon X5 145mm
Front brake:
Sram Code Silver Stealth, oversized 4-piston calliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake:
Sram Code Silver Stealth, oversized 4-piston calliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever:
Sram Code Silver Stealth, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
Rims:
Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes
Spokes:
Mavic straight-pull double butted, contactless lacing
Front hub:
Mavic, Boost 15x110mm, IS 6 bolts
Rear hub:
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub
Front tire:
Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Rear tire:
Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Crankset:
Race Face Aeffect ebike, 165mm
Rings:
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain:
Sram NX Eagle, 12s, Powerlock
Rear derailleur:
Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers:
Sram Trigger GX Eagle, 12s, X-Actuation 1:1, single click
Cassette:
Sram XG-1275, 10-52T, 12s
Derailleur hanger:
Mondraker M068
Weight:
25.3 kg
Display:
Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller
Motor:
Bosch Performance Line CX Cruise (25 km/h) GEN4 SMART SYSTEM
Battery:
Bosch Powertube 750Wh
