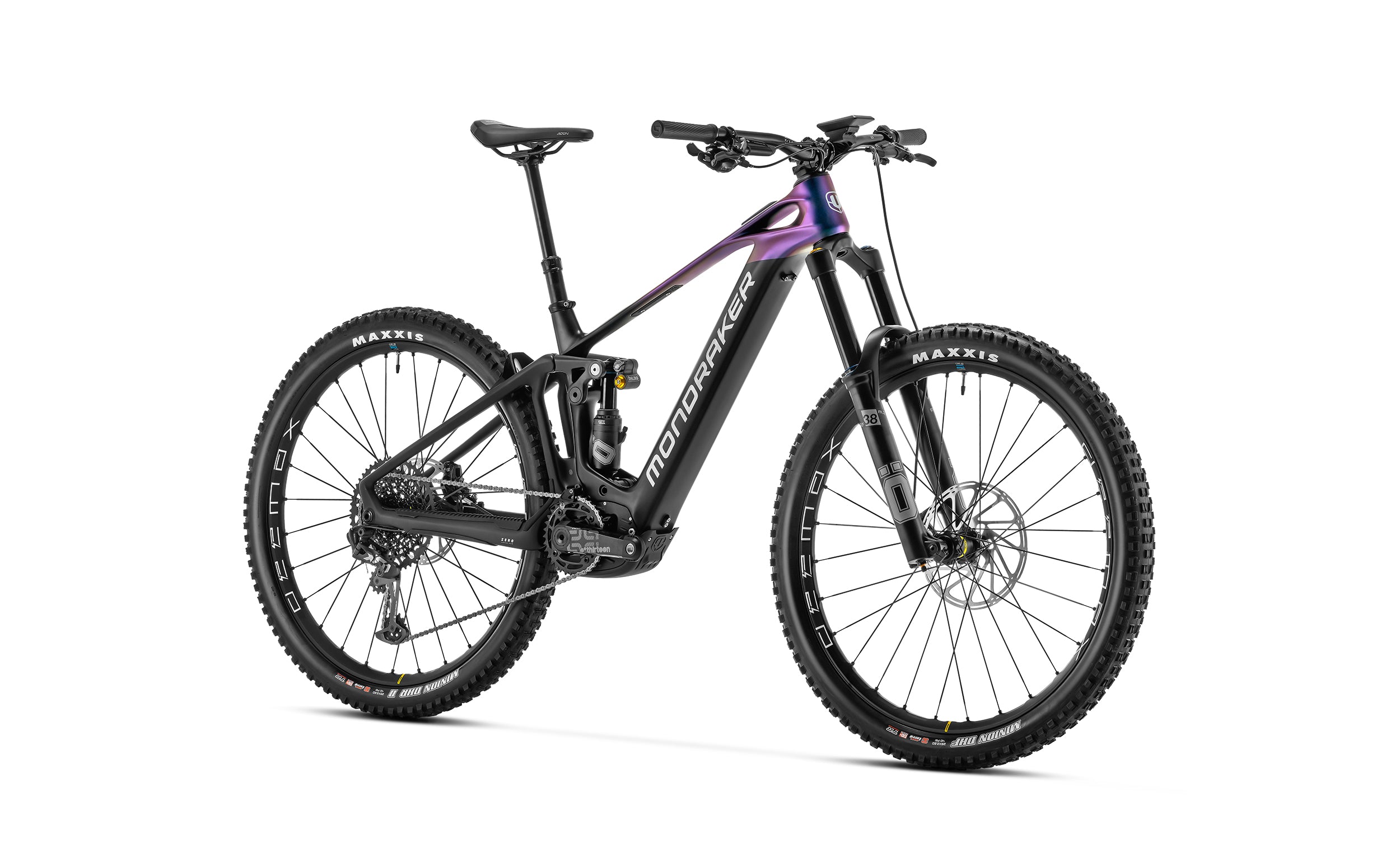

Introducing the Mondraker Crafty Carbon XR Electric Mountain Bike in Polaris color, a powerhouse designed to conquer any trail with finesse. Crafted with precision and performance in mind, this bike is your ultimate companion for tackling rugged terrains while enjoying the thrill of electric assistance.
Frame: Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry. The internal non-removable battery ensures a sleek look while boosting performance. Integrated dropout speed sensor for seamless control.
Rear Shock: Öhlins TTX Air 205X65mm with customizable settings including high-speed compression lever with climb mode, low-speed compression, and rebound adjustment. Trunnion top mount for enhanced stability.
Fork: Öhlins RXF 38 M.2 29, 170mm, equipped with TTX18 Twin Tube cartridge for superior damping control. Adjust settings like high-speed compression lever with climb mode, low-speed compression, rebound, and air preload for a personalized ride.
Brakes: Sram Code Silver Stealth brakes with oversized 4-piston calipers deliver unparalleled stopping power. Paired with Centerline rotors for consistent performance even in the toughest conditions.
Wheels: Mavic E-Deemax S 29 rims with a 30mm internal width for excellent tire support. Tubeless-ready design for reduced puncture risk and enhanced traction.
Drivetrain: Powered by a Bosch Performance Line CX-Race Smart System motor and Bosch Powertube 750Wh battery, this bike offers reliable electric assistance for long rides. Sram X01 Eagle rear derailleur ensures smooth and precise shifting across 12 gears.
Display: Stay informed with the Bosch Kiox 500 display, conveniently mounted for easy access to vital riding data. Control your ride effortlessly with the Bosch Mini Remote and System Controller.
Saddle and Seatpost: FIZIK Terra Aidon X5 saddle paired with an Onoff Pija dropper seatpost for comfort and adjustable riding position.
Weighing in at just 23.4 kg, the Mondraker Crafty Carbon XR Electric Mountain Bike strikes the perfect balance between agility and durability. Available in sizes S, M, L, and XL to suit riders of all proportions.
Conquer the trails like never before with the Mondraker Crafty Carbon XR Electric Mountain Bike, now available at our Liverpool store. Experience the future of mountain biking today!
Specifications
Frame:
Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Sizes:
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Rear shock:
Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Shock settings:
C20 compression, R35 rebound. Volume reducers 12.000 (2xF+1D)
Fork:
Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
Headset:
Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Stem:
Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar:
Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips:
Onoff Desert, 1lock-on, 135mm
Seatpost:
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
Saddle:
FIZIK Terra Aidon X5 145mm
Front brake:
Sram Code Silver Stealth, oversized 4-piston calliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake:
Sram Code Silver Stealth, oversized 4-piston calliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever:
Sram Code Silver Stealth, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
Rims:
Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes
Spokes:
Mavic straight-pull double butted, contactless lacing
Front hub:
Mavic, Boost 15x110mm, IS 6 bolts
Rear hub:
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub
Front tire:
Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Rear tire:
Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Crankset:
E.13 TRS Race carbon ebike, 165mm
Rings:
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain:
Sram NX Eagle, 12s, Powerlock
Rear derailleur
Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers:
Sram Trigger GX Eagle, 12s, X-Actuation 1:1, single click
Cassette:
Sram XG-1275, 10-52T, 12s
Derailleur hanger:
Sram UDH
Weight:
23.4 kg
Display:
Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller
Motor:
Bosch Performance Line CX-Race (25 km/h) Smart System
Battery:
Bosch Powertube 750Wh
