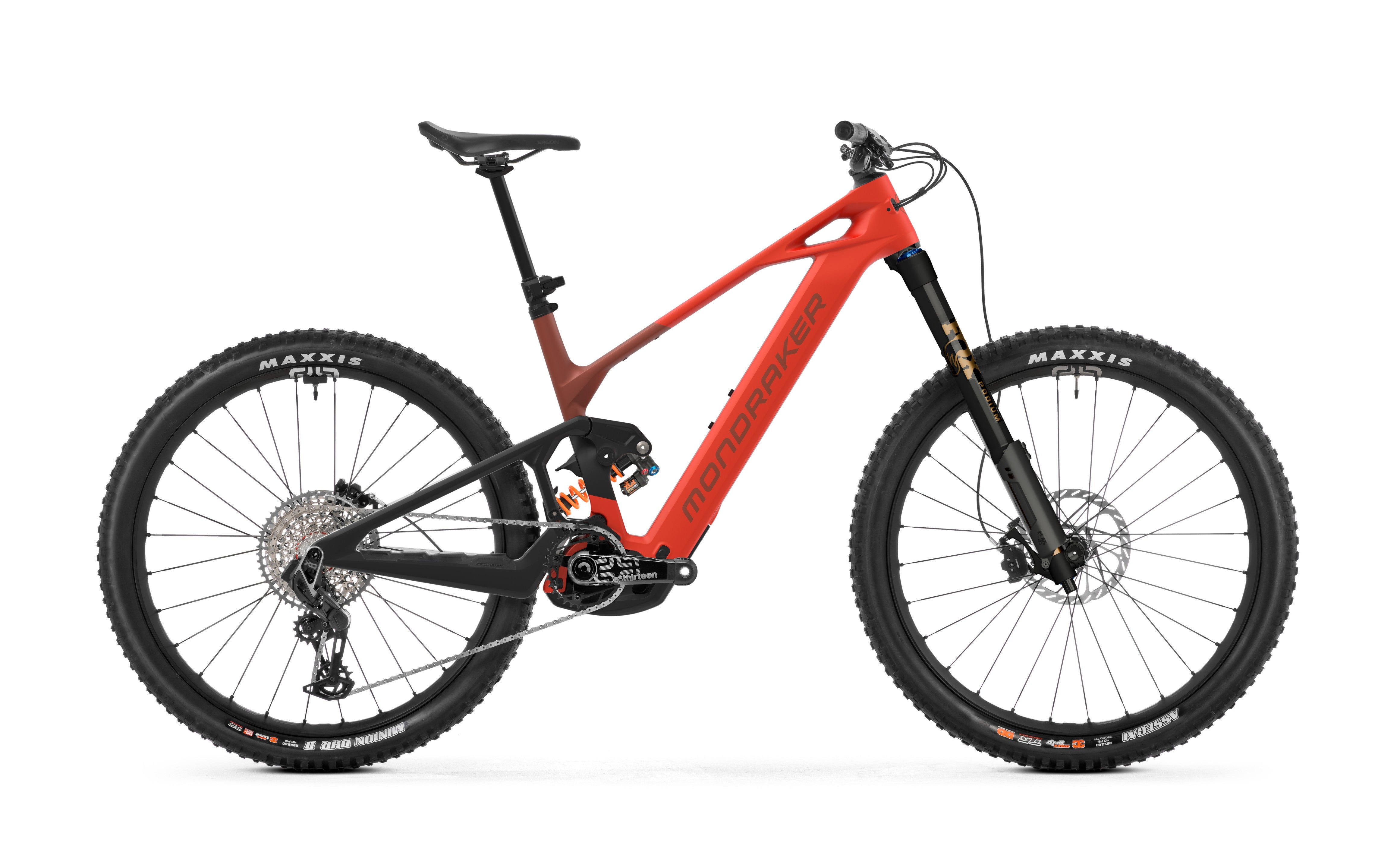

Mondraker Crafty Carbon XR 2026 Electric Mountain Bike – Flame Red
Available now at The Rolling Fix, Liverpool’s premier e-MTB specialist.
The Mondraker Crafty Carbon XR 2026 in Flame Red is built for riders who demand uncompromising performance, cutting-edge technology, and bold design. Crafted from Stealth Air full carbon with Mondraker’s Zero Suspension System and Forward Geometry, this e-MTB delivers 150mm of rear travel and precision handling for the toughest trails across the UK and beyond.
Ride Smarter, Faster, Further
Powered by the Bosch Performance Line CX Race (Smart System) motor and an integrated Bosch Powertube 800Wh battery, the Crafty Carbon XR gives you powerful, responsive assistance up to 25 km/h. The Kiox 400C display and Bosch Mini Remote provide full ride data and connectivity at your fingertips — whether you’re climbing steep technical trails or carving downhill lines.
Elite-Level Suspension
-
Front: Fox 38 Float GRIPX2 Factory Kashima – 170mm travel
-
Rear: Fox DHX2 Factory Kashima with Super Light Steel spring
With adjustable high- and low-speed compression and rebound, this Factory-level setup guarantees buttery-smooth performance and total control over any terrain.
Premium Build. Every Detail Counts.
-
Frame: Mondraker Crafty Stealth Air full carbon, 150mm travel
-
Geometry: Forward Geometry for improved stability and confidence
-
Wheels: e*thirteen Grappler Flux tubeless-ready rims with Maxxis Assegai (front) and Minion DHR II (rear) tires
-
Drivetrain: SRAM X0 Eagle AXS T-Type 12-speed electronic shifting
-
Brakes: SRAM Maven Silver 4-piston with massive 220mm/200mm rotors
-
Seatpost: RockShox Reverb AXS wireless dropper
Every component has been selected for durability, performance, and seamless integration — from the Onoff S9 Carbon cockpit to the Ergon SM-10 saddle. At just 24.4kg, the Crafty Carbon XR balances featherweight agility with e-MTB power.
Standout Features
-
Stealth Air Carbon frame with internal cable routing and removable battery
-
Bosch Smart System for customisable power modes and ride tracking
-
Boost axle spacing for stiffness and precision handling
-
UDH-compatible rear dropout for easy maintenance
-
Flame Red finish for a striking look on any trail
Why Choose The Rolling Fix, Liverpool
As Liverpool’s trusted Mondraker dealer, The Rolling Fix offers expert setup, test rides, and aftercare to help you get the most from your new Crafty Carbon XR. Our team of e-MTB specialists ensures every bike leaves tuned, charged, and ready to conquer your next adventure.
Ride the future of e-MTB performance.
Shop the Mondraker Crafty Carbon XR 2026 – Flame Red today at The Rolling Fix, Liverpool, or contact us to arrange a test ride.
Specification
Frame: Crafty Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Sizes: S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
Rear shock: Fox DHX2 Factory Kashima, 185x55mm. Settings: high and low-speed compression, high and low-speed rebound, spring preload. Super light steel (SLS) spring. Trunnion top mount, 30x8mm bottom bushings
Shock settings: CL60 compression, Bleed 0,9, RS60 rebound, Rezi B60, LML, VVCM Spring rate:S size 400 lbs, M size 450 lbs, ML size 500 lbs, L size 550 lbs, XL size 600 lbs
Fork: Fox Podium 29 Float GRIPX2 Factory Kashima, 170mm, tapered steerer tube, Boost 20x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset: Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem: Onoff S9 30mm 0º, Full CNC, 31.8mm barbore
Handlebar: Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Grips: Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Seatpost: RockShox Reverb Stealth AXS, diameter 31.6mm S size: 398.2x125mm, M size: 448.2x150mm,ML size: 498.2x175mm, L size: 548.2x200mm, XL size:548.2x200mm
Saddle: Ergon SM-10
Front brake: Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, HS2 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake: Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever: Sram Maven Silver, SwingLink and lever pivot bushings, tools-free reach adjust
Rims: e*thirteen Grappler Flux, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
Spokes: e*thirteen Sapim D-light / Brass
Front hub: e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear hub: e*thirteen Boost 12x148mm, Sidekick,12°/15°/18° Adjustable Deadband, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub
Front tire: Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead
Rear tire: Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
Crankset: E.13 Helix Race Carbon E*Spec Plus, All sizes: 160mm
Rings: Sram XX Eagle 34T T-Type, direct mount, steel, CL55
Chain: Sram GX Eagle T-Type, 12s, Powerlock
Rear derrailleur: Sram X0 Eagle AXS, T-Type, 12s
Shift levers: Sram Eagle AXS Pod MMX, 12s
Cassette: Sram XS-1275, 10-52T, T-Type, 12s
Weight: 24,4 kg
Display: Kiox 400C / Bosch Mini Remote
Motor: Bosch Performance Line CX R (25Km/h) SMART SYSTEM (BDU386Y)
Battery: Bosch Powertube 800Wh
