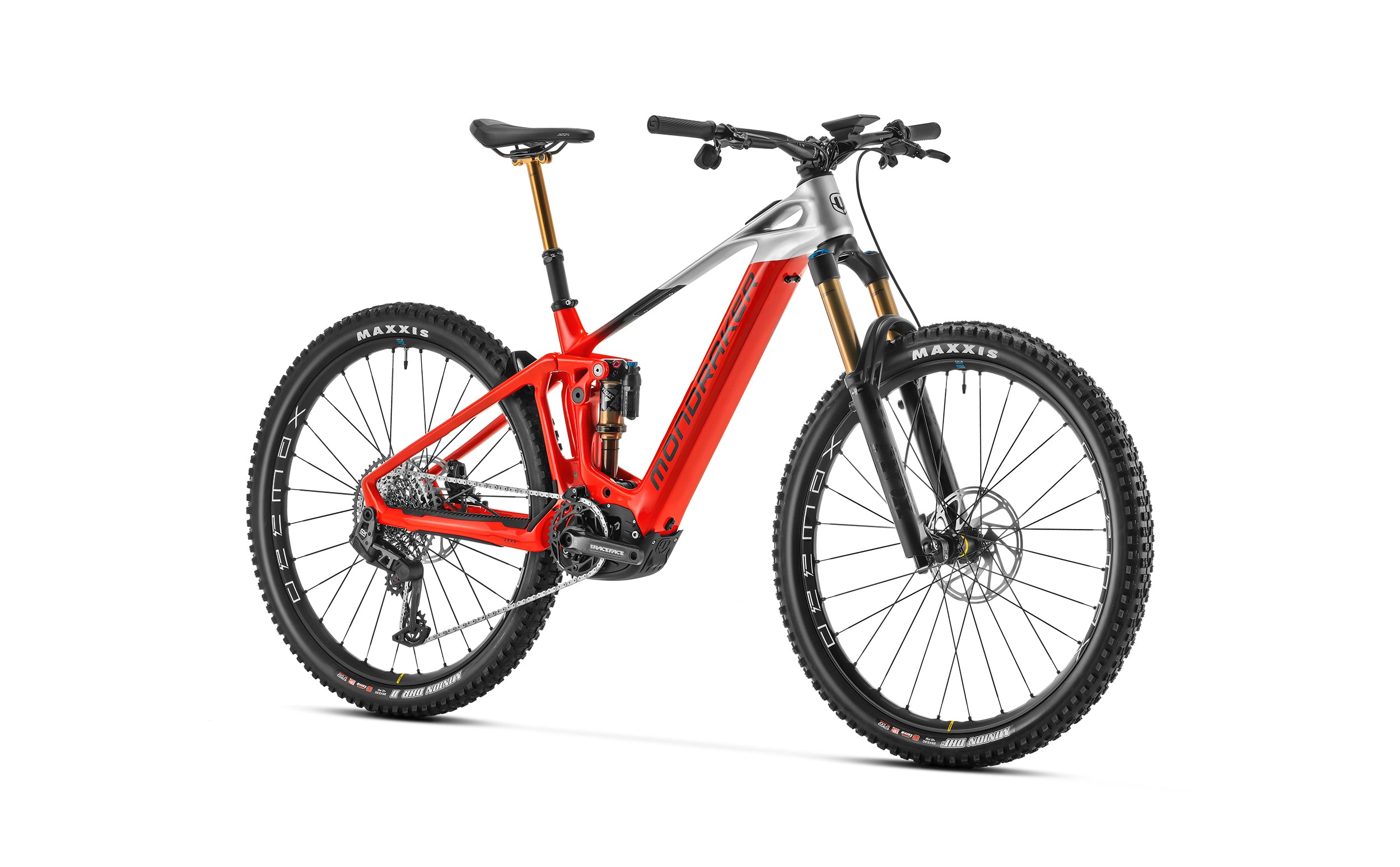

Introducing the Mondraker Crafty Carbon RR Electric Mountain Bike in Flame Red – a pinnacle of innovation and performance, now available at our Liverpool store. Crafted for the trailblazers, this bike combines cutting-edge technology with unparalleled design to elevate your riding experience to new heights.
Frame: Crafty Stealth Air full Carbon frame sets the standard for e-bike excellence. With 150mm travel and the e-Bike Optimized Zero Suspension System, every ride feels smooth and controlled. The internal non-removable battery ensures seamless integration and uninterrupted power delivery. Plus, the integrated dropout speed sensor adds a touch of intelligence to your journey.
Sizes: Choose from a range of sizes to find your perfect fit: S (380mm), M (420mm), L (450mm), and XL (490mm).
Shock Absorption: Equipped with a Fox Float-X LV Factory Kashima rear shock and a Fox 38 29 Float GRIP2 Factory Kashima fork, this bike conquers rough terrain with ease. Fine-tune your ride with adjustable settings for compression, rebound, and preload.
Precision Components: From the Acros custom headset to the Onoff Krypton Carbon handlebar, every component is carefully selected for maximum performance. The Sram Code Silver Stealth brakes provide reliable stopping power, while the Mavic E-Deemax S rims ensure durability and stability on any terrain.
Efficient Powertrain: Powered by a Bosch Performance Line CX Cruise motor and a Bosch Powertube 750Wh battery, this bike delivers the perfect blend of power and endurance. The Bosch Kiox 500 display keeps you informed of vital stats, while the Sram GX Eagle AXS drivetrain offers smooth, precise shifting.
Lightweight and Agile: Despite its robust construction, this bike weighs just 23.7 kg, making it agile and nimble on the trails.
Experience the thrill of off-road exploration like never before with the Mondraker Crafty Carbon RR Electric Mountain Bike. Visit our Liverpool store today and unleash your adventurous spirit.
Specifications
Frame:
Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Sizes:
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Rear shock:
Fox Float-X LV Factory Kashima, 205x65mm. Settings: compression 2 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Shock settings:
medium compression, medium rebound, air volume spacer 0.2
Fork:
Fox 38 29 Float GRIP2 Factory Kashima, 160mm, e-bike optimized, tapered steerer tube, Boost 15x110mm axle, 44mm offset, 68mm OD crown. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset:
Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Stem:
Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar:
Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips:
Onoff Desert, 1lock-on, 135mm
Seatpost:
Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M size: 418.3x150mm, L size: 475.1x175mm, XL size size: 475.1x200mm
Saddle:
FIZIK Terra Aidon X5 145mm
Front brake:
Sram Code Silver Stealth, oversized 4-piston calliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake:
Sram Code Silver Stealth, oversized 4-piston calliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever:
Sram Code Silver Stealth, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
Rims:
Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes
Spokes:
Mavic straight-pull double butted, contactless lacing
Front hub:
Mavic, Boost 15x110mm, IS 6 bolts
Rear hub:
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub
Front tire:
Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Rear tire:
Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Crankset:
Race Face Aeffect ebike, 165mm
Rings:
Sram T-Type 34T, steel, narrow-wide, 104 BCD
Chain:
Sram GX Eagle T-Type, 12s, Powerlock
Rear derailleur:
Sram GX Eagle AXS, T-Type roller bearing clutch, cage lock, 1x12s
Shift levers:
Sram Eagle AXS Pod MMX, 12s
Cassette:
Sram XS-1275, 10-52T, T-Type, 12s
Weight:
23.7 kg
Display:
Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller
Motor:
Bosch Performance Line CX Cruise (25 km/h) GEN4 SMART SYSTEM
Battery:
Bosch Powertube 750Wh
