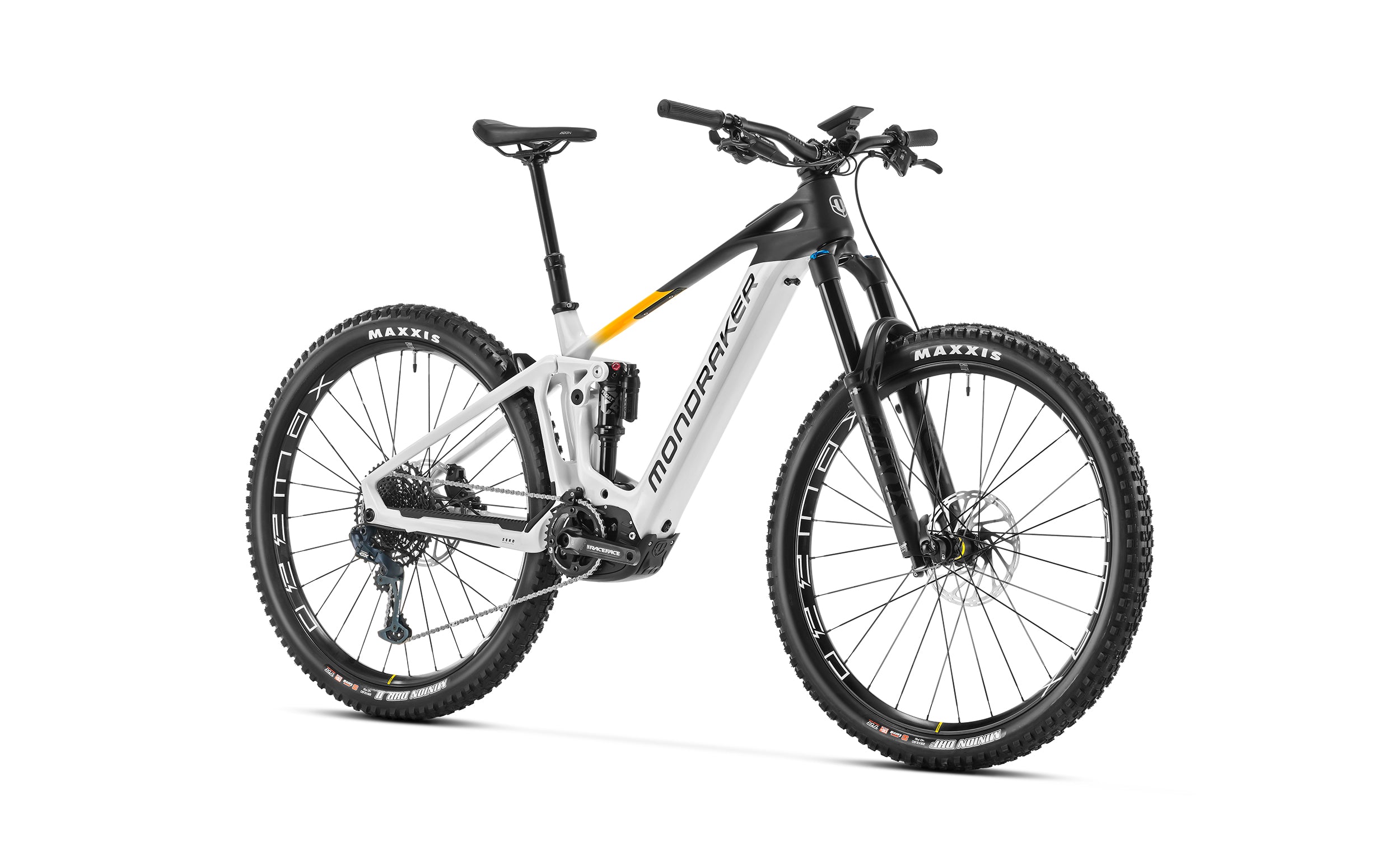

Mondraker Crafty Carbon R Electric Mountain Bike - Bunker Grey

Save 27%

£5,564.99 ~~£7,699~~

Select an option to add this to your cart.

Conquer Trails with the Mondraker Crafty Carbon R Electric Mountain Bike in Bunker Grey

Elevate your off-road adventures with the Mondraker Crafty Carbon R Electric Mountain Bike, now available in the sleek Bunker Grey colour. Engineered for performance and durability, this cutting-edge e-bike is your ultimate companion on any terrain. Crafted with precision and featuring top-of-the-line components, the Crafty Carbon R delivers an unparalleled riding experience.

Unmatched Performance:
Equipped with a Crafty Stealth Air full Carbon frame, the e-Bike Optimized Zero Suspension System, and 150mm travel, this bike ensures smooth and controlled rides even on the most challenging trails. The Forward Geometry enhances stability and maneuverability, while the integrated dropout speed sensor provides seamless pedal assistance.

Precision Handling:
Experience precise handling and control with the Fox Float-X LV Performance rear shock and Fox 38 29 Float GRIP Performance fork. With customizable settings for compression, rebound, and air preload, you can tailor your ride to suit your preferences and conquer any obstacle with confidence.

Top-of-the-Line Components:
Built for reliability, the Mondraker Crafty Carbon R features premium components such as the Sram DB8 brakes, Mavic E-Deemax rims, and Maxxis Minion tires. The Race Face Aeffect ebike crankset, Sram GX Eagle derailleur, and Sram NX Eagle shift levers ensure smooth gear transitions and optimal power transfer on every ride.

Efficient Electric Assistance:
Powered by the Bosch Performance Line CX Cruise motor and a Bosch Powertube 750Wh battery, this e-bike delivers efficient pedal assistance with a maximum speed of 25 km/h. The Bosch Kiox 500 display provides essential ride data, while the Bosch Mini Remote and System Controller offer convenient control over the motor settings.

Tailored to Perfection:
Available in four sizes (S, M, L, XL), the Mondraker Crafty Carbon R ensures a comfortable and personalized fit for riders of all heights. The Onoff Pija dropper seatpost with internal routing and the FIZIK Terra Aidon X5 saddle enhance comfort during long rides, while the Onoff Krypton handlebar and grips provide superior handling and control.

Explore Limitless Possibilities:
Weighing just 24.2 kg, this lightweight yet robust e-bike is designed to tackle any trail with ease. Whether you're exploring rugged mountain paths or cruising through urban landscapes, the Mondraker Crafty Carbon R is your ultimate companion for adventure.

Discover the Future of Mountain Biking:
Experience the thrill of off-road riding like never before with the Mondraker Crafty Carbon R Electric Mountain Bike. Visit our bicycle store in Liverpool today and take your riding to new heights with this ground-breaking e-bike. Unlock the potential of every trail and embark on unforgettable adventures with Mondraker.

Specifications

Frame:
Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.

Sizes:
S: 380mm / M: 420mm / L: 450mm / XL: 490mm

Rear shock:
Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings

Shock settings:
medium compression, medium rebound, air volume spacer 0.2

Fork:
Fox 38 29 Float GRIP Performance, 160mm, e-bike optimized, tapered steerer tube, Boost 15x110mm axle, 44mm offset, 68mm OD crown. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload

Headset:
Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing

Stem:
Onoff Krypton FG 30mm, CNC, 31.8mm barbore

Handlebar:
Onoff Krypton 1.0 double butted 7075-T6 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

Grips:
Onoff Desert, 1lock-on, 135mm

Seatpost:
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm

Saddle:
FIZIK Terra Aidon X5 145mm

Front brake:
Sram DB8, 4-piston calliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

Rear brake:
Sram DB8, 4-piston calliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

Brake lever:
Sram DB8, tool reach adjust, lever pivot bushings

Rims:
Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes

Spokes:
Mavic J-bend double butted, contactless lacing

Front hub:
Mavic, Boost 15x110mm, IS 6 bolts

Rear hub:
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub

Front tire:
Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

Rear tire:
Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

Crankset:
Race Face Aeffect ebike, 165mm

Rings:
Sram X-Sync 2 Eagle 34T, alloy, narrow-wide, 104 BCD

Chain:
Sram NX Eagle, 12s, Powerlock

Rear derailleur:
Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

Shift levers:
Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click

Cassette:
Sram PG-1230, 11-50T, 12s

Derailleur hanger:
Sram UDH

Weight:
24.2 kg

Display:
Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller

Motor:
Bosch Performance Line CX Cruise (25 km/h) GEN4 SMART SYSTEM

Battery:
Bosch Powertube 750Wh
