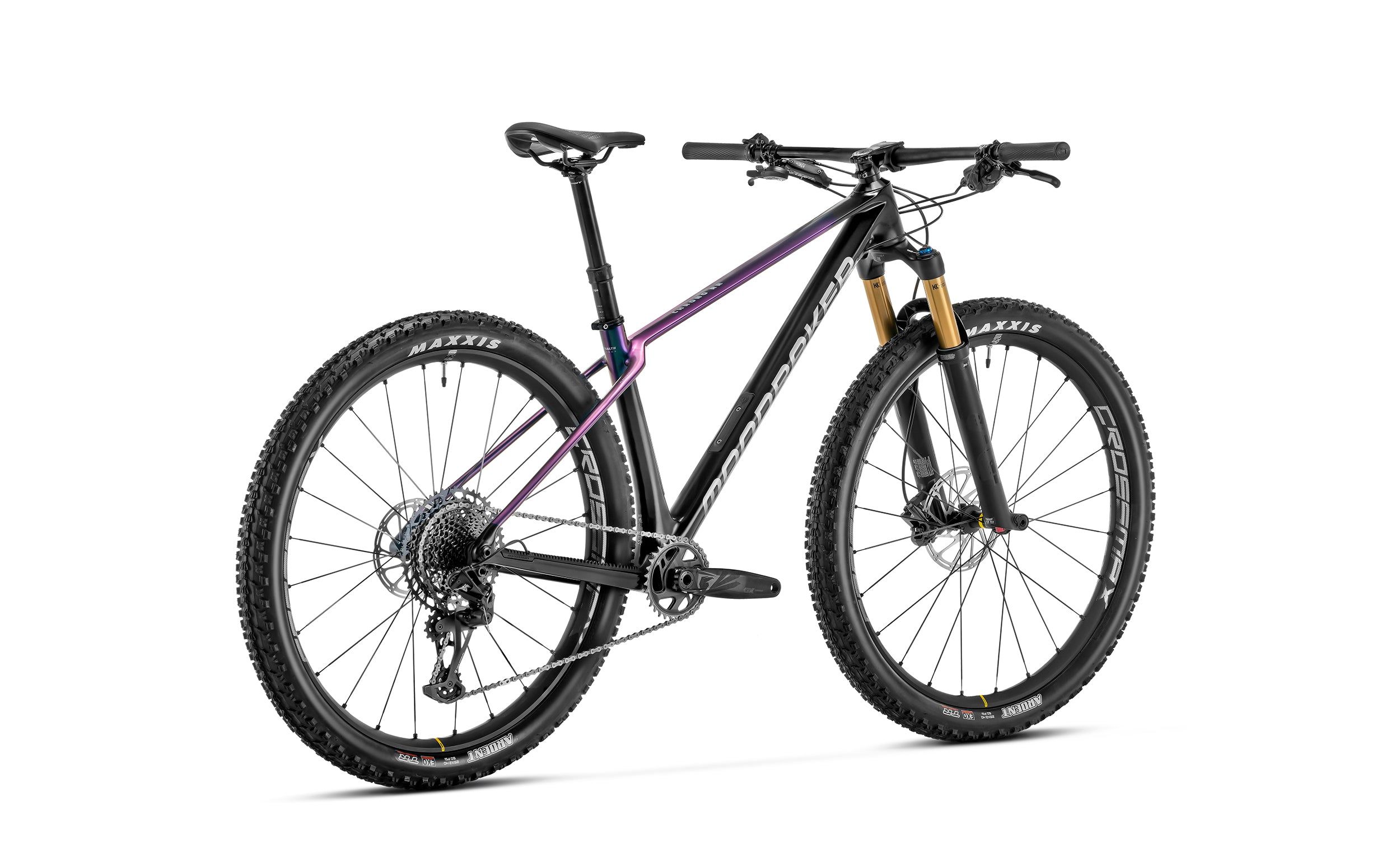

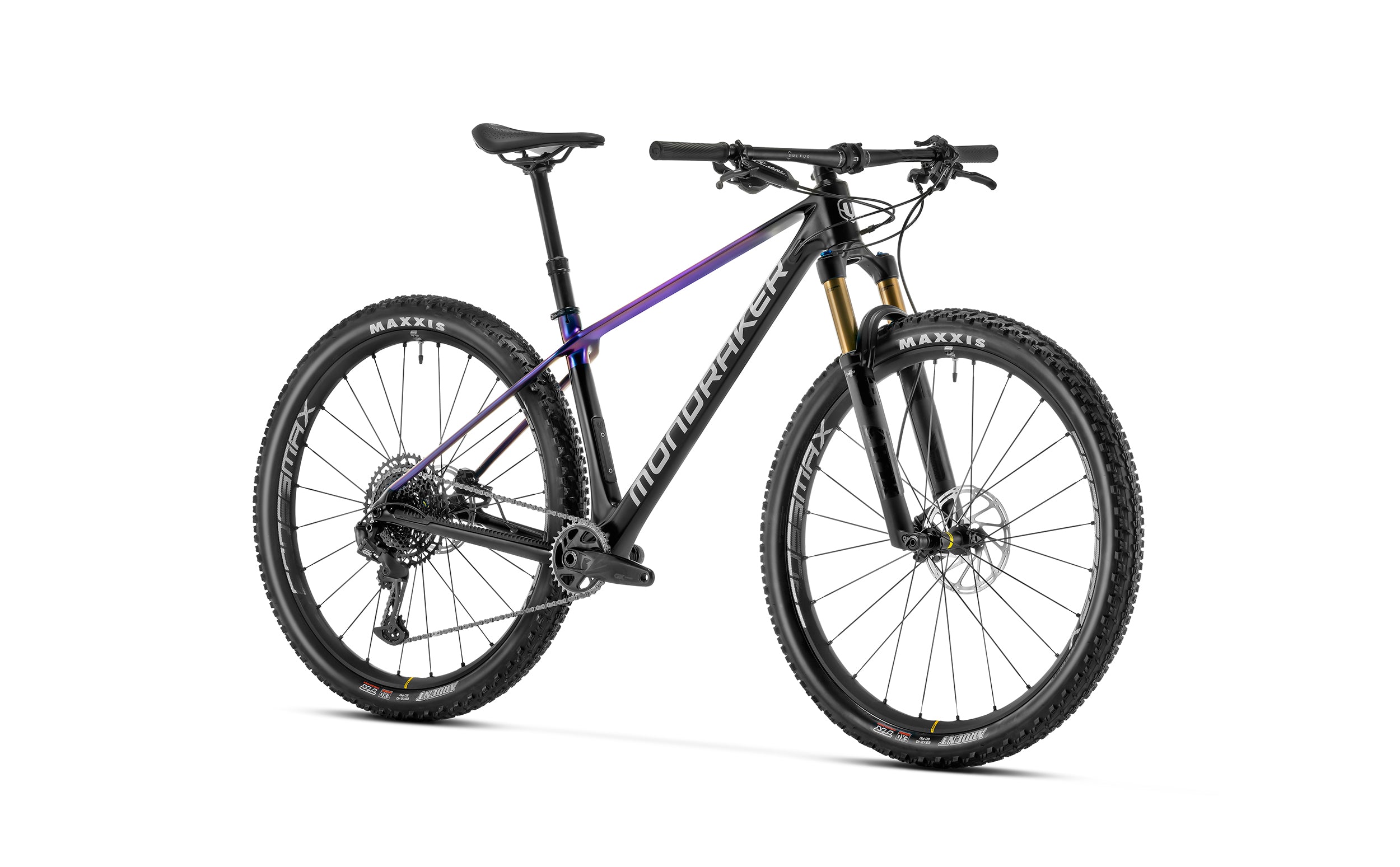

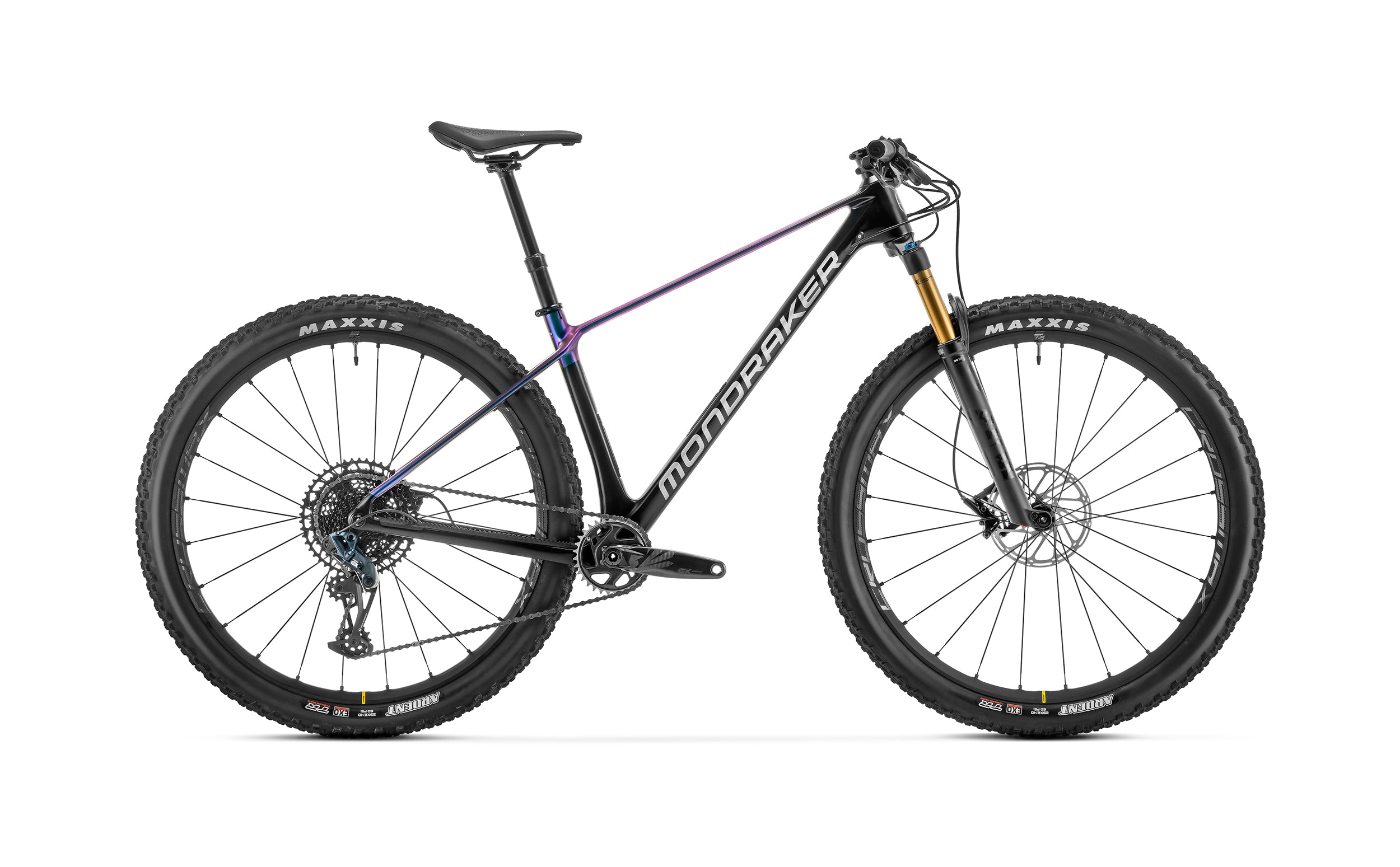

Introducing the Mondraker Chrono Carbon DC RR Cross Country Bike in Polaris, now available at our Liverpool store! This cutting-edge XC machine is engineered to conquer any trail with finesse and speed. Crafted with precision and attention to detail, it's designed to elevate your riding experience to new heights.
Frame: The Chrono 29 Stealth full Carbon frame boasts XC Forward Geometry for optimal handling, a 73mm BSA bottom bracket for stability, and HHG Internal Cable routing for a sleek appearance. Boost 12x148mm rear axle ensures enhanced responsiveness, while the dedicated 1X drivetrain design maximizes efficiency. Plus, it's Flatmount brake compatible for seamless integration.
Sizes: Choose from S, M, L, or XL sizes to find your perfect fit.
Fork: Equipped with a Fox 34 Step Cast Float FIT4 EVOL Factory Kashima fork, offering 120mm of travel and precise control. With settings like remote 3pos Push to lock and compression micro-adjustment, you can tailor your ride to suit any terrain.
Components: From the MDK stem and Onoff handlebar to the Onoff Pija dropper seatpost, every component is carefully selected for performance and reliability. Grips, saddle, brakes, and drivetrain components from trusted brands like Sram and Maxxis ensure top-tier performance.
Wheels: Roll over obstacles with ease thanks to Mavic CrossMax XL S rims and Maxxis Ardent tires. The Boost hub spacing and tubeless-ready design provide added traction and durability.
Drivetrain: Powering you forward is a Sram GX Eagle crankset, delivering efficient power transfer with its Direct Mount chainring. Paired with a wide-range Sram PG-1230 cassette and Trigger NX Eagle shifters, conquering climbs and descents is a breeze.
Weight: Despite its robust construction, this bike clocks in at just 11.6 kg, ensuring nimble handling and effortless manoeuvrability on the trail.
Whether you're tackling technical climbs or blasting through flowy descents, the Mondraker Chrono Carbon DC RR is your ticket to XC domination. Visit our Liverpool store today to test ride this trail-blazing machine and experience the difference for yourself!
Specification:
Frame:
Chrono 29 Stealth full Carbon, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable routing, Boost 12x148mm rear axle, dedicated 1X drivetrain design, Flatmount brake compatible,
Sizes:
S: 395mm / M: 430mm / L: 470mm / XL: 520mm
Fork:
Fox 34 Step Cast Float FIT4 EVOL Factory Kashima, 120mm, tapered steerer tube,15x110mm Boost Kabolt axle, offset 44mm. Settings: remote 3pos Push to lock, compression micro-adjustment at low-speed, rebound, air preload
Fork remote:
Fox single pull
Headset:
Onoff internal IS52 1-1/2 head tube, ACB sealed bearings, top 51,8x40 45°x45°, bottom 51,8x40 36°x45°
Stem:
MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: S size: 50mm, M size: 50mm, L size: 60mm, XL size: 70mm
Handlebar:
Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore
Grips:
Onoff Desert, 1lock-on, 135mm
Seatpost:
Onoff Pija dropper internal, diameter 31.6mm, Universal lever, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Saddle:
Mondraker MDK Series, SRX, steel rail
Front brake:
Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear brake:
Sram Level T, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever:
Sram Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings
Rims:
Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes
Spokes:
Mavic 24 straight-pull double butted spokes
Front hub:
Mavic Infinity hub, Boost 15x110mm, IS 6 bolts
Rear hub:
Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, HG freehub
Front tire:
Maxxis Ardent 29x2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead
Rear tire:
Maxxis Ardent 29x2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead
Crankset:
Sram GX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 55
Rings:
34T, CNC-machined alloy, X-SYNC 2
Bottom bracket:
Sram DUB BSA, sealed bearings, 73mm
Chain:
Sram SX Eagle, 12s, Powerlock
Rear derailleur:
Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers:
Sram Trigger NX Eagle, 12s, X-Actuation 1:1
Cassette:
Sram PG-1230, 11-50T, 12s
Derailleur hanger:
Sram UDH
Weight:
11.6 kg
