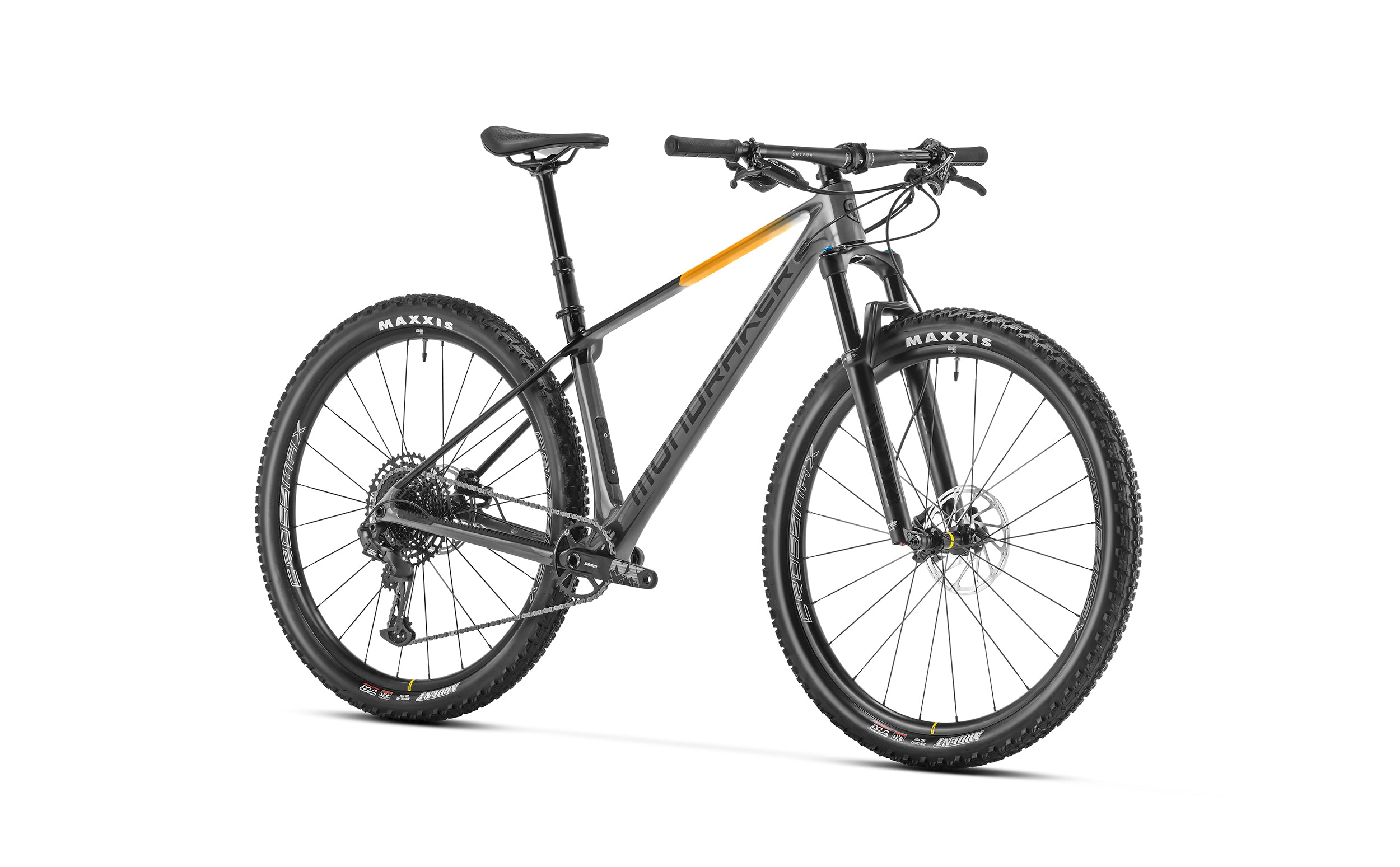

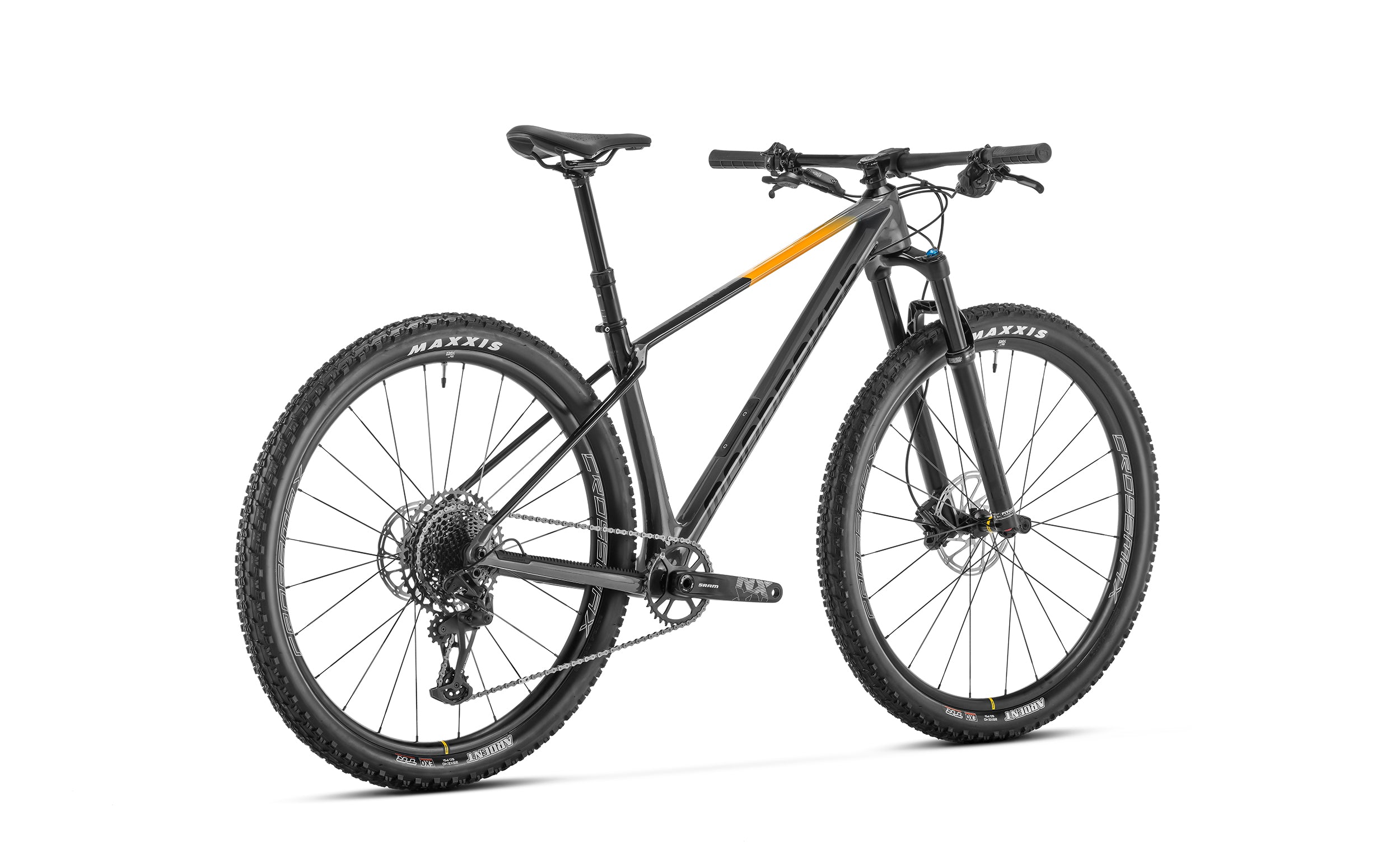

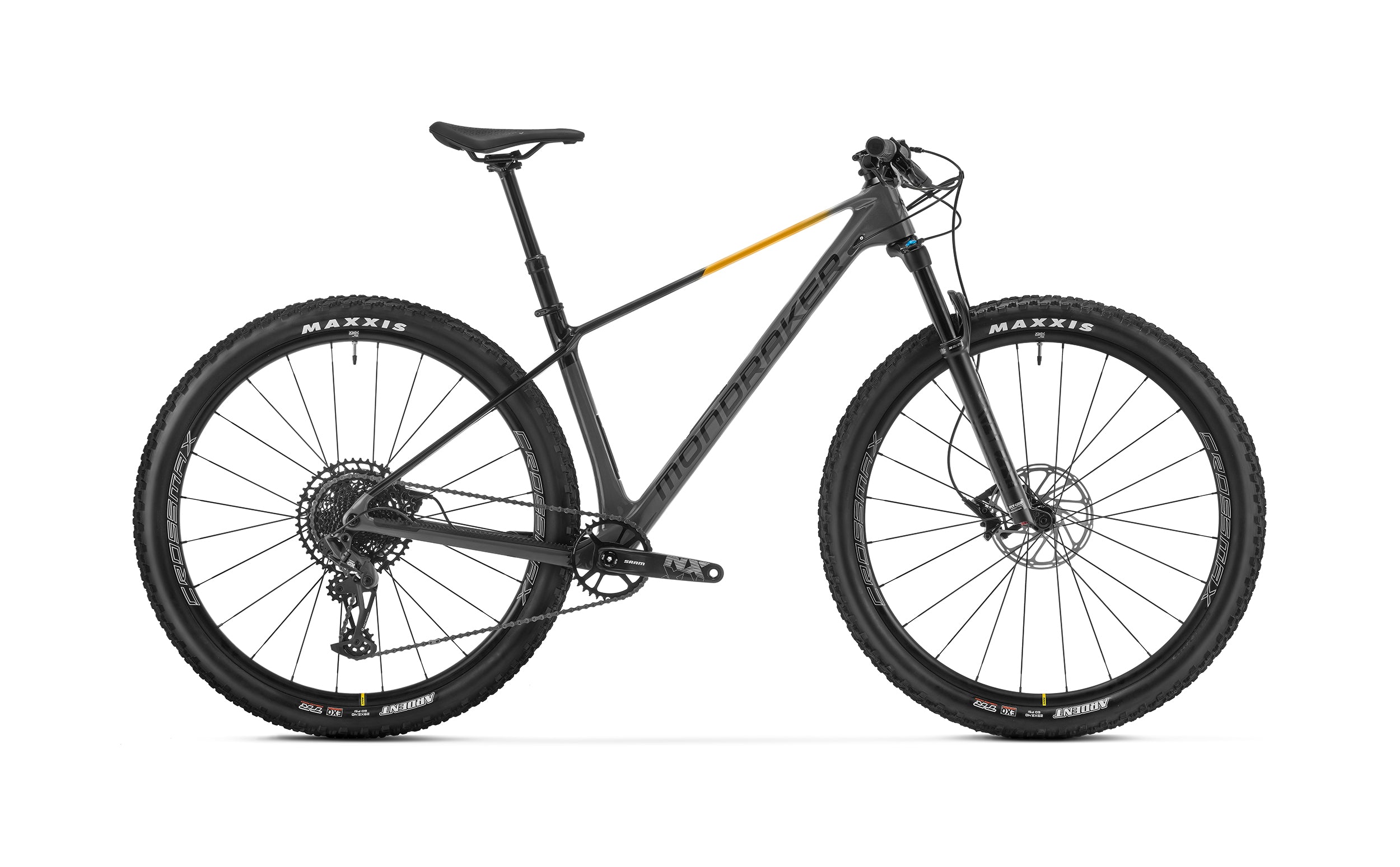

The Mondraker Chrono Carbon DC R Cross Country bike in Nimbus Grey is designed for riders who demand the highest level of performance, agility, and lightweight construction. Whether you're racing through rugged terrain or navigating tight trails, this high-end bike offers precision handling and robust durability, making it the ideal choice for XC enthusiasts and serious competitors alike.
Frame and Geometry: The Chrono Carbon DC R boasts a Chrono 29 Stealth full Carbon frame, engineered with XC Forward Geometry to provide maximum stability and control on every ride. Featuring a 73mm BSA bottom bracket, tapered head tube, and HHG Internal Cable routing, this bike ensures a clean, sleek design while maintaining strength and efficiency. The Boost 12x148mm rear axle and dedicated 1X drivetrain design allow for better power transfer, making climbs and fast descents effortless.
Suspension and Fork: Equipped with the Fox 32 29 Float GRIP EVOL Rhythm fork, providing 120mm travel, this bike offers smooth, responsive handling on rocky and uneven trails. The fork's remote 2pos Push-to-unlock feature, low-speed rebound, and air preload settings provide fine-tuned suspension for ultimate comfort and performance. The Fox single pull fork remote ensures easy control at your fingertips.
Performance and Drivetrain: The Sram NX Eagle 12-speed drivetrain with a Sram GX Eagle rear derailleur delivers seamless shifting across a wide range, giving you the flexibility to tackle various trail challenges. Paired with the Sram PG-1230, 11-50T, 12s cassette, you’ll have the gearing you need to power through steep climbs and accelerate on flats.
Braking and Wheels: The Sram Level T brakes offer precise stopping power with Centerline 180mm (front) and 160mm (rear) rotors, ensuring consistent performance in all conditions. Paired with the Mavic CrossMax 29 wheels, featuring tubeless-ready rims and Maxxis Ardent 29x2.40 tires, this bike provides exceptional grip, speed, and control on any surface.
Comfort and Fit: The Onoff Pija dropper post enhances your ability to adjust saddle height on the go, improving your comfort and control during aggressive riding. The Onoff Sulfur 0.2 handlebars with a rise of 4.8mm and 760mm width offer an ergonomic and comfortable grip, allowing for better handling and less fatigue.
Additional Features:
-
Weight: 12.1 kg – light enough to fly up the hills but sturdy enough for rough XC trails.
-
Sizes: Available in S, M, L, and XL, ensuring a perfect fit for riders of all sizes.
Whether you’re a competitive racer or an avid trail rider, the Mondraker Chrono Carbon DC R Cross Country Bike is built to take your riding to the next level. With its advanced carbon frame, reliable components, and sleek Nimbus Grey finish, this bike is a true contender in the world of cross-country performance. Visit our Liverpool store and experience the ride of a lifetime.
Specification:
Frame: Chrono 29 Stealth full Carbon, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable routing, Boost 12x148mm rear axle, dedicated 1X drivetrain design, Flatmount brake compatible,
Sizes: S: 395mm / M: 430mm / L: 470mm / XL: 520mm
Fork: Fox 32 29 Float GRIP EVOL Rhythm, 120mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: remote 2pos Push-to-unlock, low-speed rebound, air preload
Fork remote: Fox single pull
Headset: Onoff internal IS52 1-1/2 head tube, ACB sealed bearings, top 51,8x40 45°x45°, bottom 51,8x40 36°x45°
Stem: MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: S size: 50mm, M size: 50mm, L size: 60mm, XL size: 70mm
Handlebar: Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore
Grips: Onoff Twin, 1lock-on, 135mm
Seatpost: Onoff Pija dropper internal, diameter 31.6mm, Universal lever, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Saddle: Mondraker MDK Series, SRX, steel rail
Front brake: Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear brake: Sram Level T, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever: Sram Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings
Rims: Mavic CrossMax 29, 25mm internal width, welded rim, hookless, tubeless ready, 24 spokes
Spokes: Mavic straight-pull double butted, contactless lacing
Front hub: Mavic, Boost 15x110mm, IS 6 bolts
Rear hub: Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, HG freehub
Front tire: Maxxis Ardent 29x2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead
Rear tire: Maxxis Ardent 29x2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead
Crankset: Sram NX Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 55
Rings: 34T, steel, X-Sync 2
Bottom bracket: Sram DUB BSA, sealed bearings, 73mm
Chain: Sram SX Eagle, 12s, Powerlock
Rear derailleur: Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers: Sram Trigger NX Eagle, 12s, X-Actuation 1:1
Cassette: Sram PG-1230, 11-50T, 12s
Derailleur hanger: Sram UDH
Weight: 12,1 kg
