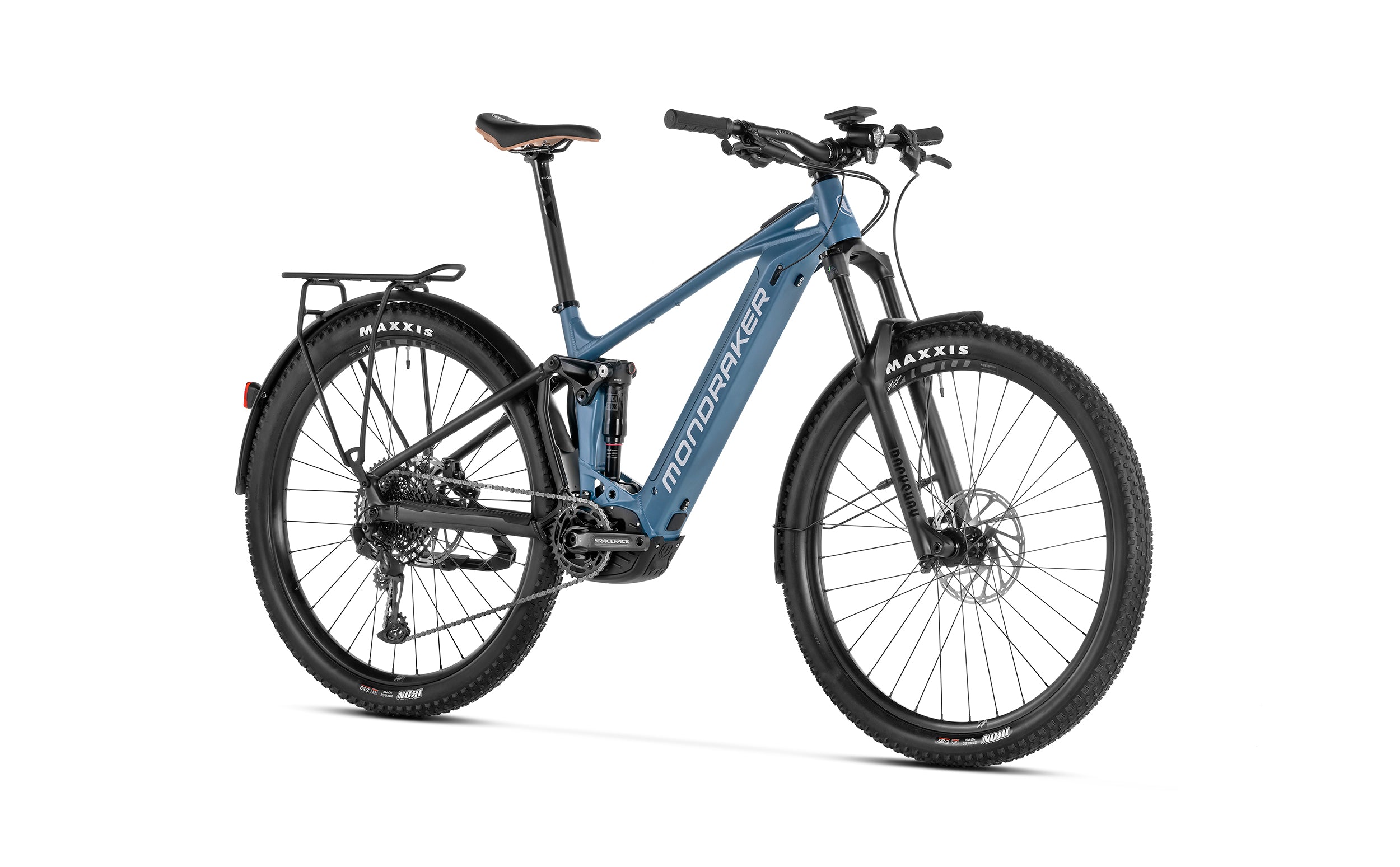

Introducing the Mondraker Chaser X Electric Urban Bike in Denim Blue – Your Ultimate Urban Companion!
Unlock the cityscape with the Mondraker Chaser X Electric Urban Bike, engineered to blend performance, style, and convenience seamlessly. Perfectly tailored for urban explorers, this bike is your ticket to effortless commuting and thrilling urban adventures.
Frame: Crafted from Chaser 6061 Alloy Stealth Evo, this frame boasts the e-Bike Optimized Zero Suspension System with 140mm travel, ensuring a smooth ride over any terrain. With an internal removable battery and integrated dropout speed sensor, the Chaser X delivers both power and agility.
Sizes: Choose from a range of sizes to find your perfect fit: S (380mm), M (420mm), L (450mm), and XL (490mm).
Rear Shock: Equipped with a RockShox Deluxe Select R DebonAir, this bike offers customizable settings for low-speed rebound and air preload, guaranteeing optimal comfort and control.
Fork: Conquer rough roads with the RockShox Recon Silver RL 29 fork, featuring 150mm travel, compression adjustment, and tapered steerer tube for enhanced stability.
Brakes: The Sram DB8 brakes with 4-piston callipers ensure reliable stopping power, while the Maxxis Ikon tires provide superior traction and durability.
Motor & Battery: Powered by a Bosch Performance Line CX Cruise GEN4 SMART SYSTEM motor and Bosch Powertube 625Wh battery, this bike offers exceptional range and efficiency, making every ride a breeze.
Design: Finished in a striking Denim Blue colour, the Mondraker Chaser X exudes urban sophistication. Complete with custom fenders, rear rack, and kickstand, it’s equipped for all your commuting needs.
Display: Stay informed on your journey with the Bosch Intuvia 100 display, Bosch Mini Remote, and Bosch System Controller, providing real-time data and control at your fingertips.
Weight: Weighing just 26.5 kg, the Chaser X is lightweight yet robust, offering agile handling and easy manoeuvrability through city streets.
Whether you’re zipping through traffic or exploring hidden alleyways, the Mondraker Chaser X Electric Urban Bike is your trusted companion for urban adventures. Elevate your commute and embrace the city like never before!"
Experience the future of urban cycling – order your Mondraker Chaser X Electric Urban Bike today!
Frame:
Chaser 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 140mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers, shock mudguard
Sizes:
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Rear shock:
RockShox Deluxe Select R DebonAir, 205x60mm. Settings: Low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Shock settings:
Light compression, Linear rebound, 1 Token
Fork:
RockShox Recon Silver RL 29, 150mm, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload
Headset:
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem:
MDK Urban 35mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar:
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips:
Onoff Twin, 1lock-on, 135mm
Seatpost:
Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm
Saddle:
MDK urban
Front brake:
Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake:
Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever:
Sram DB8, tool reach adjust, lever pivot bushings
Rims:
MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes
Spokes:
CN round stainless steel
Front hub:
Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts
Rear hub:
Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolts, HG freehub
Front tire:
Maxxis Ikon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
Rear tire:
Maxxis Ikon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
Crankset:
Race Face Aeffect ebike, 165mm
Rings:
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Pedals:
Urban pedal resin black
Chain:
Sram SX Eagle, 12s, Powerlock
Rear derailleur:
Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Shift levers:
Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click
Cassette:
Sram PG-1210, 11-50T, 12s
Derailleur hanger:
Mondraker M068
Others:
Front light: 50LUX output DC 6-12V, waterproof Alloy cage. Rear Light: Fender Mount, w/ Reflective, e-bike version, 6-12V. Fenders: Alloy black MDK custom fenders. Rack: Alloy MDK rear Rack, Max loading 25kg. Kickstand: Massload KSA18-40
Weight:
26.5 kg
Display:
Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller
Motor:
Bosch Performance Line CX Cruise (25Km/h) GEN4 SMART SYSTEM
Battery:
Bosch Powertube 625Wh
