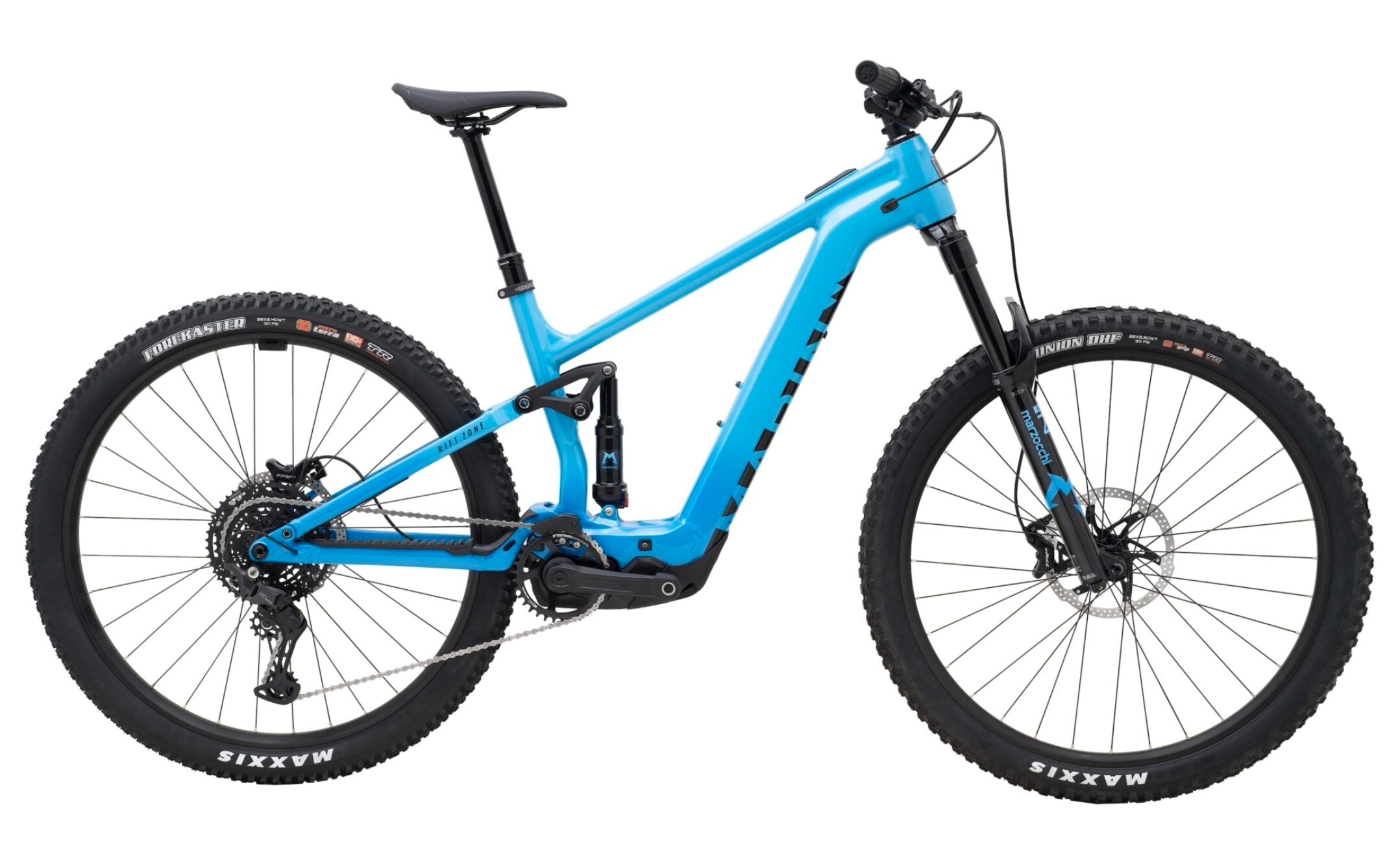

Take your trail riding to electrifying new heights with the Marin Rift Zone EL 1, now available in a striking blue finish at The Rolling Fix, Liverpool’s home of premium electric mountain bikes.
The Rift Zone EL 1 redefines what a lightweight trail eMTB can be. It brings the playful DNA of Marin’s legendary Rift Zone into an electrified format — powered by the all-new Bosch Performance Line SX drive system. With 55Nm of torque and 600W of peak power, this whisper-quiet motor delivers impressively natural assistance that flows seamlessly with your pedal stroke. Whether you're tackling steep ascents or weaving through technical descents, you’ll forget you're riding an e-bike — until it powers you up that next climb.
Light, Fast, Capable — The Perfect Trail Companion
Engineered around Marin’s Series 4 alloy frame and proven MultiTrac suspension platform, the Rift Zone EL 1 offers 140mm of plush rear travel paired with a Marzocchi Bomber Z1 fork up front. It’s a combination built for control, confidence, and fun on every ride. The adjustable headtube angle lets you fine-tune geometry to suit your terrain or riding style.
At just over 4.4kg, the Bosch SX motor is featherweight, while the 400Wh CompactTube internal battery keeps your setup sleek and centralised for optimal balance and handling. Expect real-world range between 15-55 miles (25-90km), depending on terrain and assist mode. Need more? Add the optional Bosch PowerMore 250Wh range extender — available in-store at The Rolling Fix.
Trail-Tuned Components, Ready to Shred
Every detail of the Rift Zone EL 1 is selected for performance on UK trails:
-
Shimano CUES 10-speed drivetrain: smooth, durable shifting under power
-
TRP Slate EVO 4-piston hydraulic brakes: serious stopping control in all conditions
-
29” Marin double-wall alloy wheels with Maxxis Minion DHF and Forekaster tubeless tyres: fast-rolling with aggressive grip front and rear
-
TranzX dropper post: on-the-fly saddle height adjustment for technical descents
-
Bosch Flow app connectivity: track rides, tweak settings, and update your system with ease
Built for British Trails
With full internal cable routing, integrated chainstay and downtube guards, and a moto-inspired aesthetic, the Rift Zone EL 1 is as durable as it is stylish. The tough frame, sealed cable ports, and rider-protective features mean it’s ready to take on the rocky, rooty, and often wet terrain of the UK’s best riding spots.
Key Specs:
-
Motor: Bosch Performance Line SX (55Nm torque, 600W peak power)
-
Battery: 400Wh CompactTube (optional 250Wh range extender available)
-
Suspension: 150mm Marzocchi Bomber Z1 (front) / 140mm MultiTrac w/ Marzocchi Bomber Air (rear)
-
Brakes: TRP Slate EVO 4-piston hydraulic discs
-
Drivetrain: Shimano CUES 10-speed (11-48T)
-
Wheels/Tyres: 29” Marin alloy rims, Maxxis Minion DHF/Forekaster tubeless-ready
-
Weight: Lightweight alloy frame with full eMTB performance
Why Buy from The Rolling Fix Liverpool?
As your trusted local e-bike experts, we offer:
-
Free professional setup and sizing
-
Bosch-certified service and diagnostics
-
Optional range extender installation
-
Ongoing support from Liverpool's top bike techs
Ride lighter. Climb faster. Descend harder.
Discover the freedom of lightweight power with the Marin Rift Zone EL 1 – available now at The Rolling Fix in Liverpool. Book a demo ride or order online today.
Shop online or visit us in-store – The Rolling Fix, your Liverpool hub for Marin eMTBs and expert bike servicing.
Specifications
Frame: All New Series 4 Alloy Lightweight E, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle
Front Suspension: Marzocchi Bomber Z1 150mm Travel, 29, 110x15 Kabolt Thru Axle, 44mm Offset
Rear Suspension: Marzocchi Bomber Air Inline, Custom Tune, 210x55mm, 25xM8 Upper & Lower Mount
Rim: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible
Hub Rear: Shimano FHTC500, 148x12 Thru Axle, Microspline, 32H, Centerlock
Hub Front: Shimano HB-TC500, 110x10 Thru Axle, 32H, Centerlock
Spokes: 14g Black Stainless Steel
Tires: Front: Maxxis Minion DHF, 29x2.4" MAXXGRIP, Tubeless ready, EXO+, Rear: Maxxis Forecaster 29x2.4", Tubeless Ready MAXX TERRA EXO+
Derailleur Rear: Shimano CUES RD-U6000 GS, 10-Speed
Shift Lever: Shimano CUES SL-U6000-10R, 10-Speed
Crankset: e*thirteen e*spec Plus, 160mm Length, 34T
Motor: Bosch Performance Line SX, 600W, 55Nm torque
Chain: Shimano LG500
Cassette: Shimano CS-LG300-10, 11-48T
Brakes Front: TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor
Brakes Rear: TRP Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor
Brake Levers: TRP Slate EVO Hydraulic Lever, I-Spec EV Compatible
Handlebar: Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Stem: Marin 3D Forged Alloy, 35mm
Grips: Marin Grizzly Lock On
Headset: FSA Custom, Adjustable HTA Design
Seatpost: TranzX, YSI34 QL, Plastic 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 34.9mm
Saddle: Marin Speed Concept
Pedals: Marin MTB Plastic
Battery: Bosch 400 Wh Internal (Optional PowerMore 250 wh external battery using PowerMore 150mm cable EB12.120.036)
Display: Bosch BRC3100 Systems Controller
Switch: Bosch BRC3300 Bluetooth Remote 22.2mm Clamp
Extras: e*thirteen e*Spec Chainguide
Extras: Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head, Bosch EB12.110.016; 2A Charger
Range, Charging Time: 15-55 miles (Based on Rider Weight, Terrain, Climate and Level of Assist Used), 6 Hours (estimated, under ideal conditions)
