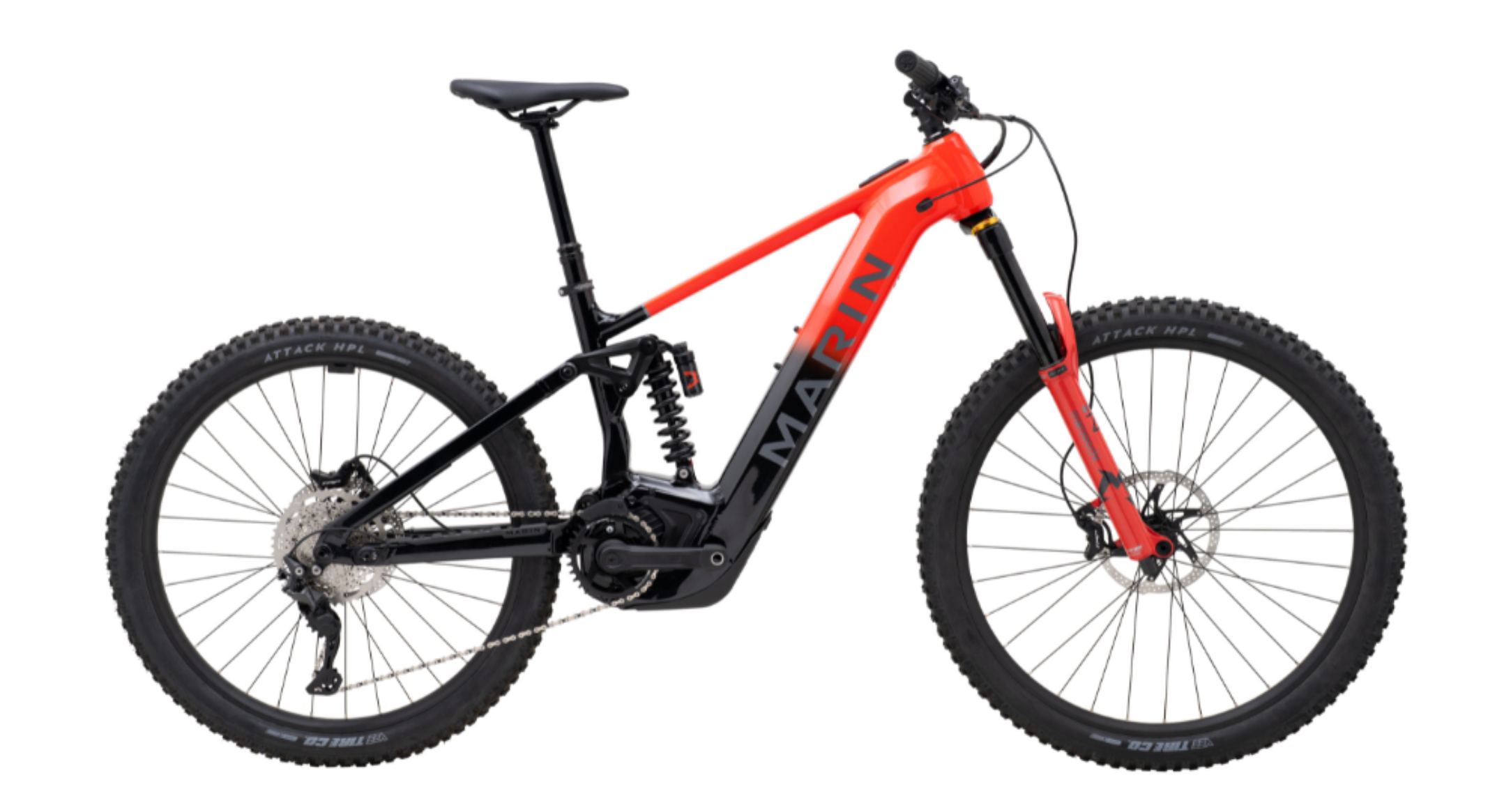

Conquer the gnarliest trails and push your limits further than ever with the Marin Alpine Trail E1 (Bosch) – a full-suspension electric mountain bike built to tame the toughest terrain. Finished in a bold Red/Black colourway, this powerhouse eMTB blends cutting-edge Bosch technology with aggressive geometry and precision-tuned suspension to deliver an unstoppable ride.
Unleash Maximum Capability
Designed for riders who demand performance on steep, technical descents and extended backcountry adventures, the Alpine Trail E1 Bosch edition features Marin’s new Series 4 aluminum MultiTrac 2 LT frame. Engineered for durability and responsiveness, this high-end alloy frame packs 170mm of front and 160mm of rear travel, giving you extra confidence on brutal descents and rough singletrack.
The advanced MultiTrac 2 LT suspension platform relocates pivot points for better braking control, more mid-stroke support, and improved bottom-out performance. Adjustable geometry via headset cups and flip chips allows you to fine-tune the ride to your terrain—whether you prefer nimble agility or stable downhill capability.
Bosch Power for All-Day Adventure
At the heart of the Alpine Trail E1 is the class-leading Bosch Performance Line CX motor, delivering a mighty 85Nm of torque to power up the steepest climbs. A 750Wh Bosch PowerTube battery, fully integrated into the downtube, provides up to 78 miles (125km) of assisted riding—perfect for long trail sessions or multi-hour mountain missions. Paired with the Bosch eBike Flow app, you’ll enjoy smart ride data, custom power settings, and seamless updates via your smartphone.
Confident Control with Premium Components
-
Marzocchi Z1 170mm fork and Marzocchi CR Coil rear shock soak up big hits and trail chatter with a plush, composed feel.
-
Shimano CUES 10-speed drivetrain ensures reliable shifting, even under load.
-
Tektro Slate EVO 4-piston brakes with oversized 203mm rotors bring serious stopping power when things get steep.
-
Mixed wheel setup (29” front, 27.5” rear) strikes the perfect balance between rollover confidence and agile handling.
-
CushCore Pro inserts and Marin tire sealant provide added protection and grip on loose, rocky surfaces.
Built for the Trail, Ready for the Challenge
The Alpine Trail E1 is loaded with features that seasoned mountain bikers will appreciate:
-
Internal cable routing for a clean aesthetic and fewer snags on the trail.
-
Dropper post with size-specific travel (up to 200mm in XL) for getting the saddle out of the way on descents.
-
Moto-inspired integrated downtube guard protects the battery and internals from rocks, roots, and debris.
-
Tool-free flip chips make on-the-go geometry adjustments simple and effective.
Key Specs
-
Motor: Bosch Performance Line CX, 85Nm
-
Battery: Bosch PowerTube 750Wh
-
Range: 31–78 miles (50–125km)*
-
Suspension: 170mm (f) / 160mm (r), Marzocchi Z1 & CR Coil
-
Brakes: TRP Slate EVO 4-piston, 203mm rotors
-
Drivetrain: Shimano CUES 10-speed
-
Wheels: 29” Front / 27.5” Rear, Tubeless Ready
-
Colour: Red/Black
Why Buy from The Rolling Fix – Liverpool
At The Rolling Fix, we’re more than just a bike shop. We're passionate riders with deep technical knowledge, offering expert service, bike fitting, and post-purchase support. Based in the heart of Liverpool, we’re here to keep you rolling, whether you're riding local trails or chasing epic descents across the UK.
Ready to ride the ultimate trail machine?
Shop the Marin Alpine Trail E1 Full Suspension eMTB now at The Rolling Fix – and experience next-level performance on every ride.
*Range estimates vary based on terrain, rider weight, assist level, and conditions.
Specifications
Frame: All New, Series 4 Alloy, 160mm MultiTrac Suspension LT, Adjustable Headset & CS Length/Height, Integrated Battery/Charging Port, 148mm Rear Thru-Axle
Front Suspension: Marzocchi Z1, 170mm, 29", 110x15 Kabolt Thru Axle, 44mm Offset
Rear Suspension: Marzocchi CR Coil, 205x65mm, Trunnion Upper Mount, 30xM8 Lower Hardware, Custom Tune, M Spring Rate = 450lb, L Spring Rate = 500lb, XL Spring Rate = 550lb
Rim: Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible; Rear: Marin Aluminum Double Wall, 27.5" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible
Hub Rear: Shimano HB-TC500, 148x12mm, Centerlock, Standard Freehub Body
Hub Front: Shimano FH-TC500, 110x15mm, Centerlock, 32H
Spokes: 14g Black Stainless Steel
Tires: Vee Tire Co Attack HPL, E-Control Compound, Front 29x2.5", Rear 27.5x2.5"
Derailleur Rear: Shimano CUES RD-U6000 GS, 10-Speed
Shift Lever: Shimano CUES SL-U6000-10R, 10-Speed
Crankset: e*thirteen e*spec Plus, 160mm Length
Motor: Bosch Performance Line CX, 85Nm
Chain: Shimano LG500
Cassette: Shimano CS-LG300-10, 11-48T
Brakes Front: TRP Slate EVO 4-Piston Hydraulic, 203mm Rotor, 2.3mm Thick
Brakes Rear: TRP Slate EVO 4-Piston Hydraulic, 203mm Rotor, 2.3mm Thick
Brake Levers: TRP Slate EVO
Handlebar: Marin Mini Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Stem: Marin 3D Forged Alloy, 35mm
Grips: Marin Grizzly Lock-On
Headset: FSA Custom Headset, Adjustable HTA Design
Seatpost: TranzX, YSP39 1x Remote, 34.9 Seatpost Diameter, Travel S = 150mm, M/L = 170mm, XL = 200mm
Saddle: Marin Speed Concept
Battery: Bosch PowerTube 750 Wh
Display: Bosch BRC3100 Systems Controller
Switch: Bosch BRC3300 Bluetooth Remote 22.2mm Clamp
Extras: e*thirteen e*Spec Chainguide
Extras: Cush Core Pro Tire Inserts, Marin Tire Sealant 300ml Bottle, Bosch EB12.110.016; 2A Charger
Range, Charging Time: 31-78 miles (Based on Rider Weight, Terrain, Climate and Level of Assist Used), 11 Hours (estimated, under ideal conditions)
