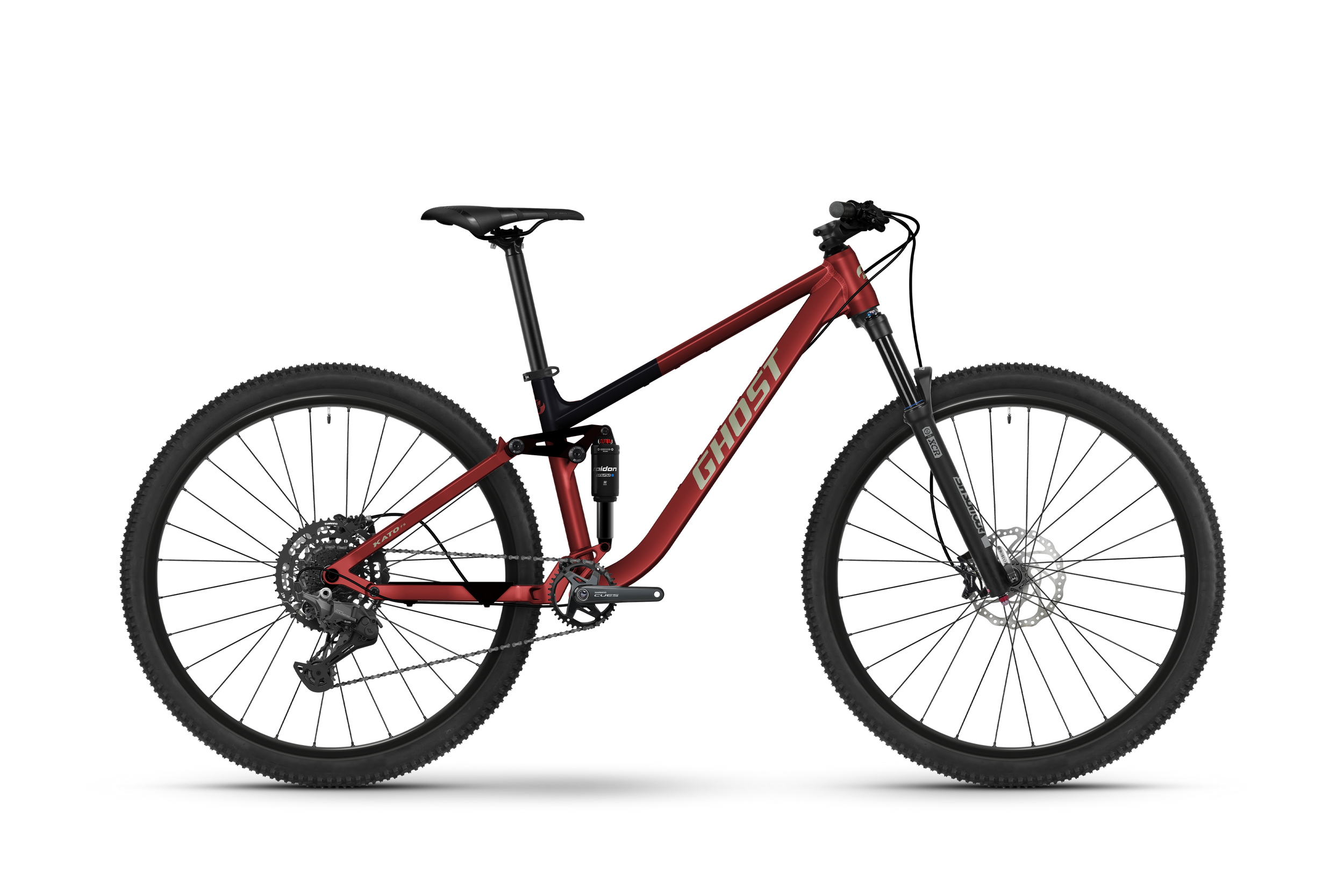

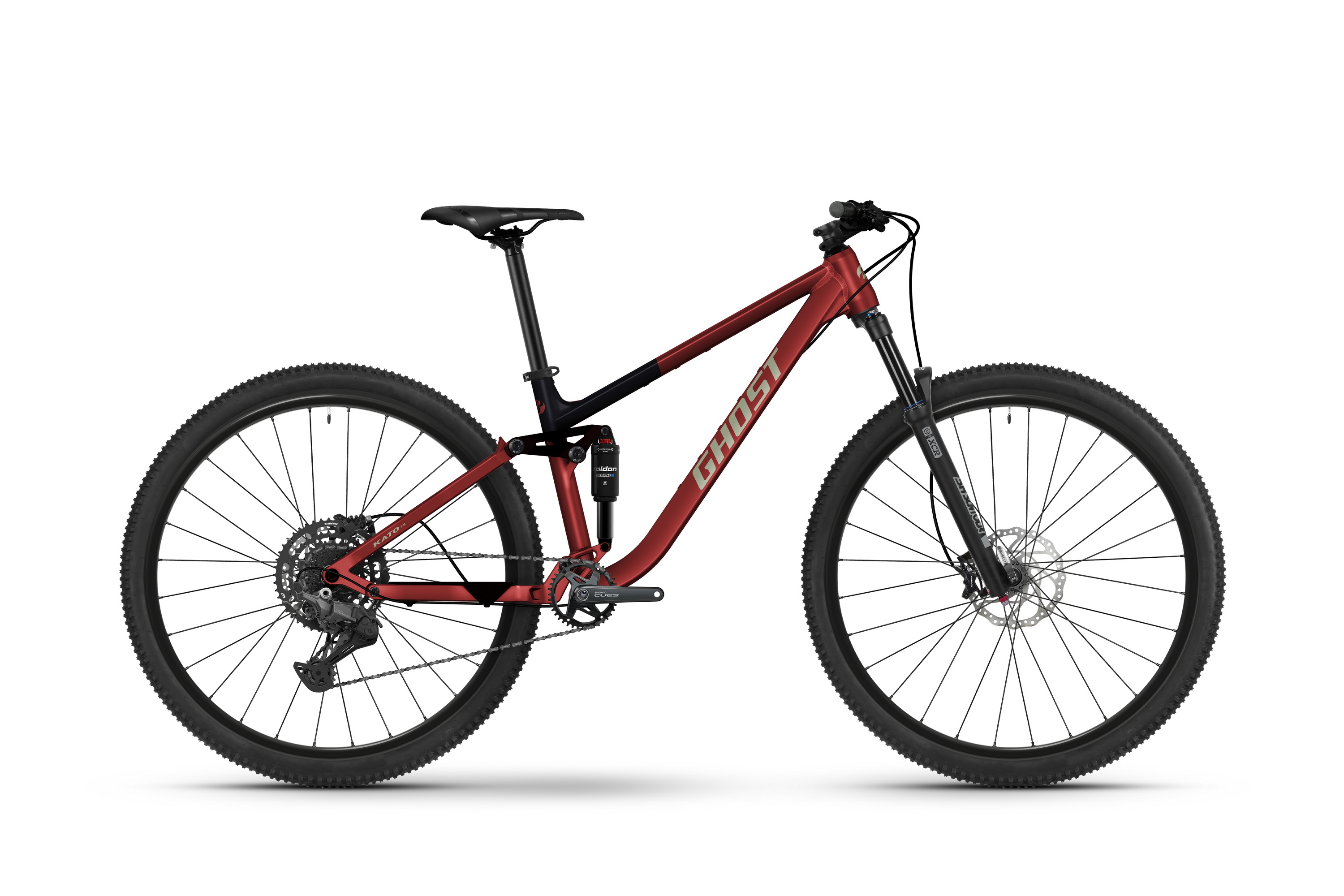

Take on every trail with confidence, control and comfort with the Ghost Kato FS Full Suspension Mountain Bike. Built for riders who crave adventure and flow, the Kato FS delivers a perfect balance between climbing efficiency and downhill fun. Its lightweight aluminium frame and 4-bar rear suspension system soak up bumps and roots, giving you the freedom to push harder and ride longer on Liverpool’s local trails or further afield.
Ride Highlights
-
Lightweight Alloy Frame – Built strong yet agile for technical climbs and rugged descents.
-
Suntour XCR34 Boost AIR Fork (130 mm travel) – Smooth, responsive front suspension to handle rough terrain.
-
Suntour Raidon R Rear Shock (130 mm travel) – Reliable damping and control for a comfortable ride.
-
Shimano CUES 10-Speed Drivetrain – Crisp, reliable shifting with a wide 11–48T range for tackling steep climbs and fast descents.
-
Tektro HD-M535 Hydraulic Disc Brakes – 4-piston power and 180 mm rotors deliver confident stopping in all weather conditions.
-
XLC Components – Durable wheels, wide 760 mm handlebars, and a dropper seatpost for seamless control and comfort.
Specifications
-
Frame: Aluminium, available in XS–XL
-
Fork: Suntour XCR34-Boost AIR 2CR DS, 130 mm travel
-
Rear Shock: Suntour Raidon R, 210×50 mm
-
Gears: Shimano CUES 10-speed, 32T chainring / 11–48T cassette
-
Brakes: Tektro HD-M535 4-piston hydraulic discs (180 mm rotors)
-
Wheels: XLC WR-M17/WR-M19 Boost hubs, DT Swiss spokes
-
Tyres: XLC VT-M20 Summit (27.5" or 29")
-
Seatpost: XLC Dropper Post (125 mm / 150 mm travel)
-
Weight Limit: Up to 120 kg
Why Choose the Ghost Kato FS at The Rolling Fix
At The Rolling Fix, we’re passionate about matching riders to the right bike for their trails. The Ghost Kato FS is ideal for UK riders looking for a full-suspension mountain bike that performs just as well on steep climbs as it does on technical descents. Its Deep Crimson and Black Shiny matt finish adds a bold, modern look that stands out both in the city and on the hills.
Whether you're exploring the trails of Delamere Forest, shredding Llandegla, or tackling the hidden gems around Liverpool, the Kato FS is your ticket to all-terrain adventure.
Available now at The Rolling Fix, Liverpool – your local mountain bike specialists.
Ride smoother. Climb stronger. Explore further with the Ghost Kato FS.
Specification:
Brake system
Brake Front Brand: Tektro
Brake Front Kind: HD-M535, 4 pistons, resin pad, 180 mm
Brake Front Mount: Post Mount
Brake Front Type: Hydraulic Disc brake
Brake Rear Brand: Tektro
Brake Rear Kind: HD-M535, 4 pistons, resin pad, 180 mm
Brake Rear Mount: Post Mount
Brake Rear Type: Hydraulic Disc brake
Brake Lever Brand: Tektro
Brake Lever Kind: HD-M535-BL
Brake Rotor Brand: Tektro
Brake Rotor Kind: TR180-35 180 mm, Centerlock
Drivetrain
Bottom Bracket Brand: Shimano
Bottom Bracket Kind: Deore SM-BB52 68/73 mm, HOLLOWTECH II
Bottom Bracket Type: BSA
Cassette Brand: Shimano
Cassette Kind: CUES CS-LG300-10, HG
Cassette Teeth: 11-48T
Chain Brand: Shimano
Chain Kind: CN-LG500 9-11s, LINKGLIDE
Crank Arm length: 170
Crankset Brand: Shimano
Crankset Kind: CUES FC-U4000-1, Dynamic Chain Engagement+
Crankset Teeth: 32T
Crankset Type: single
Derailleur Hanger Brand: Glory Wheel
Derailleur Hanger Kind: UDH
Derailleur Rear Brand: Shimano
Derailleur Rear Kind: CUES RD-U6000 10/11s, Shadow+
Gear Brand: Shimano
Gear Type: Derailleur
Pedal Brand: XLC
Pedal Inclusive: Yes
Pedal Kind: Flat Pedal PD-M29 w/ Reflector + integrated Pins
Shifter Right Brand: Shimano
Shifter Right Kind: CUES SL-U6000-10R, Rapidfire+
Shifter Right Type: Triggershift
Frame and more
Framesize: 39 cm, 40 cm, 42 cm, 44 cm, 47 cm
Framesize Convection: XS, S, M, L, XL
Max loadable weight (KG): 120 kg
Front Fork Brand: Suntour
Front Fork Kind: XCR34-Boost AIR 2CR DS 15AH2-110 130 mm
Front Fork Type: Suspension
Frame Kind: HIGH
Shock Brand: Suntour
Shock Kind: Raidon R 210x50mm, Hardware: 30x8
Type kickstand mount: KSA18
Suspension Type: Fully
Travel Front: 130 mm
Travel Rear: 130 mm
Handlebar and Saddle
Handgrip Brand: XLC
Grip Kind: GR-S60 Sport Grip
Handlebar Brand: XLC
Handlebar Diameter: 31.8 mm
Handlebar Kind: HB-M30, Dia. 31.8 mm, Backsweep: 9°
Handlebar Material: Aluminium
Handlebar Type: Flat bar
Handlebar Width: 760 mm
Headset Brand: Glory Wheel
Headset Kind: Strummer Headset, 1SI11015Z ZS44/ZS56
Headset Type: Semi-integrated
Saddle Brand: XLC
Saddle Kind: SA-S10 143 mm Sport
Seatpost Brand: XLC
Seatpost Kind: · Dropper SP-T21, Dia. 31.6 mm, Travel: 125 mm, Dropper SP-T21, Dia. 31.6 mm, Travel: 150 mm
Seatpost Length: 405 mm, 456 mm
Seatpost Material: Aluminium
Seatpost Travel (mm): 125 mm, 150 mm
Seatpost Type: Dropperpost
Stem Brand: XLC
Stem Kind: ST-M50, Dia. 31.8 mm, L: 50 mm, A-Head
Stem Length: 50 mm
Wheels and wheel components
Hub Front Brand: XLC
Hub Front Kind: HF-M15 Boost 15x110 mm, 32H, Centerlock
Hub Rear Brand: XLC
Hub Rear Kind: HR-M15 Boost 12x148 mm, 32H, Centerlock, HG
Rim Brand: XLC
Rim Kind: WR-M17 Disc 25/584 32H 6,5 mm Valve, WR-M19 Disc 25/622 32H 6,5 mm Valve
Rim Rear Brand: XLC
Rim Rear Kind: WR-M17 Disc 25/584 32H 6,5 mm Valve, WR-M19 Disc 25/622 32H 6,5 mm Valve
Spoke Brand: DT Swiss
Spoke Kind: FACTORY 2.0
Tyre Brand: XLC
Tyre Kind: VT-M20 Summit
Tyre Rear Brand: XLC
Tyre Rear Kind: VT-M20 Summit
Tyre Size Etrto: 57-584, 57-622
Wheel Size Front: 29, 27.5
Wheel Size Rear: 29, 27.5
