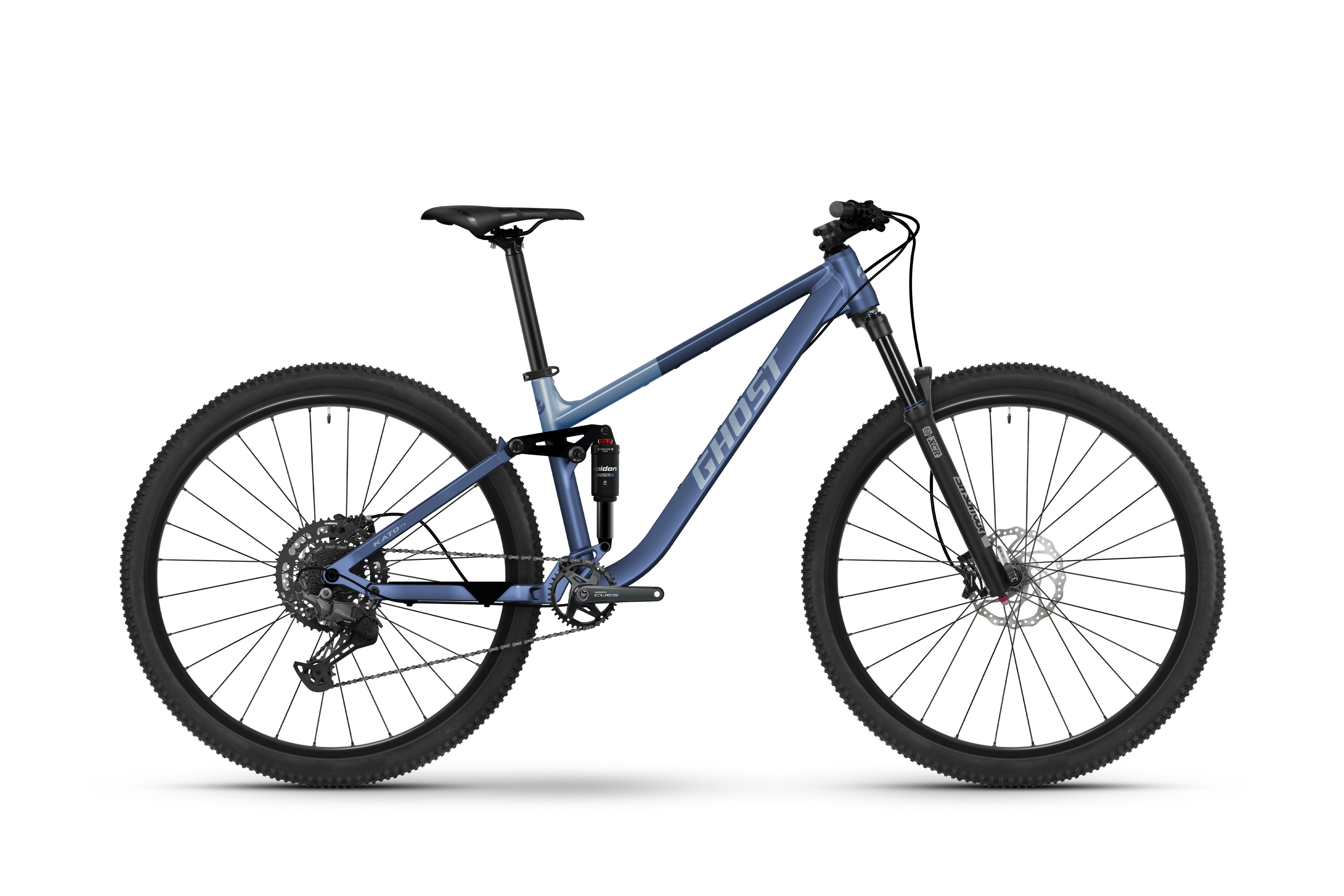

Ride further, faster, and smoother with the Ghost Kato FS – a full suspension trail bike built for riders who crave control, comfort, and pure mountain-riding fun. Finished in a striking Ocean Blue and Steel Blue matt colourway, this bike doesn’t just perform flawlessly – it looks incredible doing it.
Trail-Ready Performance
At the heart of the Ghost Kato FS is a lightweight aluminium alloy frame paired with a Suntour XCR34 Boost 2CR fork and Suntour Raidon R rear shock. This efficient 4-bar suspension platform delivers 130 mm of travel front and rear, soaking up the roughest terrain while keeping your pedalling crisp and efficient on climbs.
Reliable Shimano CUES 10-Speed Drivetrain
The latest Shimano CUES 10-speed setup provides smooth, dependable shifting and a wide 11-48T gear range – perfect for steep ascents and fast descents alike. Whether you’re navigating Liverpool’s local trails or heading for a weekend in Snowdonia, this drivetrain won’t let you down.
Powerful Tektro Hydraulic Disc Brakes
Confidence is key on the descents, and the Tektro HD-M535 4-piston hydraulic brakes offer outstanding stopping power and control in all weather conditions. Combined with 180 mm rotors, you’ll have precise braking at your fingertips every time.
Comfort & Control
From the XLC 760 mm handlebar and dropper seatpost to the grippy flat pedals, every detail of the Kato FS is designed for stability and comfort. Its mixed wheel setup (27.5” or 29”) offers the perfect balance of agility and speed, while DT Swiss spokes and XLC Summit tyres ensure durability on tough trails.
Key Features
-
Frame: Lightweight Aluminium Alloy
-
Front Suspension: Suntour XCR34 Boost AIR 2CR (130 mm travel)
-
Rear Suspension: Suntour Raidon R (130 mm travel)
-
Drivetrain: Shimano CUES 10-Speed (11-48T)
-
Brakes: Tektro HD-M535 4-Piston Hydraulic Disc Brakes (180 mm rotors)
-
Seatpost: XLC Dropper (125 mm or 150 mm travel)
-
Wheels: 27.5” or 29” Alloy Rims with XLC Hubs
-
Tyres: XLC VT-M20 Summit
-
Maximum Rider Weight: 120 kg
-
Finish: Ocean Blue / Steel Blue – Matt
Why Choose The Rolling Fix?
At The Rolling Fix, Liverpool, we’re passionate about bikes that deliver performance and value. Every Ghost Kato FS comes fully built, tuned, and safety-checked by our in-house mechanics – ready to hit the trails the moment you pick it up.
Take on the trails with confidence.
Ghost Kato FS – where efficiency meets adventure.
👉 Available now at The Rolling Fix – Liverpool’s mountain bike specialists.
Specification:
Brake system
Brake Front Brand: Tektro
Brake Front Kind: HD-M535, 4 pistons, resin pad, 180 mm
Brake Front Mount: Post Mount
Brake Front Type: Hydraulic Disc brake
Brake Rear Brand: Tektro
Brake Rear Kind: HD-M535, 4 pistons, resin pad, 180 mm
Brake Rear Mount: Post Mount
Brake Rear Type: Hydraulic Disc brake
Brake Lever Brand: Tektro
Brake Lever Kind: HD-M535-BL
Brake Rotor Brand: Tektro
Brake Rotor Kind: TR180-35 180 mm, Centerlock
Drivetrain
Bottom Bracket Brand: Shimano
Bottom Bracket Kind: Deore SM-BB52 68/73 mm, HOLLOWTECH II
Bottom Bracket Type: BSA
Cassette Brand: Shimano
Cassette Kind: CUES CS-LG300-10, HG
Cassette Teeth: 11-48T
Chain Brand: Shimano
Chain Kind: CN-LG500 9-11s, LINKGLIDE
Crank Arm length: 170
Crankset Brand: Shimano
Crankset Kind: CUES FC-U4000-1, Dynamic Chain Engagement+
Crankset Teeth: 32T
Crankset Type: single
Derailleur Hanger Brand: Glory Wheel
Derailleur Hanger Kind: UDH
Derailleur Rear Brand: Shimano
Derailleur Rear Kind: CUES RD-U6000 10/11s, Shadow+
Gear Brand: Shimano
Gear Type: Derailleur
Pedal Brand: XLC
Pedal Inclusive: Yes
Pedal Kind: Flat Pedal PD-M29 w/ Reflector + integrated Pins
Shifter Right Brand: Shimano
Shifter Right Kind: CUES SL-U6000-10R, Rapidfire+
Shifter Right Type: Triggershift
Frame and more
Framesize: 39 cm, 40 cm, 42 cm, 44 cm, 47 cm
Framesize Convection: XS, S, M, L, XL
Max loadable weight (KG): 120 kg
Front Fork Brand: Suntour
Front Fork Kind: XCR34-Boost AIR 2CR DS 15AH2-110 130 mm
Front Fork Type: Suspension
Frame Kind: HIGH
Shock Brand: Suntour
Shock Kind: Raidon R 210x50mm, Hardware: 30x8
Type kickstand mount: KSA18
Suspension Type: Fully
Travel Front: 130 mm
Travel Rear: 130 mm
Handlebar and Saddle
Handgrip Brand: XLC
Grip Kind: GR-S60 Sport Grip
Handlebar Brand: XLC
Handlebar Diameter: 31.8 mm
Handlebar Kind: HB-M30, Dia. 31.8 mm, Backsweep: 9°
Handlebar Material: Aluminium
Handlebar Type: Flat bar
Handlebar Width: 760 mm
Headset Brand: Glory Wheel
Headset Kind: Strummer Headset, 1SI11015Z ZS44/ZS56
Headset Type: Semi-integrated
Saddle Brand: XLC
Saddle Kind: SA-S10 143 mm Sport
Seatpost Brand: XLC
Seatpost Kind: · Dropper SP-T21, Dia. 31.6 mm, Travel: 125 mm, Dropper SP-T21, Dia. 31.6 mm, Travel: 150 mm
Seatpost Length: 405 mm, 456 mm
Seatpost Material: Aluminium
Seatpost Travel (mm): 125 mm, 150 mm
Seatpost Type: Dropperpost
Stem Brand: XLC
Stem Kind: ST-M50, Dia. 31.8 mm, L: 50 mm, A-Head
Stem Length: 50 mm
Wheels and wheel components
Hub Front Brand: XLC
Hub Front Kind: HF-M15 Boost 15x110 mm, 32H, Centerlock
Hub Rear Brand: XLC
Hub Rear Kind: HR-M15 Boost 12x148 mm, 32H, Centerlock, HG
Rim Brand: XLC
Rim Kind: WR-M17 Disc 25/584 32H 6,5 mm Valve, WR-M19 Disc 25/622 32H 6,5 mm Valve
Rim Rear Brand: XLC
Rim Rear Kind: WR-M17 Disc 25/584 32H 6,5 mm Valve, WR-M19 Disc 25/622 32H 6,5 mm Valve
Spoke Brand: DT Swiss
Spoke Kind: FACTORY 2.0
Tyre Brand: XLC
Tyre Kind: VT-M20 Summit
Tyre Rear Brand: XLC
Tyre Rear Kind: VT-M20 Summit
Tyre Size Etrto: 57-584, 57-622
Wheel Size Front: 29, 27.5
Wheel Size Rear: 29, 27.5
