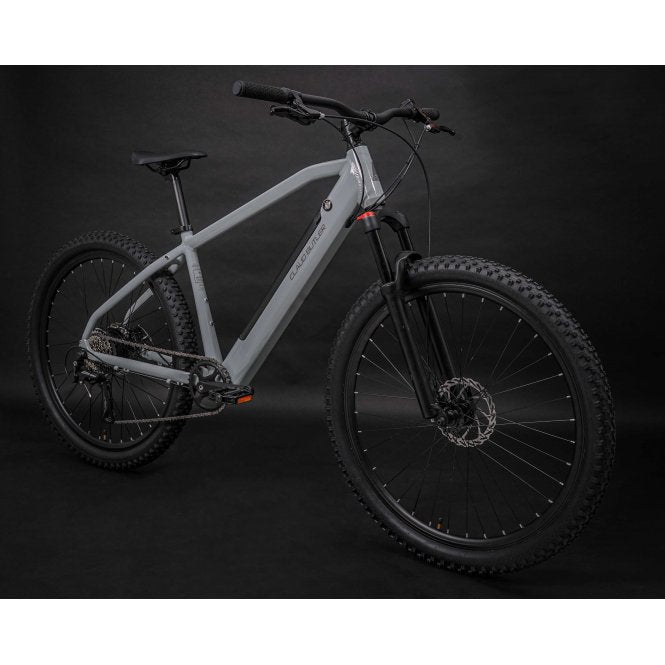

Introducing the all-new Claud Butler Ridge 1.0 electric mountain bike – the sibling of our best-selling Claud Butler Wrath.
The Ridge 1.0 is equipped with an integrated 375wh battery that delivers up to 40 miles/64km of range and can be charged from flat in 5 hours – either with the battery installed on the bike or removed using the provided keys for improved safety and convenience. The added security of a key lock for the battery gives you peace of mind when parked in a public place.
The bike is powered by the well-regarded Bafang rear hub motor system to deliver 32nm of torque, making light work of hills and make powering along the flat ground a breeze. Select from 5 different power modes depending on how much assistance you want using the sleek and easy-to-use handlebar display which also shows the current battery level and speed. We’ve also fitted a walk assist mode to help push the bike along when walking.
We’ve fitted the Ridge with 27.5” (650b) wheels for an exhilarating ride, while the 2.35” wide tyres provide plenty of grip in a mix of riding conditions. The Ridge 1.0 features a reliable Shimano Altus 1x8 speed gearing, 120mm travel suspension fork with hydraulic lockout, super-wide 780mm bars with a short 50mm stem, easily maintained cable disc brakes, a stylish Selle Royal saddle for additional comfort and lock-on grips.
Claud Butler Ridge 1.0 Key Features:
- Maximum range - 40 miles / 64km
- Recharge time - 5 hours
- Motor and Battery - Bafang rear hub motor with 375wh integrated battery
- Frame and fork - 6061 alloy frame with internal cable routing. 120mm travel fork with hydraulic lockout.
- Gearing - 1x8 Shimano Altus gearing with RapidFire shifter
- Braking - Mechanical disc brakes
- Other - 27.5x2.35" tyres, Selle Royal saddle, 780mm wide bars and lock-on grips
Specification:
Maximum Range: 40 miles/64km
Recharge Time: 5 hours
Maximum Assisted Speed: 15.5mph / 25kmh
Motor: Bafang rear hub motor, 32nm torque
Motor Type: Rear hub motor

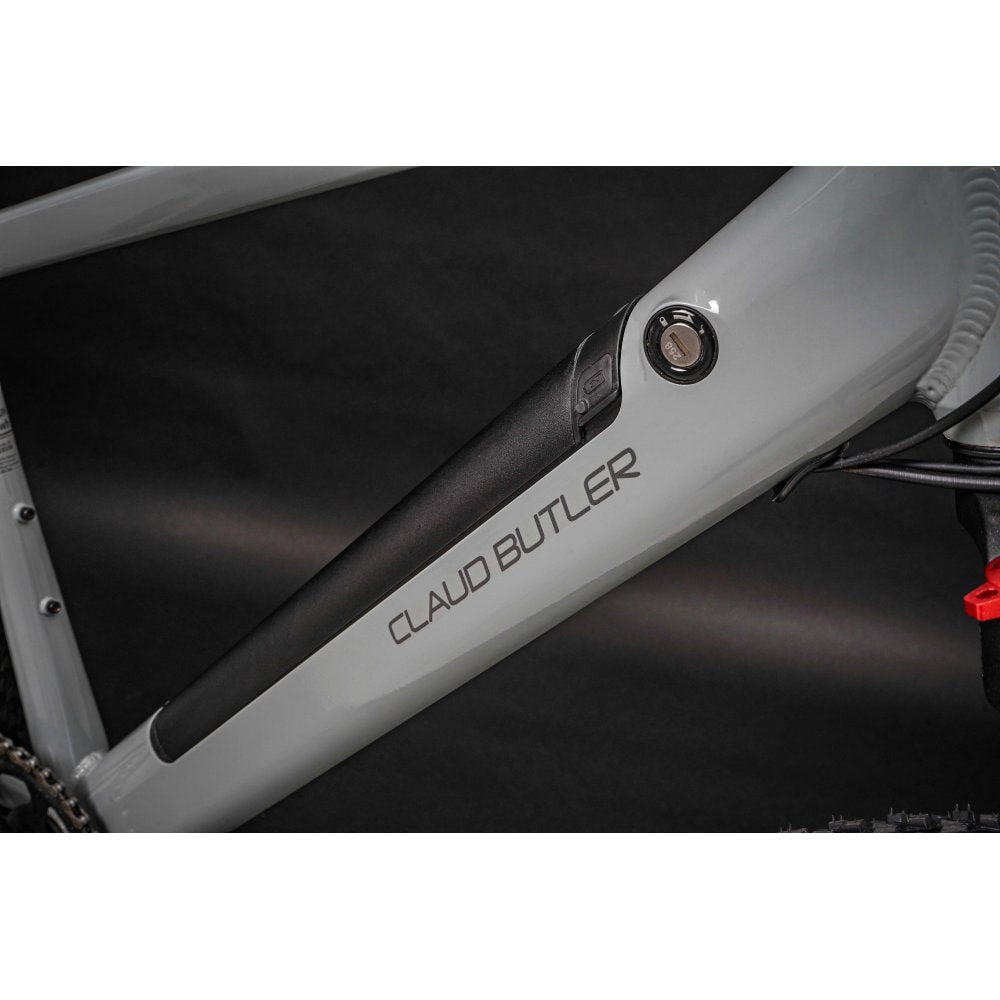

Battery: 36V 10.4Ah, 375wh, Integrated battery, Removable for charging on or off the bike
Battery Type: Integrated
Charger: 42V 2A, 3 pin UK plug
Display: Toplogy DZ40 LCD Display with mode selection, battery level and current speed
Frame: 6061 aluminium frame, Internal cable routing, Fully integrated removable battery, 27.5" wheels
Fork: 27.5" Suspension fork, Hydraulic lockout, 120mm travel

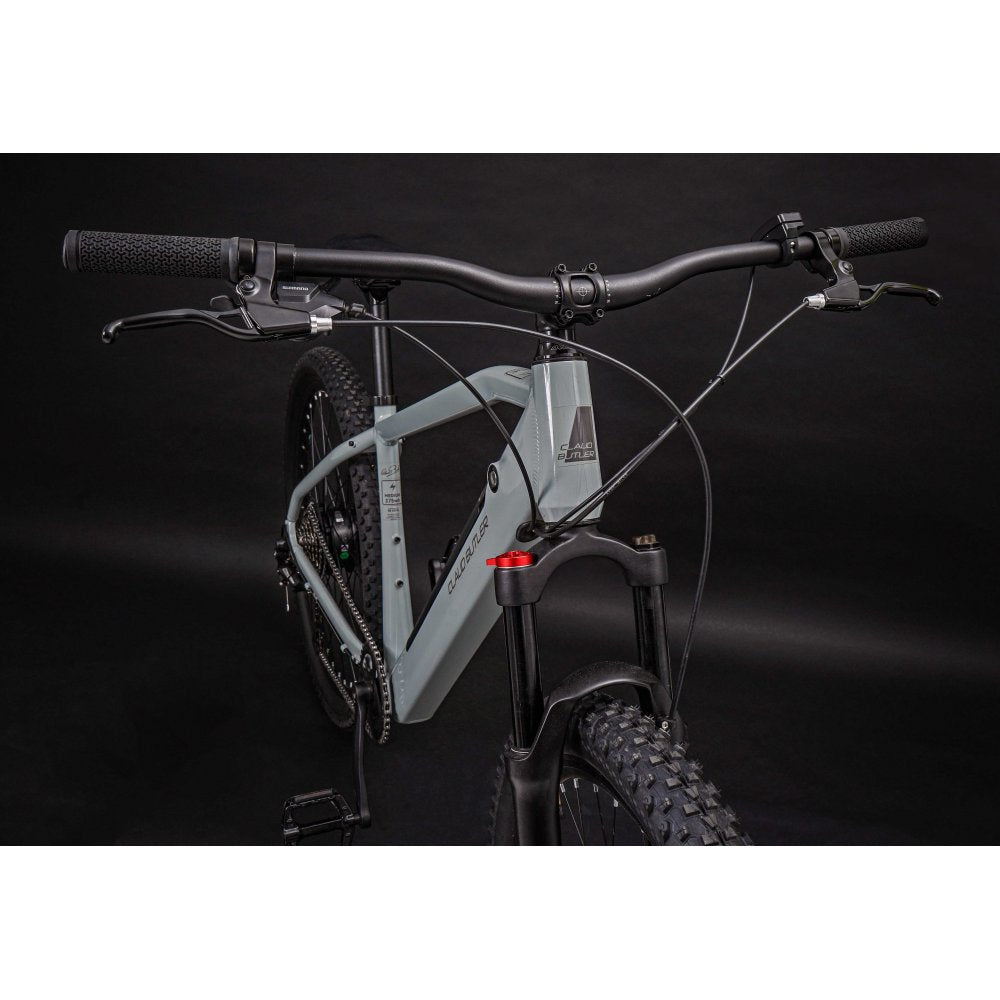

Handlebar: Aluminium, 780mm wide, 25mm rise
Stem: Aluminium, 50mm reach, 31.8mm
Grips: Lock on grips, Black
Gear Shifters: Shimano Altus SL-M315 trigger shifter, 8 speed

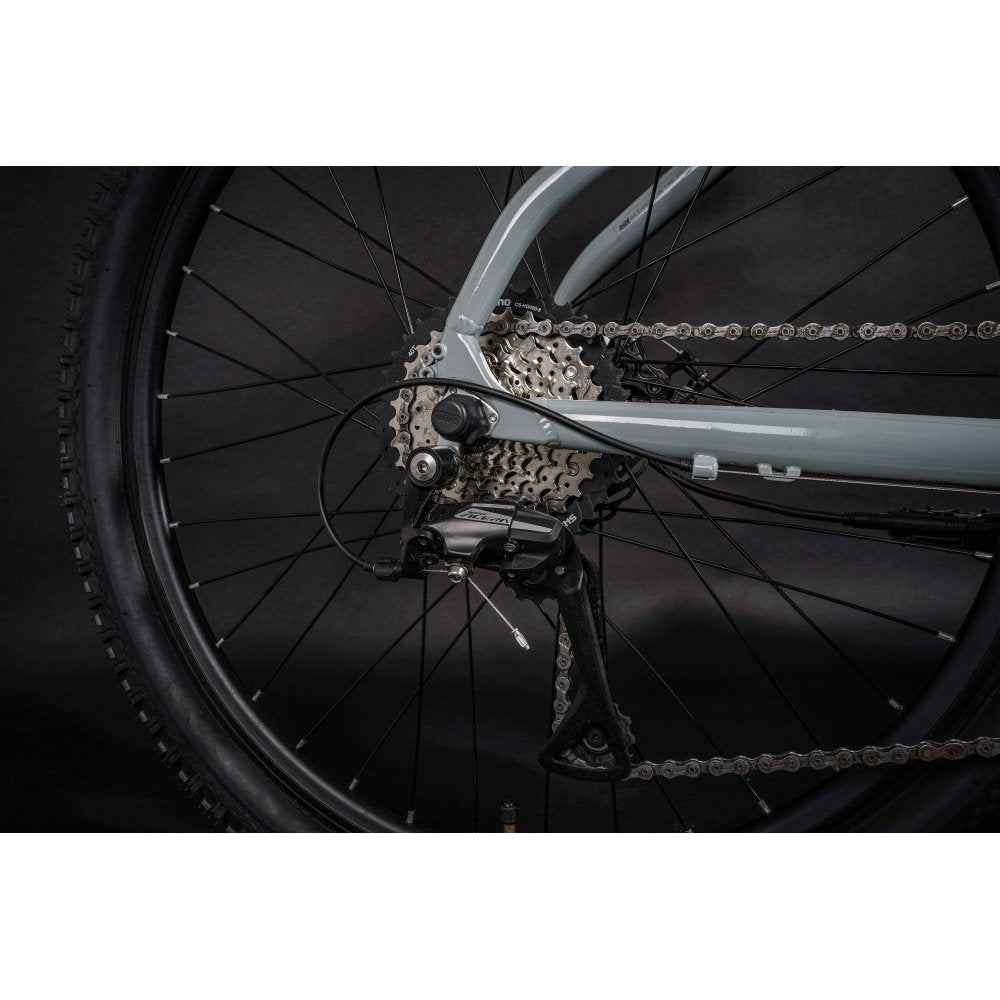

Rear Derailleur: Shimano Acera RD-M3020, 8 speed
Chain: Taya eOcto eBike specific, 8 speed
Cassette/Freewheel: Shimano, 11-34T, 8 speed
Chainset: Electrum alloy, 38T, 170mm crank arms
Number of Gears: 8
Pedals: MTB platform pedals
Brakes: JAK7 mechanical disc brakes, Semi-metallic pads, 160mm rotors
Brake Levers: Alloy, Black
Front Hub: Alloy with quick release, Black
Rims: 27.5" double wall alloy, 36 hole
Tyres: Ralson Vector, 27.5x2.35"
Saddle: Selle Royal
Seat Post: Alloy, 27.2x350mm, Black
