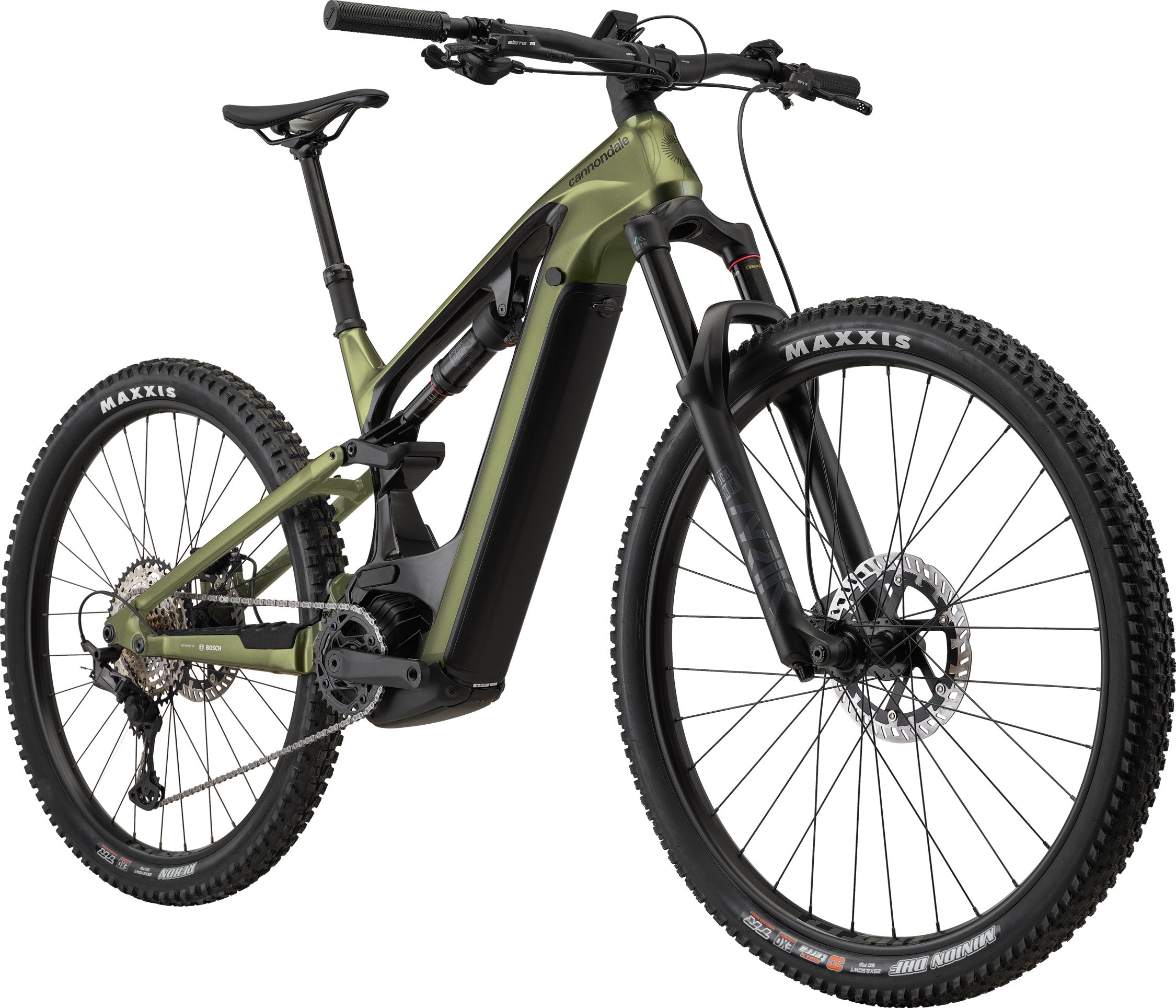

A dual-suspension e-mountain bike built to crush boundaries. With its intuitive handling, smooth power and huge range, nothing is out of reach.
Bosch's most powerful eMTB drive unit, the Performance Line CX, delivers an unreal riding experience. With 85Nm of available torque, it can boost your output by up to 340% in a completely natural, intuitive-feeling way. This is e-mountain bike power at its best.
Riders come in all sizes, but our Proportional Response suspension is the only design that addresses this pretty obvious fact. Each size frame gets its own custom suspension kinematics - different mounting points, links and leverage ratios - for truly size-specific suspension performance. Better traction, more efficient pedaling, and more active suspension under braking for every rider.
Go longer. Do more laps. Explore the furthest peaks.With the largest battery Bosch makes, range anxiety is a thing of the past. Charge it on the bike, or remove it easily for off-bike charging.
A sophisticated carbon fiber main frame keeps mass to a minimum. And since our engineers prioritized durability over gram counting, confidence is built in (as is a lifetime warranty).
- Trail Riding Perfection. With 150mm of travel front and rear, tons of power and incredibly capable components, this rig is at home on any trail, anywhere.
- Bosch Power. Climb higher. Shred harder. Ride further. With the largest battery and most powerful drive unit from the most respected name in e-bikes, there's no such thing as "can't".
- Built for You. Power and range are just the beginning. What makes the Moterra Neo really shine is how it handles. With our Proportional Response size-specific design, each frame size gets its own unique suspension layout, geometry, and frame construction, so it handles like it was built just for you. Because it was.
- Ride Easy. Life is hard enough, so we made it easier. Simple battery removal, rack and fender mounts, kickstand compatibility, and room for a water bottle on all sizes
Specification:
FRAMESET
Frame: 160mm travel, BallisTec Carbon Front Triangle, SmartForm C1 Alloy Swingarm, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, Ai offset drivetrain, internal cable routing, 148x12mm thru-axle, post mount brake, tapered headtube
Fork: RockShox Zeb Select, Charger RC, 160mm, DebonAir, 15x110, 51mm offset
Headset: Integrated Sealed Bearing, Tapered
Rear Shock: RockShox Deluxe Select R, DebonAir
E-SYSTEM
Drive Unit: Bosch Performance Line CX 250W
Battery: Bosch PowerTube, 625Wh
Charger: Bosch 4A
Display: Bosch Purion
DRIVETRAIN
Rear Derailleur: SRAM GX Eagle
Shifters: SRAM NX Eagle, single click, 12-speed
Chain: SRAM NX Eagle, 12-speed
Crank: FSA Bosch E-bike w/ custom Ai offset, 160mm, 34T
Rear Cogs: SRAM XG-1275 Eagle, 10-52, 12-speed
BRAKES
Brakes: Magura MT5 4-piston hydraulic disc, Magura MDR-P 220/203mm, 6-bolt rotors
Brake Levers: Magura MT5 Trail HC hydraulic disc
WHEELS
Front Hub: Formula, 15x110mm
Rear Hub: SRAM MTH 700, 12x148, XD Driver
Brake Type: Disc
Rims: WTB ST i29 TCS, 32h, tubeless ready
Spokes: DT Swiss Champion
Tire Size: 2.6
Wheel Size: 29
Tires: (F) Maxxis Assegai, 27.5/29x2.6", dual compound, EXO, tubeless ready / (R) Maxxis DHR II, 27.5/29x2.6", 3C, EXO+, tubeless ready
Front Tire: Maxxis Assegai, 27.5/29x2.6", dual compount, EXO, tubeless ready
Rear Tire: Maxxis DHR II, 27.5/29x2.6", 3C, EXO+, tubeless ready
COMPONENTS
Handlebar: Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
Stem: Cannondale 1, 3D Forged 6061 Alloy, 1-1/8", 31.8, 7°
Grips: Fabric FunGuy
Saddle: Fabric Scoop Shallow Sport, steel rails
Seatpost: Cannondale DownLow Dropper, internal routing, 31.6, 100mm (S), 125mm (M), 150mm (L-XL)
